Name: Суич Hikvision DS-3E1318P-EI/M, 1000Mbps, 18 порта, 16x 10/100Mbps PoE, 1x 10/100/1000Mbps RJ45, 1x 10/100/1000Mbps combo
Brand: Hikvision
SKU: NTLHHIKVISIONDS3E1318PEIM
Price: 252.08 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Документация

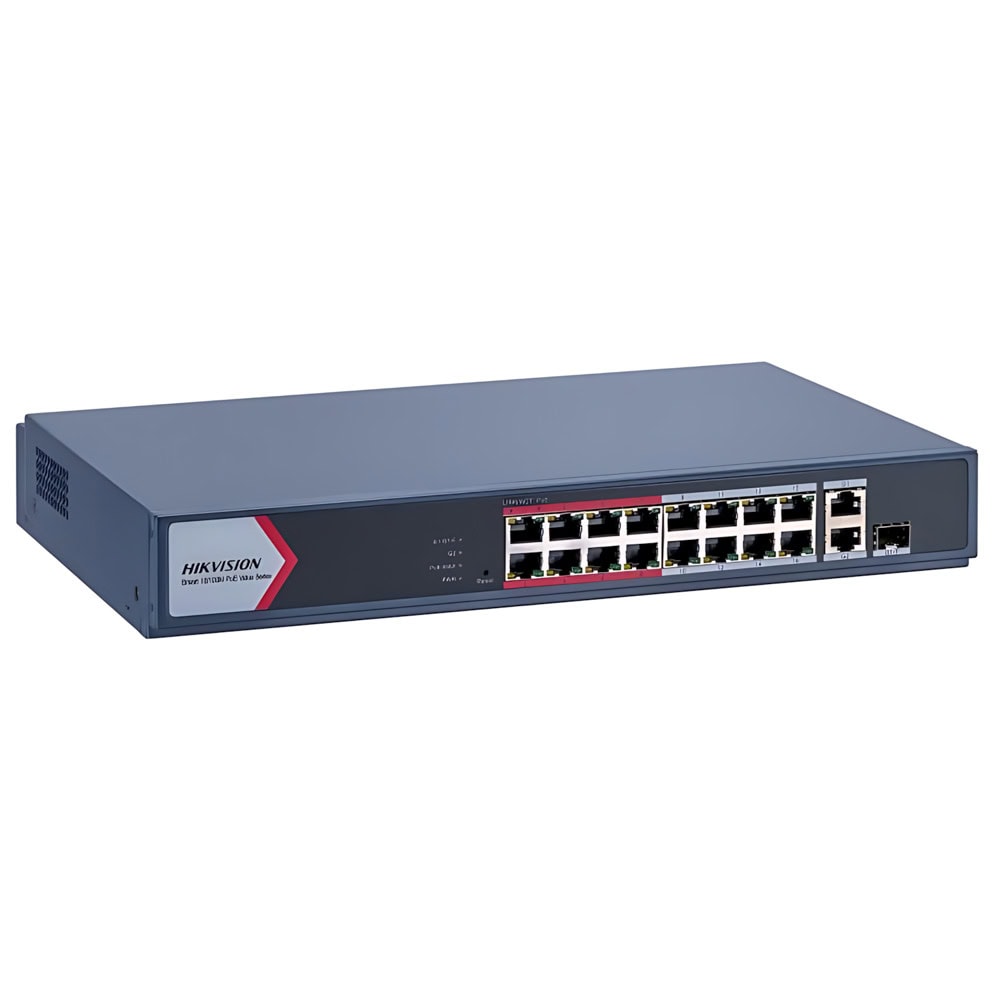

HikVision DS-3E1318P-EI/M

16 Port Fast Ethernet Smart POE Switch

16 × 10/100M PoE ports, 1 × Gigabit RJ45 port,1 × Gigabit combo
Total PoE Power Budget 130 W
Support 802.1Q VLAN
Support PoE watchdog to detect and restart the cameras that do not respond
Support STP/RSTP Loop prevention
Support cable detection to locate failure
Up to 300 m Long Range PoE Transmission
6 kV Surge Protection

Parameter	Specification
Shell	Metal material
Net Weight	1.8 kg (4.0 lb)
Gross Weight	3.0 kg (6.6 lb)
Dimensions (W × H × D)	440.00 mm × 44.00 mm × 220.80 mm (17.32" × 1.73" × 8.69")
Operating Temperature	0 °C to 45 °C (0 °F to 113 °F)
Storage Temperature	-40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity	5% to 95% (no condensation)
Relative Humidity	5% to 95% (no condensation)
Power Supply	100–240 VAC, 50/60 Hz, Max. 3 A
Installation Mode	Rack (equipped with mounting ears)
Max. Power Consumption	150 W
Power Consumption (Idle)	20 W
Surge Protection	6 kV
Ports	16 × 10/100 Mbps PoE ports, 1 × Gigabit RJ45 port, 1 × Gigabit combo
MAC Address Table	16 K
Switching Capacity	Whole device: 9.2 Gbps; Ports: 7.2 Gbps
Packet Forwarding Rate	Whole device: 6.84 Mpps; Ports: 5.36 Mpps
Internal Cache	4 Mbits
PoE Standard	IEEE 802.3af, IEEE 802.3at
PoE Power Pin	1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Ports	Ports 1–16
Max. Port Power	30 W
PoE Power Budget	130 W
Long Range	Ports 1–16 up to 300 m (depends on camera/cable)
VIP Port	Ports 1–8 prioritized when bandwidth is limited
Port Isolation	Ports 1–16 isolated within group, communicate outside group
PoE Watchdog	Auto-detect and restart non-responsive cameras
Link Aggregation	Static aggregation, 1 aggregation group supported
Loop Prevention	Supports 802.1D STP, 802.1w RSTP (disabled by default)
VLAN	802.1Q VLAN, ID 1–4094, Trunk/Access mode, Max 4094 VLANs
HPP (Hik-Partner Pro)	Remote management, monitoring, topology, alarms, port/device restart, long-range mode, firmware upgrade
System Maintenance	Web management, DHCP client, Super IP (10.180.190.200), Hik-Central Pro & Hik-Partner Pro support, cable detection, LLDP (802.1ab), port mirroring
