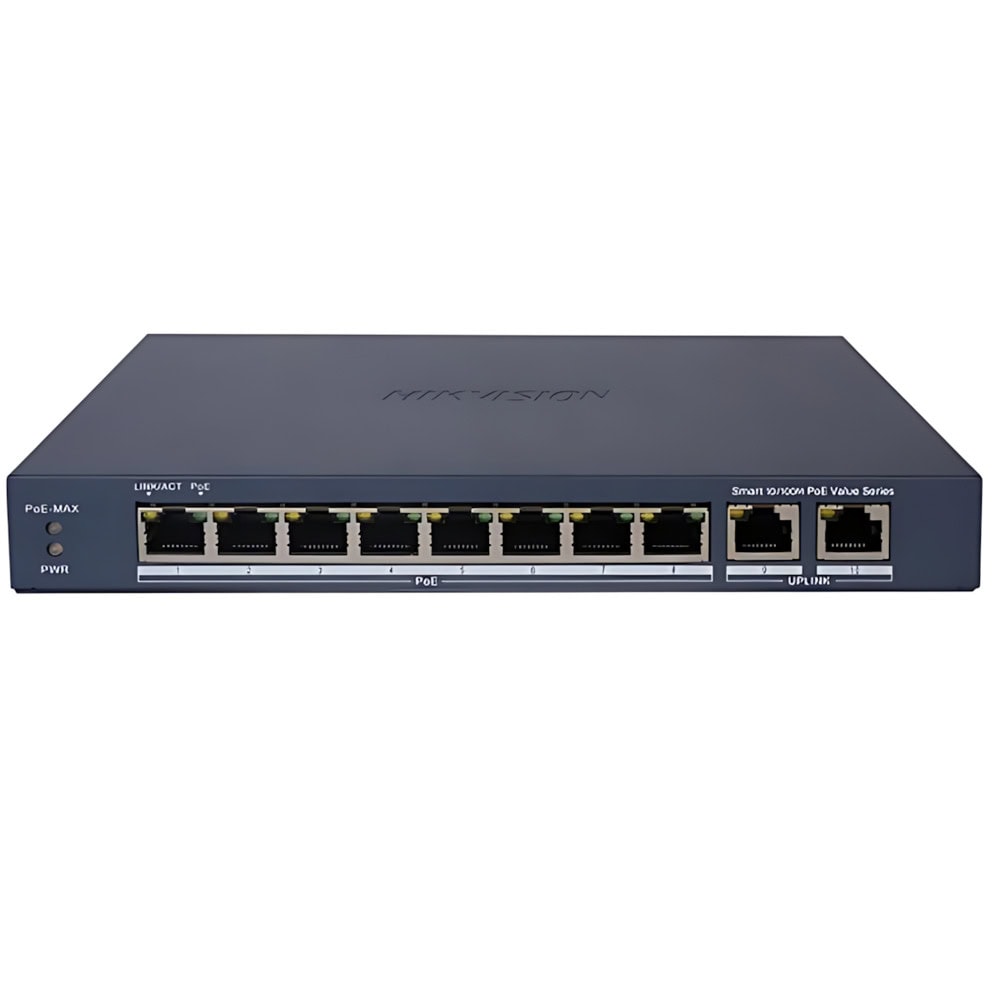

Name: Суич Hikvision DS-3E1310P-EI/M, 1000Mbps, 10 порта, 8x 10/100Mbps PoE, 2x 10/100/1000Mbps RJ45
Brand: Hikvision
SKU: NTLHHIKVISIONDS3E1310PEIM
Price: 83.62 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Документация

DS-3E1310P-EI/M

8 Port Fast Ethernet Smart POE Switch

8 × 10/100 Mbps PoE ports, 2 × Gigabit RJ45 port
Total PoE Power Budget 60 W
Support 802.1Q VLAN
Support PoE watchdog to detect and restart the cameras that do not respond
Support STP/RSTP Loop prevention
Support cable detection to locate failure
Up to 300 m Long Range PoE Transmission
6 kV Surge Protection

Parameter	Specification
Shell	Metal material
Net Weight	0.54 kg (1.19 lb)
Gross Weight	1.08 kg (2.38 lb)
Dimensions (W × H × D)	217.6 mm × 27.6 mm × 108.5 mm (8.57″ × 1.09″ × 4.27″)
Operating Temperature	0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature	-40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity	5% to 95% (no condensation)
Relative Humidity	5% to 95% (no condensation)
Power Supply	DC 54 V, 1.2 A
Installation Mode	Desk-Mounted, Wall-Mounted
Max. Power Consumption	65 W
Power Consumption in Idle	5 W
Surge Protection	6 kV
Ports	8 × 10/100 Mbps PoE ports, 2 × Gigabit RJ45 ports
MAC Address Table	4 K
Switching Capacity	Whole-Device: 9.6 Gbps; Port: 5.6 Gbps
Packet Forwarding Rate	Whole-Device: 7.14 Mpps; Port: 4.17 Mpps
Internal Cache	2 Mbits
PoE Standard	IEEE 802.3af, IEEE 802.3at
PoE Power Pin	End-span: 1/2(-), 3/6(+)
PoE Port	Ports 1 to 8
Max. Port Power	30 W
PoE Power Budget	60 W
Long Range	Ports 1–8 up to 300 m (depends on camera/cable)
Port Isolation	Ports 1–8 isolated; cannot communicate within group
PoE Watchdog	Auto-detect and restart unresponsive cameras
Loop Prevention	802.1D STP, 802.1w RSTP (disabled by default)
VLAN	802.1Q, VLAN ID 1–4094, Trunk/Access, max 4094 VLANs
HPP Management	Hik-Partner Pro remote monitoring, control, upgrade
System Maintenance	Web management, DHCP client, Super IP (10.180.190.200), Hik-Central Pro, Hik-Partner Pro, cable detection, 802.1ab LLDP, port mirroring
