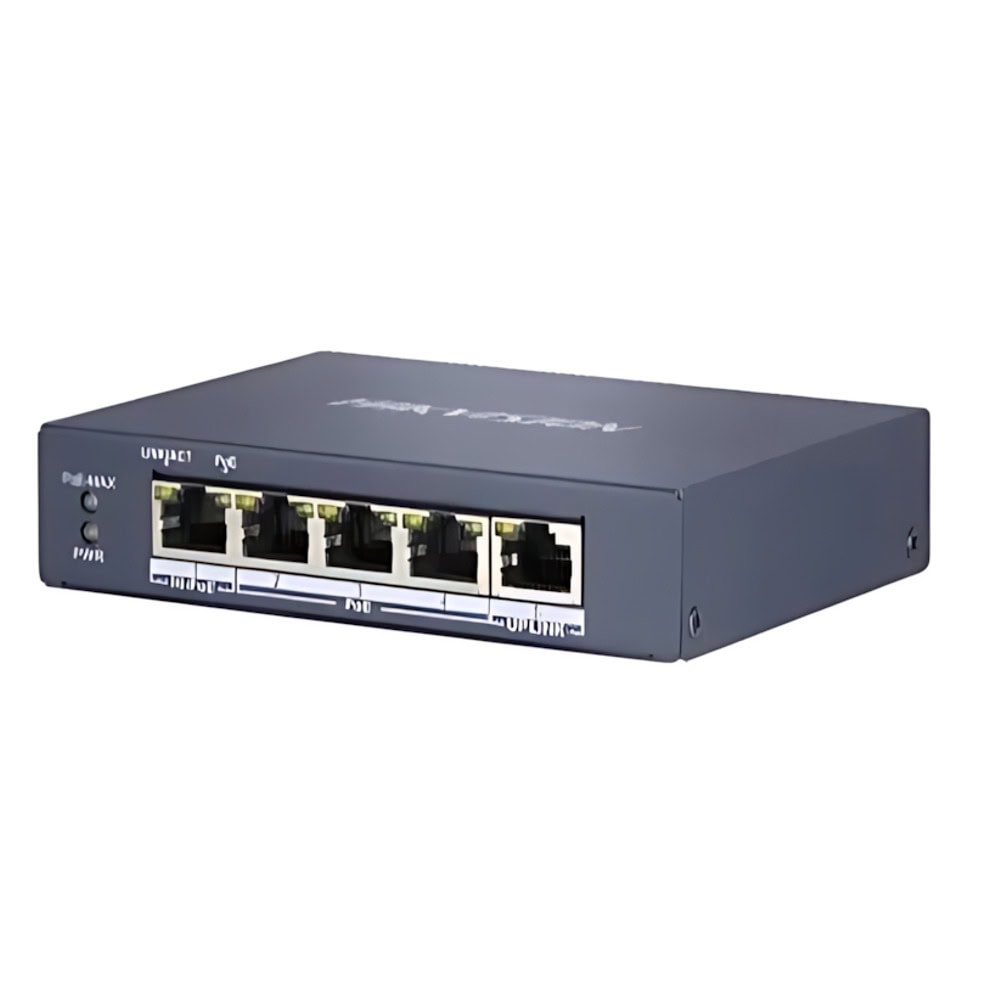

DS-3E0505HP-E
4 Port Gigabit Unmanaged POE Switch
- 3 × gigabit PoE port, 1 × gigabit Hi-PoE port and 1 × gigabit RJ45 port.
- IEEE 802.3at/af/bt standard for Hi-PoE port (Max. 60 W PoE output).
- IEEE 802.3at/af standard for PoE ports (Max. 30 W PoE output).
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, and IEEE 802.3ab standard.
- 6 kV surge protection for PoE ports.
- Up to 300 m long-range transmission.
- PoE watchdog to auto detect and restart the cameras that do not respond.
- Port isolation to improve network security.
- Gigabit network access design.
- Wire-speed forwarding.
- Store-and-forward switching.
- Solid high-strength metal shell.
- Reliable fan-free design.
| Parameter | Specification |
|---|---|
| Shell Material | Metal material, fan-free design |
| Net Weight | 0.27 kg (0.59 lb) |
| Gross Weight | 0.43 kg (0.95 lb) |
| Dimensions (W × H × D) | 121.0 mm × 88.1 mm × 27.6 mm (4.76" × 3.47" × 1.09") |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Power Supply | 48 VDC, 1.35 A |
| Max. Power Consumption | 65 W |
| Power Consumption (Idle) | 5 W |
| Installation Mode | Desk-mounted |
| Surge Protection | 6 KV |
| Ports | 4 × Gigabit PoE ports, 1 × Gigabit RJ45 port |
| MAC Address Table | 2 K |
| Switching Capacity | 10 Gbps |
| Packet Forwarding Rate | 7.44 Mpps |
| Internal Cache | 1 Mbit |
| PoE Standard | IEEE 802.3af / IEEE 802.3at / IEEE 802.3bt |
| PoE Power Pin | 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| PoE Port | Hi-PoE: Port 1; PoE: Ports 2–4 |
| Max. Port Power | Port 1: 60 W; Ports 2–4: 30 W |
| PoE Power Budget | 60 W |
| Long Range | Ports 3–4: up to 300 m (depends on camera model/cable) |
| Port Isolation | Ports 1–4: isolation mode for network security |
| PoE Watchdog | Ports 1–4: auto detect and restart unresponsive cameras |
Виж още Суич Hikvision
Виж всички продукти Суич в категорията
Документация
DS-3E0505HP-E.pdfТехнически характеристики
| Брой портове: | 5 |
|---|---|
| Максимална скорост: | 1 Gbit/s |
| Стандарт: | 802.3ab |
| Управляем: | Не |
