Name: Суич HikVision DS-3E0310P-E/M(B), 1000Mbps, 10 порта, 8x 10/100Mbps RJ-45 PoE, 2x 10/100/1000Mbps RJ-45
Brand: Hikvision
SKU: NTLHHIKVISIONDS3E0310PEMB
Price: 85.64 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Документация

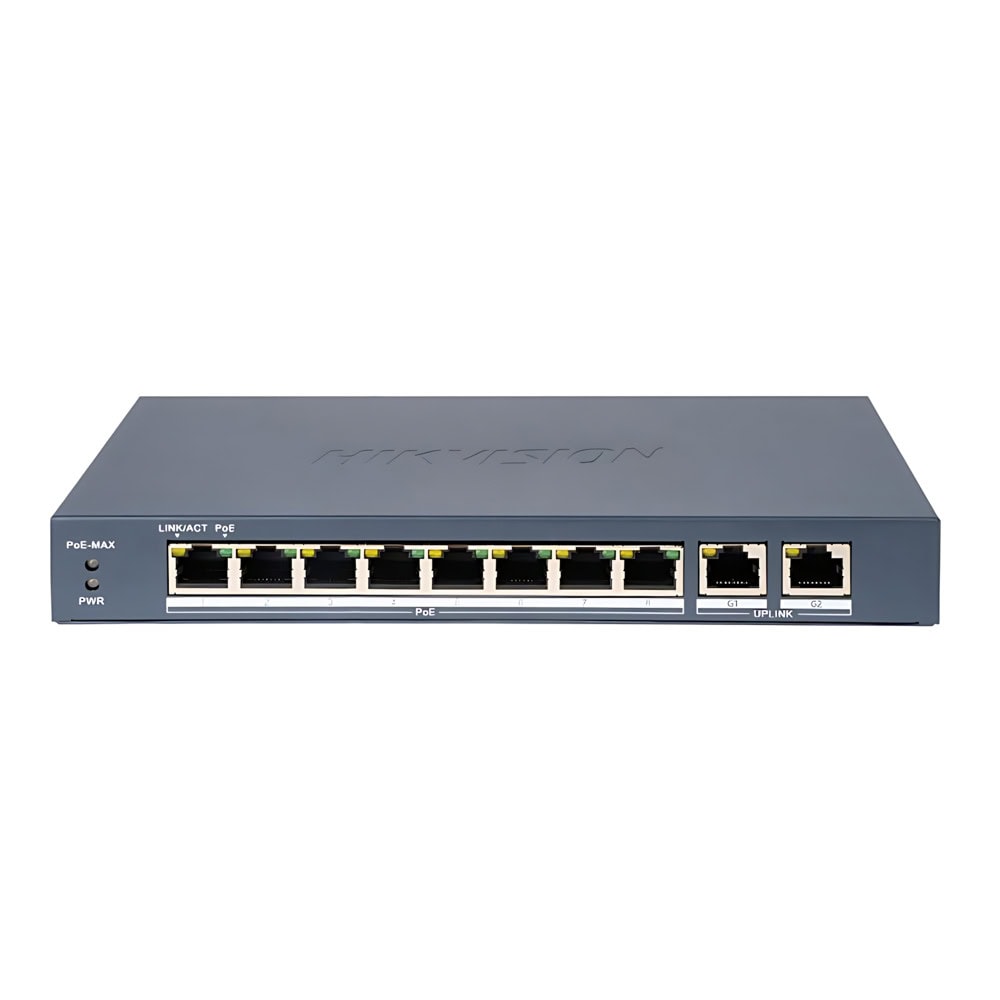

DS-3E0310P-E/M(B)

8 Port Fast Ethernet Unmanaged POE Switch

8 × 10/100 Mbps PoE port, and 2 × Gigabit RJ45 port.
IEEE 802.3at/af standard for PoE ports (Max. 80 W PoE output).
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab standard.
6 kV surge protection for PoE ports.
Up to 300 m long-range transmission.
Wire-speed forwarding.
Store-and-forward switching.
Solid high-strength metal shell.
Reliable fan-free design.

Parameter	Specification
Shell	Metal material
Net Weight	0.555 kg (1.22 lb)
Gross Weight	1.20 kg (2.65 lb)
Dimensions (W × H × D)	217.60 mm × 27.60 mm × 108.50 mm (8.56" × 1.08" × 4.27")
Operating Temperature	0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature	–40 °C to 85 °C (–40 °F to 185 °F)
Operating Humidity	5% to 95% (no condensation)
Relative Humidity	5% to 95% (no condensation)
Power Supply	54 VDC, 1.2 A
Max. Power Consumption	86 W
Power Consumption (Idle)	5 W
Installation Mode	Desk-Mounted, Wall-Mounted
Surge Protection	6 kV
Ports	8 × 10/100 Mbps PoE ports, 2 × Gigabit RJ45 ports
MAC Address Table	8 K
Switching Capacity	5.6 Gbps
Packet Forwarding Rate	4.17 Mpps
Internal Cache	4 Mbits
PoE Standard	IEEE 802.3af; IEEE 802.3at
PoE Power Pin	End-span: 1/2 (-), 3/6 (+)
PoE Port	Ports 1 to 8
Max. Port Power	30 W
PoE Power Budget	80 W
Long Range	Ports 1 to 8: up to 300 m (performance depends on camera model or cable condition)
