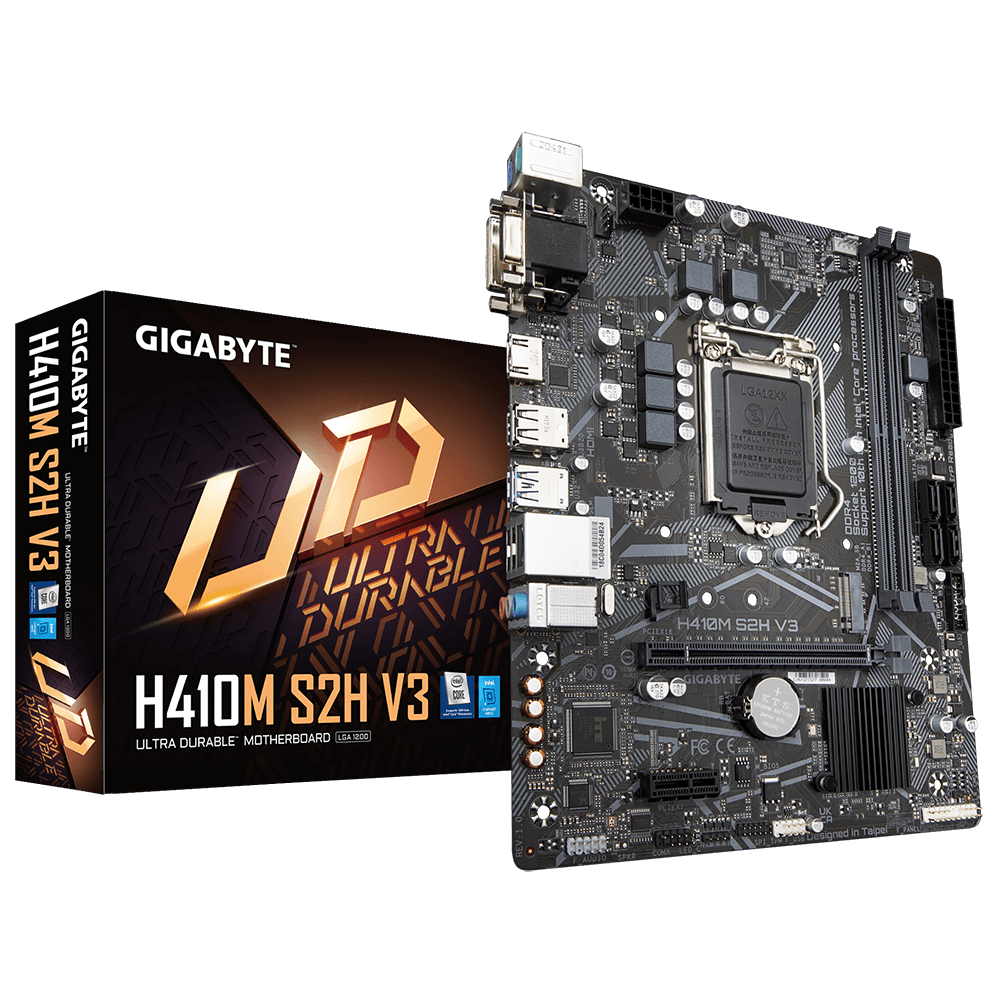

Gigabyte H410M S2H V3
Икона в кампания
Gigabyte H410M S2H V3Gigabyte H410M S2H V3Gigabyte H410M S2H V3Gigabyte H410M S2H V3

Дънна платка Gigabyte H410M S2H V3, H410, LGA1200, DDR4, PCI-E 3.0 (HDMI/DVI/VGA), 4x SATA 6Gb/s, 1x M.2, 2x USB 3.2 Gen 1, Micro ATX

id 209297 Код: MBIGIGABYTEH410MS2HV3
  • Модел: H410M S2H V3
  • Марка: Gigabyte
  • Код на продукта: H410M S2H V3
  • Поддържана памет: DDR4
  • RAID: Не
  • Безжични мрежи: Не
  • Bluetooth: Не
  • Видео слот: PCI-E
  • Multi-Graphics технология: Няма
  • Гаранция: 36 месеца
  • Наличност: Стар продукт
    ОписаниеХарактеристикиРевюта / Въпроси

    Intel® Ultra Durable Motherboard with GIGABYTE Gaming GbE LAN, PCIe Gen3 x4 M.2, HDMI / DVI-D/ D-Sub Ports for Multiple Display, Anti-Sulfur Resistor, Smart Fan 5

    • Supports 10th Gen Intel® Core™ Processors
    • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
    • 8-Channel HD Audio with High Quality Audio Capacitors
    • NVMe PCIe Gen3 x4 2280 M.2 Connector
    • GIGABYTE Gaming GbE LAN with Bandwidth Management
    • HDMI /DVI-D/D-Sub Ports for Multiple Display
    • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
    • GIGABYTE APP Center, Simple and Easy Use
    • Anti-Sulfur Resistors Design







    Specifications:

    • CPU
      1. Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/ Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1200 package
      2. L3 cache varies with CPU
      (Please refer to "CPU Support List" for more information.)
    • Chipset
      1. Intel® H510 Express Chipset
    • Memory
      1. Intel® Core™ i9/i7 processors:
        Support for DDR4 2933/2666/2400/2133 MHz memory modules
      2. Intel® Core™ i5/i3/Pentium®/Celeron® processors:
        Support for DDR4 2666/2400/2133 MHz memory modules
      3. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
      4. Dual channel memory architecture
      5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
      6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
      7. Support for Extreme Memory Profile (XMP) memory modules
      (Please refer "Memory Support List" for more information.)
    • Onboard Graphics
      Integrated Graphics Processor-Intel® HD Graphics support:
      1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
      2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
        * The DVI-D port does not support D-Sub connection by adapter.
      3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
        * Support for HDMI 1.4 version and HDCP 2.3.
      Maximum shared memory of 512 MB
      (Graphics specifications may vary depending on CPU support.)
    • Audio
      1. Realtek® Audio CODEC
      2. High Definition Audio
      3. 2/4/5.1/7.1-channel
        * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
    • LAN
      1. Gigabit Ethernet Chip (1 Gbps/100 Mbps)
    • Expansion Slots
      1. 1 x PCI Express x16 slot, running at x16
      2. 1 x PCI Express x1 slot
        (The PCI Express slots conform to PCI Express 3.0 standard.)
    • Storage Interface
      1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support)
      2. 4 x SATA 6Gb/s connectors
    • USB
      Chipset:
      1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
      2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
    • Internal I/O Connectors
      1. 1 x 24-pin ATX main power connector
      2. 1 x 8-pin ATX 12V power connector
      3. 4 x SATA 6Gb/s connectors
      4. 1 x CPU fan header
      5. 1 x system fan header
      6. 1 x RGB LED strip header
      7. 1 x front panel header
      8. 1 x front panel audio header
      9. 1 x USB 3.2 Gen 1 header
      10. 1 x USB 2.0/1.1 header
      11. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
      12. 1 x serial port header
      13. 1 x Clear CMOS jumper
      *All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
    • Back Panel Connectors
      1. 1 x PS/2 keyboard port
      2. 1 x PS/2 mouse port
      3. 1 x D-Sub port
      4. 1 x DVI-D port
      5. 1 x HDMI port
      6. 2 x USB 3.2 Gen 1 ports
      7. 4 x USB 2.0/1.1 ports
      8. 1 x RJ-45 port
      9. 3 x audio jacks
    • I/O Controller
      1. iTE® I/O Controller Chip
    • H/W Monitoring
      1. Voltage detection
      2. Temperature detection
      3. Fan speed detection
      4. Overheating warning
      5. Fan fail warning
      6. Fan speed control
        * Whether the fan speed control function is supported will depend on the cooler you install.
    • BIOS
      1. 1 x 256 Mbit flash
      2. Use of licensed AMI UEFI BIOS
      3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    • Unique Features
      1. Support for APP Center
        * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
        @BIOS
        Ambient LED
        EasyTune
        Fast Boot
        Game Boost
        ON/OFF Charge
        Smart Backup
        System Information Viewer
      2. Support for Q-Flash
      3. Support for Xpress Install
    • Bundled Software
      1. Norton® Internet Security (OEM version)
      2. Realtek® 8118 Gaming LAN Bandwidth Control Utility
    • Operating System
      1. Support for Windows 10 64-bit




    Виж още Дънни платки за Intel процесори Gigabyte
    Виж всички Дънни платки за Intel процесори в категорията
    Технически характеристики
    Процесор сокет:  LGA 1200
    Чипсет:  H410
    Поддържана памет:  DDR4
    Брой слотове за RAM памет:  2
    Storage интерфейси:  SATA 6Gbit/s, M.2
    RAID:  Не
    Безжични мрежи:  Не
    Bluetooth:  Не
    Видео слот:  PCI-E
    Multi-Graphics технология:  Няма
    Видео изход:  HDMI DVI VGA (D-Sub)
    Форм фактор:  Micro ATX
