Дънна платка ASRock B860M Pro-A WiFi, B860, LGA1851, DDR5, PCI-E 5.0 (DP&HDMI), 4x SATA 6Gb/s, 3x M.2 slots, 1x USB 3.2 Gen2x2 Type-C, 2.5GbE LAN, WI-FI 6E, Bluetooth 5.3, Micro ATX

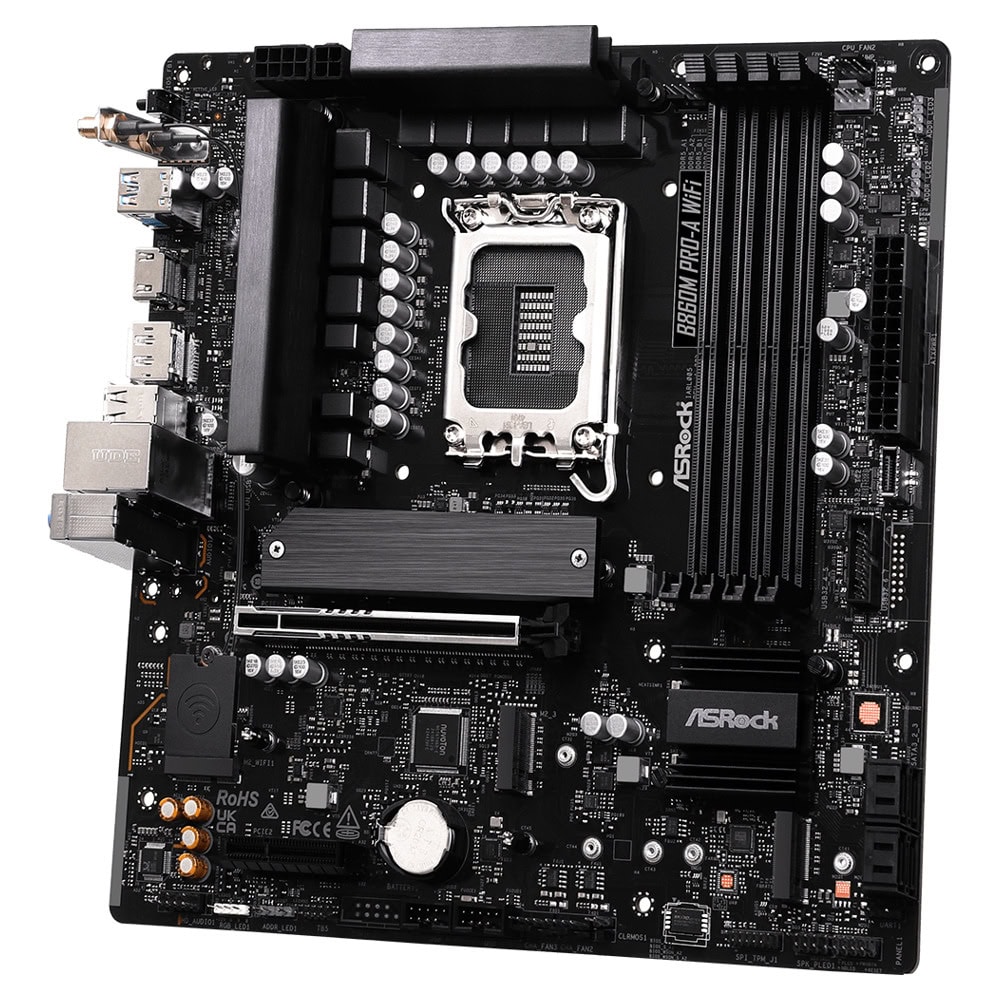

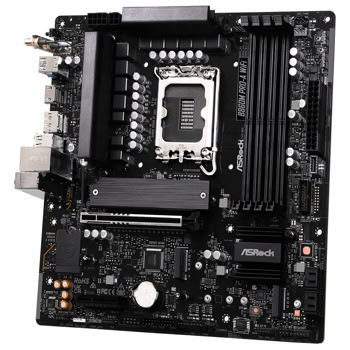

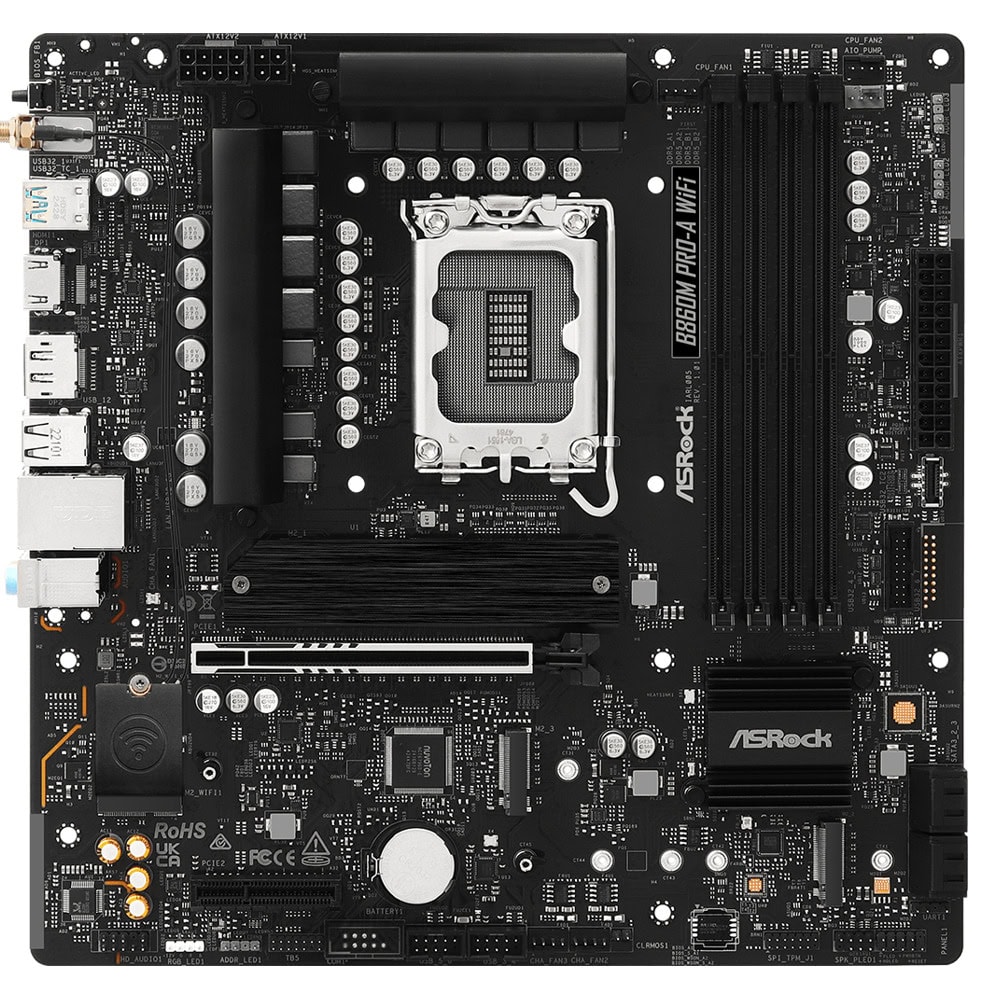

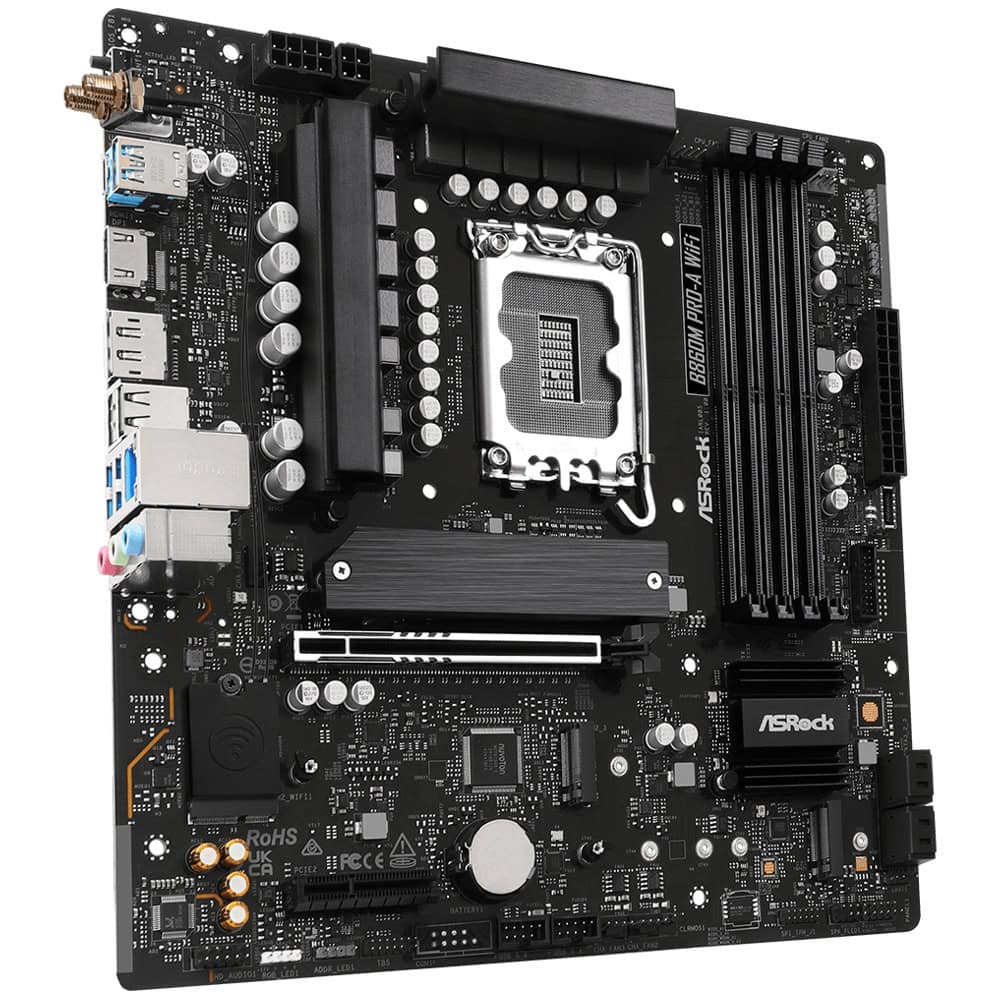

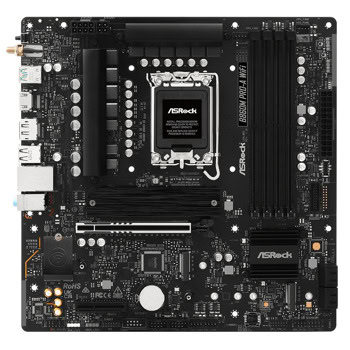

ASRock B860M Pro-A WiFi

Pro-A series is designed for enhanced stability, durability, and efficiency, it offers reliable performance, user-friendly features and a streamlined aesthetic, making it ideal for daily computing needs.

• Unique Feature

  Superb Productivity
  - PCIe Gen5 (Graphics, M.2)
  - Dual Channel DDR5
  Rock-Solid Durability
  - 10+1+1+1+1 Power Phase, Dr.MOS for VCore+GT+SA
  Ultrafast Connectivity
  - 2.5G LAN, 802.11axe Wi-Fi 6E Module
  EZ Update
  - BIOS Flashback Button
  - ASRock Auto Driver Installer
  EZ Troubleshooter
  - ASRock Post Status Checker

• CPU

  - Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)
  - Supports Intel® Hybrid Technology
  - Supports Intel® Turbo Boost Max 3.0 Technology
  - Supports Intel® Thermal Velocity Boost (TVB)
  - Supports Intel® Adaptive Boost Technology (ABT)
  - Integrated NPU for dedicated AI acceleration

• Chipset

  - Intel® B860

• Memory

  - Dual Channel DDR5 Memory Technology
  - 4 x DDR5 DIMM Slots
  - Supports DDR5 non-ECC, un-buffered memory up to 8666+(OC)*
  - Supports Clocked Unbuffered DIMM (CUDIMM)
  - Max. capacity of system memory: 256GB
  - Supports Intel® Extreme Memory Profile (XMP) 3.0x



  *1DPC 1R Up to 8666+ MHz (OC), 5600 MHz Natively. 1DPC 2R Up to 6800+ MHz (OC), 5600 MHz Natively. 2DPC 1R Up to 6533+ MHz (OC), 4800 MHz Natively. 2DPC 2R Up to 5600+ MHz (OC), 4400 MHz Natively.

• BIOS

  - 256Mb AMI UEFI Legal BIOS with GUI support

• Graphics

  - Intel® Xe LPG Graphics Architecture
  - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
  - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz



  * Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

• Audio

  - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

• LAN

  - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
  - Dragon RTL8125BG
  - Supports Dragon 2.5G LAN Software
  - Smart Auto Adjust Bandwidth Control
  - Visual User Friendly UI
  - Visual Network Usage Statistics
  - Optimized Default Setting for Game, Browser, and Streaming Modes
  - User Customized Priority Control

• Wireless LAN

  - 802.11axe Wi-Fi 6E Module
  - Supports IEEE 802.11a/b/g/n/ac/ax/axe
  - Supports Dual-Band 2x2 with extended 6GHz band* support
  - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
  - Supports Bluetooth 5.3
  - Supports MU-MIMO



  *The 6GHz band of Wi-Fi 6E module is supported by Microsoft Windows® 11 only. The availability of the 6GHz band will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.
  A 6GHz compatible router is required for 6E functionality.

• Slots

  CPU:
  - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
  Chipset:
  - 1 x PCIe 4.0 x4 Slot (PCIE2), supports x4 mode*
  - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)



  * Supports NVMe SSD as boot disks

• Storage

  CPU:
  - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
  Chipset:
  - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
  - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
  - 4 x SATA3 6.0 Gb/s Connectors



  * Supports Intel® Volume Management Device (VMD)
  Supports NVMe SSD as boot disks

• RAID

  - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

• USB

  CPU:
  - 1 x USB 3.2 Gen2x2 Type-C (Rear)
  Chipset:
  - 1 x USB 3.2 Gen1 Type-C (Front)
  - 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
  - 6 x USB 2.0 (2 Rear, 4 Front)



  * All USB ports support ESD Protection

• Connector

  - 1 x SPI TPM Header
  - 1 x Power LED and Speaker Header
  - 1 x RGB LED Header*
  - 3 x Addressable LED Headers**
  - 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)***
  - 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
  - 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
  - 1 x 24 pin ATX Power Connector
  - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
  - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
  - 1 x Front Panel Audio Connector
  - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
  - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 port)
  - 1 x Front Panel Type C USB 3.2 Gen1 Header



  * Supports in total up to 12V/3A, 36W LED Strip
  ** Support in total up to 5V/3A, 15W LED Strip
  *** CPU_FAN1 supports the fan power up to 1A (12W).
  CPU_FAN2, CHA_FAN1~3 and AIO_PUMP support the fan power up to 3A (36W).
  CPU_FAN2, CHA_FAN1~3 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.

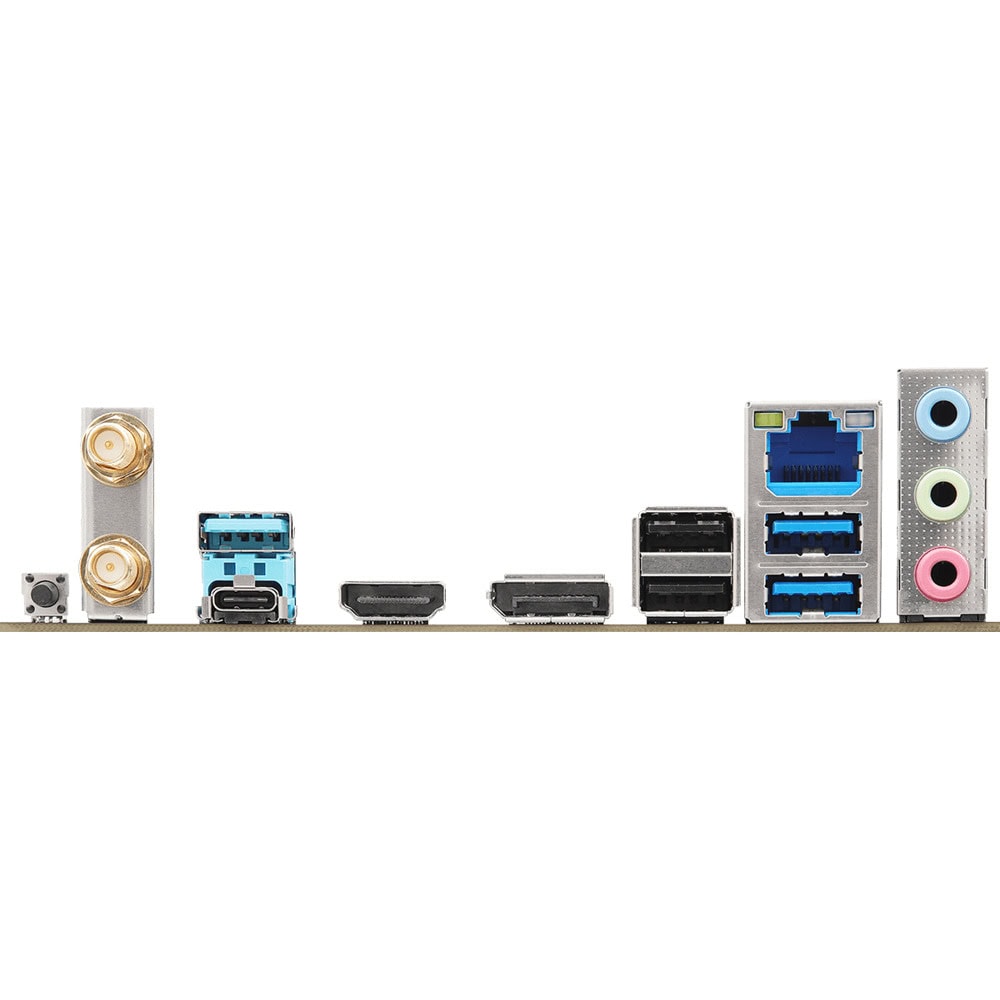

• Rear Panel I/O

  - 2 x Antenna Ports
  - 1 x HDMI Port
  - 1 x DisplayPort 1.4
  - 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
  - 3 x USB 3.2 Gen1 Ports
  - 2 x USB 2.0 Ports
  - 1 x RJ-45 LAN Port
  - 1 x BIOS Flashback Button
  - HD Audio Jacks: Line in / Front Speaker / Microphone

• Software and UEFI

  Software
  - ASRock Motherboard Utility (A-Tuning)
  - ASRock Dragon 2.5G LAN Software
  - ASRock Polychrome SYNC*
  UEFI
  - ASRock EZ Mode
  - ASRock Full HD UEFI
  - ASRock My Favorites in UEFI
  - ASRock Auto Driver Installer
  - ASRock Instant Flash



  *These utilities can be downloaded from ASRock Live Update & APP Shop.

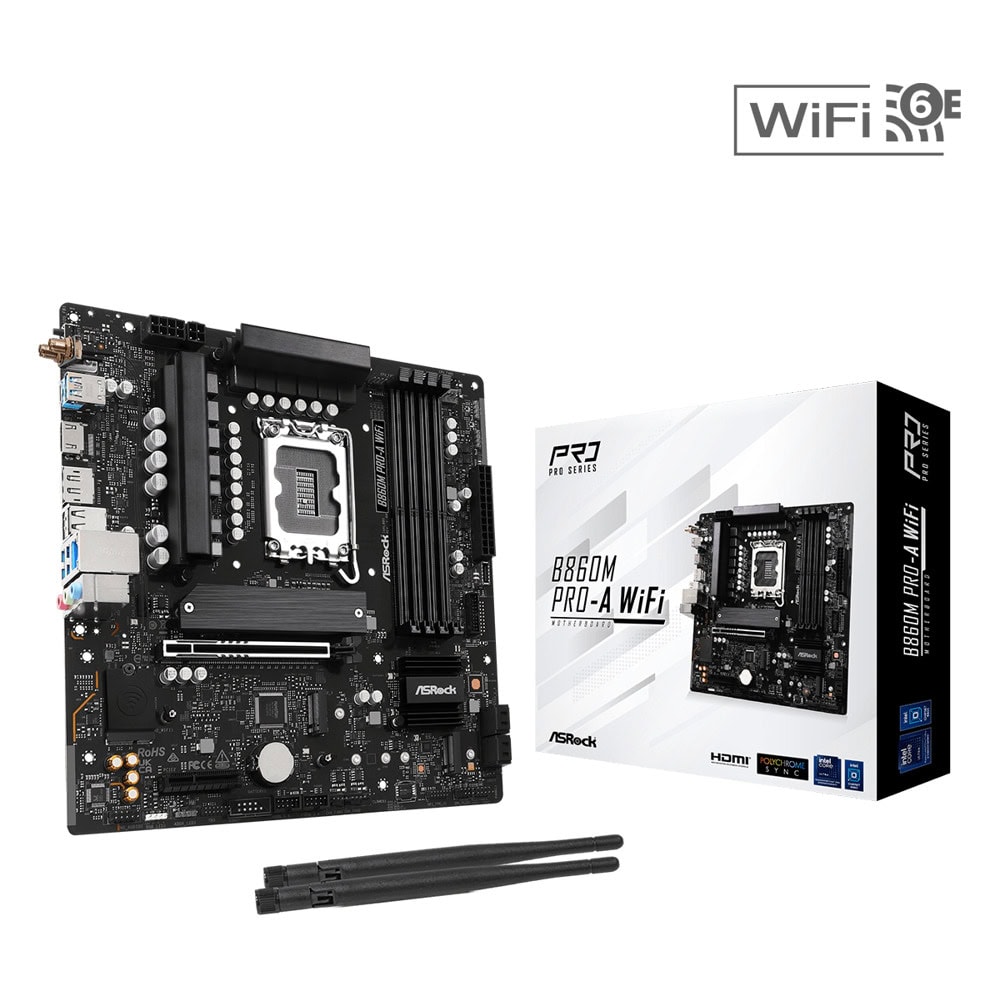

• Accessories

  - 1 x I/O Shield
  - 2 x SATA Data Cables
  - 2 x ASRock WiFi 2.4/5/6 GHz Antennas

• Form Factor

  - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm

• OS

  - Microsoft Windows® 11 64-bit

• Certifications

  - FCC, CE
  - ErP/EuP ready (ErP/EuP ready power supply is required)
