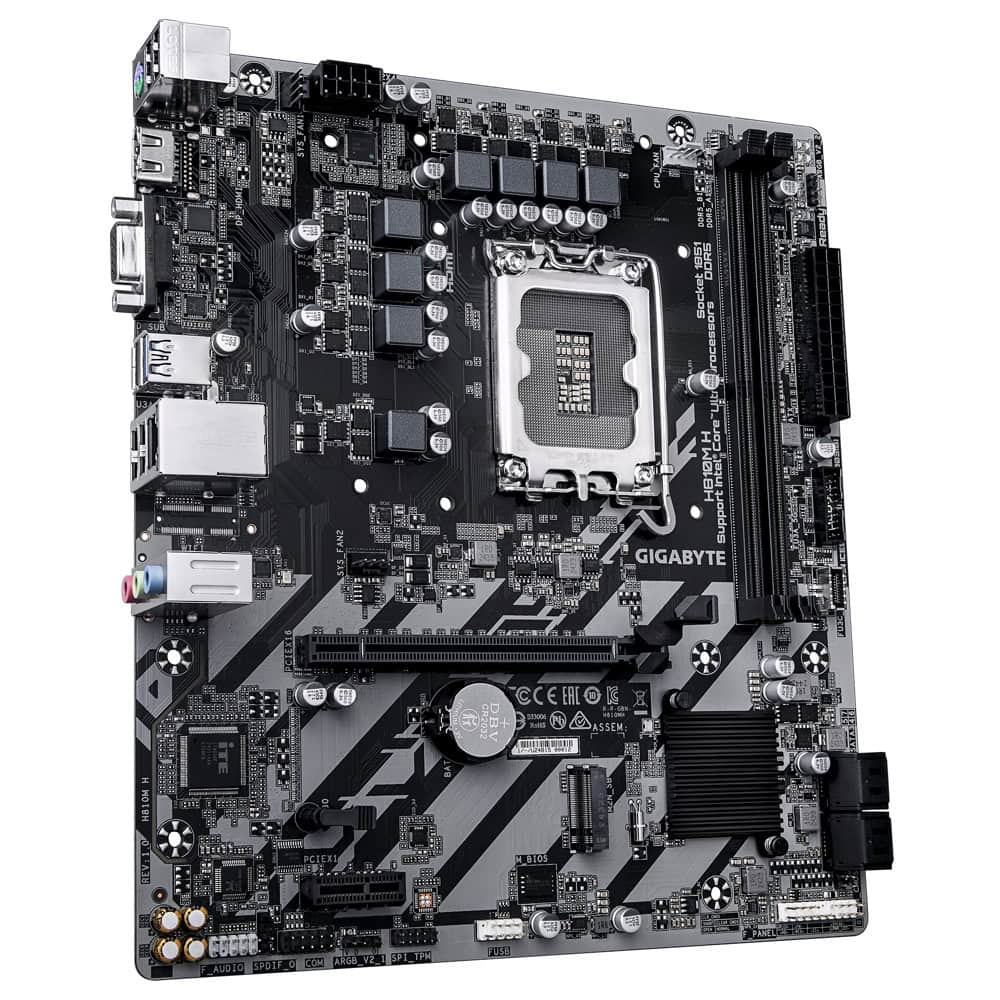

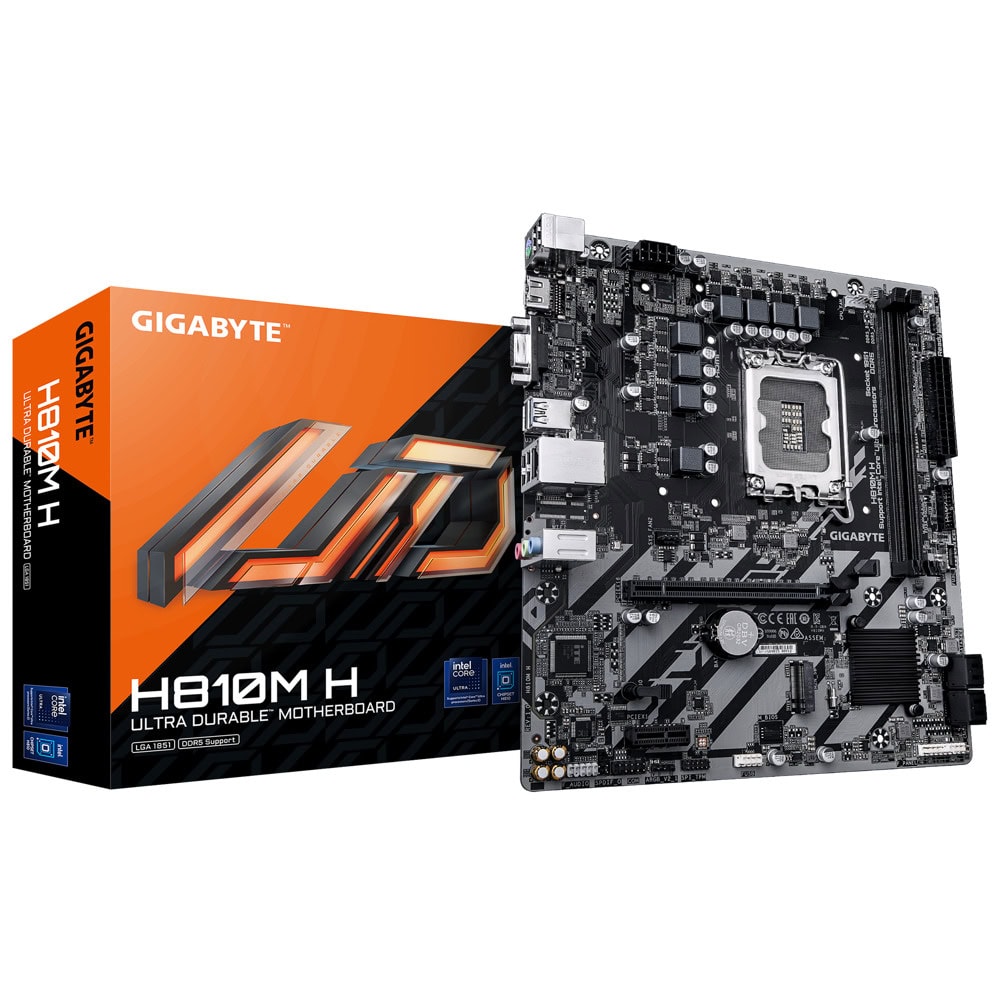

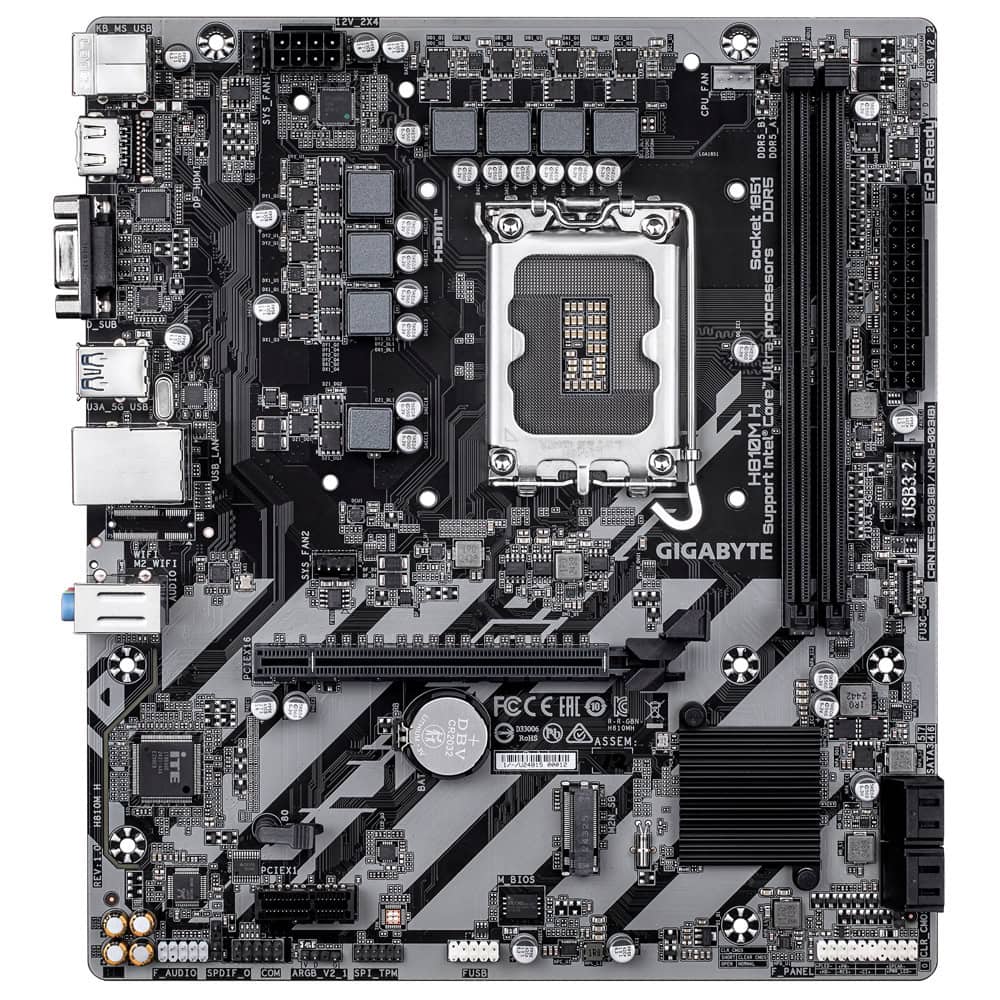

Дънна платка Gigabyte H810M H, H810, LGA1851, DDR5, PCI-E 4.0, (HDMI&VGA), 4x SATA 6Gb/s, 1x M.2, 1x USB 3.2 Gen 1 Type-C, Micro ATX

Key Features

Supports Intel® Core™ Ultra processors (Series 2)
Hybrid 4+1+2 phases VRM solution
EZ-Latch: PCIe x16 Slot with Quick Release Design
Friendly UI: Multi-Theme and Q-Flash Auto Scan in BIOS and SW
Next Generation Storage: PCIe 4.0 x4 M.2 Connectors
Fast Networking: GbE LAN
Extended Connectivity: HDMI



Durable Performance

GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.



Future Connectivity

The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.



Easy Friendly

Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.




CPU
LGA1851 socket: Support for Intel® Core™ Ultra Processors
(Go to GIGABYTE's website for the latest CPU support list.)
L3 cache varies with CPU
Chipset
Intel® H810 Express Chipset
Memory
Support for DDR5 6400/5600 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
(Graphics specifications may vary depending on CPU support.)
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Support for S/PDIF Out
LAN
Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Expansion Slots
CPU:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)

* The PCIEX16 slot can only support a graphics card or an NVMe SSD.

Chipset:
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
Storage Interface
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
- 3 x USB 3.2 Gen 1 ports (1 ports on the back panel, 2 ports available through the internal USB header)
- 3 x USB 2.0/1.1 ports (1 ports on the back panel, 2 ports available through the internal USB header)
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports on the back panel
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
2 x addressable RGB Gen2 LED strip headers
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Clear CMOS jumper

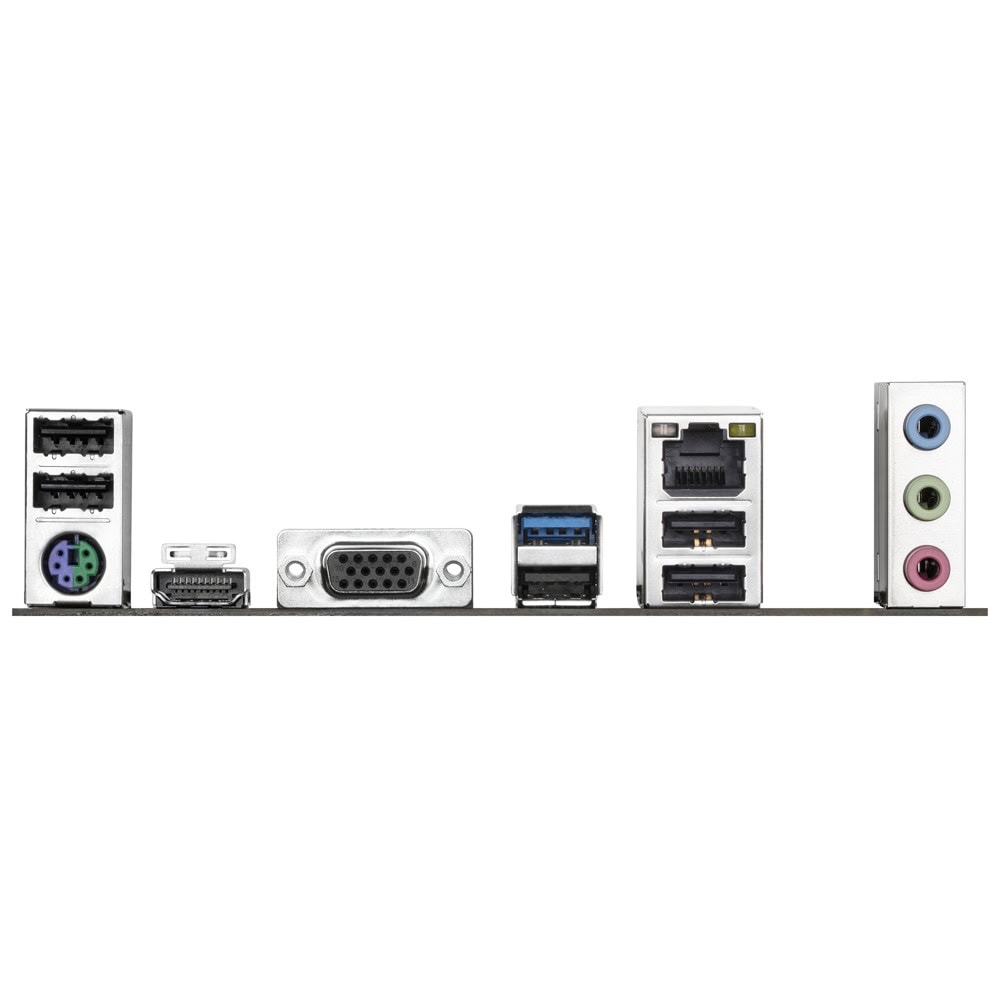

Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x HDMI port (Note)
1 x D-Sub port
1 x USB 3.2 Gen 1 port
5 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

(Note) Actual support may vary by CPU.
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control

* Whether the fan speed control function is supported will depend on the fan you install.
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash
Support for Smart Backup
Bundled Software
Norton® Internet Security (OEM version)
LAN bandwidth management software
Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit

* The Intel® NPU driver is only supported on Windows 11.
Form Factor
Micro ATX Form Factor; 24.4cm x 21.5cm
