Asus TUF GAMING B550M-PLUS WIFI II
.png)
DURABLE. STABLE. RELIABLE.
TUF Gaming B550M-Plus WIFI II distills essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability.
When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, best compatibility, and complementary aesthetics from components to case.
ROCK-SOLID PERFORMANCE
With upgraded power delivery and comprehensive cooling options to fuel the latest AMD Ryzen CPUs, plus support for faster memory and storage, TUF Gaming B550M-Plus WIFI II is the perfect foundation for your next high-core-count battle rig.

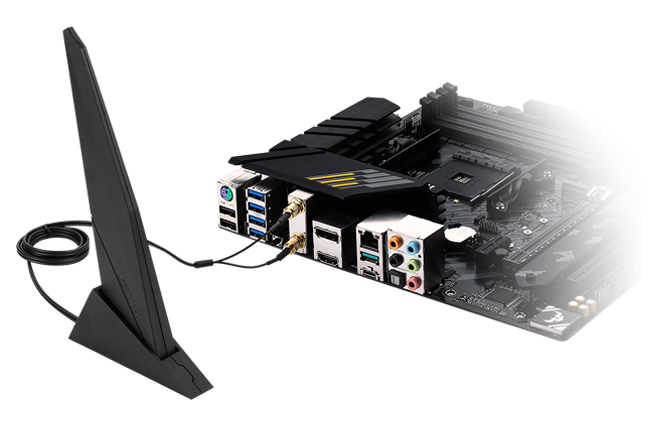

WiFi 6
The WiFi 6 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 2.4 Gbps. Perhaps more importantly for power users, it's optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6.
Specifications:
CPU
Chipset
Memory
4 x DIMM, Max. 128GB, DDR4 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133, Un-buffered Memory*
Dual Channel Memory Architecture
* ECC Memory (ECC mode) support varies by CPU.
Graphics
1 x DisplayPort**
** Supports max. 4K@60Hz as specified in DisplayPort 1.2.
*** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x16 mode)*
AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors
1 x PCIe 3.0 x16 slot (supports x16 mode)*
AMD B550 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)**
1 x PCIe 3.0 x1 slot**
* Support PCIe bifurcation for RAID on CPU function.
** PCIEX16_2 will run x2 mode when PCIEX1 slot is used.
Storage
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
AMD B550 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
Support RAID 0, 1, 10
Ethernet
Wireless & Bluetooth
USB
2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover

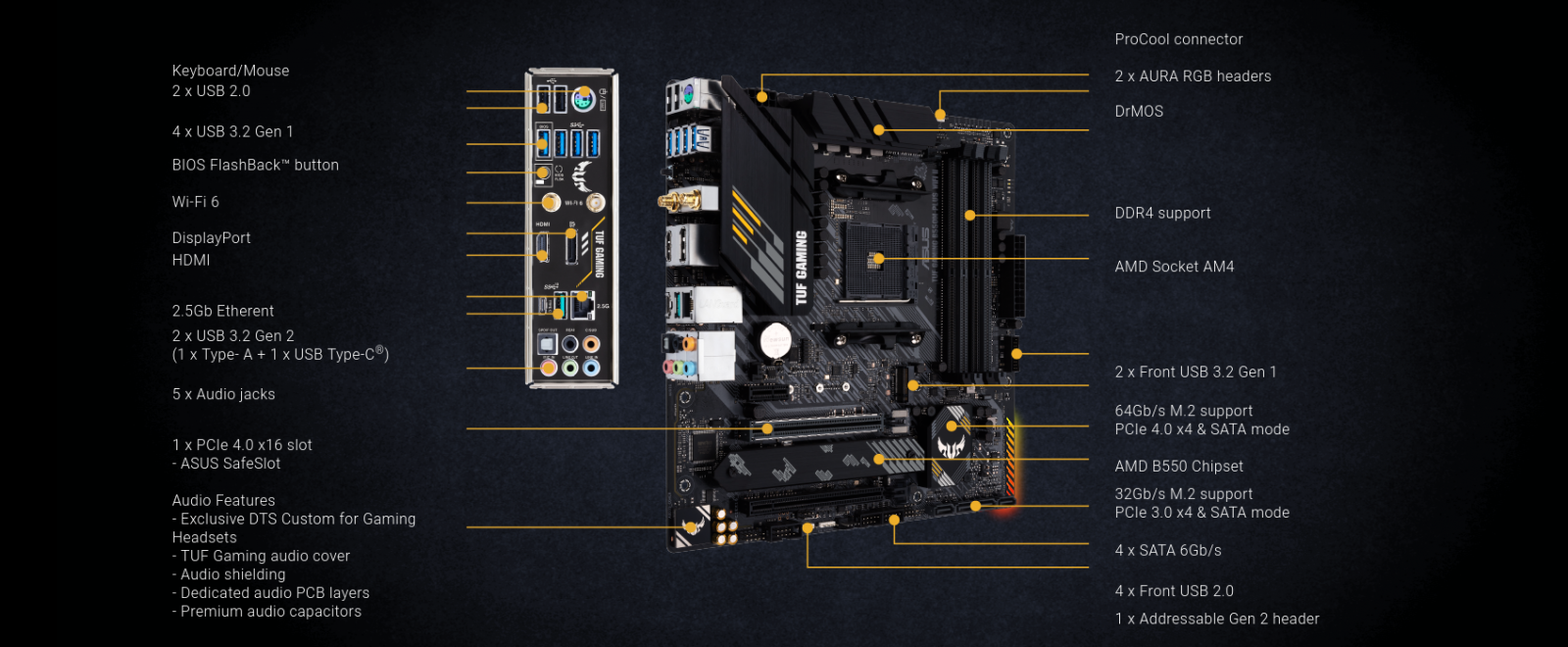

Back Panel I/O Ports
2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports (4 x Type-A, one port can be switched to USB BIOS FlashBack™)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
1 x Addressable Gen 2 header
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel headerSpecial Features
ASUS TUF PROTECTION
- DIGI+ VRM (Digital power design with DrMOS)
- Enhanced DRAM Overcurrent Protection
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- SafeSlot
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- ProCool
AURA Sync
- AURA RGB headers
- Addressable Gen 2 header
BIOS
Manageability
Виж още Дънни платки за AMD процесори Asus
Виж всички Дънни платки за AMD процесори в категорията
Технически характеристики
| Процесор сокет: | AM4 |
|---|---|
| Чипсет: | B550 |
| Поддържана памет: | DDR4 |
| Брой слотове за RAM памет: | 4 |
| Storage интерфейси: | SATA 6Gbit/s, M.2 |
| RAID: | Да |
| Безжични мрежи: | 802.11ax |
| Bluetooth: | Да |
| Видео слот: | PCI-E |
| Multi-Graphics технология: | Няма |
| Видео изход: | DP HDMI |
| Форм фактор: | Micro ATX |
| Видеокарта: | Вградена |
