Дънна платка Sapphire NITRO+ X870EA PhantomLink Polar Edition, X870E, AM5, DDR5, PCI-E 5.0 (HDMI&USB4), 4x SATA 6Gb/s, 4x M.2, 2x USB4, 5GbE LAN, Wi-Fi 7, Bluetooth 5.4, ATX

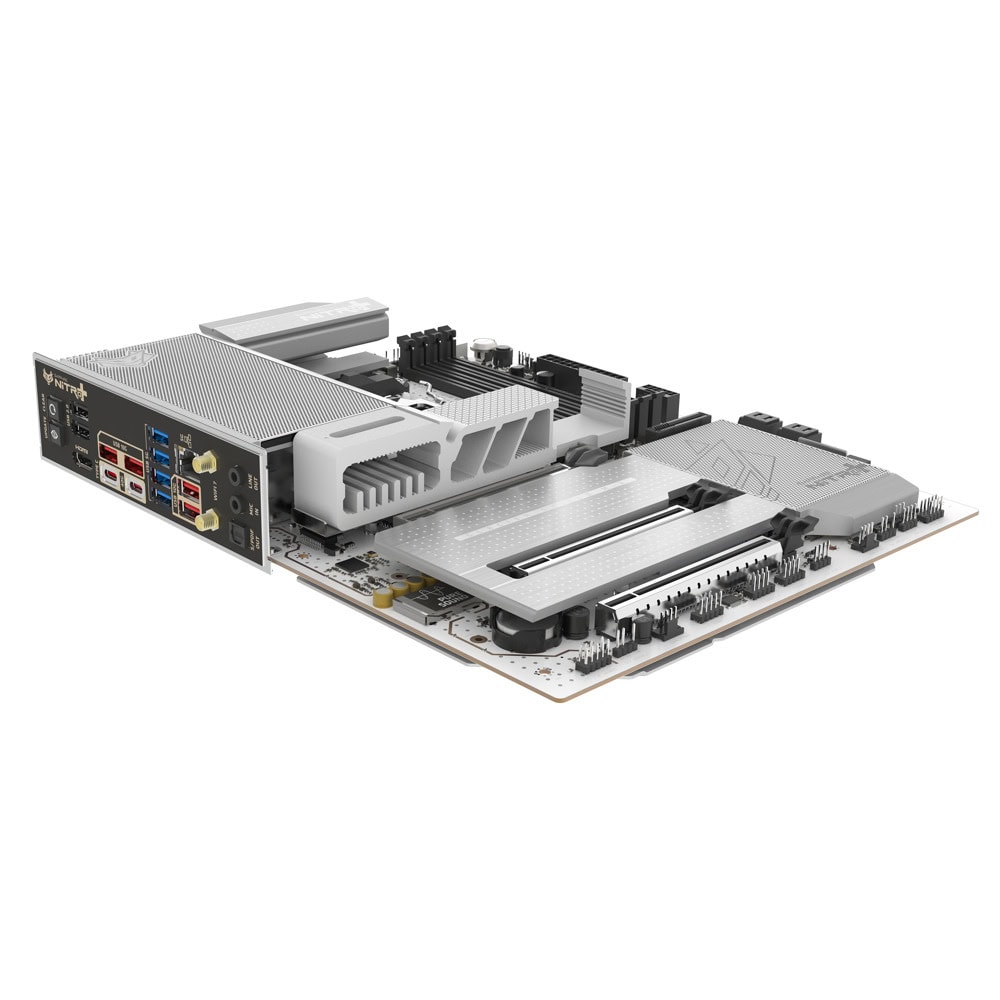

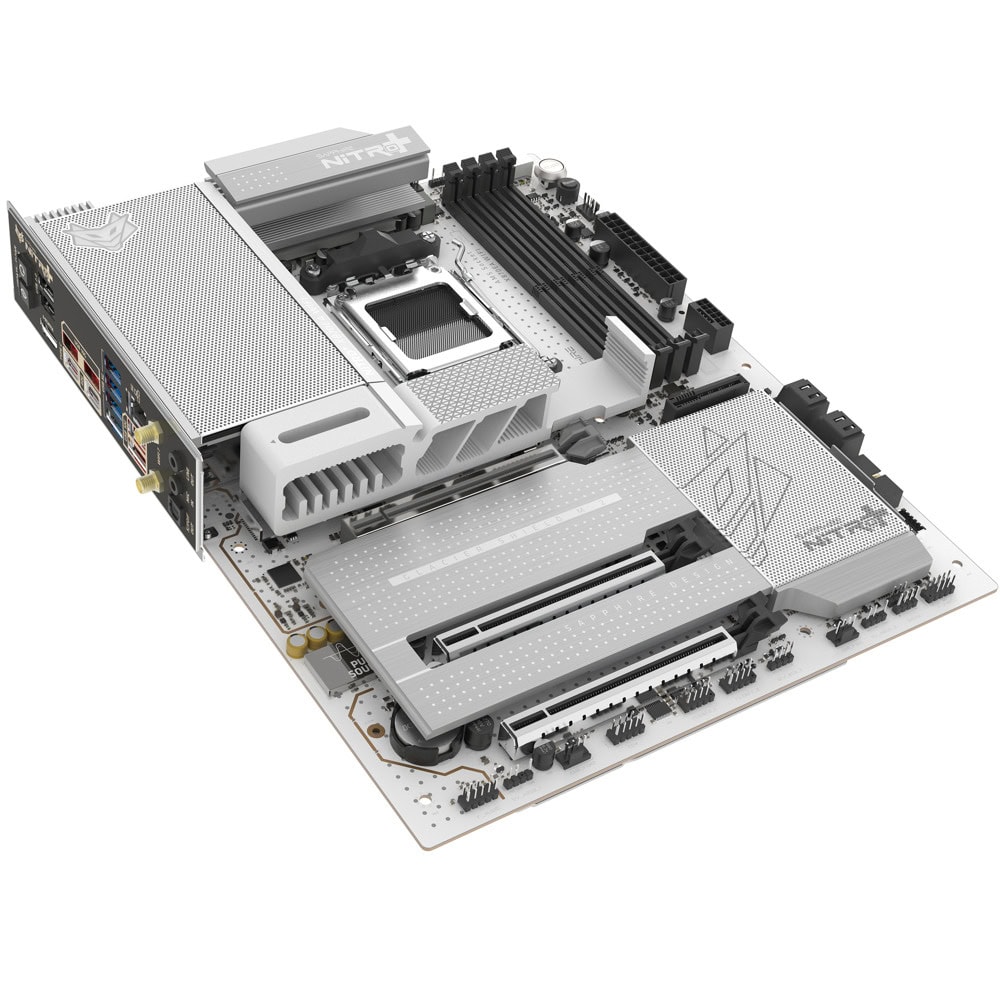

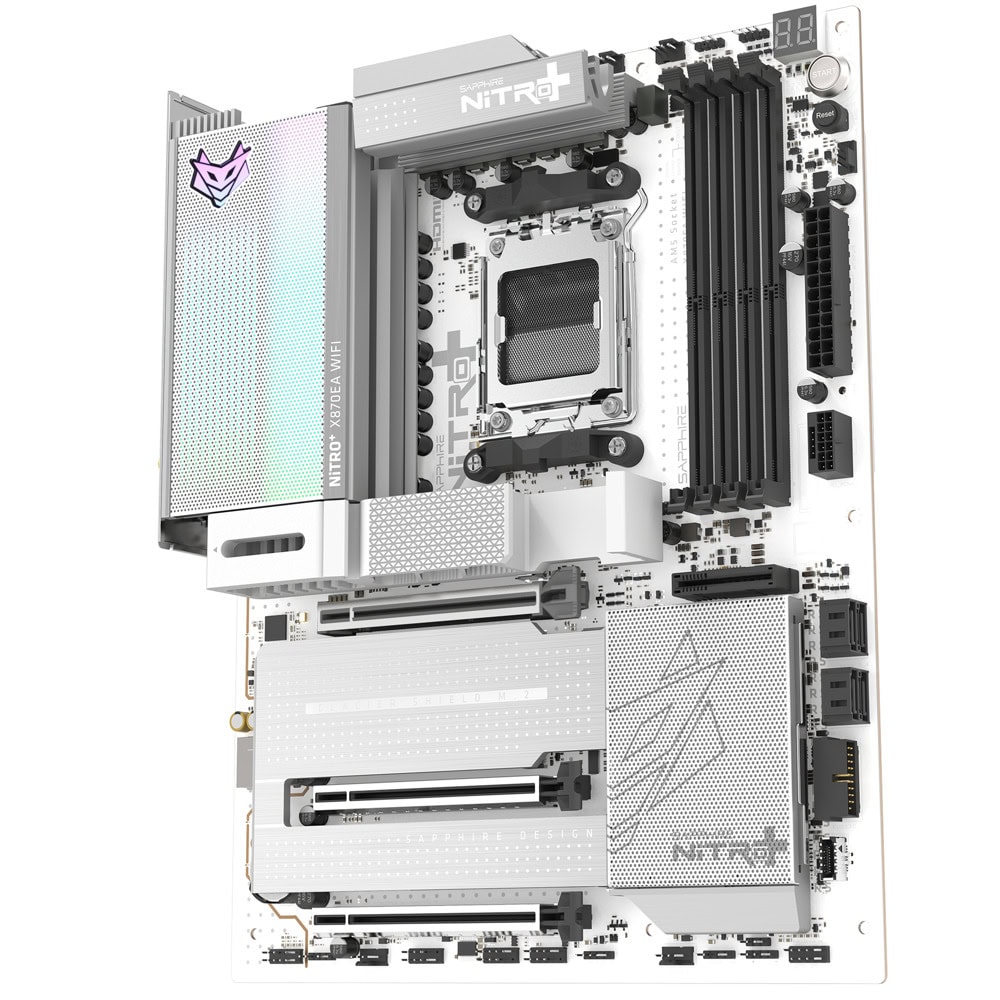

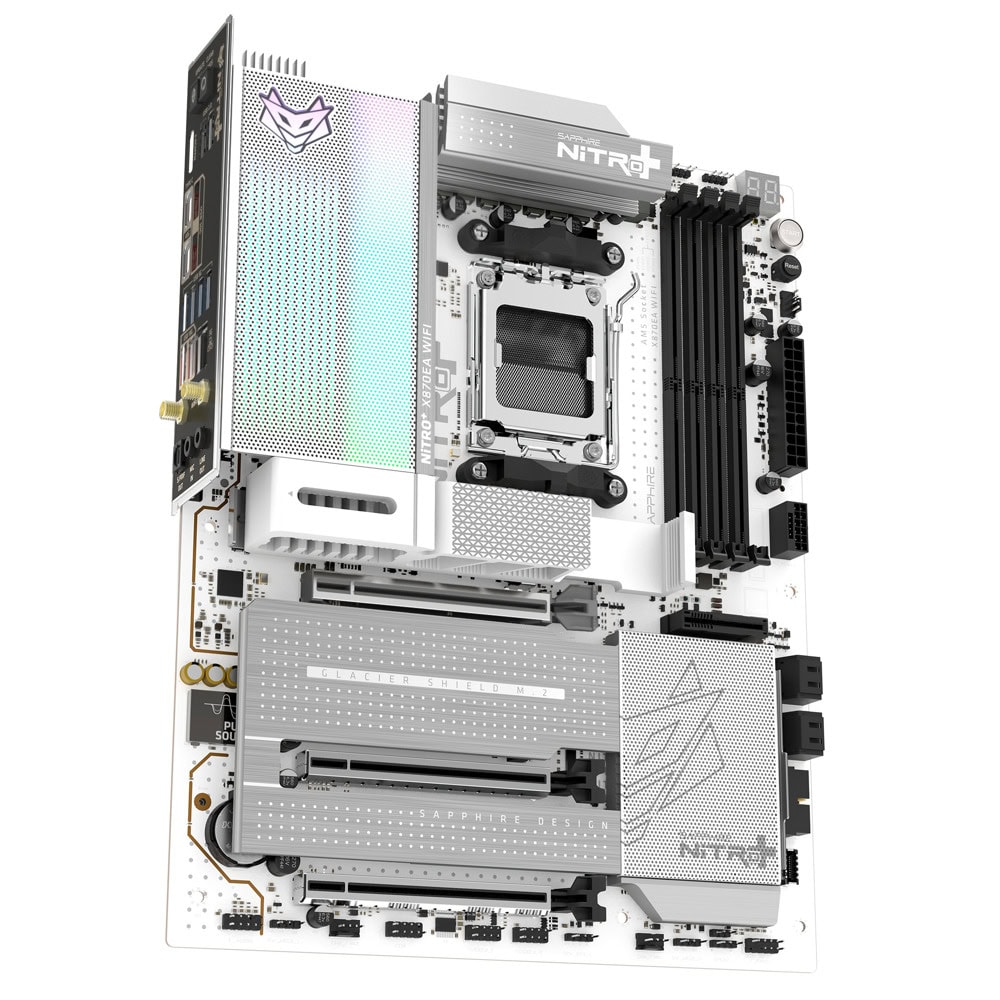

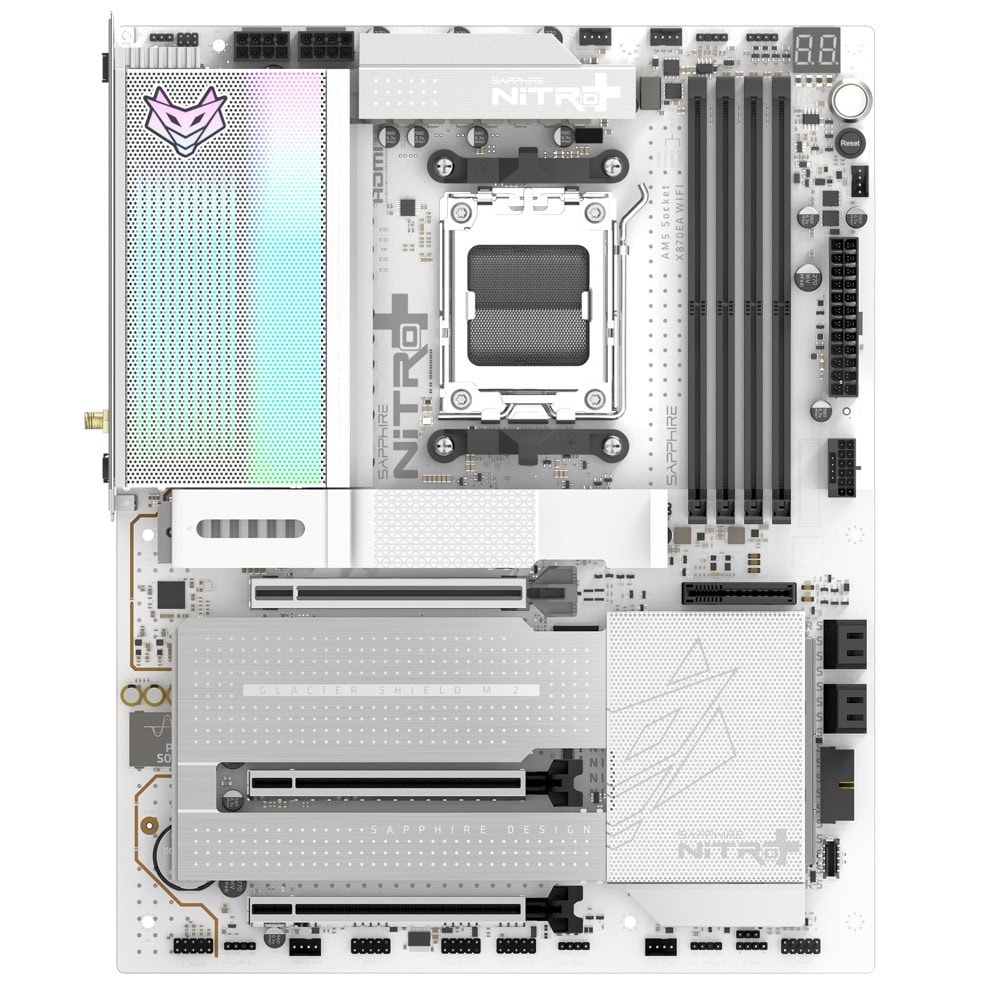

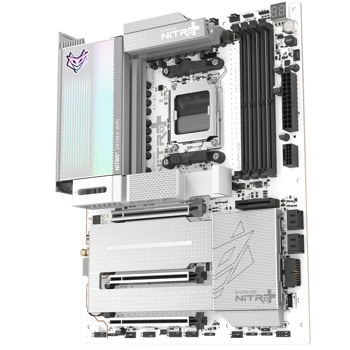

NITRO+ X870EA PhantomLink Polar Edition

• 16+2+1 Phase Power Design, 90A Per Phase
• Support Phantomlink(GC-HPWR) graphics power slot
• Front USB Type C 20Gbps with 30W power delivery
• SAPPHIRE CORE BIOS
• Dual Channel, 8400 MHz Memory OC
• WIFI 7 320 MHz Support
• PCI-Express 5.0 x16
• 4x M.2 SSD support with 2 x Gen 5 and 2 x Gen 4
• LED Debug Diagnostic Screen

Specifications

Chipset

AMD® X870E

CPU Support

Supports AMD Socket AM5 Processors including Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors

Memory Support

4x DIMMS, Dual Channel DDR5, Maximum Memory Capacity 256GB (4x 64GB), up to 8400 MHz(OC)

PCI-E Expansion Slots

1x PCIe 5.0 x16, 2x PCIe 4.0 x4 in 16x slot

Display Connector

HDMI x1

Audio

Realtek® ALC897 HD Audio, 5.1 Channel with S/PDIF

Network

Realtek® RTL8126   5 Gbps Ethernet
M.2 WiFi 7 Module, Support 802.11 a/b/g/n/ac/ax/be, 2.4 GHz / 5GHz / 6GHz band, Bluetooth 5.4 Support

Front USB Headers

1x USB 3.2 Gen2x2 (1 x Type-C, 30W PD)
1x USB 3.2 Gen1 (2 x Type-A), 2x USB 2.0 (4 x Type-A)

Rear Ports

1× HDMI™, 1× RJ45 LAN, 2× Wi-Fi Antenna
One-click Flash BIOS Button, One-click clear CMOS
2× USB 2.0, 4× USB 3.2 Gen1 Type-A, 4× USB 3.2 Gen2 Type-A
2× USB 4.0 40G (DisplayPort Alt mode & 15W PD) Type-C,
2x Audio Jack+S/PDIF

Storage

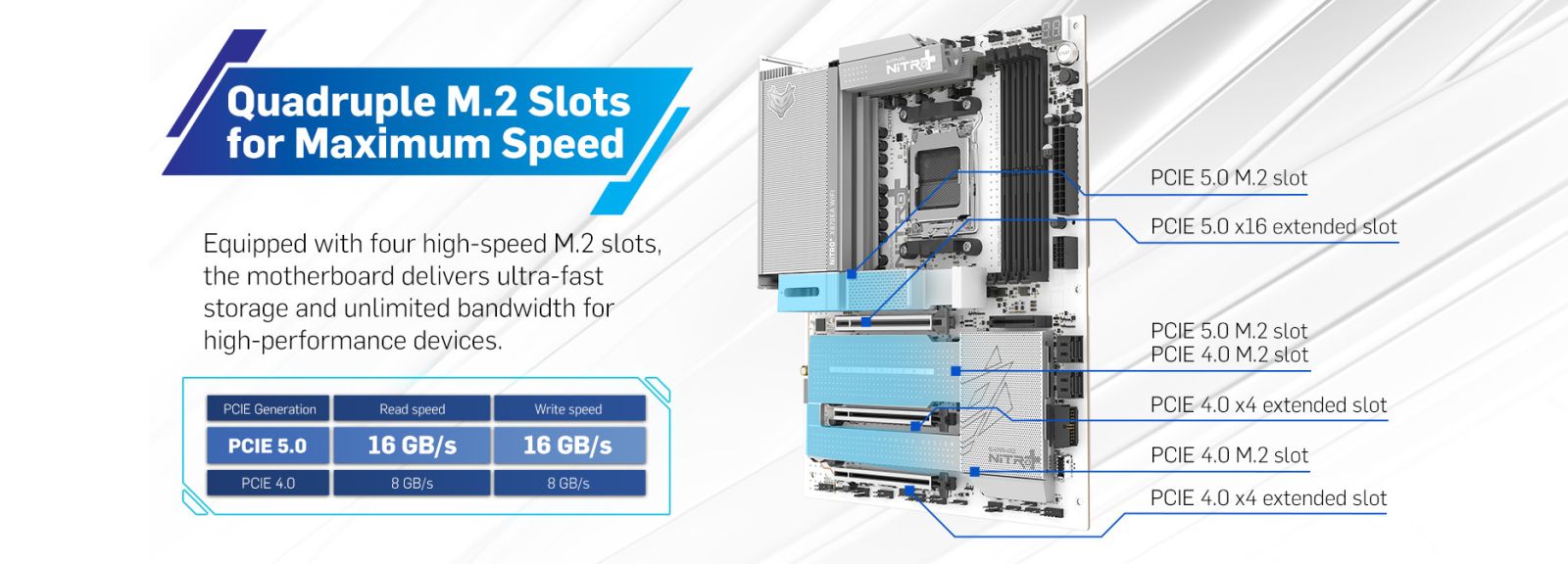

2x PCIe 5.0 M.2, 2x PCIe 4.0 M.2, 4x SATA

Dimensions

ATX, 305x244mm

Debug LED

DRAM: Yellow, CPU: Red, GPU: White, Boot: Green

Debug Diagnostic Screen

LED Debug Diagnostic Screen
