Дънна платка Asus ProArt B850-CREATOR WIFI NEO, B850, AM5, DDR5, PCI-E 5.0 (DP&HDMI), 4x SATA 6Gb/s, 3x M.2, 1x USB 3.2 Gen 2 Type-C, 2x 5GbE LAN, Wi-Fi 7, ATX

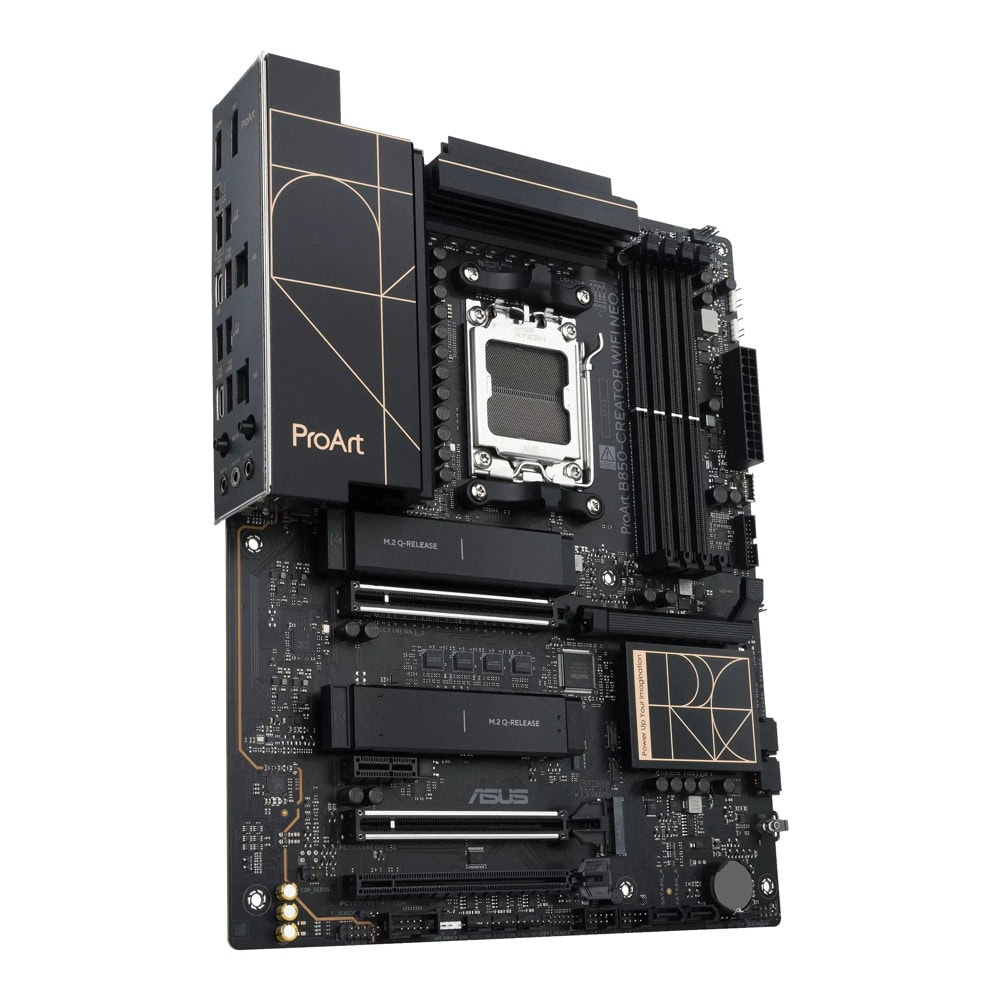

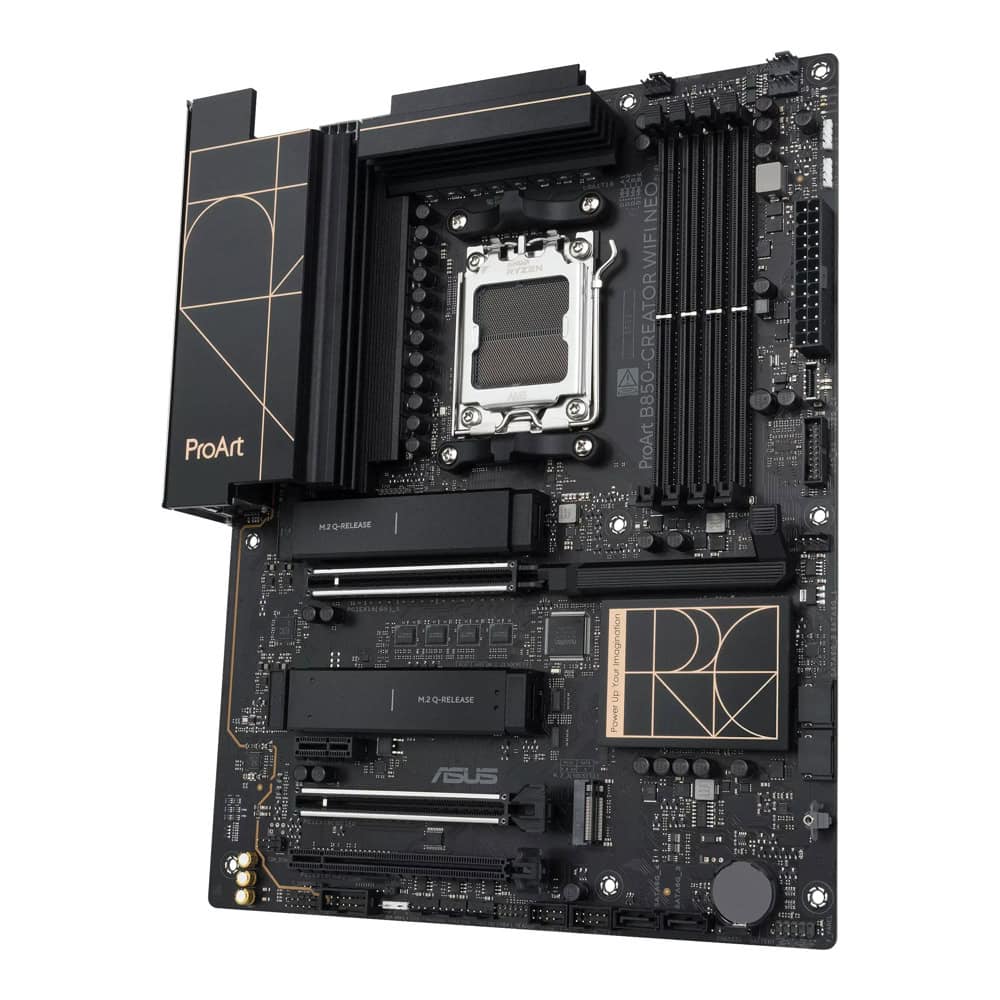

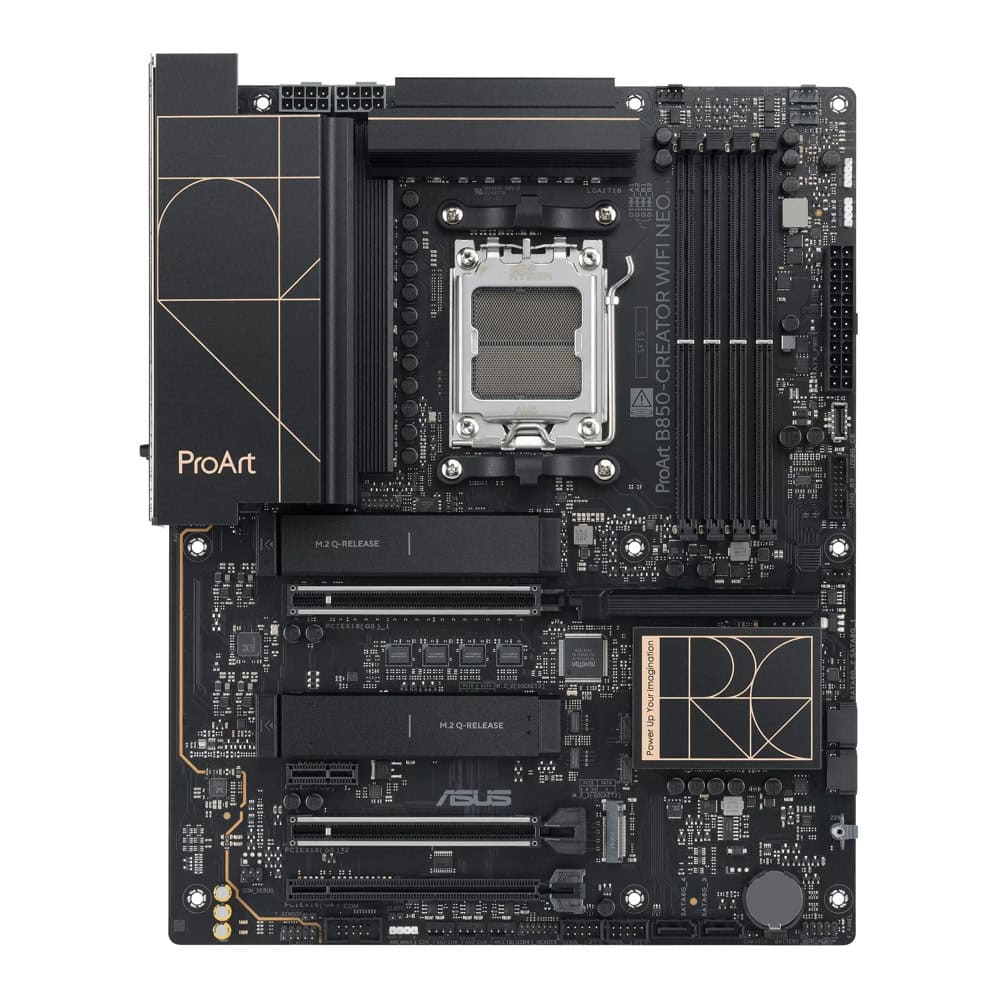

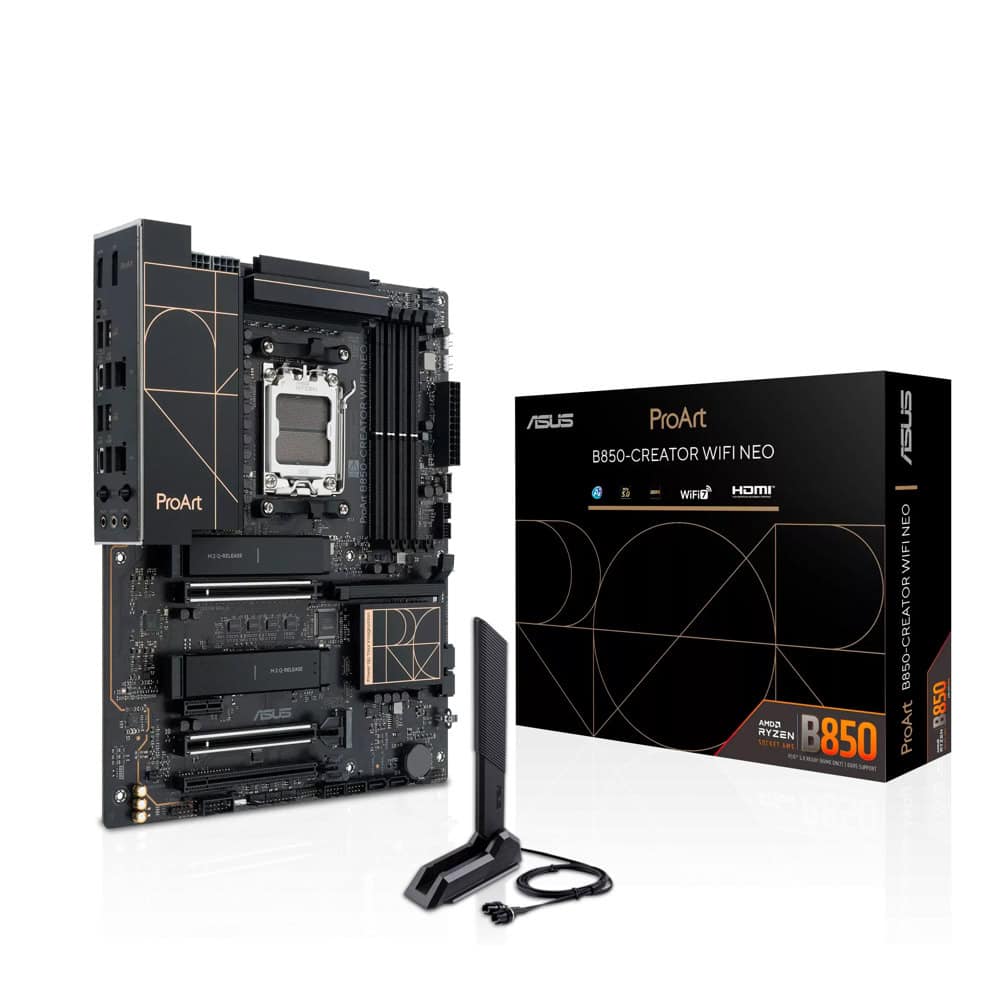

Asus ProArt B850-CREATOR WIFI NEO

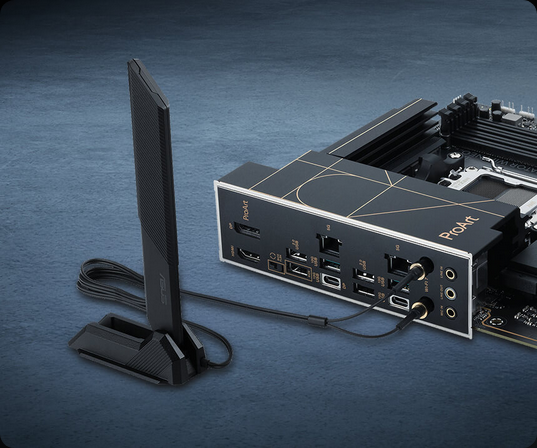

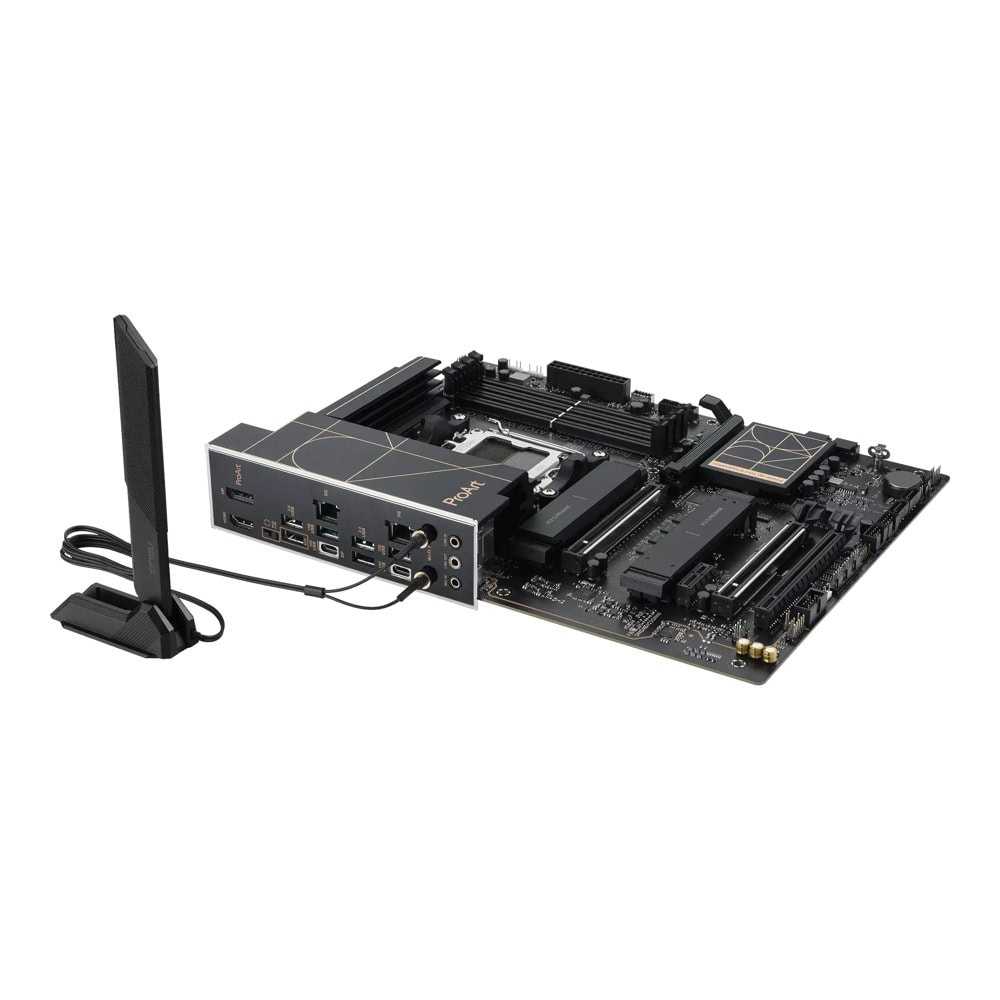

Ultrafast Networking Two 5G Ethernet ports Two 5G Ethernet connectivity provides flexible network configuration for professional environments, enabling creators to allocate dedicated bandwidth for online connectivity and local storage systems to enhance workflow efficiency, data integrity, and system reliability. WiFi 7 The revolutionary WiFi 7 is faster than standard WiFi 6*, thanks to tech like 160 MHz channels** on the 6GHz band and 4K QAM*. Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming and industrial IoT.   * WiFi 7 features require onboard WiFi chipset, WiFi AP, and WiFi 7-supported operating systems to support the corresponding features. ** Specifications vary by model.

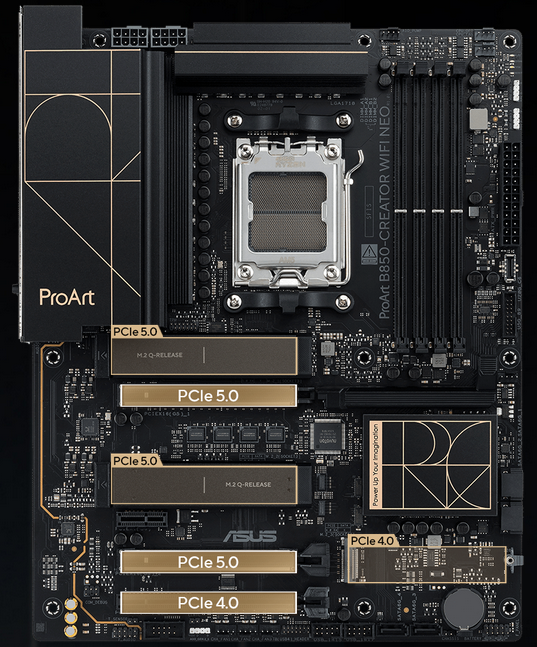

PCIe Lane Optimization   Content Creation & Streaming Fully utilizes native PCie 5.0 lanes supported by AMD Ryzen 9000 & 7000 CPUs, delivering optimized bandwidth for maximum performance.   Advanced Creation & AI Cater to professional creators and demanding AI workloads, including dual GPU support for intensive AI and rendering tasks.   PCIe 5.0 Expansion Slots Both of the x16 expansion slots are PCIe 5.0, offering incredible speeds of up to 64 GB/s for compatible devices. To bear the brunt of massive graphics cards, they are also protected with SafeSlot retention brackets, and the top slot can be released easily via PCIe Slot Q-Release.

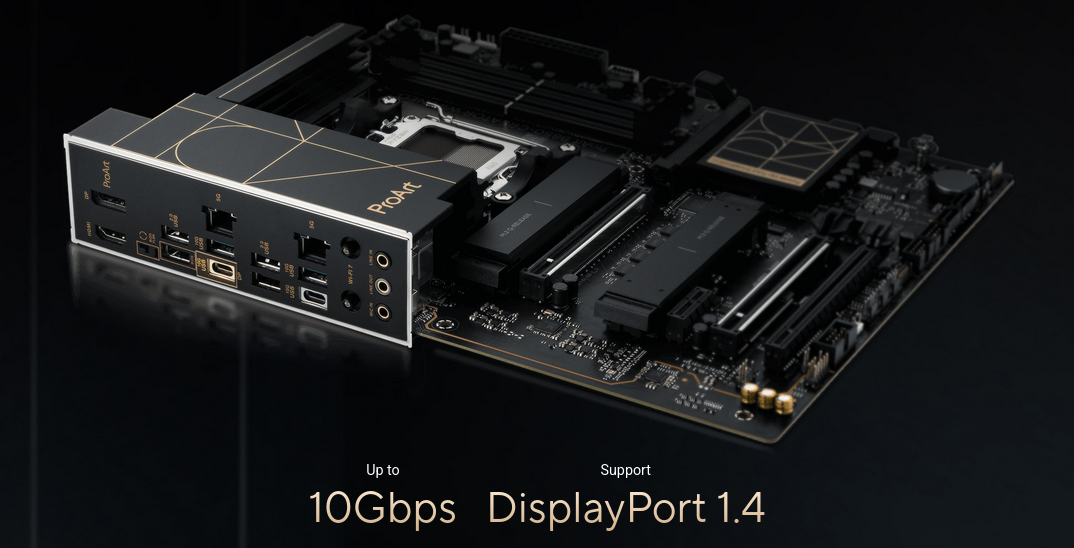

USB Type-C DisplayPort (DP Alt Mode)

This USB Type-C port delivers transfer speeds of up to 10 Gbps, and it supports an alternate mode that provides DisplayPort 1.4 output for up to 8K resolution at 30 Hz. This new feature gives creators premium-grade flexibility to choose between high-speed data or an additional hi-res display.

Tech Specs

CPU

AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors and AMD EPYC 4005 Series Processors*
Supports up to AMD 170W CPU

Chipset

AMD B850 Chipset

Memory

4 x DIMM slots, max. 256GB, DDR5
Supports up to
8400+(OC)/8200+(OC) MT/s with Ryzen™ 9000 Series Processors,
9000+(OC)/8600+(OC) MT/s with Ryzen™ 8000 Series Processors,
8000+(OC)/8000+(OC) MT/s Ryzen™ 7000 Series Processors,
ECC and Non-ECC, Un-buffered DIMM*
Supports up to 5600MT/s with AMD EPYC™ 4005 Series Processors, ECC and Non-ECC Un-buffered DIMM*
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
* Max Manual Overclocking: Achievable with advanced BIOS configuration and potentially specialized hardware. Results may vary according to system components.
* XMP/EXPO/AEMP Profiles: Rated memory module speeds require a BIOS performance profile setting. Results may vary according to system components and can be impacted when four DIMM slots are used.

Graphics

1 x DisplayPort**
1 x HDMI port***
1 x USB 10Gbps port (USB Type-C®) supports DisplayPort video output**
* Available only on processors featuring integrated graphics. Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports max. 8K@30Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
****While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.

Expansion Slots

AMD Ryzen™ 9000 & 7000 Series Desktop Processors and AMD EPYC™ 4005 Series Processors*
2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)***
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD B850 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)****
1 x PCIe 4.0 x1 slots
** Specifications vary by CPU types.
*** When you use both PCIEX16(G5)_1 and PCIE16(G5)_2, they will run at x8 each.
**** The PCIEX16(G4) shares bandwidth with M.2_3. The PCIEX16(G4) will be disabled when M.2_3 runs.

Storage

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen™ 7000 & 9000 Series Desktop Processors and AMD EPYC™ 4005 Series Processors*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
AMD B850 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)*
4 x SATA 6Gb/s ports
* The PCIEX16(G4) shares bandwidth with M.2_3. The PCIEX16(G4) will be disabled when M.2_3 runs.

RAID Support

AMD RAIDXpert2 Technology
Ryzen™ 9000 & 8000 & 7000 Series Processors: RAID 0/1/5/10

Ethernet

2 x Realtek 5Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth

Wi-Fi 7 (Realtek RTL8922AE)
2x2 Wi-Fi 7* (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 160MHz bandwidth
Bluetooth (suppports LE Audio)***
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
For Windows 10, only Wi-Fi 6 is supported.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB

Rear USB (Total 8 ports)
2 x USB 10Gbps ports (1 x Type-C +1 x Type-C + Alt mode)
2 x USB 10Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD/QC4+)**
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB Type-C output (USB Type-C Current): max. 5V/3A.
** USB Type-C power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2A.

Audio

Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- Premium audio capacitors
- Dedicated audio PCB layers
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
*** Once an EPYC CPU is installed, the onboard audio function will be disabled.

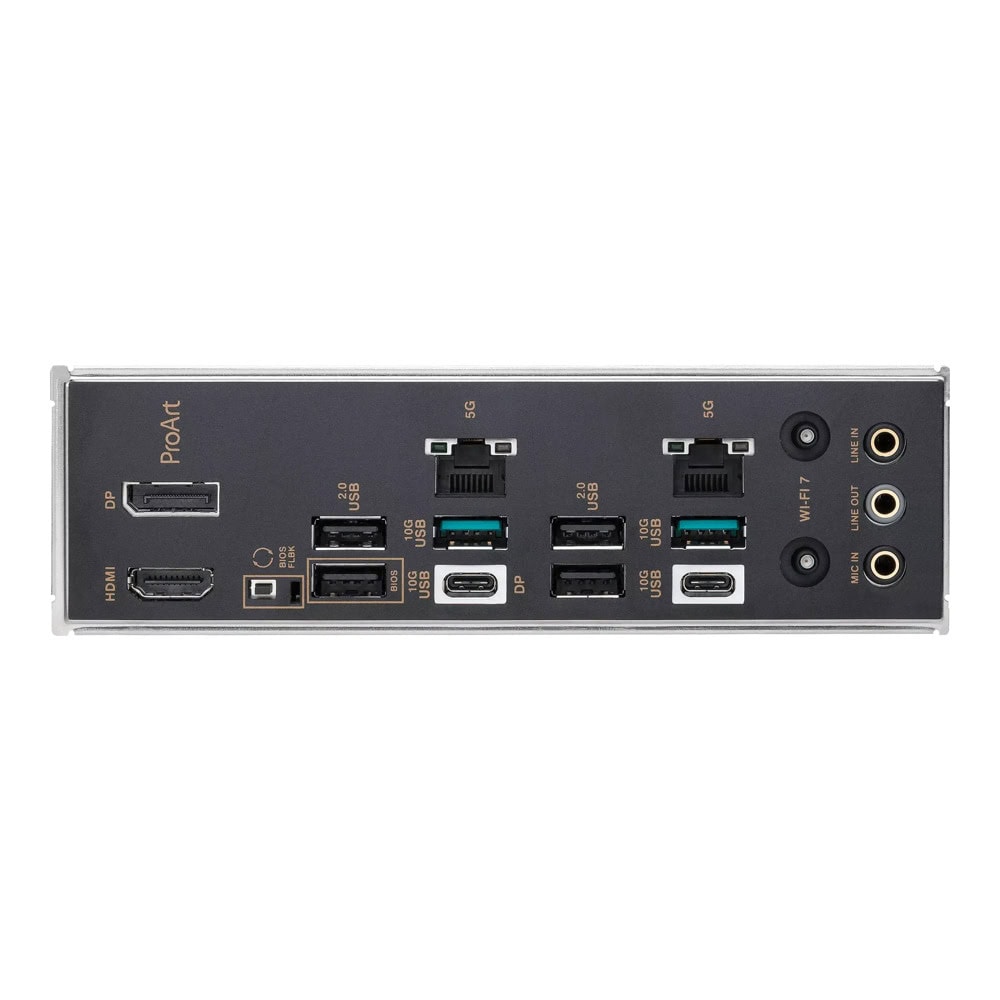

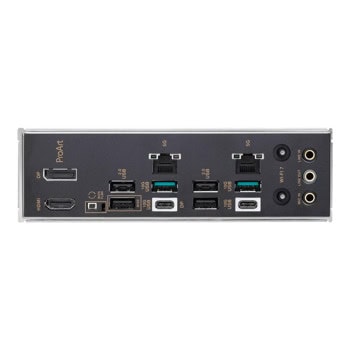

Back Panel I/O Ports

2 x USB 10Gbps ports (1 x Type-C® + 1 x Type-C® with Alt mode)
2 x USB 10Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
2 x Realtek 5Gb Ethernet ports
3 x Audio jacks
1 x BIOS FlashBack™ button

Internal I/O Connectors

Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
Storage Related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/QC4+)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable RGB Gen2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin Front Panel System header
1 x Thunderbolt (USB4) header
1 x Thermal Sensor header

Special Features

ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release (with PCIe SafeSlot)
- Q-Antenna
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable RGB Gen2 headers
Bespoke Motherboard Design & Business Focused Features
- 24/7 reliability
- Overcurrent protection
Front Panel USB 20Gbps with Quick Charge 4+ Support
- Support: up to 30W fast charging and USB Wattage Watcher
- Output: 5V/9V max. 3A, 12V max 2.5A, 15V max2.0A
- Compatible with PD3.0

Software Features

ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- MLO Wizard
- ASUS DriverHub
- ASUS MB Manager
- ASUS AI Advisor
- ASUS CPU-Z
-ASUS GlideX
-ProArt Creator Hub
-CreatonFirst
-USB Wattage Watcher
-TurboV Core

UEFI BIOS
Integrated WiFi Driver Support
AI Cache Boost
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode


Remote Management Features

IT Management software supported
- ASUS Control Center Express(ACCE)

BIOS

64MB (512Mb) Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Operating System

AMD EPYC™ 4005 Series: Windows Server* 2025/2022
AMD Ryzen™ Series: Windows 11
*Wi-Fi and Bluetooth have limited support under Windows Server OS.

Form Factor

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
