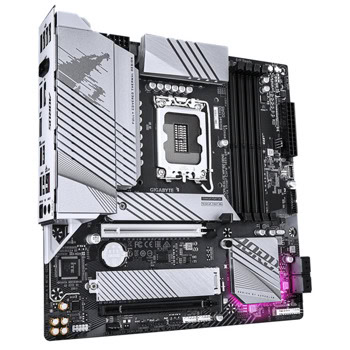

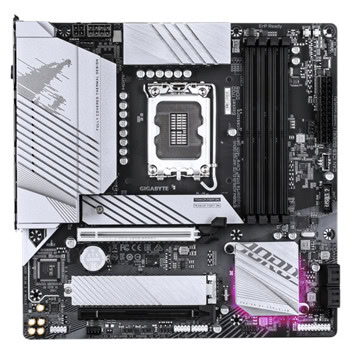

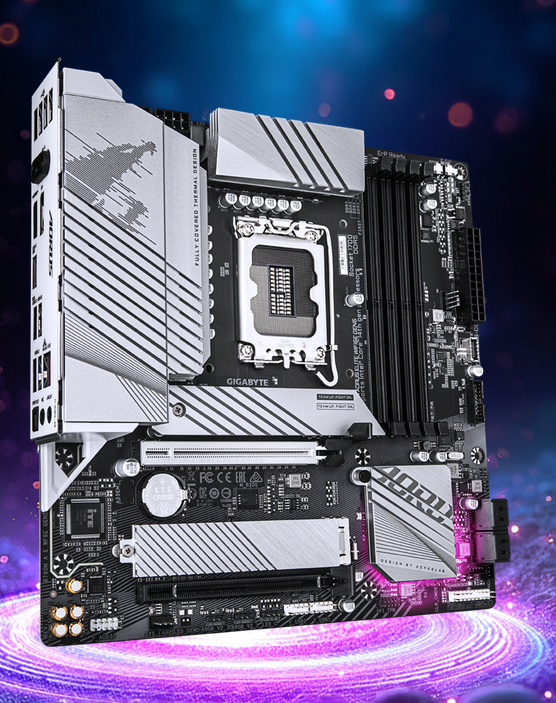

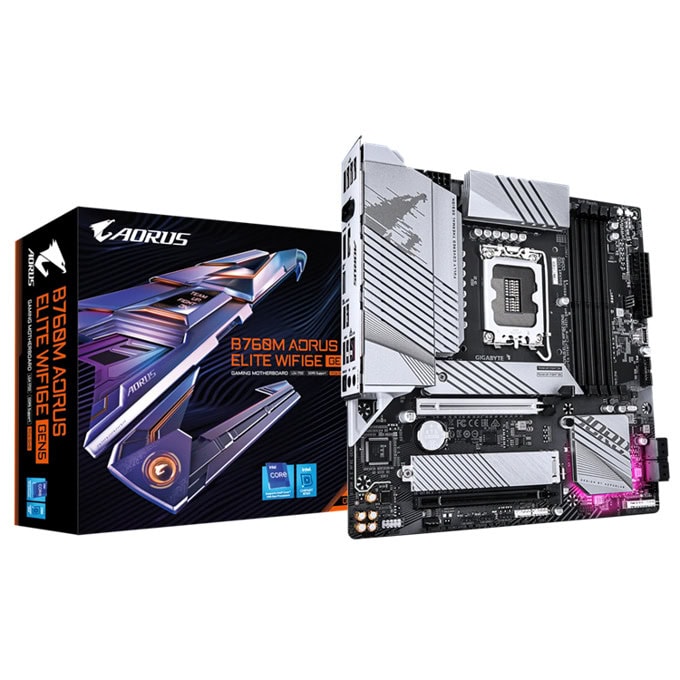

Дънна платка Gigabyte B760M AORUS ELITE WF6E GEN5, B760M, LGA1700, DDR5, PCI-E 5.0(DP&HDMI), 4x SATA 6Gb/s, 2x M.2 slots, 1x USB 3.2 Gen 2x2 Type-C, 2.5GbE LAN, Micro ATX

B760M A E WF6E GEN5

• PCIe Gen5 Performance : Perfect Sync to Win
• Supports Intel® Core™ 14th/ 13th /12th processors
• Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
• WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
• WIFI Compass : Auto detects the best antenna position for strongest Wi-Fi signal
• EZ-Latch : PCIe 5.0x16 Slot with Quick Release Design
• EZ-Latch Plus : M.2 Connectors with Quick Release & Screwless Design
• PCIe UD Slot: SMD PCIe 5.0 Armor for enhanced graphics card support
• Unparalleled Performance : Twin 12*+1+1 Phases Hybrid VRM Solution
• Dual Channel DDR5 : 4*DIMMs with XMP Memory Module Support
• Fast Networks : 2.5GbE LAN & Wi-Fi 6E 802.11ax
• Extended Connectivity : Rear USB-C® 20Gb/s, Front USB-C® 10Gb/s, DP, HDMI
• Next Generation Storage : 2*PCIe 4.0 x4 M.2 Connectors
• Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card
• High-Res Audio : ALC1220 & High-End Audio Capacitors

• CPU

  LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™,Pentium® Gold and Celeron® Processors
  L3 cache varies with CPU



• Chipset

  Intel® B760 Express Chipset



• Memory

  Support for DDR5 7800(O.C.) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules


  4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory


  Dual channel memory architecture
  Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  Support for Extreme Memory Profile (XMP) memory modules




• Onboard Graphics

  Integrated Graphics Processor-Intel® HD Graphics support:
  - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz


  * Support for HDMI 2.1 version and HDCP 2.3.
  ** Support for native HDMI 2.1 TMDS compatible ports.


  - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz


  * Support for DisplayPort 1.2 version and HDCP 2.3


  (Graphics specifications may vary depending on CPU support.)



• Audio

  Realtek® Audio CODEC
  High Definition Audio
  2/4/5.1/7.1-channel


  * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.


  Support for S/PDIF Out



• LAN

  Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)



• Wireless Communication module

  Intel® Wi-Fi 6E AX210
  - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  - BLUETOOTH 5.3
  - Support for 11ax 160MHz wireless standard
  (Actual data rate may vary depending on environment and equipment.)



• Expansion Slots

  CPU:
  - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)


  * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.


  Chipset:
  - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)



• Storage Interface

  CPU:
  - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
  Chipset:
  - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
  - 4 x SATA 6Gb/s connectors
  RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices



• USB

  Chipset:
  - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
  - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
  - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  - 1 x USB 3.2 Gen 1 port on the back panel
  - 4 x USB 2.0/1.1 ports available through the internal USB headers
  Chipset+USB 3.2 Gen 1 Hub:
  - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  Chipset+USB 2.0 Hub:
  - 4 x USB 2.0/1.1 ports on the back panel



• Internal I/O Connectors

  1 x 24-pin ATX main power connector
  1 x 8-pin ATX 12V power connector
  1 x 4-pin ATX 12V power connector
  1 x CPU fan header
  3 x system fan headers
  3 x addressable RGB Gen2 LED strip headers
  1 x RGB LED strip header
  2 x M.2 Socket 3 connectors
  4 x SATA 6Gb/s connectors
  1 x front panel header
  1 x front panel audio header
  1 x USB Type-C® header, with USB 3.2 Gen 2 support
  1 x USB 3.2 Gen 1 header
  2 x USB 2.0/1.1 headers
  2 x Thunderbolt™ add-in card connectors
  1 x Trusted PlatformModule header (For theGC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
  1 x Q-Flash Plus button
  1 x reset button
  1 x reset jumper
  1 x Clear CMOS jumper

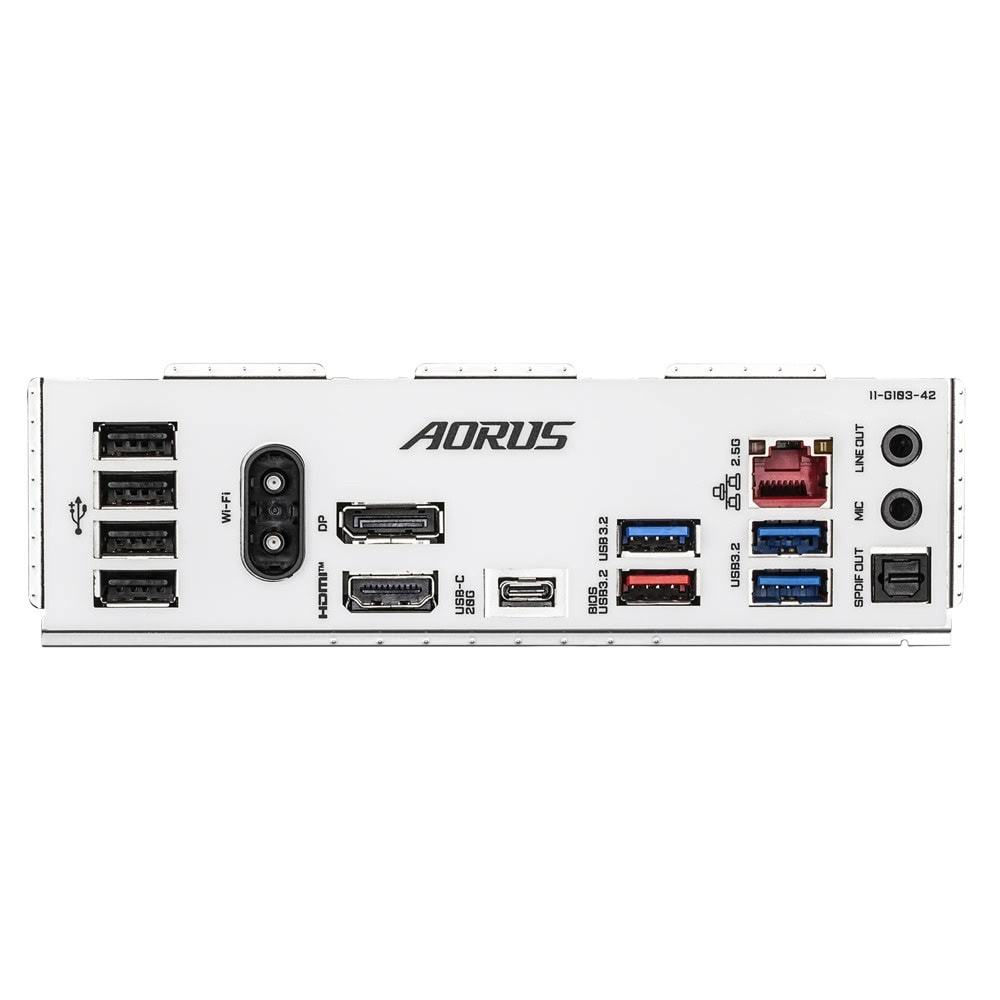

• Back Panel Connectors

  2 x antenna connectors (2T2R)
  1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
  1 x USB 3.2 Gen 2 Type-A port (red)
  3 x USB 3.2 Gen 1 ports
  4 x USB 2.0/1.1 ports
  1 x HDMI port (Note)
  1 x DisplayPort (Note)
  1 x RJ-45 port
  1 x optical S/PDIF Out connector
  2 x audio jacks

  (Note) Actual support may vary by CPU.



• I/O Controller

  iTE® I/O Controller Chip



• H/W Monitoring

  Voltage detection
  Temperature detection
  Fan speed detection
  Water cooling flow rate detection
  Fan fail warning
  Fan speed control




  * Whether the fan speed control function is supported will depend on the fan you install.

• BIOS

  1 x 256 Mbit flash
  Use of licensed AMI UEFI BIOS
  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0



• Unique Features

  Support for GIGABYTE Control Center (GCC)


• Operating System

  Support for Windows 11 64-bit
  Support for Windows 10 64-bit



• Form Factor

  Micro ATX Form Factor; 24.4cm x 24.4cm
