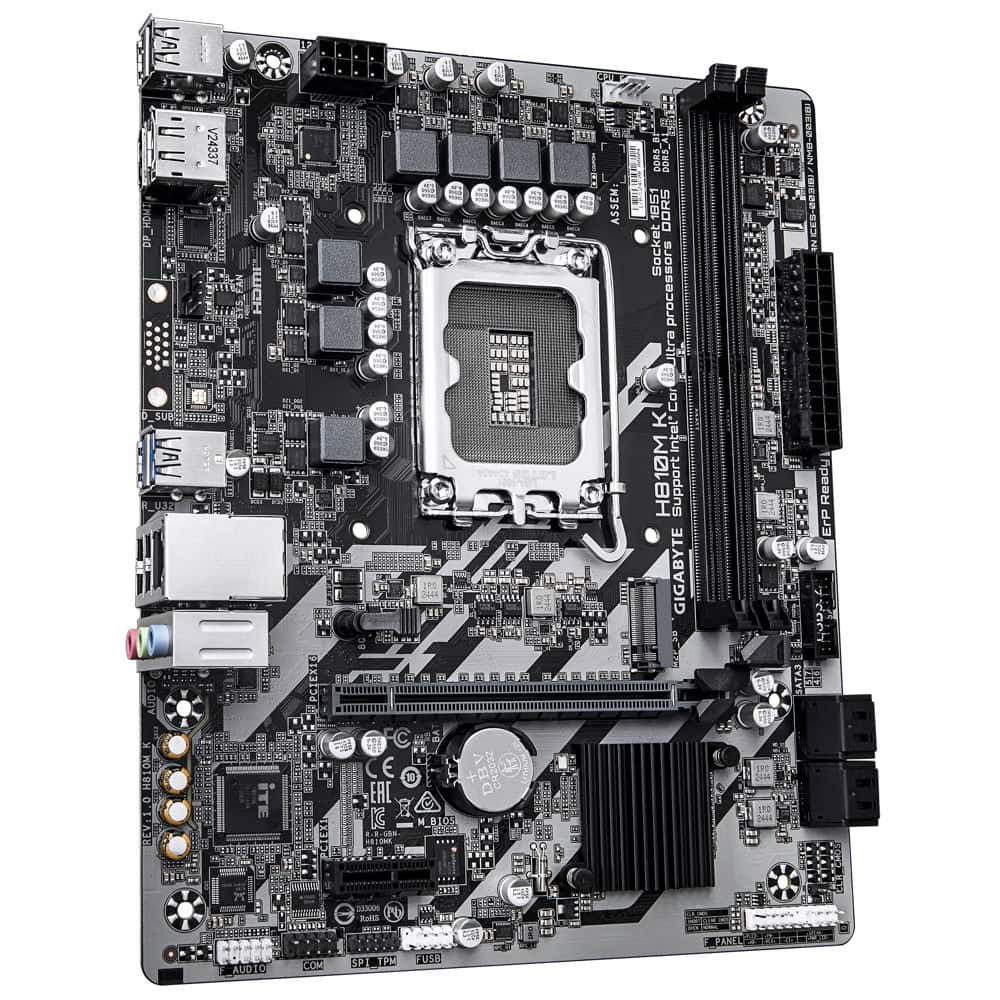

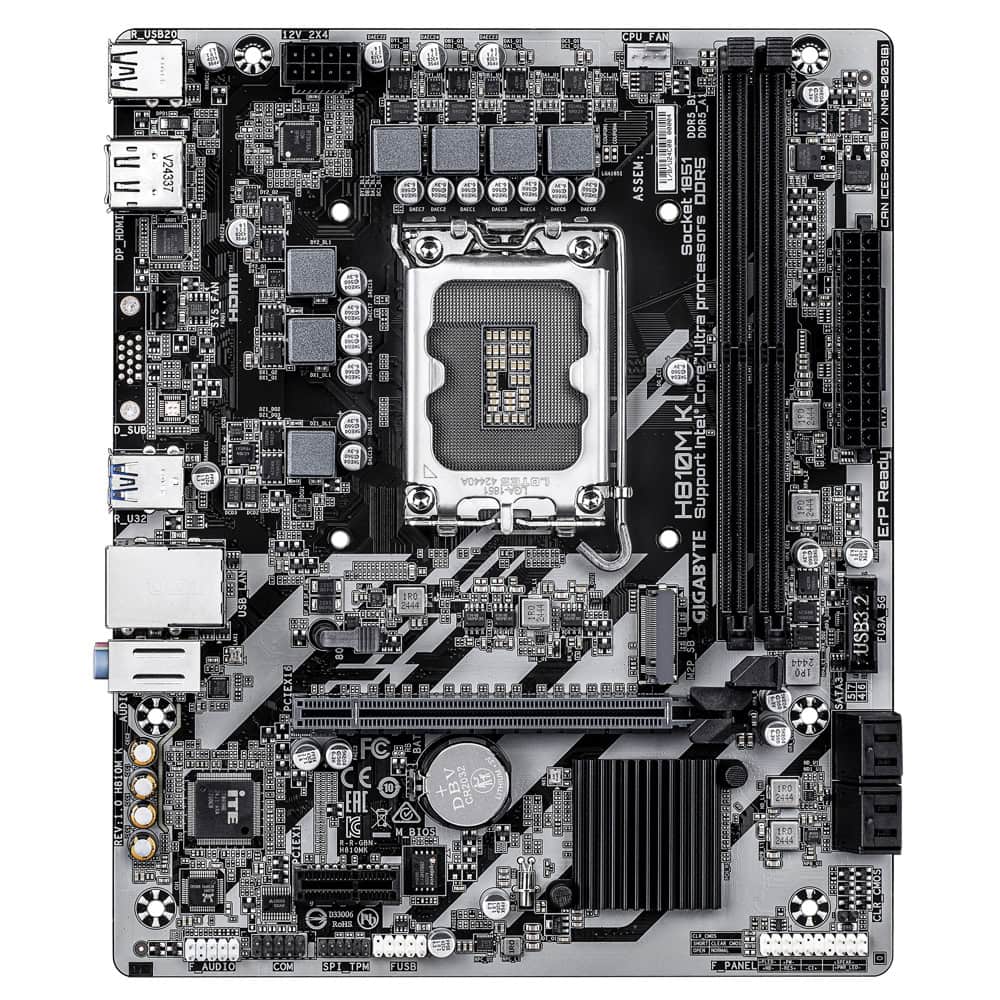

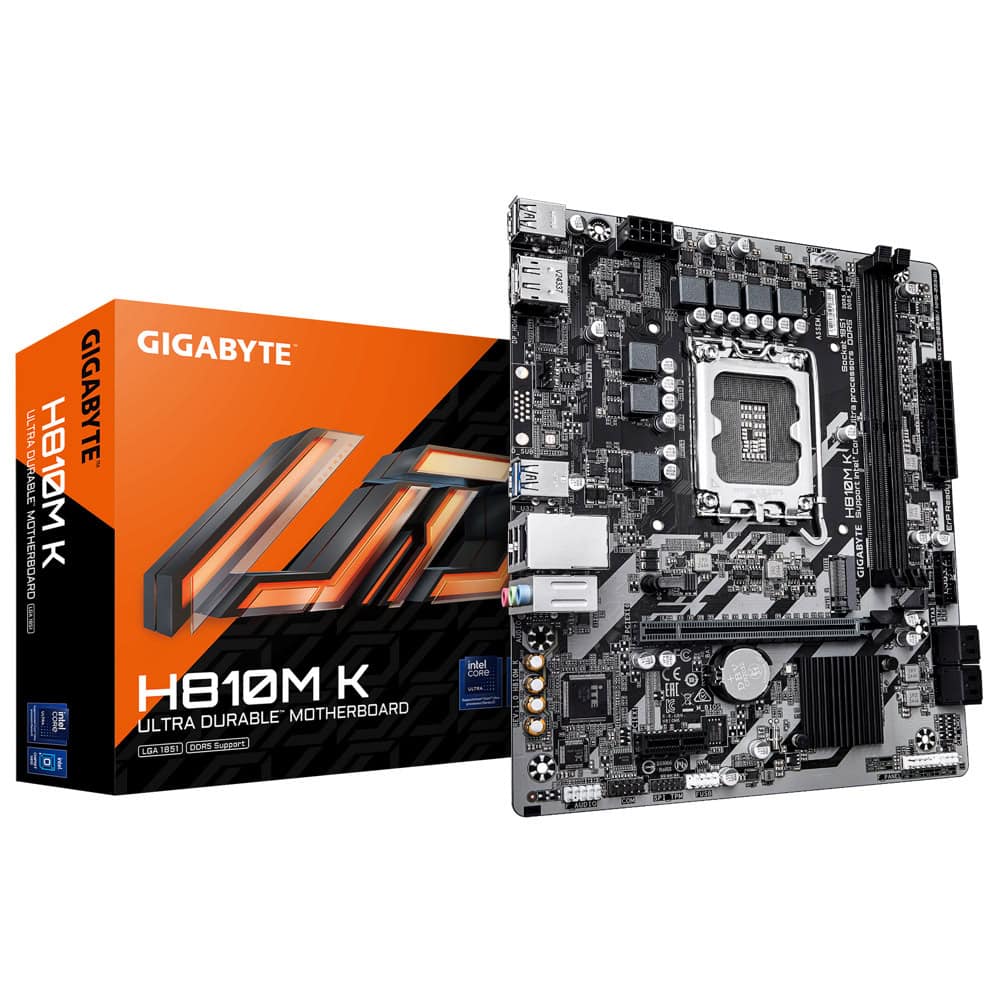

Дънна платка GIGABYTE H810M K, H810, LGA1851, DDR5, PCI-E 4.0, (DP&HDMI), 4x SATA 6Gb/s, 1x M.2, 1x USB 3.2 Gen 1, Micro ATX

LGA1851 socket: Support for Intel® Core™ Ultra Processors
(Go to GIGABYTE's website for the latest CPU support list.)
L3 cache varies with CPU

Chipset


Intel® H810 Express Chipset

Memory

Support for DDR5 6400/5600 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity)of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz


* Support for DisplayPort 2.1 version and HDCP 2.3.

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz


* Support for HDMI 2.1 version and HDCP 2.3.

(Graphics specifications may vary depending on CPU support.)

Audio

Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel


* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

LAN


Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Expansion Slots

CPU:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)


* The PCIEX16 slot can only support a graphics card or an NVMe SSD.

Chipset:

- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)

USB

Chipset:

- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Clear CMOS jumper

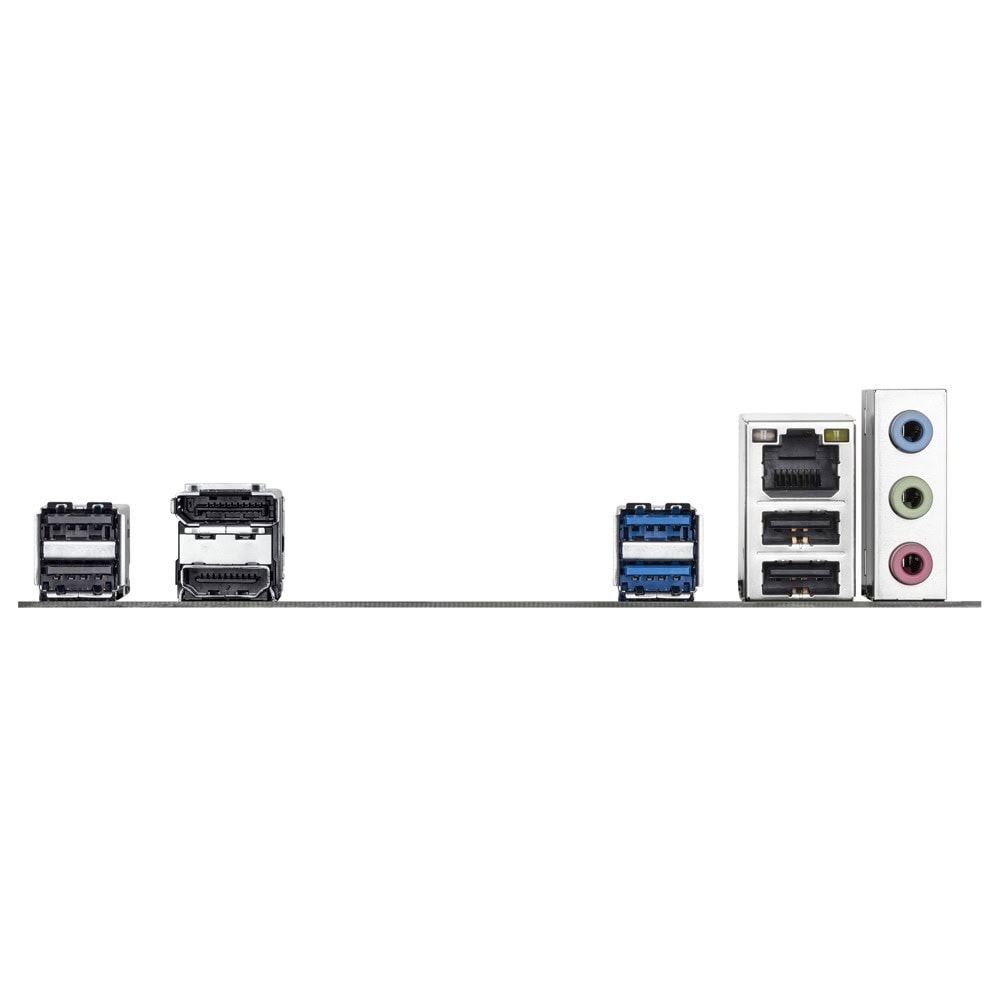

Back Panel Connectors

Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control


* Whether the fan speed control function is supported will depend on the fan you install.

BIOS

1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for GIGABYTE Control Center (GCC)


* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash
Support for Smart Backup

Bundled Software

Norton® Internet Security (OEM version)
LAN bandwidth management software
* Service discontinued as a result of contract termination by the software provider.

Operating System

Support for Windows 11 64-bit
Support for Windows 10 64-bit


* The Intel® NPU driver and Intel® 800 Platform Performance Package Installer are only supported on Windows 11.

Form Factor
