Кутия Fractal Design Ridge PCIe 4.0, Mini-ITX, 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, 2x Aspect 140mm вентилатора, бяла, без захранване



Fractal Design Ridge PCIe 4.0







An uncluttered, small form factor case designed to integrate seamlessly into your living space and daily rituals. An evolution of the slimline format, Ridge was developed in collaboration with gaming and entertainment enthusiasts to subtly improve their homes and enhance the small form factor PC experience.



Find your balance

Maximized capability with a minimized footprint







Inch-perfect efficiency

Meticulously engineered to maximize its capability while minimizing its footprint

Small form factor case with a volume of 12.6 liters

Supports GPUs up to a length of 335 mm

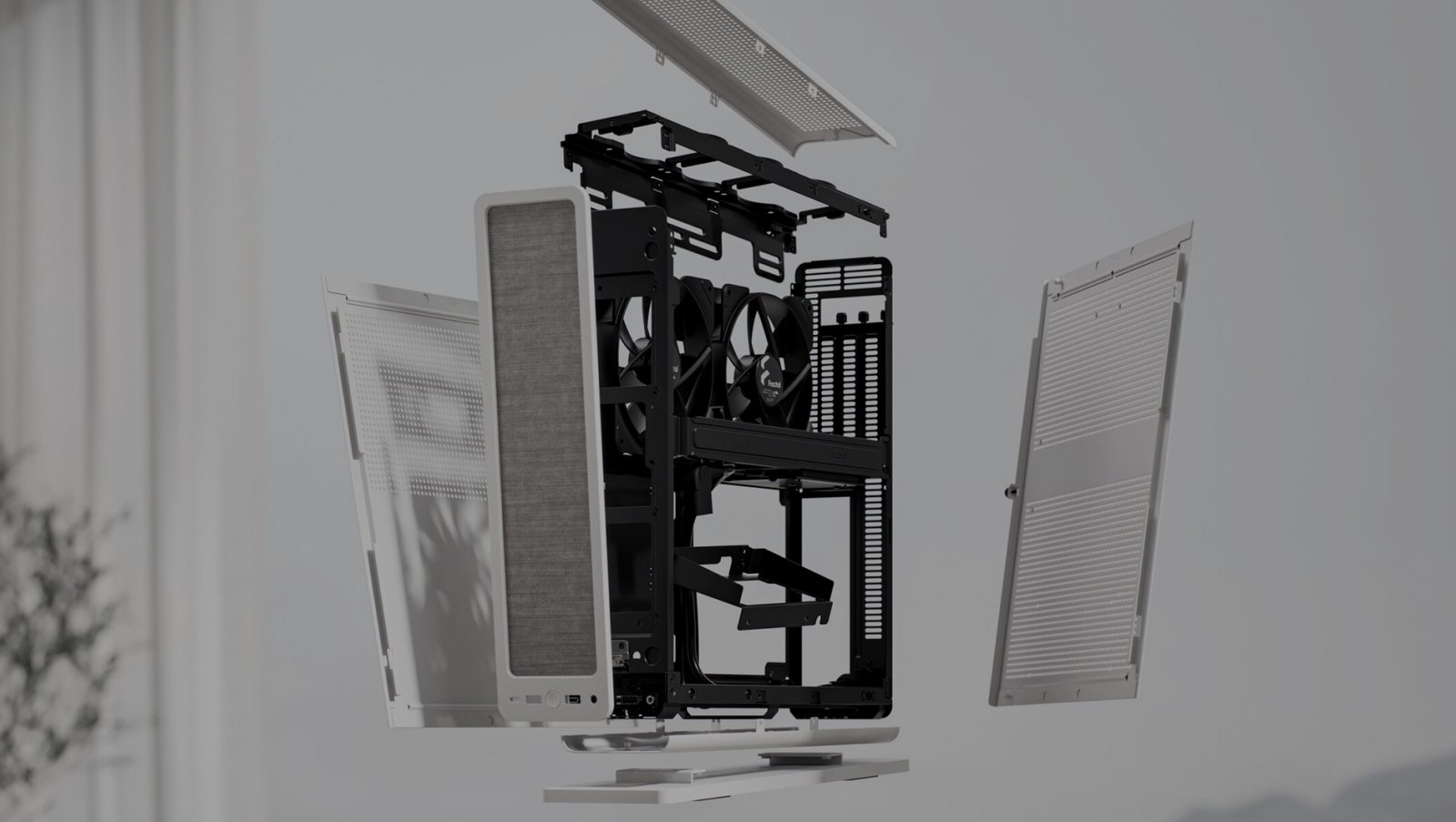

Unrivalled access

Remove any panel to gain easy access to every side of your build











All-around ventilation

Ventilated on all sides to maximize its cooling potential

Comes with 2x 140 mm PWM Aspect fans pre-installed

Supports 2x 120/140 mm and 3x 80 mm fans

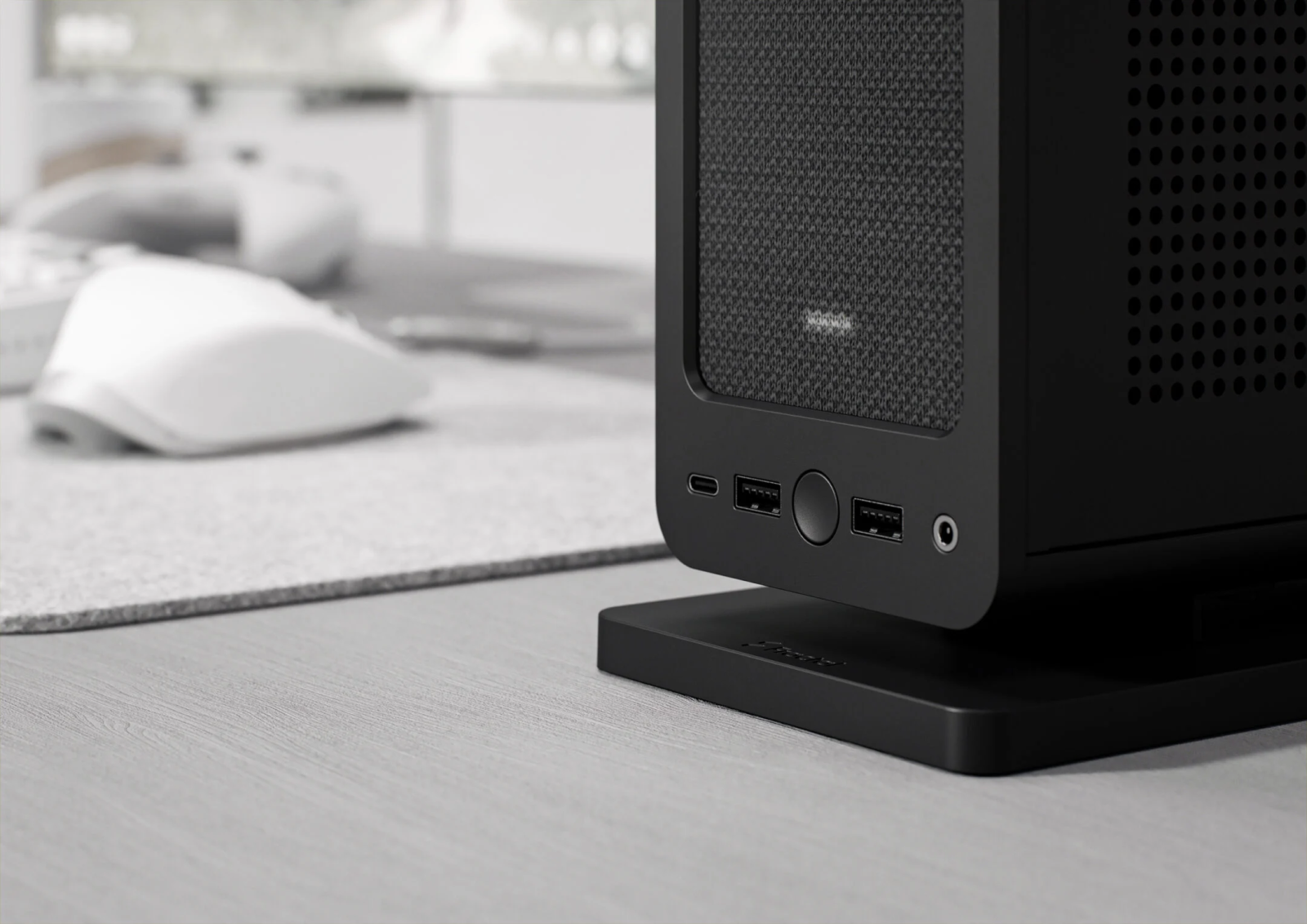

Type-C interface

Front I/O comes with 2x USB 3.0, 1x USB type-C and a combined mic and headphone jack










Specifications

• Dedicated 2.5" drive mounts

  4x included, 4x positions total

• Expansion slots

  3-slot

• Front interface

  1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, 1x Combo jack – Audio/Microphone, power button, power LED

• Total fan mounts

  2x 120/140 mm and 3x 80 mm

• Side fan

  2x 120/140 mm (2x PWM Aspect fan 140 mm included)

• Top fan

  3x 80 mm (not included)

• Cable routing space

  13,8 mm (behind PSU)

• Tool-less slide with thumbscrew lock

  Side panels

• Captive thumbscrews

  Side panels

• Left side panel

  Steel

• Right side panel

  Steel



Compatibility

• Motherboard compatibility

  Mini ITX

• Power supply type

  SFX, SFX-L

• Side radiator

  120 mm when ≤175mm long GPUs are installed (280 mm without GPU)

• PSU max length

  SFX-L

• GPU max length

  325 mm with SSD installed. 335 mm without SSD installed.

• GPU max height

  125 mm with top fan(s) installed, 137 mm without top fans

• GPU max thickness

  57 mm with 2x 140 mm fans installed, 82 mm without side fans

• CPU cooler max height

  70 mm



Dimensions

• Case dimensions

  Vertical: 374 x 110 x 395 mm, Horizontal: 360 x 375 x 115 mm

• Case dimensions w/o feet/protrusions/screws

  355 x 95 x 375 mm

• Net weight

  4.3 kg

• Package dimensions (LxWxH)

  426 x 167 x 431 mm

• Gross weight

  5.5 kg

• Volume

  12.6 liter
