Name: Кутия Chieftec UNI Workstation Chassis, ATX/microATX/Mini-ITX, 1x USB 3.2 Gen 1 Type-C, черна, без захранване
Brand: Chieftec
SKU: CASEPCHIEFTECBW01BOP
Price: 77.49 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Документация

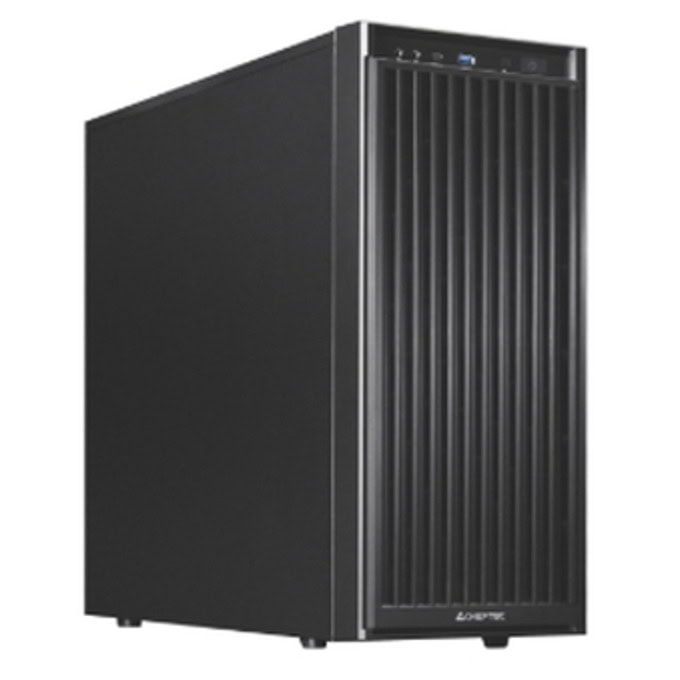

Chieftec UNI Workstation Chassis

Modern ATX workstation with a pre-installed 120mm PWM HDB fan
Supports radiators up to 360mm
Two tool-less 5.25" drive bays
Features 3.5" and 2.5" tool-less trays for up to 10 SSD/HDD drives

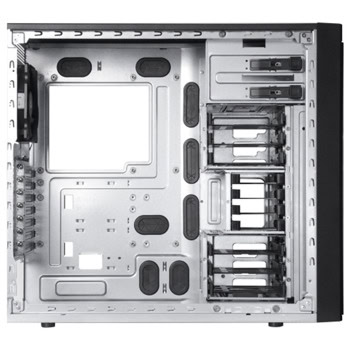

Easy-to-remove storage cage system

The CHIEFTEC BW-01B-OP is a high-performance ATX workstation chassis that blends a timelessly elegant front panel with a modernly designed door and essential front I/O, including a USB Type-C port. It comes pre-installed with a 120mm PWM HDB fan for quiet and long-lasting operation. It offers an easy-to-remove storage cage system and meets the demands of digital content creators as well as their long-term data storage needs. The chassis features cable management holes with rubber grommets for a clean build and efficient airflow. Built to support modern workstation systems, the BW-01B-OP delivers both performance and style in a refined, professional chassis.

Color	Black
Material	0.6mm SGCC
Motherboard support	Mini ITX, mATX, ATX
Dimension (DxWxH)	510mm x 200mm x 465mm
Weight (without/with package)	8.23 kg / 9.51 kg
Drive bay external	2 x 5.25”
Drive bay internal	6 x 3.5” and 4 x 2.5”
Power supply	ATX PSU (optional, up to 160 mm length)

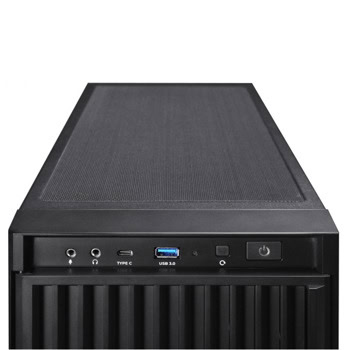

Front I/O	1x USB Type C, 1 x USB3.0, Audio-out (AZALIA / HD-Audio), Mic-In
Scope of delivery	Screw set, removable dust filter bottom, magnetic dust filter on top

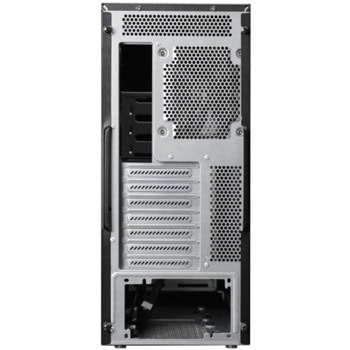

Expansion slots	7
Cooling Compatibility	Front: 2x 120mm / 2x 140mm fan Rear: 1x 120mm PWM HDB fan (pre-installed) Top: 3x 120mm / 3x 140mm fan / 240mm radiator / 360mm radiator (if the 5.25” tray on the top is left empty)
CPU cooler height (max.)	157mm
VGA card length (max.)	310mm (or 410mm, if 2.5” SSD cage is not installed)
