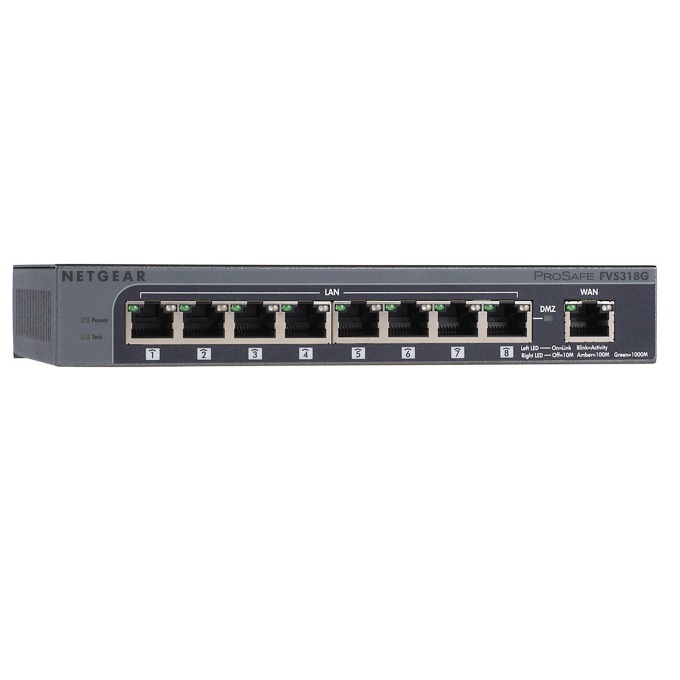

Firewall Netgear FVS318G-200EUS, ProSafe VPN (up to 5 VPN tunnels), 8 Port 1000Mbps

Firewall Netgear FVS318G-200EUS

Physical Interfaces

LAN ports: Eight (8) 10/100/1000 Mbps auto-sensing, Auto Uplink™ RJ-45 ports; one LAN port can be dedicated hardware DMZ port
WAN ports: One (1) 10/100/1000 Mbps auto-sensing, Auto Uplink™ RJ-45 ports to connect to any broadband modem, such as DSL or cable

SPI firewall

Stateful packet inspection (SPI): prevents denial-of-service (DoS) attacks, provides stealth mode, User support: Unrestricted
Keyword filtering on: address, service (ex. FTP, SMTP, HTTP, RPL, SNMP, DNS, ICMP, NNTP, POP3, SSH, etc.), protocol, Web URL port/service blocking, file extension (ex. Java, URL, ActiveX)
Port/service blocking
SIP Application Layer Gateway
SIP compatibility list: Linksys SPA-901, Linksys SPA-941, SNOM M3, Cisco 7940G, X-Lite 3.0 (software for phones, D-Link DPH-140S, Grandstream GXP-2000, Polycom SoundStation 6000, Siemens C450, Aastra 51i

IPsec VPN functionality

Five (5) dedicated IPsec VPN tunnels
Manual key and Internet Key Exchange Security Association (IKE SA) assignment: pre-shared key signature, RSA/DSA signature
Key life and IKE lifetime time settings
Perfect forward secrecy
Diffie-Hellman groups 1 and 2
Oakley support
Operating modes: main, aggressive
Fully qualified domain name (FQDN) support for dynamic IP address VPN connections

IPsec support

IPsec-based 56-bit (DES) 168-bit (3DES), or 256-bit (AES) encryption algorithm
MD5 or SHA-1 hashing algorithm
ESP support
PKI features with X.509 v.3 certificate support
remote access VPN (client-to-site), site-to-site VPN
IPsec NAT traversal (VPN passthrough)
Two-factor authentication support

Routing Modes of Operation

Many-to-one Multi-network Address Translation (NAT)
Classical routing
Unrestricted users per port

IP Address Assignment

Static IP address assignment
Internal DHCP server on LAN
DHCP client on WAN
PPPoE client support

Performance Features

Throughput: LAN-to-WAN: 25 Mbps total, IPsec VPN (3DES): 7 Mbps
Connections: 6,000 concurrent sessions

Administration Interface

SNMP (v2c) support
Web graphic user interface
User name and password protected
Secure remote management support authenticated through IP address (or IP address range) and password
Configuration changes/upgrades through Web GUI
Two-factor authentication support for administrator interface

Logging

SYSLOG
Email alerts

Functions

VPN Wizard to simplify configuration of IPsec VPNs
Auto Detect to automatically detect ISP address type (static, dynamic, PPPoE)
Port range forwarding
Port triggering
Enable/disable WAN ping
DNS proxy
MAC address cloning/spoofing
Network Time Protocol NTP support
Diagnostic tools (ping, DNS lookup, trace route, other)
Port/service
Auto-Uplink on switch ports
L3 Quality of Service (QoS) LAN-to-WAN and WAN-to-LAN (ToS)
SIP ALG

Protocol support

Network: IP routing, TCP/IP, UDP, ICMP, PPPoE
IP addressing: DHCP (client and server)
Routing: RIP v1, RIPv2 (static routing, dynamic routing)
VPN/security: IPsec (ESP), IKE, PKI, HTTPS
