Мрежови адаптер ZyXEL XGN100C-ZZ0102F, от PCI-E към 10/100/10000 RJ-45(ж)

ZyXEL XGN100C-ZZ0102F

Hyper-Fast 10Gbps Networking

10X faster than standard gigabit Ethernet which can easily handle the bandwidth of demanding tasks such as large file transfers, 8K streaming, or low-latency gaming at Home/SOHO/SMB environments.

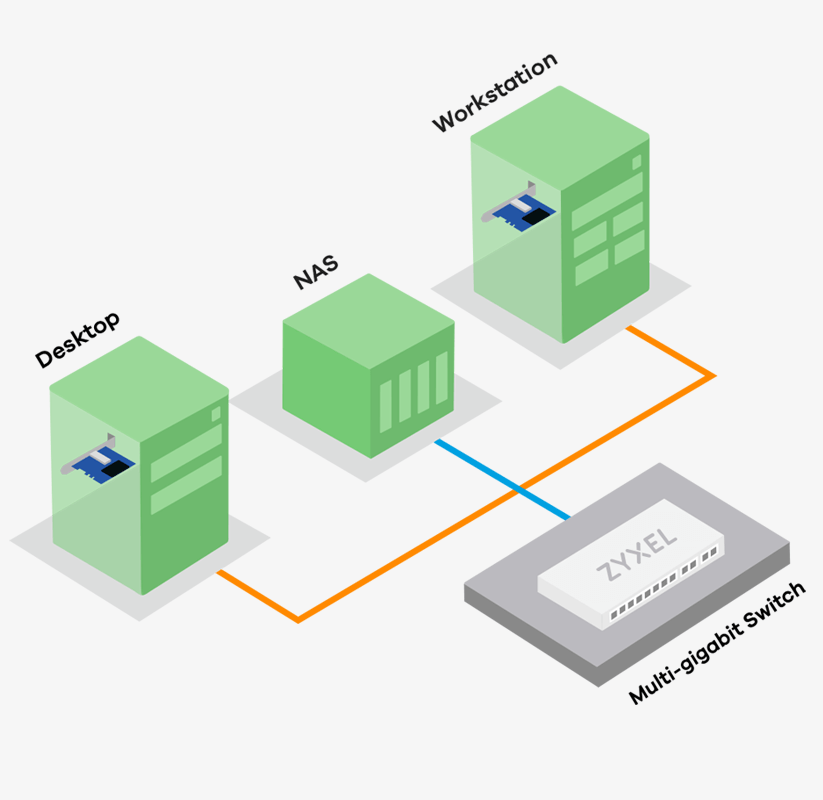

Multi-Gigabit with Full Backward Compatibility

Performs multi-gigabit speeds of 10G, 5G, 2.5G along with backward compatibility for standard Gigabit and Fast Ethernet. Windows 10 & Linux OS supported for a smooth migration to a 10G networking environment from your existing infrastructure.

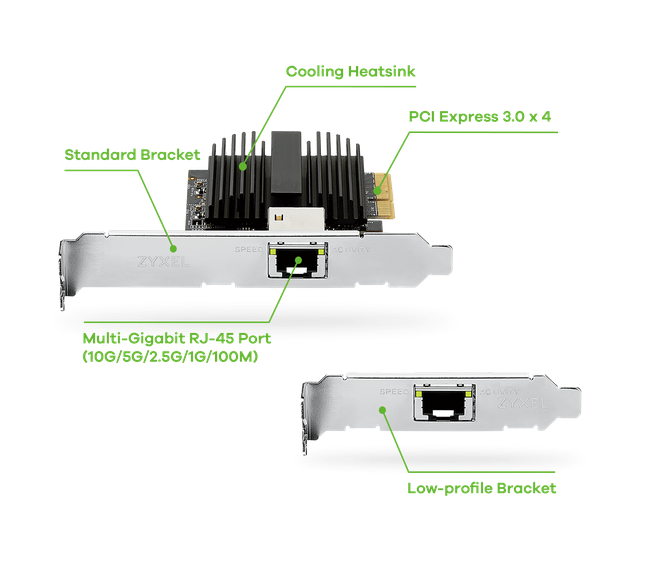

Cooling heatsink and multiple bracket options for flexible deployment

Our efficient heatsink keeps XGN100C cool during operation. Apart from the full-height bracket bracket, a low-profile alternative is included specifically for mini tower computer cases. With customizable choices available, you have the freedom to select a bracket that aligns perfectly with your board’s design.

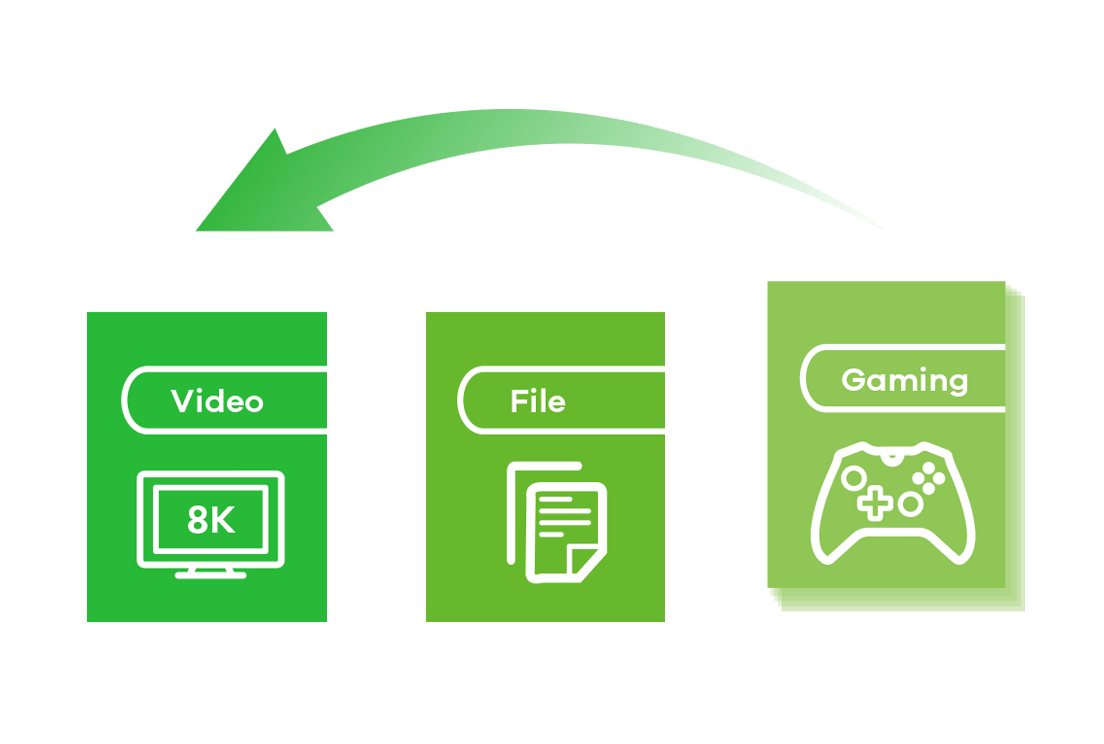

Quality of Service (QoS), Prioritizing Bandwidth

Built-in Quality-of-Service (QoS) technology automatically prioritizes bandwidth for the most important applications. Download large files while retaining a smooth web surfing, gaming, and streaming experience on all your connected devices.

System Specifications

Standard

• IEEE 802.3an 10Gbps Ethernet
• IEEE 802.3bz 2.5Gbps/ 5Gbps Ethernet
• IEEE 802.3ab Gigabit Ethernet
• IEEE 802.3u Fast Ethernet
• IEEE 802.1az Energy Efficient Ethernet
• IEEE 802.1p Priority Queuing

Performance

• Quality of Service
• Jumbo frame support up to 16 KB

Features

• Compatibility with current network standards, including 10/5/2.5/1 Gbps and 100 Mbps
• Jumbo frame and VLAN tagging support
• Standard and low profile brackets included
• Compatible with Windows® and LinuxR ®
• Built-in Quality of Service (QoS) technology
• Support WoL*

* Content applies to the latest hardware revision.

Supported OS

• Windows 7, 8.0, 8.1, 10 (32/64-bit) or Server 2012
• Linux kernels 3.10, 3.12, 3.20, 4.2 or 4.4

Hardware Specifications

Interface

• PCI Express Gen-3 (or2) x4 Host Bus Interface
• 1x 10 Gbps RJ-45 Ethernet port (Supported Speeds: 10 Gbps / 5 Gbps / 2.5 Gbps / 1 Gbps / 100 Mbps)
• Pre-installed with full height bracket, also includes low profile bracket

LED Indicator

• Speed
  • Green: 10G
  • Amber: 5G/2.5G/1G/100M
• Link/Activity
  • Green
    • Steady: No data transmission
    • Blink: Data transmission

Physical Specifications

• Item dimensions (WxDxH)(mm/in):
  • 122 x 100 x 18.5*/4.8 x 3.94 x 0.73*
  • 82 x 68 x 18/3.22 x 2.67 x 0.7
• Item weight (g/lb.):
  • 82*/0.18*
  • 78/0.17

* Content applies to the latest hardware revision.
