EIZO RadiForce RX270
High Fidelity Images for Peace of Mind

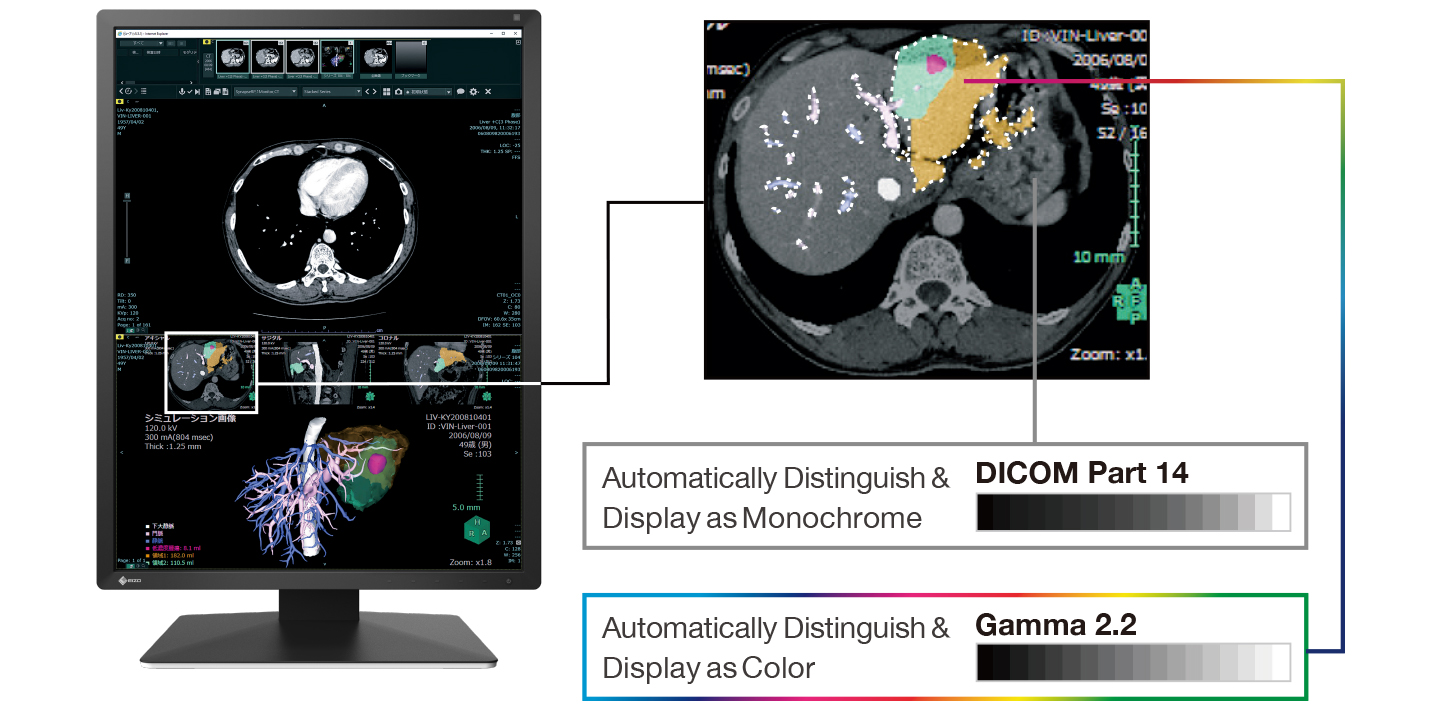

Hybrid Display of Monochrome and Color
The Hybrid Gamma PXL function automatically distinguishes between monochrome and color images pixel by pixel, creating a hybrid display where each pixel has optimum grayscale. As a result, monochrome images such as CT, MRI and X-ray are displayed in the ideal grayscale that corresponds to DICOM Part 14, while color images such as 3D rendering, nuclear medicine, ultrasound and endoscopy are faithfully reproduced corresponding to Gamma 2.2. This helps improve efficiency of viewing both monochrome and color images by displaying them together on the one screen.
Achieve Clarity True to the Source Data
A medical monitor needs to be capable of high brightness in order to meet performance standards. However, in order to achieve high brightness in an LCD panel, the pixel aperture ratio has to be increased. This causes a typically unavoidable decline in sharpness. With EIZO's unique Sharpness Recovery technology, the decrease in sharpness (MTF) is restored. This allows you to display an image safely on the monitor that is true to the original source data, even at high brightness levels.

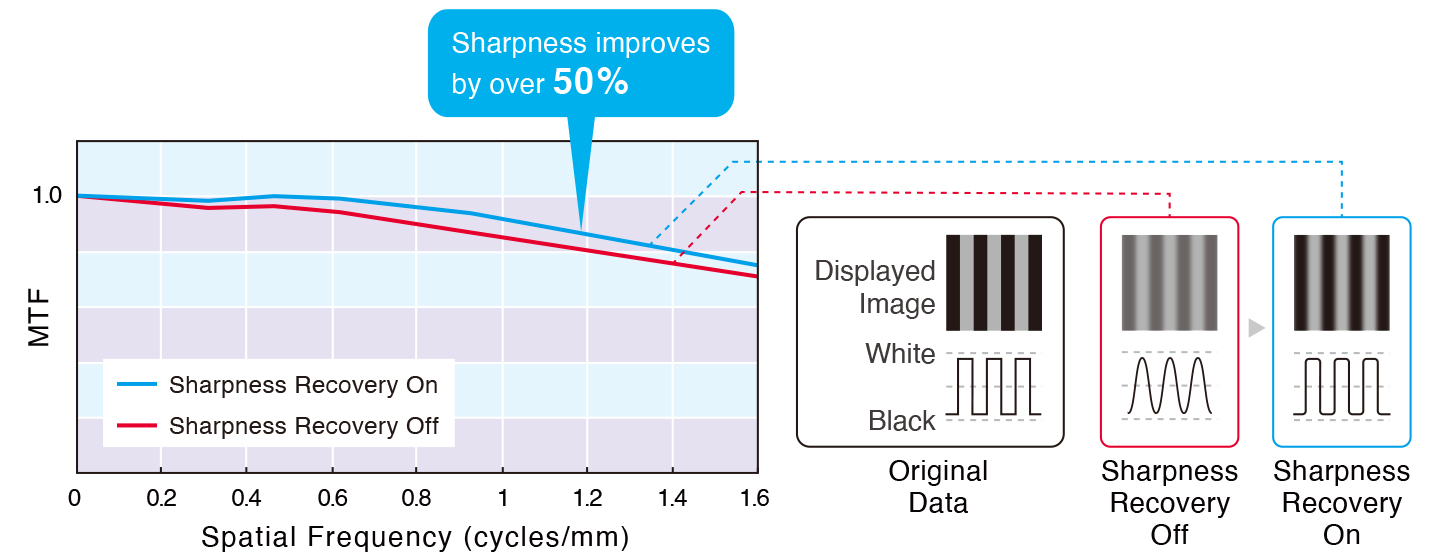

MTF measures numerically how faithfully the panel transfers detail from the original image data for viewing. When Sharpness Recovery is turned on, in the case of a 2 pixel line pair (spatial frequency of 0.926 cycles/mm) the MTF increases by over 50%.
| Panel | |
|---|---|
| Type | Color (IPS) |
| Backlight | LED |
| Size | 21.3" (54.0 cm) |
| Native Resolution | 1200 x 1600 (3:4 aspect ratio) |
| Viewable Image Size (H x V) | 324.0 x 432.0 mm |
| Pixel Pitch (H x V) | 0.270 x 0.270 mm |
| Display Colors | 10-bit (DisplayPort): 1.07 billion from a palette of 543 billion (13-bit) colors 8-bit: 16.77 million from a palette of 543 billion (13-bit) colors |
| Viewing Angles (H / V, typical) | 178° / 178° |
| Brightness (typical) | 1000 cd/m2 |
| Recommended Brightness for Calibration | 500 cd/m2 |
| Contrast Ratio (typical) | 1800:1 |
| Response Time (typical) | 20 ms (black-white-black) |
| Video Signals | |
| Input Terminals | DisplayPort x 2, DVI-D |
| Output Terminals | DisplayPort (daisy chain) |
| Digital Scanning Frequency (H / V) | 31 - 100 kHz / 59 - 61 Hz |
| USB | |
| Upstream | USB 2.0: Type-B x 2 |
| Downstream | USB 2.0: Type-A x 2 |
| Dedicated Charging Port | USB Type-C (Power Supply 15 W max.) |
| Power | |
| Power Input | AC 100 - 240 V: 50 / 60 Hz |
| Typical Power Consumption | 33 W |
| Maximum Power Consumption | 98 W |
| Power Save Mode | 1 W or less |
| Sensor | Backlight Sensor, Integrated Front Sensor, Ambient Light Sensor |
| Features & Functions | |
| Brightness Stabilization | Yes |
| Digital Uniformity Equalizer | Yes |
| Hybrid Gamma PXL | Yes |
| Work-and-Flow | Switch-and-Go, Point-and-Focus, Instant Backlight Booster |
| Preset Modes | DICOM, CAL1, CAL2, Custom, sRGB, Text |
| OSD Languages | English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese |
| Physical Specifications | |
| Net Weight | 7.7 kg |
| Net Weight (Without Stand) | 4.9 kg |
| Hole Spacing (VESA Standard) | 100 x 100 mm |
| Certifications & Standards (Please contact EIZO for the latest information.) | CB, CE / UKCA (Medical Device), ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1, IEC/EN60601-1, VCCI-B, FCC-B, CAN ICES (B), RCM, RoHS, China RoHS, WEEE, CCC |
| FDA | 510(k) Clearance for General Radiography |
| Dedicated Software | |
| Monitor Quality Control Software RadiCS | Supported |
| Supplied Accessories (May vary by country. Please contact EIZO for details.) | |
| Signal Cables | DisplayPort (3 m) x 2 |
