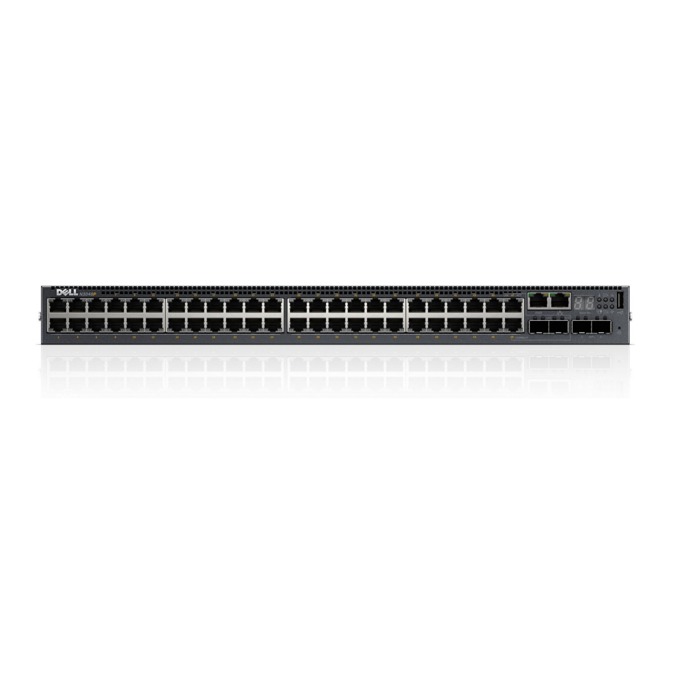

Dell Networking N3048P, 48 Port 1000Mbps, 2x SFP, POE+, 1100w AC PSU

Суич, тип: Fixed Port
Общ брой портове: 52
Основни портове, тип: 48x10/100/1000Base-T
Power Over Ethernet (PoE): Support Power over Ethernet Plus (IEEE 802.3at) standard. Maximum PoE Watts per port: 30.8 watts on 48 ports
Uplink портове: 2 dual personality, 2x10GE SFP
Свободни (10GB) слотове: 1x hot swap expansion module bay supporting dual-port SFP+ or dual-port 10GBaseT
Управление: Management via an intuitive and familiar CLI, embedded web server (GUI), SNMP-based management console application (including Dell OpenManage Network Manager), Telnet or serial connection.
Stackable: 2 rear stacking ports (21Gbps) supporting up to 84Gbps (full-duplex)
Fans: Redundant variable speed fans
Захранване: Two internal hot swappable power supply bays, 1x 1100W PSU included (Requires C15 plug); Optional power supply: 1100W AC hot swappable
Routing : Layer 3 Advanced
Памет (Flash, RAM:) Flash Memory: 256 MB, RAM: 1 GB
Капацитет за маршрутизиране/превключване, Gbps: 260 Gbps
Пропускателна способност, Mpps: 193 Mpps
MAC адреси: 16000 MAC address table size

VLAN (брой, стандарти): 802.1Q VLAN Tagging, Double VLAN Tagging, GVRP; Private VLAN extensions and Private VLAN Edge support; 128 VLAN routing interfaces; 4094 VLANs supported; Protocol-based VLANs; Max VLAN interfaces with ACLs applied: 24
QoS : 8 priority queues per port, Broadcast storm control, DiffServ

L2 мрежови стандарти IEEE 802.1AB, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1S, IEEE 802.1v, IEEE 802.1W, IEEE 802.1X, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3AX, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

L3 мрежови стандарти: Flexible routing options with policy-based routing to route packets based on assigned criteria beyond destination address; OSPF routing interfaces: 8160; RIP routing interfaces: 512
IPv6 functionality General IPv6 protocols are supported.
Сигурност AAA authorization, TACACS+ accounting and RADIUS support for comprehensive secure access support.

Размери, mm 43.5 x 434.0 x 407.0 mm, 1U Rack Height; ReadyRails rack mounting system, no tools required
Други 1x RJ45 console/management port with RS232 signaling (RJ-45 to female DB-9 connector cable included), 1x Out-of-Band (OOB) Management Port (10/100/1000BASE-T), 1x USB (Type A) port for configuration
