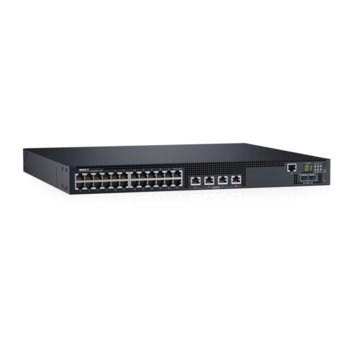

Суич Dell N2128PX-ON, 24x 10/100/1000Base-T, 4x 10/100/1000/2500Base-T, 2x 10GE SFP ports, 2GB RAM, PoE

Dell Networking N2128PX-ON
DNN2128PX

Streamline your network connections.

Deliver clean power to network devices with PoE+ support
The Dell Networking N2000 Series has options for up to 48 ports of Power-over-Ethernet Plus (PoE+). The N2128PX-ON supports four ports of 60W Power over Ethernet (PoE 60W). This allows you to attach devices with high power requirements (up to 30.8 watts ; up to 60 watts for PoE 60W) without running a separate power cable. Power-over-Ethernet is particularly useful in older buildings where installing power to multiple, widespread locations can be prohibitively expensive.

Сигурност AAA authorization, TACACS+ accounting and RADIUS support for comprehensive secure access support
Други 1x RJ45 console port with RS232 signaling (RJ-45 to female DB-9 connector cable included), USB (Type A) port for configuration via USB flash drive
Захранване Integrated power supply (not removable): 1000W AC; Optional external power supply MPS1000 (sold separately)
MAC адреси 32000 MAC address table size
Управление Management via an intuitive and familiar CLI, embedded web server (GUI), SNMP-based management console application (including Dell OpenManage Network Manager), Telnet or serial connection.

Памет (Flash, RAM) Flash Memory: 512 MB, RAM: 2 GB
VLAN (брой, стандарти) 802.1Q VLAN Tagging, Double VLAN Tagging, GVRP; Private VLAN extensions and Private VLAN Edge support; 256 VLAN routing interfaces; 4094 VLANs supported; Protocol-based VLANs; Max VLAN interfaces with ACLs applied: 24
Stackable 2 rear stacking ports (21Gbps) supporting up to 84Gbps (full-duplex)
Суич, тип Fixed Port
Общ брой портове 30

Основни портове, тип 24x10/100/1000Base-T + 4x10/100/1000/2500Base-T
Power Over Ethernet (PoE) Support IEEE 802.3at PoE plus standard. N2128PX-ON supports PoE 60W over its 4 2.5GbE ports, delivering up to 60W per port and bandwidth for Wave 2 wireless.
Uplink портове 2x10GE SFP
Свободни (10GB) слотове No
Fans Redundant variable speed fans
Routing Layer 3 Advanced
Капацитет за маршрутизиране/превключване, Gbps 192 Gbps
Пропускателна способност, Mpps 256 Mpps
QoS 8 priority queues per port, DiffServ, Flow Based QoS, Port Based QoS
L3 мрежови стандарти Layer 3 Standard IPv4 and IPv6 functionality including static routing, RIP, and OSPFv2 support
IPv6 functionality General IPv6 protocols are supported.

L2 мрежови стандарти IEEE 802.1AB, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1S, IEEE 802.1v, IEEE 802.1W, IEEE 802.1X, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae/at, IEEE 802.3AX, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Размери (Ш, Д, В), mm 440 x 387 x 44
Опция за монтаж Rackmount
