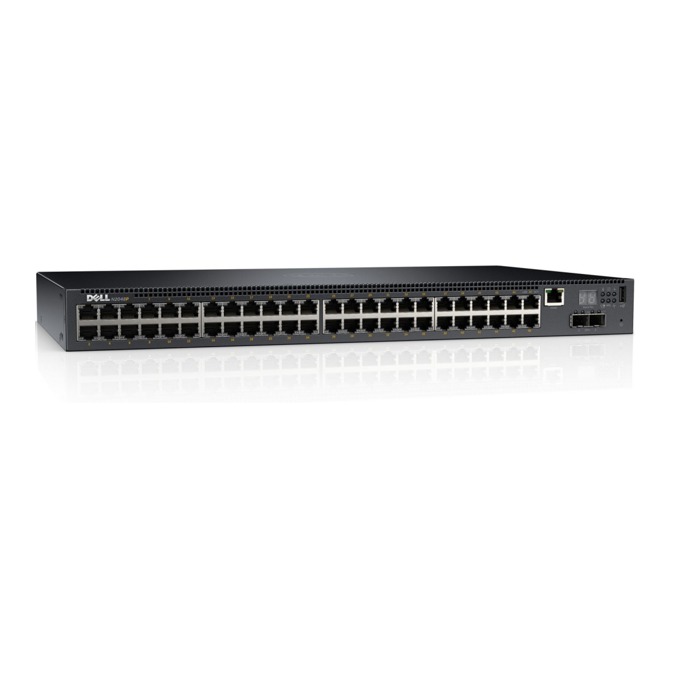

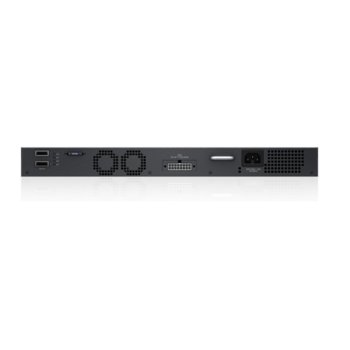

Dell Networking N2048P, 48 Port 1000Mbps, 2x SFP, POE+

Суич, тип Fixed Port

Общ брой портове 50

Основни портове, тип 48x10/100/1000Base-T

Power Over Ethernet (PoE) Support Power over Ethernet Plus (IEEE 802.3at) standard; Maximum PoE Watts per port: 30.8 watts on 48 ports

Uplink портове 2x10GE SFP

Свободни (10GB) слотове No

Управление Management via an intuitive and familiar CLI, embedded web server (GUI), SNMP-based management console application (including Dell OpenManage Network Manager), Telnet or serial connection.

Stackable 2 rear stacking ports (21Gbps) supporting up to 84Gbps (full-duplex)

Fans Redundant variable speed fans

Захранване Integrated power supply (not removable): 1000W AC; Optional external power supply MPS1000 (sold separately)

Routing Layer 3 RIP

Памет (Flash, RAM) Flash Memory: 256 MB, RAM: 1 GB

Капацитет за маршрутизиране/превключване, Gbps 220 Gbps

Пропускателна способност, Mpps 164 Mpps

MAC адреси 8000 MAC address table size

VLAN (брой, стандарти) 802.1Q VLAN Tagging, Double VLAN Tagging, GVRP; Private VLAN extensions and Private VLAN Edge support; 256 VLAN routing interfaces; 4094 VLANs supported; Protocol-based VLANs; Max VLAN interfaces with ACLs applied: 24

QoS 8 priority queues per port, Broadcast storm control, DiffServ

L2 мрежови стандарти IEEE 802.1AB, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1S, IEEE 802.1v, IEEE 802.1W, IEEE 802.1X, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3AX, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

L3 мрежови стандарти Advanced Layer 2+ IPv4 and IPv6 functionality including static routing and Routing Information ProtocoL (RIPv1, RIPv2); 256 RIP routing interfaces

IPv6 functionality General IPv6 protocols are supported.

Сигурност AAA authorization, TACACS+ accounting and RADIUS support for comprehensive secure access support

Размери, mm 43.5 x 440.0 x 387.0 mm, 1U, rack-mounting kit included
