Asus Prime

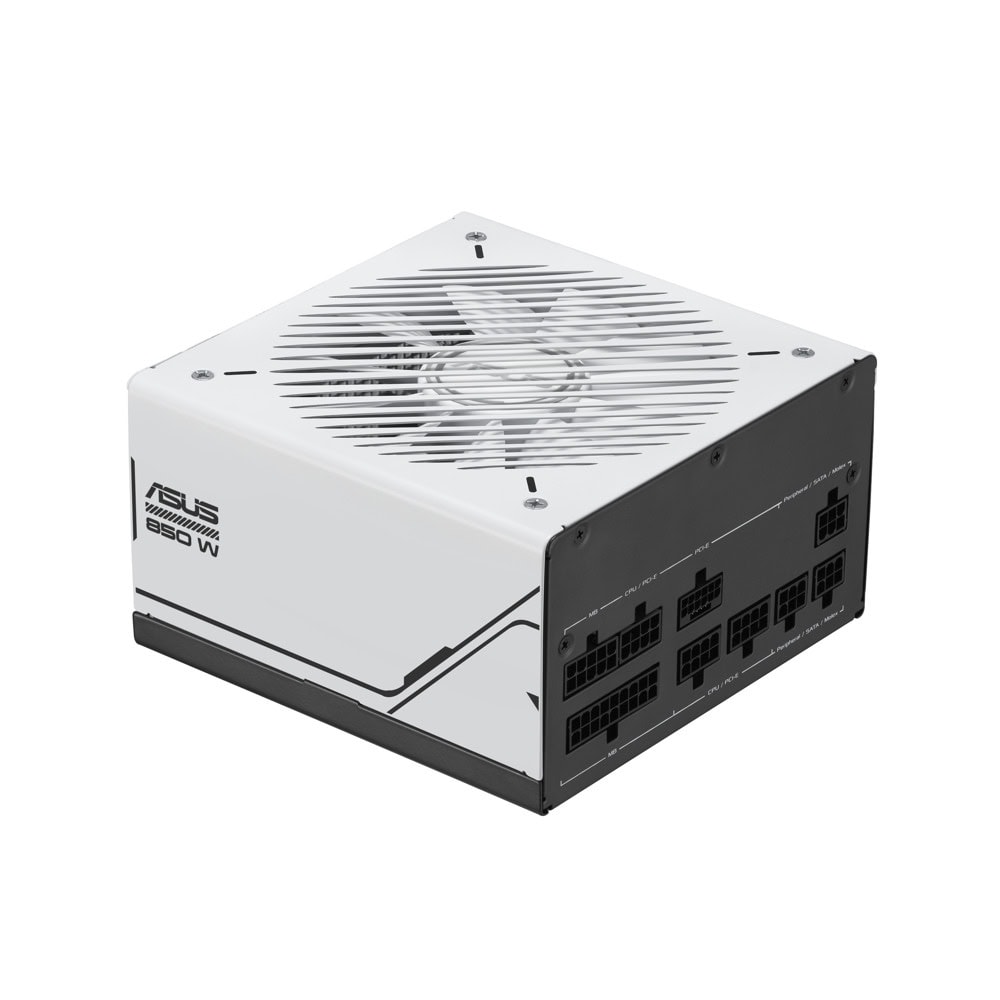

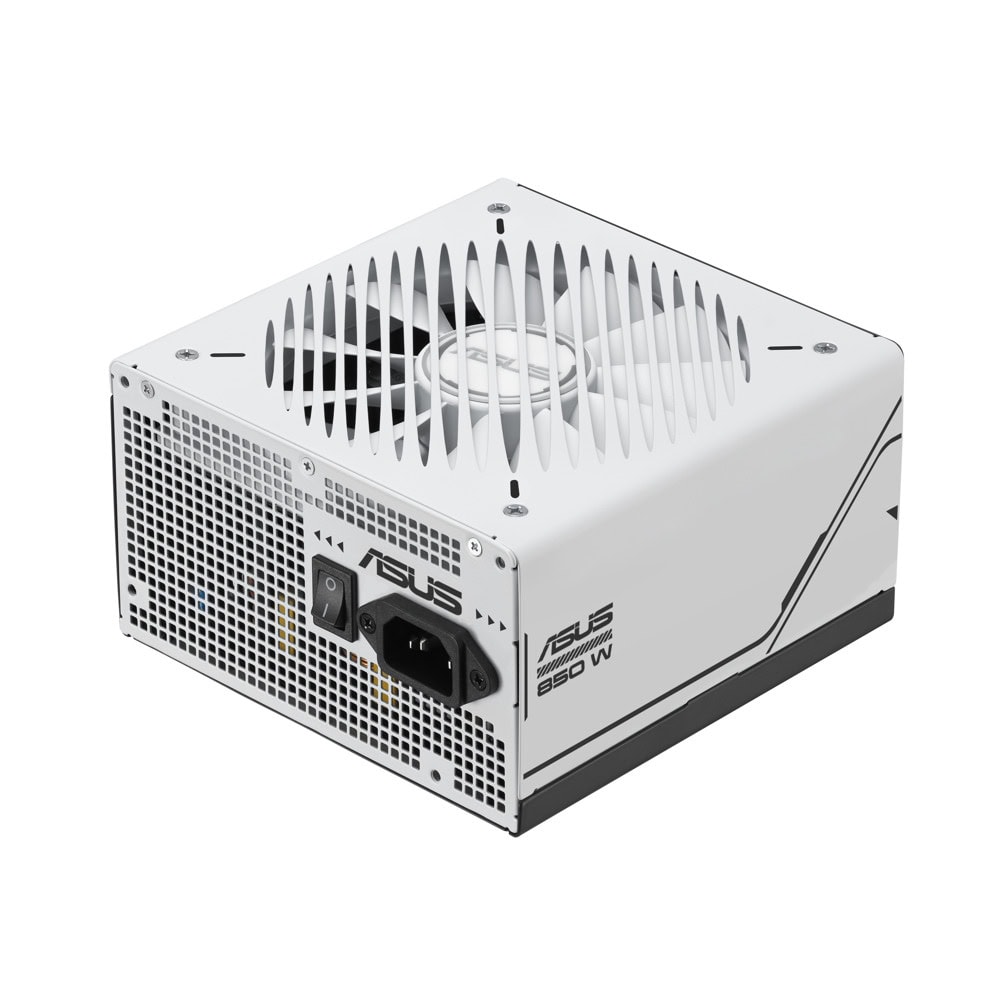

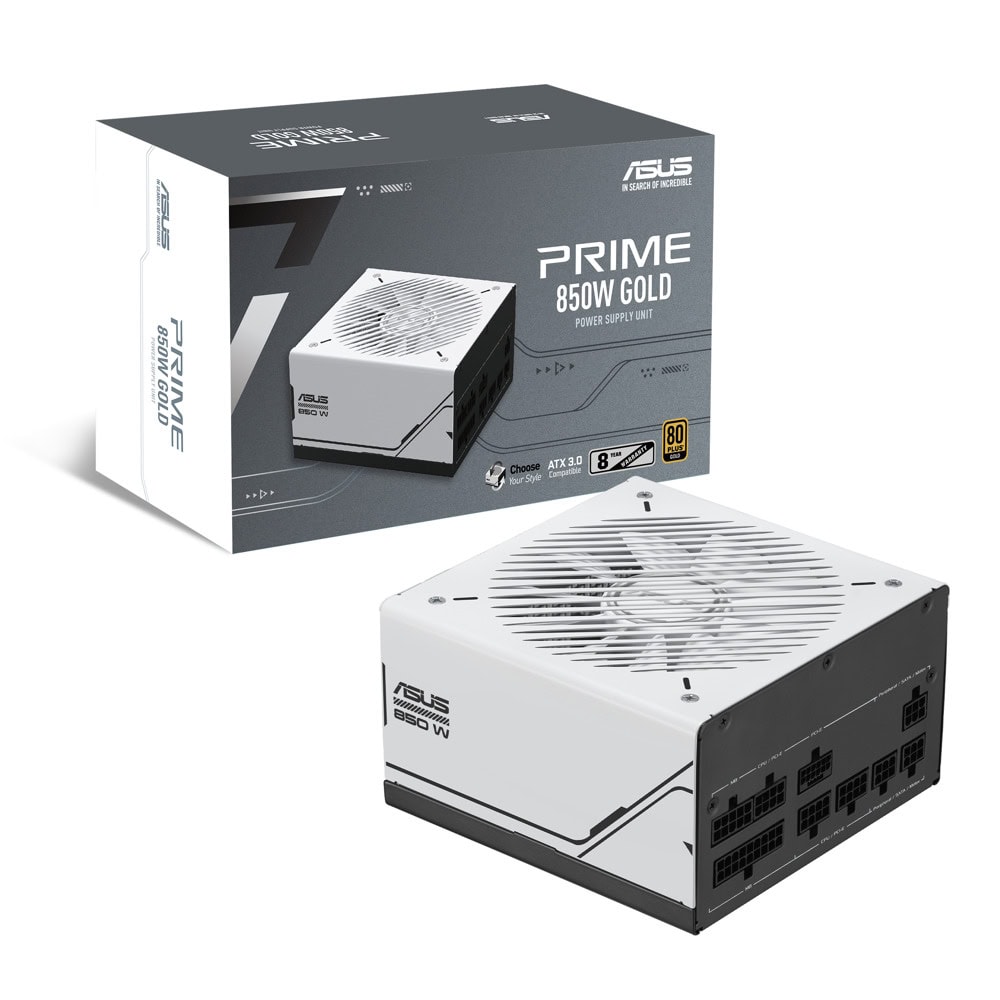

Prime Performance With 80+ Gold certification, dual ball fan bearings, ASUS Prime series PSU brings efficient and durable power delivery to high-performance workstations, all-round PCs, and gaming rigs. | ![]() |

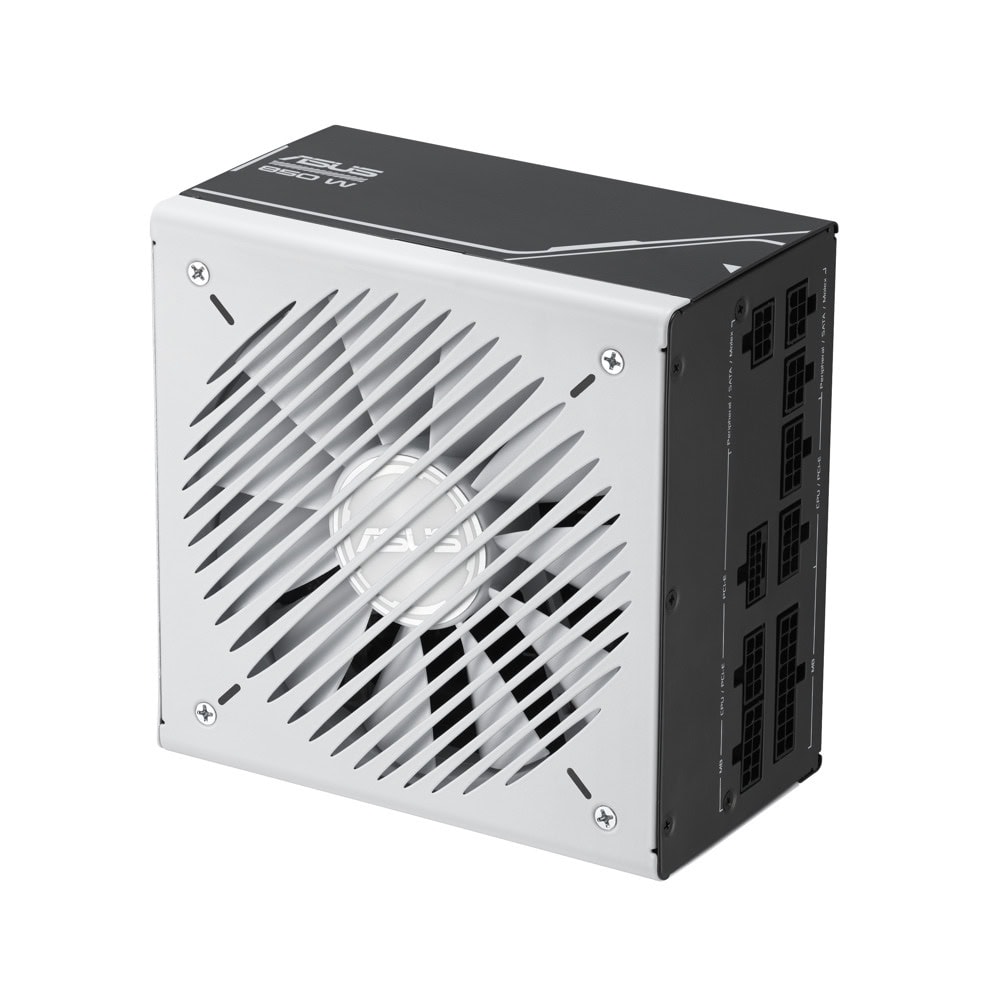

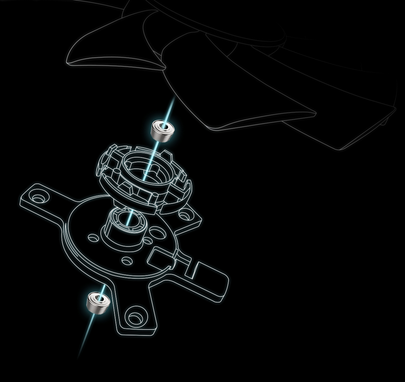

Dual Ball Fan Bearings Dual ball bearings boast a remarkable lifespan of 80,000 hours, lasting twice as long as sleeve bearings and exceeding even fluid dynamic bearings. Ensuring long-lasting, reliable cooling with minimal noise for ASUS Prime Gold series. | ![]() |

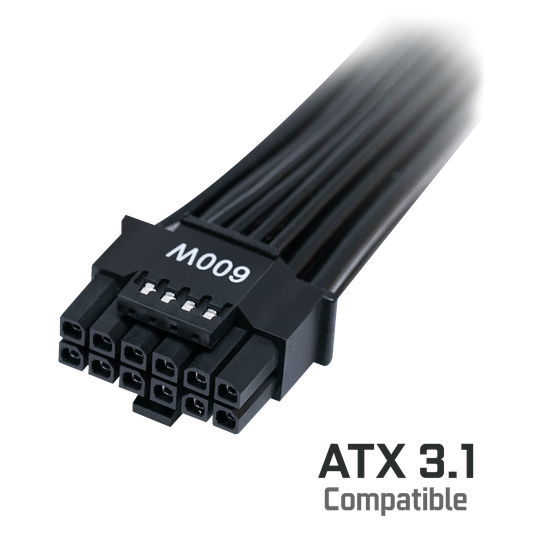

ATX 3.1 Compatible The latest power specification updates have landed. ATX 3.1 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and ASUS Prime 850W Gold steps ahead of the curve by being fully compliant. A 16-pin PCIe cable that is compatible with PCIe Gen 5.1 graphics cards is bundled with the PSU, bringing large-scale capabilities. | ![]() |
Tech Specs
Intel Form Factor
ATX12V
PFC Type
Active PFC
ATX Standard
ATX 3.1
Dimensions
150 x 150 x 86 mm
Efficiency
80Plus Gold
MTBF
>120,000 hrs @ 25°C
Protection Features
OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials
ROHS
AC Input Range
100-240Vac
DC Output Voltage
+3.3V +5V +12V -12V +5Vsb
Maximum Load
20A20A70.5A 0.3A 2.5A
Combined Load
110W 110W 846W 3.6W 12.5W
Total Output
850W

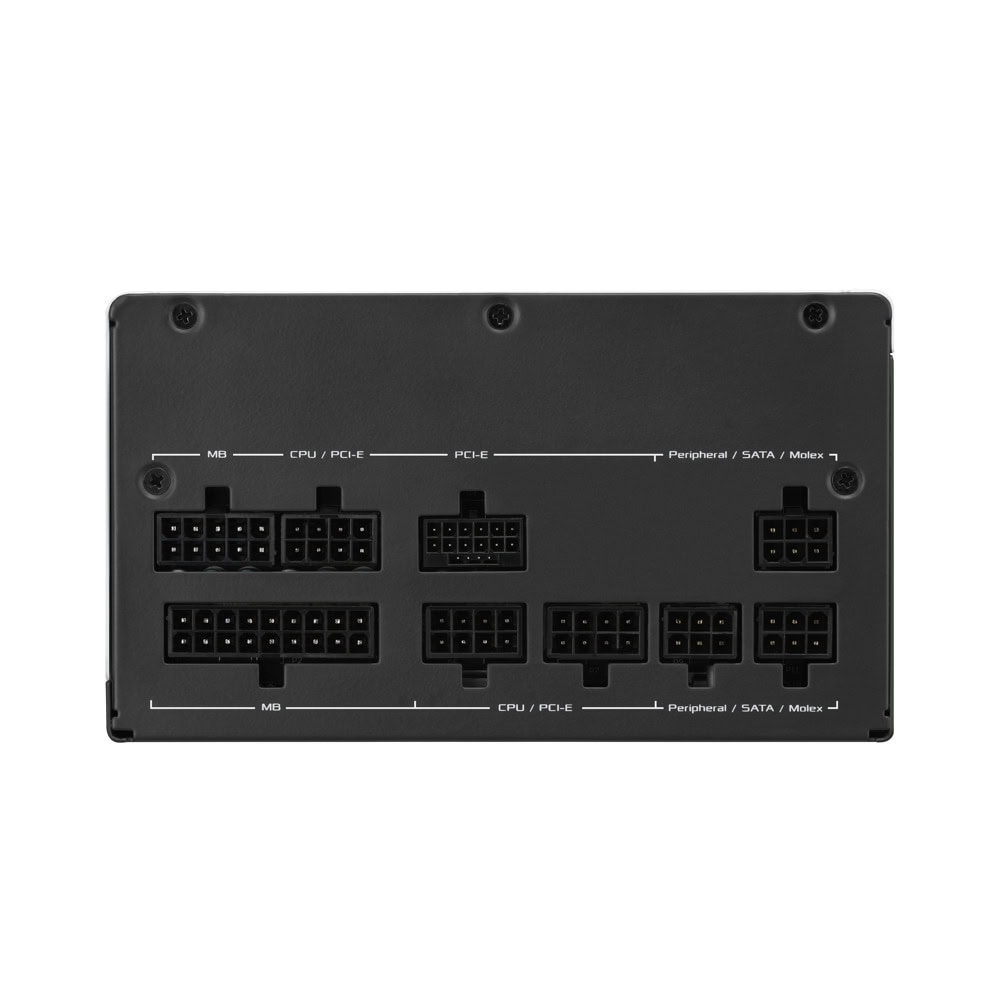

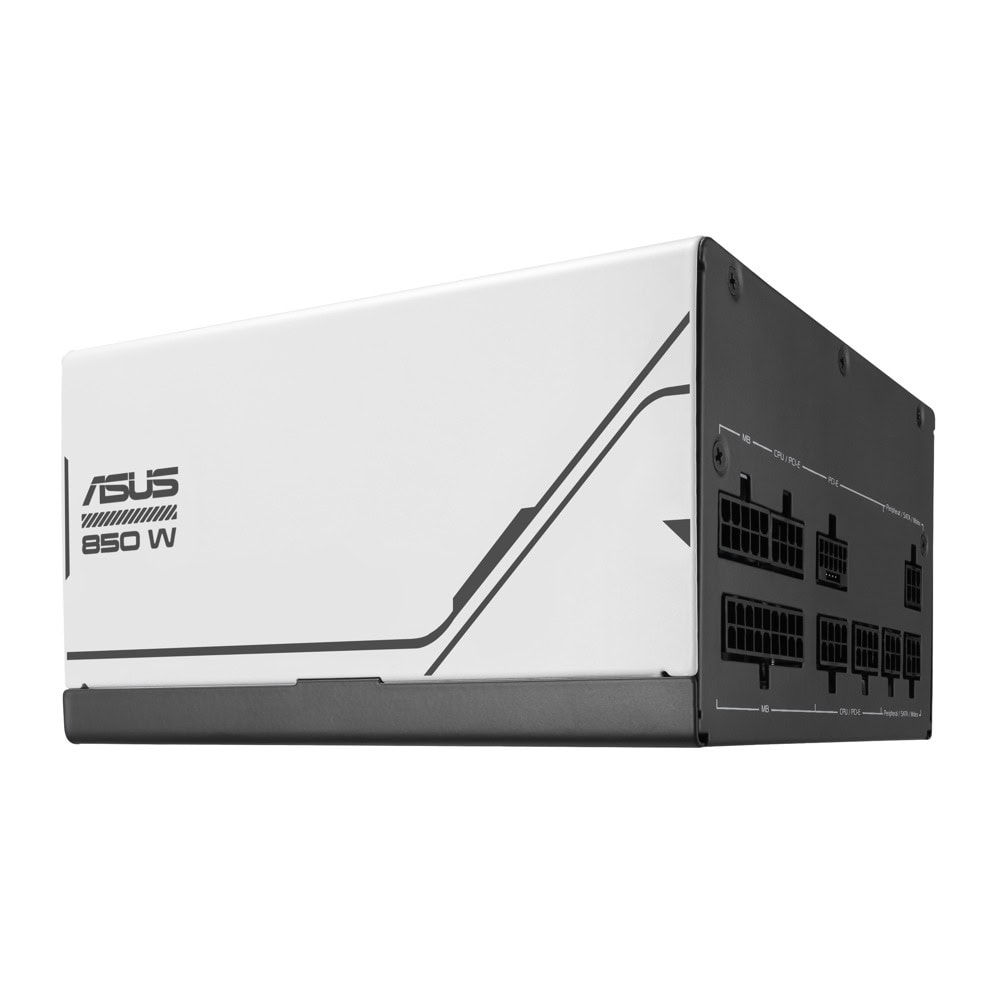

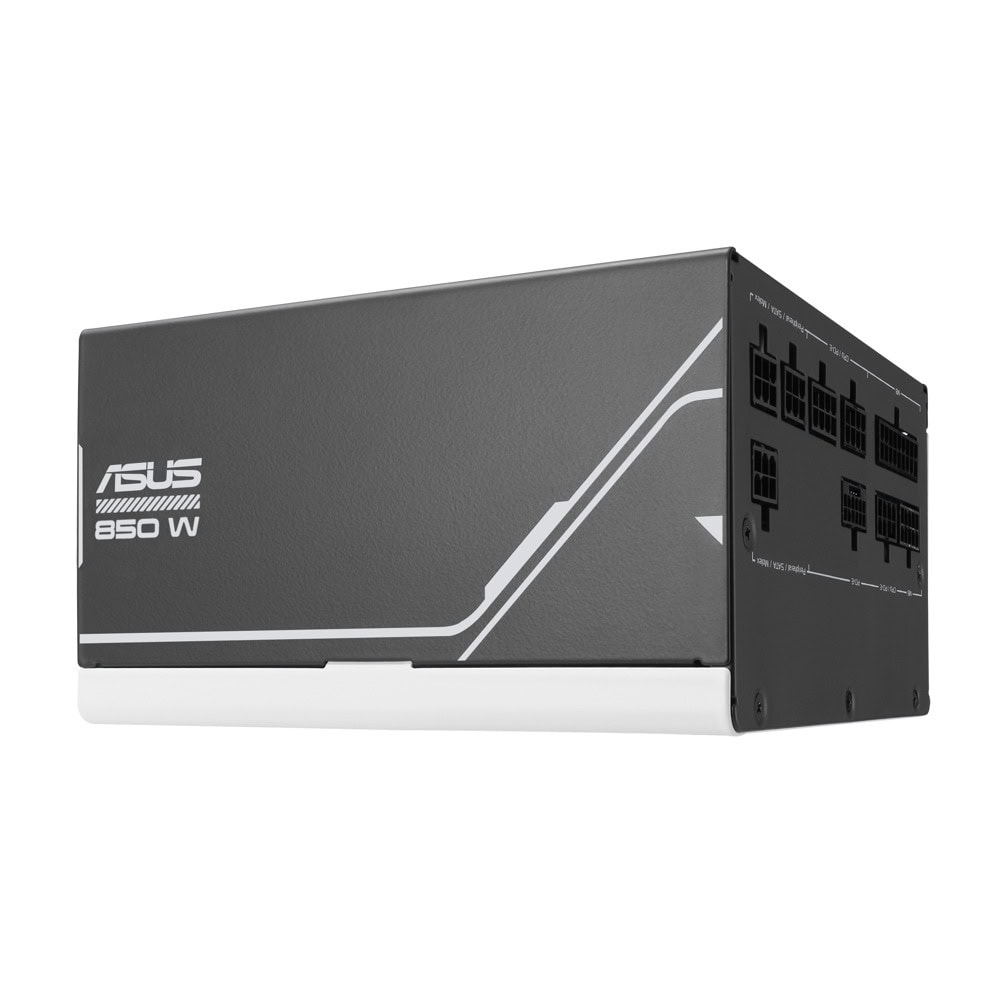

Cable Connectors
MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (both PSU & connector side)
PCI-E 8-pin x 3
SATA x 5
PERIPHERAL x 3
Package Contents
Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (650mm)
PCI-E Gen 5.1 16-pin Cable x 1 (675mm)
PCI-E (16-pin to 8-pin-8-pin) Cable x1 (675mm)
PCI-E 1-to-1 Cable x 1 (675mm)
SATA 1-to-2 Cable x 1 (400+120mm)
SATA 1-to-3 Cable x 1 (400+120+120mm)
Peripheral 1-to-3 Cable x 1 (400+150+150mm)
Weight
1.502 kg (single PSU)
0dB Technology
No
0dB Fan Button
No, this product is without 0dB technology.
JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
Виж още Захранвания Настолни компютри Asus
Виж всички Захранвания Настолни компютри в категорията
Изходна мощност: | 850 W |
---|---|
Модулен блок: | Да |
Форм фактор: | ATX |
