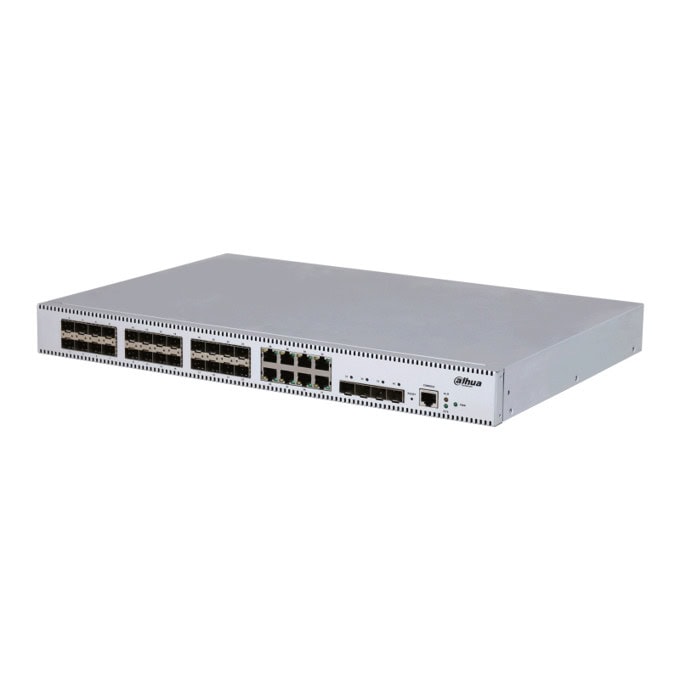

Dahua S5436-24GF8GT4XF
| Category | Specification |
|---|---|
| Basic | |
| Layer | Layer 2 |
| Switching Capacity | 144 Gbps |
| Packet Forwarding Rate | 107.136 Mpps |
| Function Slots | Port 1–24: 24 × SFP 100/1000 Mbps Port 25–32: 8 × RJ-45 10/100/1000 Mbps Port 33–36: 4 × SFP+ 1/10 Gbps |
| Operating Temperature | –20 °C to +55 °C (–4 °F to +131 °F) |
| Operating Humidity | 5%–95% RH, non-condensing |
| Storage Humidity | 5%–95% RH, non-condensing |
| Power Supply | 2 built-in power supplies: 100–240 VAC, 50/60 Hz, 2.5 A Max |
| Power Consumption | Idling: 23.8 WFull load: ≤ 100 W |
| Static Protection | Air discharge: 8 kVContact discharge: 6 kV |
| Lightning Protection | Common mode: 4 kVDifferential mode: 2 kV |
| Net Weight | 3.8 kg (8.38 lb) |
| Gross Weight | 5.3 kg (11.68 lb) |
| Product Dimensions | 440 × 308.3 × 44 mm (17.32" × 12.14" × 1.73") (L × W × H) |
| Packaging Dimensions | 528 × 412 × 112 mm (20.79" × 16.22" × 4.41") (L × W × H) |
| Installation | Rack mount; desktop mount |
| Hardware | |
| Debugging | 1 × Console port |
| Reset Button | 1 |
| Performance | |
| Packet Buffer Size | 16 Mbit |
| Jumbo Frame | 12288 Byte |
| MAC Table Size | 32K |
| Communication Standards | IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3z; IEEE 802.3ad |
| VLAN Number | 4094 |
| VLAN Interface | 10 |
| Features | |
| Ethernet Loop Protection | STP / RSTP / ERPS |
| VLAN Function | Port-based VLAN |
| Link Aggregation | LACPStatic link aggregationDynamic link aggregation |
| Port Features | IEEE 802.3x flow controlUnknown unicast suppressionMulticast storm controlBroadcast storm control |
| IEEE 802.3x Flow Control | Yes |
| Multicast | IGMP Snooping |
| Reliability | LLDP |
| Routing | Static routing |
| DHCP Function | DHCP Client |
| Security | 802.1XPort isolationRadiusHTTPS |
| QoS / ACL | SP / WRR queue scheduling802.1p and DSCP priority mappingPort speed limit |
| Equipment Management | Cloud managementWebSNMP V1/V2C/V3NTPLogsPing |
Виж още Суич Dahua
Виж всички продукти Суич в категорията
Технически характеристики
| Максимална скорост: | 1 Gbit/s |
|---|---|
| Брой портове: | 36 |
| Стандарт: | IEEE 802.3z |
| Управляем: | Да |
