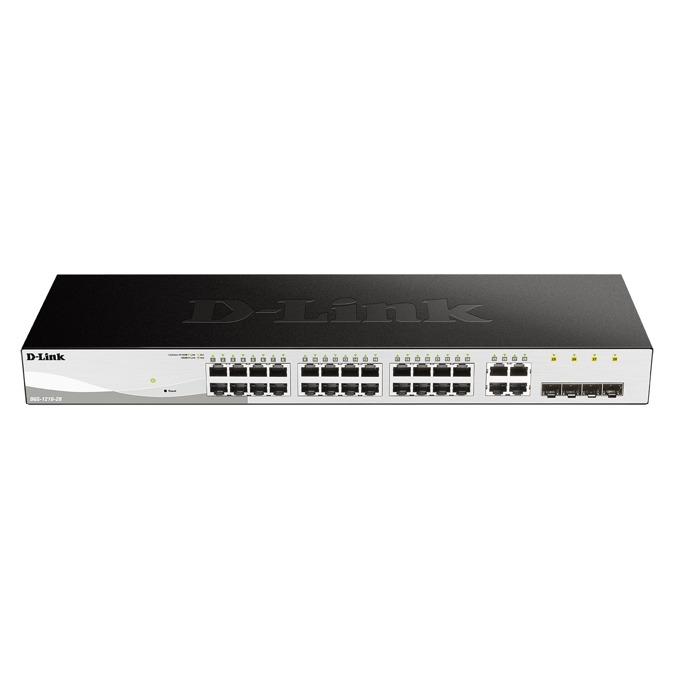

Суич D-Link DGS-1210-28 F1, 1000Mbps, 24x 10/100/1000Mbps PoE, 4x combo 1000Base-T/SFP

Features

Green Technology
• Link status detection
• Port shut-off
• System hibernation
• Time-based PoE (PoE models only)

Security Features
• Access Control Lists (ACLs)
• D-Link Safeguard Engine protects the CPU from
broadcast/multicast/unicast flooding
• Port Security supports up to 64 MAC addresses
per port
• ARP Spoofing Prevention
• Smart Binding

Intuitive Management
• D-Link Network Assistant (DNA) utility or multilingual Web UI
• Built-in SNMP MIB for remote NMS (D-View 7.0)
• Compact Command Line Interface (CLI) through
Telnet

Advanced Features
• Static route
• Surveillance Mode
• Auto Voice VLAN
• Dual software images
• Dual configuration files

The D-Link DGS-1210 Series Smart Managed Switches are the latest generation of switches
to provide increased Power over Ethernet (PoE) output, a range of physical interface types,
multiple management interfaces, and advanced Layer 2 features. With all of these features
combined, the DGS-1210 Series provides a cost-efficient and flexible solution for expanding
any business network.

Seamless Integration
The DGS-1210 Series includes a wide range of port and media types, including
10/100/1000BASE-T RJ-45 ports, 100/1000 Mbps combo ports, and 100/1000 Mbps SFP
ports. The DGS-1210-10, DGS-1210-26, DGS-1210-10P, and DGS-1210-10MP models feature 2
100/1000 Mbps SFP ports, while all other DGS-1210 Series models feature 4 100/1000 Mbps
combo ports, allowing you to choose the most suitable media type for your requirements. All
DGS-1210 Series PoE switches include support for IEEE 802.3af/at and higher power budgets,
allowing more PoE devices to be powered by the switch and for devices to be installed in
remote locations without immediate access to power outlets.

Advanced Features
The DGS-1210 Series comes equipped with a complete lineup of L2 features, including IGMP
snooping, port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol
(LACP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch
for fast, reliable data transfers. The DGS-1210 Series also supports advanced features such as
static routes, which allow network administrators to divide the network into VLANs, increasing
network efficiency. Network maintenance features include loopback detection and cable
diagnostics. Loopback detection significantly speeds up troubleshooting by automatically
detecting and shutting down switching loops. The cable diagnostics feature, designed
primarily for administrators and customer service representatives, determines the cable quality
and quickly discovers errors, allowing for hassle-free diagnostics and maintenance.

Secure Your Network
D-Link’s innovative Safeguard Engine protects the switches against traffic
flooding caused by malicious attacks. The DGS-1210 Series supports 802.1X
port-based authentication, allowing the network to be authenticated
through external RADIUS servers. The Access Control List (ACL) feature
enhances network security and helps to protect the internal IT network. The
DGS-1210 Series also features Address Resolution Protocol (ARP) spoofing
prevention, which provides protection from attacks on the network that could allow an intruder to sniff data frames, modify traffic, or bring traffic to a halt
altogether by sending fake ARP messages. To prevent ARP spoofing attacks,
the switch uses packet control ACLs to block invalid packets that contain fake
ARP messages. For added security, the DHCP server screening feature filters
DHCP replies on unauthorised ports to prevent them from being assigned an
IP address.

Versatile Management
The DGS-1210 Series comes with the D-Link Network Assistant (DNA) utility
that enables administrators to control their network down to the port level.
The D-Link Network Assistant utility furthermore allows customers to easily
discover multiple D-Link Smart Managed Switches within the same L2
network segment and display them on-screen for instant access. With this
utility, users do not need to change the IP address of their PC. This allows
for simultaneous configuration and basic setup of all discovered devices,
including password changes and firmware upgrades. The DGS-1210 Series
also supports D-View 7.0 and Command Line Interface (CLI) through Telnet.
D-View 7.0 is a network management system that allows for the central
management of critical network characteristics such as availability, reliability,
resilience, and security.

ЗАХРАНВАНЕ: 100 до 240V/AC, 50 до 60Hz
СИГУРНОСТ: Broadcast/Multicast/Unicast Storm Control, D-Link Safeguard Engine, Traffic segmentation, SSH v2, TLS v1.0, DoS attack prevention, 802.1X Port-based, Access Control, Port Security, Supports up to 64 MAC addresses per port, ARP Spoofing Prevention, Max. 127 entries, DHCP Server Screening, IP-MAC-Port Binding (Smart Binding), ARP Inspection, Max. 256 entries, IPv4 Inspection, Max. 127 entries, IPv6 Inspection, Max. 63 entries, DHCP Snooping, Max. 512 entries

УПРАВЛЕНИЕ:Web-based GUI, D-Link Network Assistant Utility, Compact CLI, Telnet Server, TFTP Client, Configurable MDI/MDIX, SNMP, Supports v1/v2c/v3, SNMP Trap, Backup/upgrade firmware, Smart Wizard, Upload/download configuration file, BootP/DHCP Client, System Log, Max. 500 log entries, SNTP, ICMP v6, IPv4/v6 Dual Stack, DHCP Auto Configuration, Time setting, SNTP, RMONv1, Trusted host, Dual image, Dual configuration

МОНТАЖ В ШКАФ: Да
КОНСУМАЦИЯ (W): 16.94 W
ПОРТОВЕ: 24x10/100/1000Base-T, 4xSFP
ДРУГИ: Таблица с MAC адреси: 8K
РАЗМЕРИ (ММ): 440 x 250 x 44 mm
ТЕГЛО (КГ): 3.94
СТАНДАРТИ: IEEE 802.3af PoE, 802.3at PoE Plus
