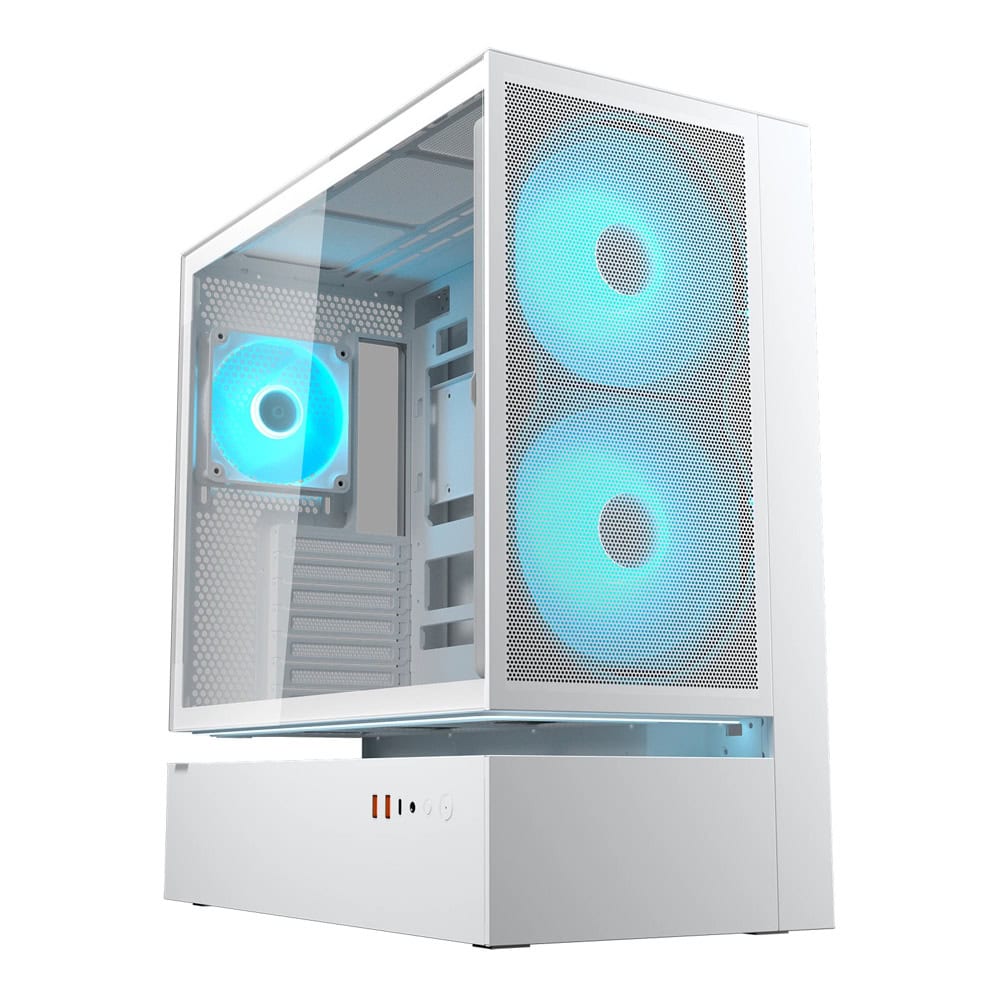

Cougar Gaming CFV235 Mesh
True Free-Floating Structural Separation
Conventional design squeezes both the PSU - a prime source of heat - and critical components in the same space, restricting airflow access to only the top, front and rear panels. The Central Floating Ventilation divides the PSU cabin and main chamber with a structural hollow that lets air move with greater freedom and purpose. This free-floating architectural separation also gives the CFV235 series its unique, progressive visual identity.

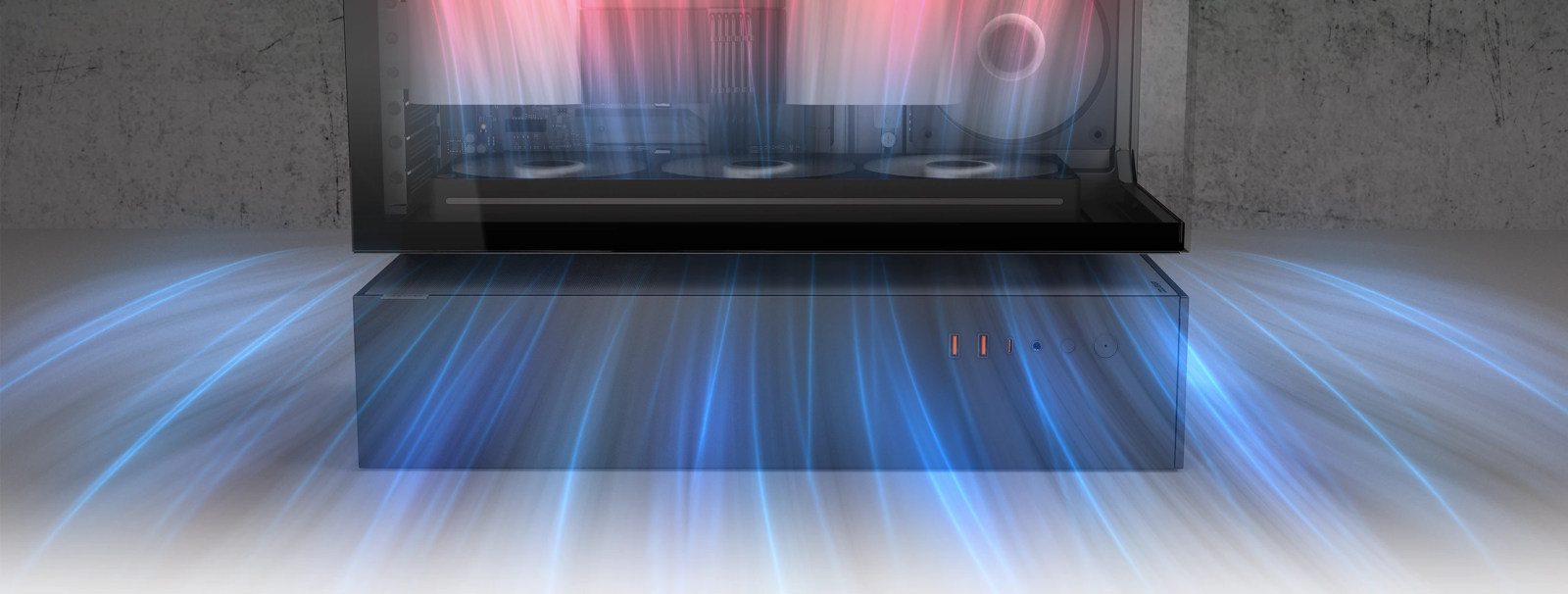

270° Airflow Access Within Suspended Space
The CFV235 series’ floating space is a fully 3 dimensional, discrete void suspended within the chassis. 270° of spacious, unobstructed airflow intake delivers greater ventilation than enclosed layouts to where it’s most needed.
.png)

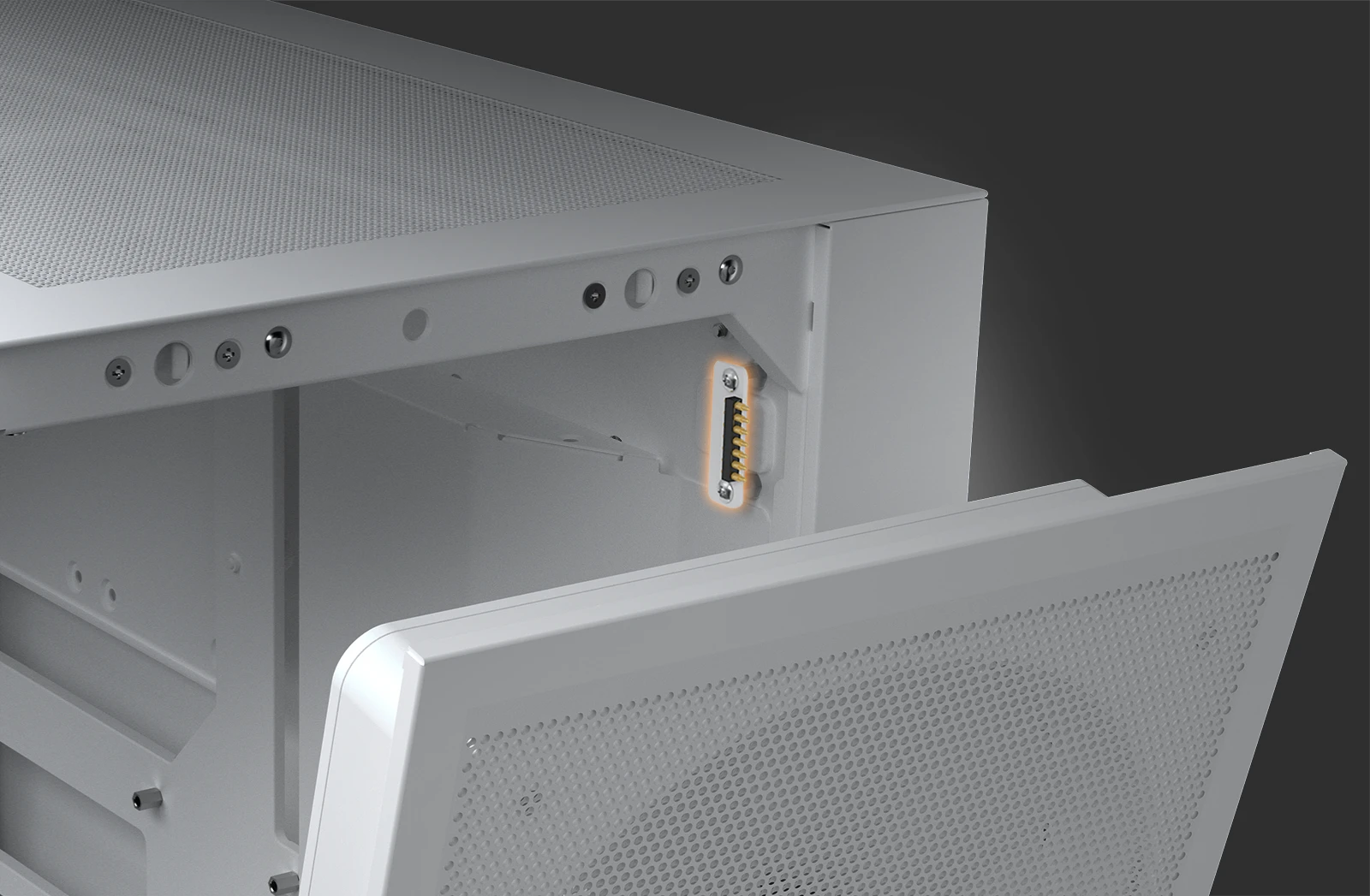

Smart Pogo Pin Connector
A pogo pin on the 3-in-1 module maintains physical contact with a counterpart built into the CFV case minimizing cabling without compromising critical power and signal relay.

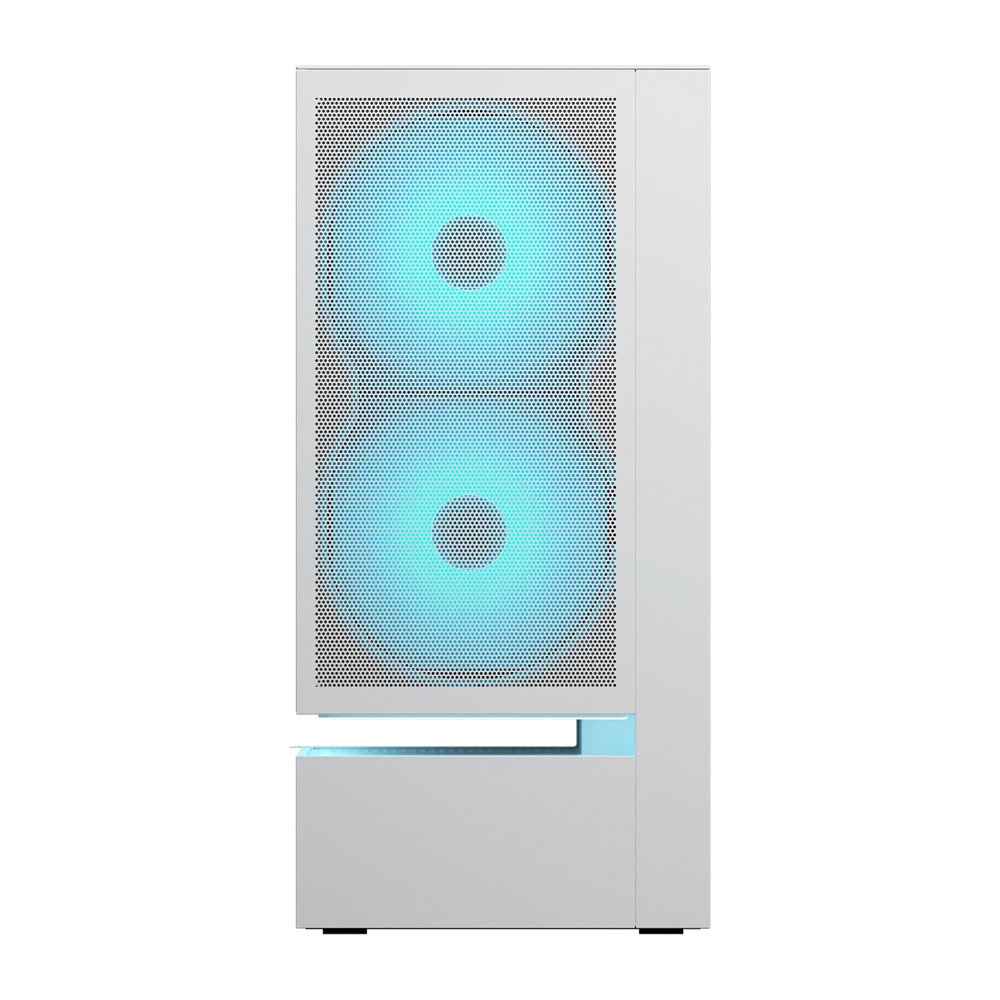

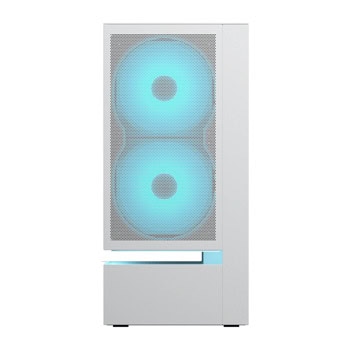

Pre-Installed Dual 160mm ARGB PWM Fans
Let your build hit the ground running: dual 160mm ARGB PWM fans are pre-installed and assimilated into the 3-in-1 front panel module, saving you setup time and providing ready-to-go, optimum cooling.

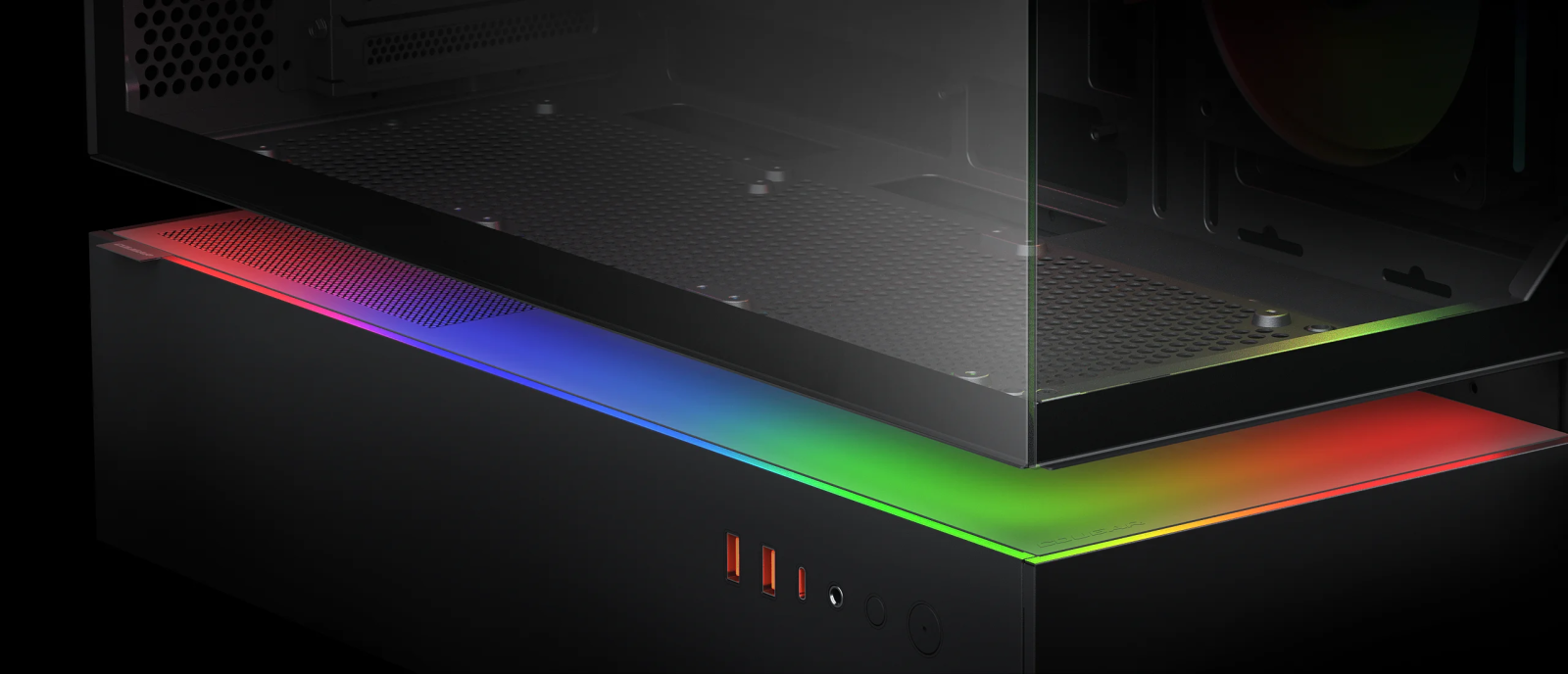

The Rainbow In Between
The Aurora lighting strip lights up with the integrated space of the Central Floating Ventilation structure from within, highlighting this innovative feature and displaying it as an architectural reinvention. It’s included with the case and attaches magnetically for ease and convenience.

Light. Speed The CFV235 Mesh features an integrated universal fan hub that enables seamless coordination of PWM fan speed and RGB lighting. This allows you to control the RGB lighting without the need for software, or synchronize it with motherboard software. | ![]() |

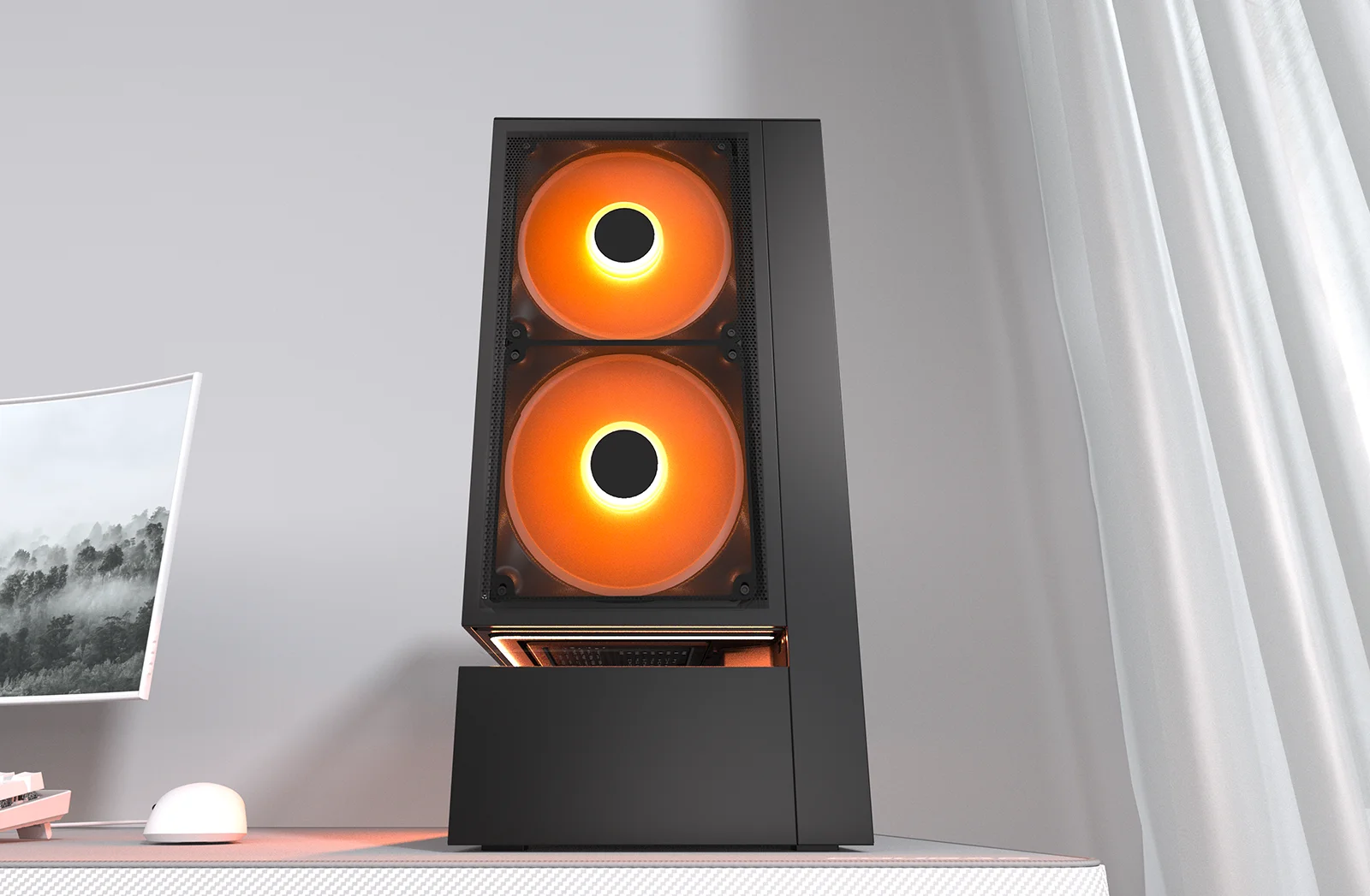

![]() | Vertical Spatial Efficiency The placement of the central floating ventilation channel on a vertical axis avoids expanding the overall width, keeping the footprint tight. |

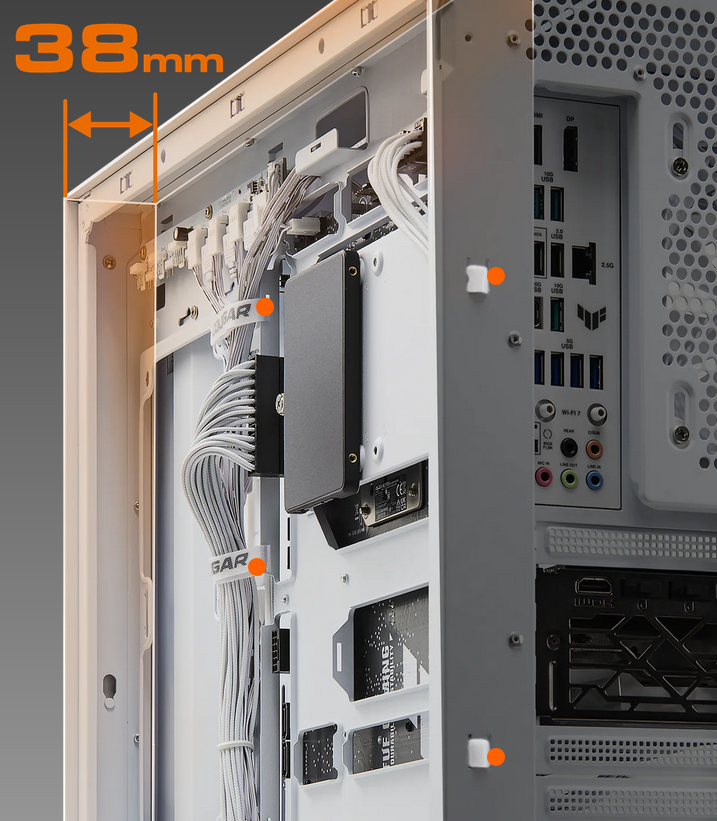

Space Engineering 38mm of clearance behind the motherboard tray improves cable management ,offering more room to route and conceal cables of varying thickness. Five adjustable Velcro straps offer versatile options to secure and tidy your layout. | ![]() |
Dual Magnetic Filtration
Magnetic dust filters at the roof and base of the Central Floating Ventilation structure proactively prevent dust and debris buildup, keeping airflow clean and uninterrupted without disrupting the suspended design.
.png)

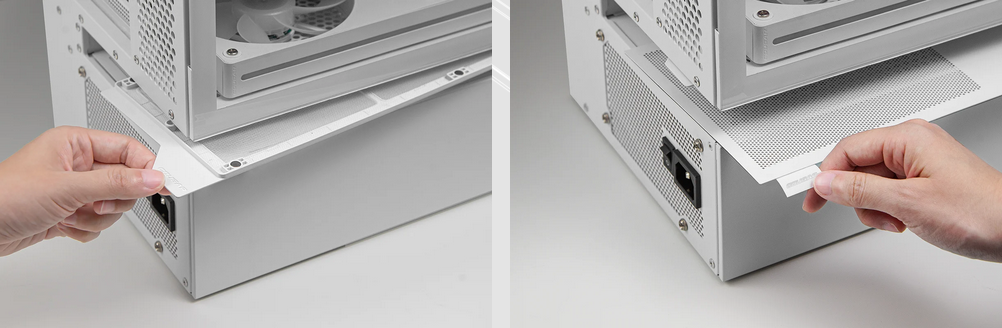

Dust filters attach magnetically to protect the separated PSU cabin and main chamber from dust and other particles. | Just grab the protruding tag and pull: it’s that easy to clean the filter. |
Versatile Compatibility

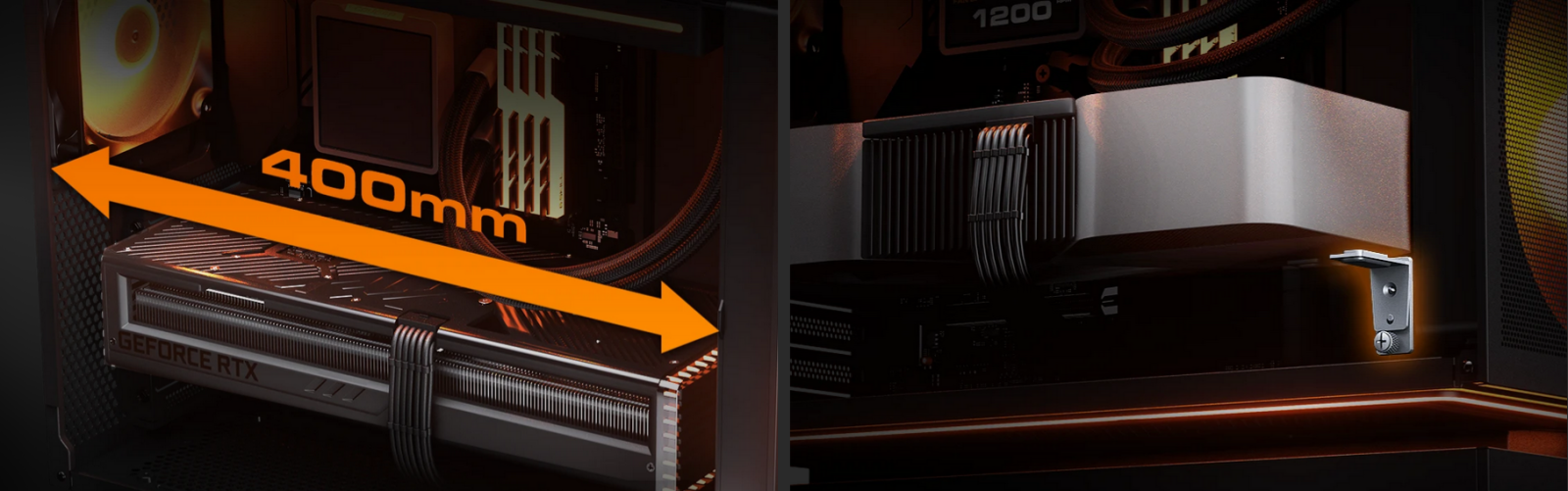

Compatible with reverse connector motherboards and accommodating GPUs of up to 400mm, the CFV235 Mesh is engineered for the gaming rigs of the future. A cover pulls triple duty as airflow guide, cable management facilitator and GPU holder which can be optimally placed according to motherboard specifications: this makes the most efficient use of available space by not only reducing cable clutter but improving performance stability.

Specifications
| Case Form Factor | Mid Tower | |
|---|---|---|
| Motherboard Type | Mini ITX / Micro ATX / ATX / CEB | |
| Dimensions (WxHxD) | 235 x 493 x 460 (mm) 9.3 x 19.4 x 18.1 (in) | |
| I/O Panel | USB 3.2 Gen 2x2 Type-C x 1, USB 3.0 Type-A x 2, 4 Pole Headset Audio Jack x 1, RGB Button | |
| 3.5" Drive Bay | 2 | |
| 2.5" Drive Bay | 2+2 (converted from 3.5" drive bays) | |
| Expansion Slots | 7 | |
| Cooling Fan Support | Front | 160mm x 2 |
| Top | 120mm x 3 / 140mm x 2 | |
| Bottom | 120mm x 3 | |
| Rear | 120mm x 1 | |
| Pre-installed Fans | Front | 160mm ARGB PWM fan x 2 |
| Rear | 120mm ARGB PWM fan x 1 | |
| Speed | 160mm ARGB PWM fan: 500-1200 ± 10% RPM 120mm ARGB PWM fan: 500-1400 ± 10% RPM | |
| Connector | 5V 3 Pin (ARGB) / 4 Pin PWM (Fan) | |
| Maximun Number of Fans | 9 | |
| Water Cooling Support | Top | 360mm / 280mm / 240mm / 140mm / 120mm |
| Rear | 120mm | |
| Aurora LED Strip | Yes | |
| PWM and RGB hub Sync with M/B | Yes | |
| Max. Graphics Card Length | 400mm / 15.7in | |
| Max. CPU Cooler Height | 175mm / 6.9in | |
| Max. PSU Length | 200mm / 7.9in | |
