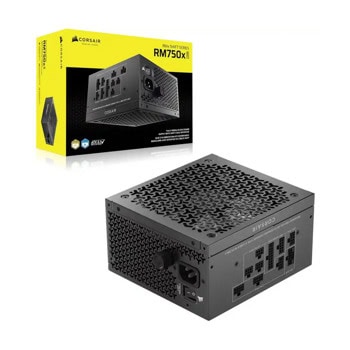

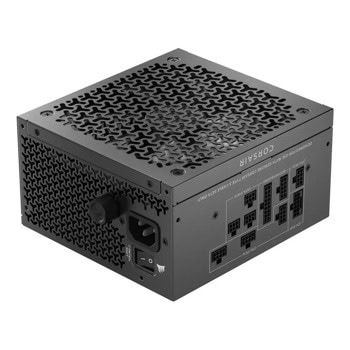

Corsair RM750x Shift

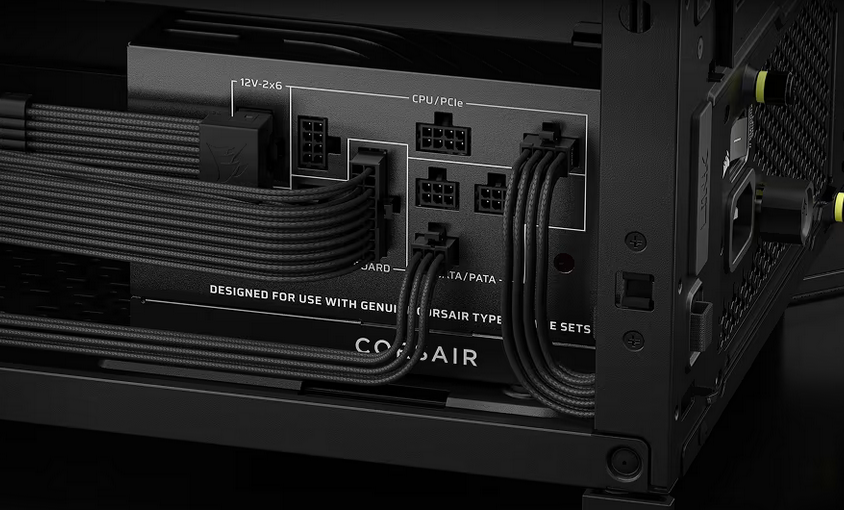

SIDE-MOUNTED CONNECTIONS
A patented PSU panel features modular, compact Type-5 connectors located on the side of the power supply, making it easier to plug in and manage your cables.
*30mm of clearance between the PSU and side panel is required.
.png)

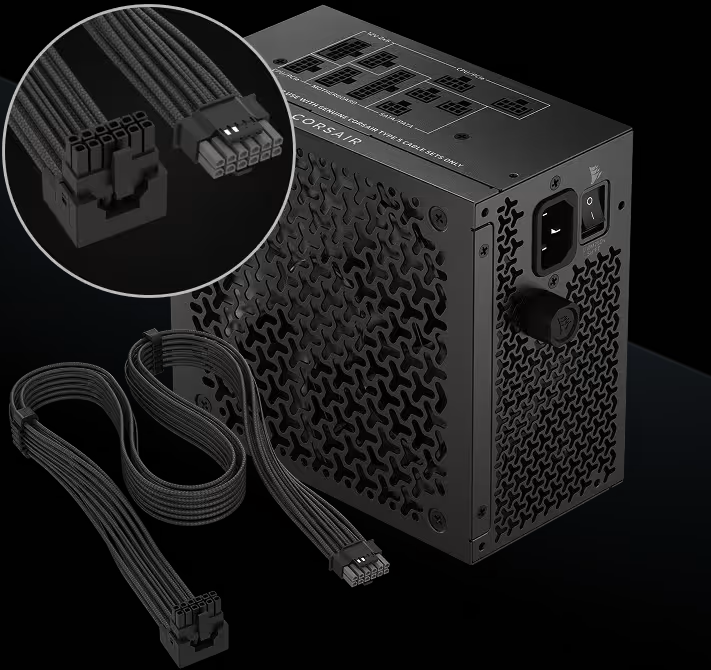

NATIVE 12V-2x6 GPU POWER CABLE Power modern graphics cards, such as the NVIDIA GeForce RTX 50 Series, using the included 12V-2x6 cable with a dual-color connector for visual confirmation of a secure GPU-side connection for easy, worry-free power delivery. | (1).png) |
ATX 3.1 COMPLIANT and PCIe 5.1 READY The RMx SHIFT Series features the latest standards for power delivery and connectivity to provide efficient, reliable power. RMx SHIFT Series are built with a robust resonant LLC topology with DC-DC conversion and 105°C-rated Japanese industrial-grade capacitors. | .png) |

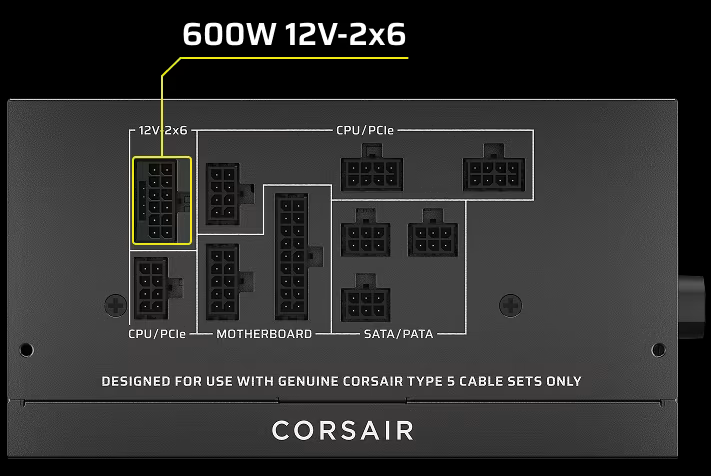

FULLY MODULAR TYPE-5 CONNECTORS CORSAIR Type-5 PSU cables take up less space, which combines with the modular design to allow for easier cable management. | .png) |

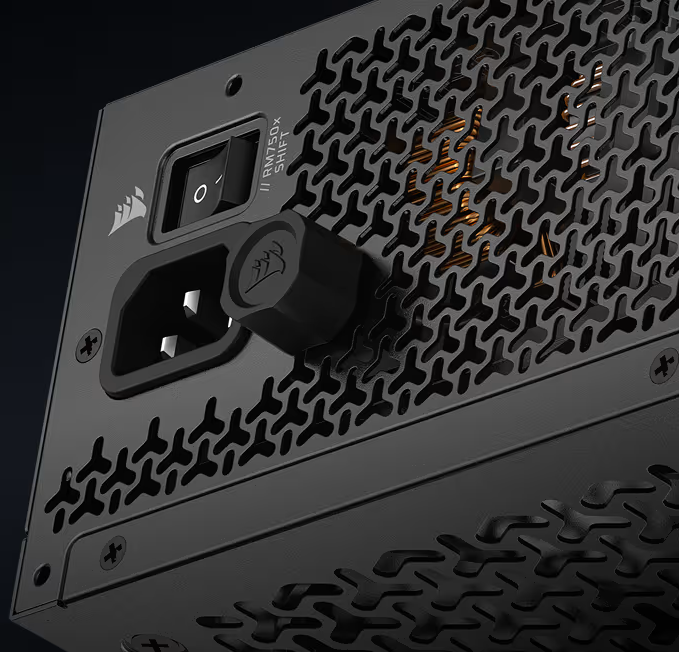

MANUAL FAN SPEED CONTROL KNOB Want to get more air through the PSU or to exhaust heat from your case? Override the Zero RPM Mode and low-noise profile with the manual fan override knob, increasing fan speed and airflow. | .png) |

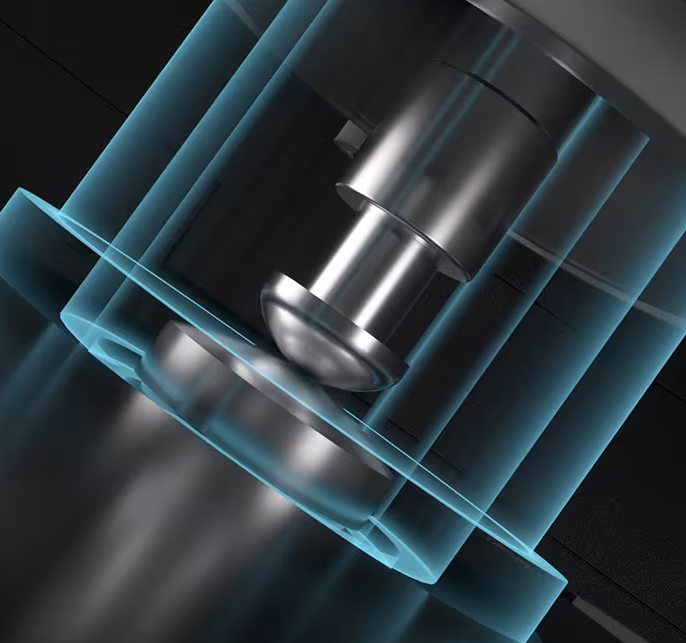

140mm FLUID DYNAMIC BEARING FAN A Fluid Dynamic Bearing fan with a magnetic dome structure minimizes noise, while Zero RPM Mode eliminates fan noise entirely at low to medium loads. | .png) |

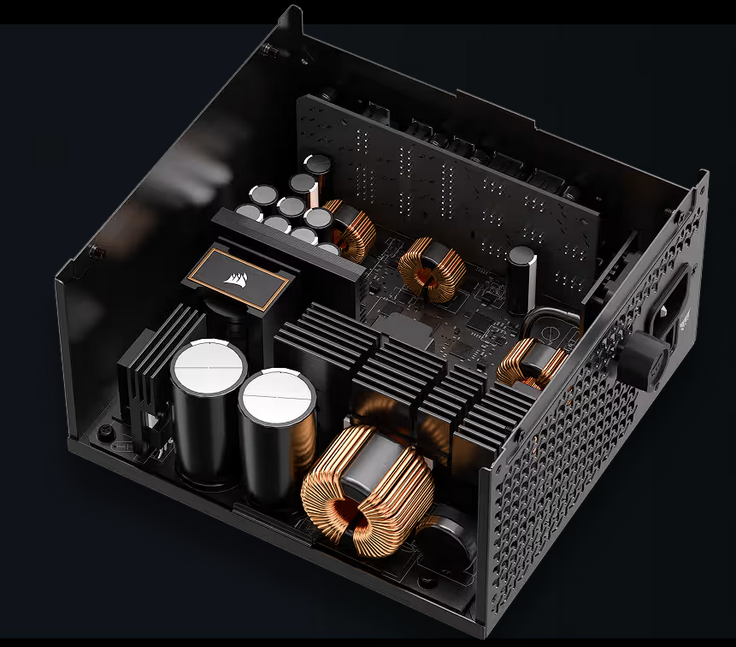

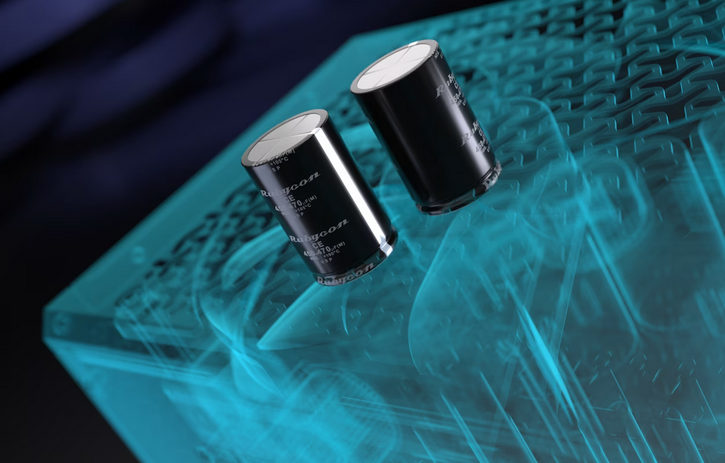

105°C-RATED JAPANESE CAPACITORS Built with 100% industrial-grade, 105°C-rated Japanese electrolytic capacitors for unwavering power and reliability. | .png) |

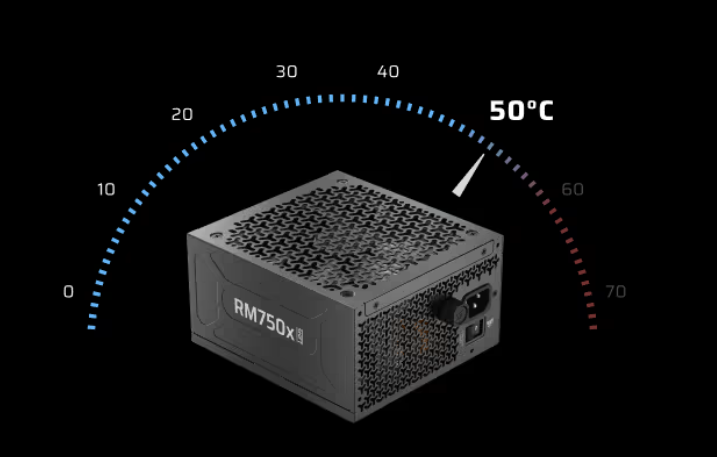

50°C CONTINUOUS OPERATING TEMPERATURE Ensures reliable power even under high-stress conditions. | .png) |

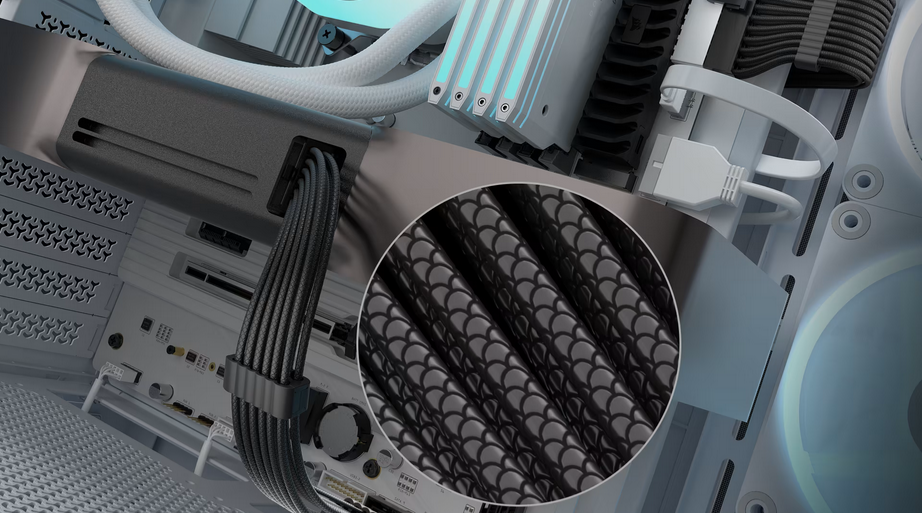

DEBOSSED-PVC CABLE KIT INCLUDED
The ultra-flexible cable kits make cable management easy and the included low-profile cable combs keep cables tidy for a sophisticated look and an easier build.
.png)

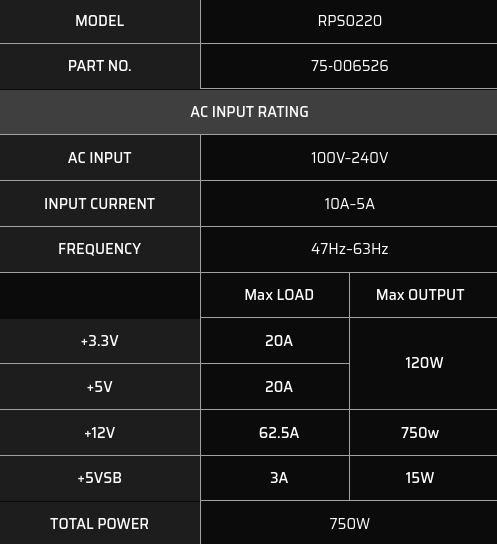

RM750x SHIFT POWER TABLE
.png)
RM750x SHIFT CABLE LISTING
QTY | CABLE | CONNECTORS PER CABLE | TOTAL CONNECTORS | CONNECTOR SPACING | TOTAL LENGTH | CABLE TYPE |
1 | ATX Motherboard (24-pin) - Modular | 1 | 1 | 610mm | 610mm | Debossed |
2 | ATX12V / EPS12V (4+4-pin) - Modular | 1 | 2 | 650mm | 650mm | Debossed |
2 | 8-pin PCIe (6+2-pin) - Modular | 1 | 2 | 650mm | 650mm | Debossed |
1 | 90° 12V-2x6 to 600W 12V-2x6 (12+4-pin) - Modular | 1 | 1 | 650mm | 650mm | Debossed |
1 | 600W 90° 12V-2x6 to 2x 8-pin PCIe (6+2-pin) | 2 | 2 | 650mm | 650mm | Debossed |
2 | 3 SATA - Modular | 3 | 6 | 500mm, | 700mm | Debossed |
1 | 4 PATA - Modular | 4 | 4 | 450mm, 100mm, 100mm, 100mm | 750mm | Debossed |
Tech Specs
| Cybenetics Efficiency | Gold |
|---|---|
| Cybenetics Noise | A+ |
| PATA Connector | 4 |
| EPS Connector | 2 |
| SATA Connector | 6 |
| Fan Bearing Technology | FDB |
| Modern Standby | Yes |
| Dimensions | 160mm x 150mm x 86mm |
| Cable Type | Type 5 |
| PCIe Connector | 4 |
|---|---|
| Fan Size MM | 140mm |
| Continuous Power W | 750 Watts |
| ATX Connector | 1 |
| ATX12V Version | 3.1 |
| MTBF Hours | 100,000 hours |
| Weight | 2.84kg |
JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
Виж още Захранвания Настолни компютри Corsair
Виж всички Захранвания Настолни компютри в категорията
| Изходна мощност: | 750 W |
|---|---|
| Модулен блок: | Да |
| Форм фактор: | ATX |
