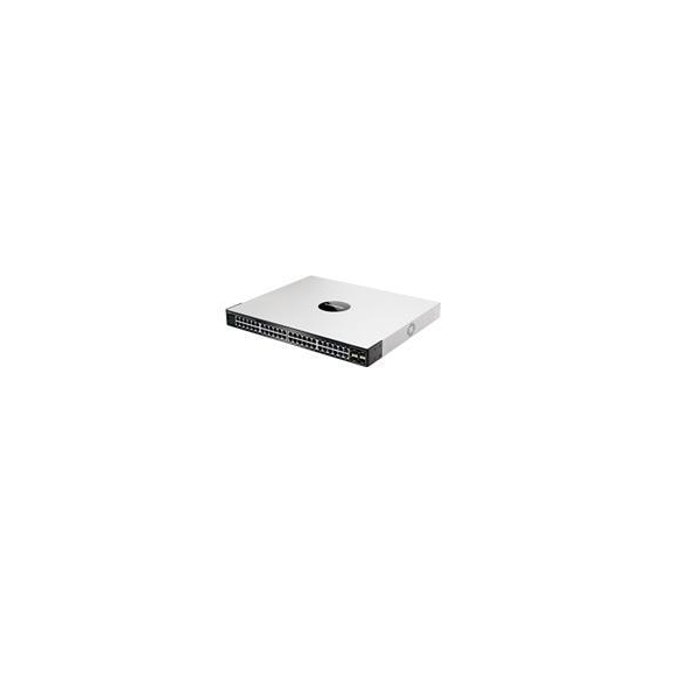

Cisco SGE2010P-G5 48-Port 10/100/1000 Суич, with PoE

Сигурност IEEE 802.1X—RADIUS authentication, MD5 hash; guest VLAN; single/multiple host mode; ACLs; Advanced Security: IP Source Guard, STP Root Guard, Dynamic ARP Inspection, DHCP Snooping
Захранване Redundant; RPS1000 380W Redundant Power Supply Unit
MAC адреси 8000 MAC address table size
Управление Built-in web user interface for easy browser-based configuration (HTTP/HTTPS); SNMP versions 1, 2c, and 3 with support for trap; Embedded RMON software agent supports 4 RMON groups
Памет (Flash, RAM) -
VLAN (брой, стандарти) Number of VLANs: 256 active VLANs (4096 range); Port-based and 802.1Q tag-based VLANs; protocol-based VLAN; management VLAN; multicast TV VLAN; Private VLAN Edge (PVE); Generic VLAN Registration Protocol (GVRP
Размери, mm 440 x 375 x 44 mm, 1U Height
Stackable Up to 192 ports in a stack; Hot insertion and removal; Ring and chain stacking options; Master and backup master for resilient stack control; Auto-numbering or manual configuration of units in stack
Суич, тип Fixed Port
Общ брой портове 52
Основни портове, тип 48x10/100/1000Base-T
Power Over Ethernet (PoE) IEEE 802.3af PoE on delivered over any of the 48 10/100/1000 ports; Maximum power of 15.4W to an Ethernet port – 360W total available to all ports with regular AC power, 280W total available with RPS
Uplink портове 4 dual personality
Свободни (10GB) слотове No
Fans yes
Routing Layer 3 Lite
Капацитет за маршрутизиране/превключване, Gbps 96 Gbps
Пропускателна способност, Mpps 71.4 Mpps
QoS Priority levels: 4 hardware queues; Scheduling: Priority queuing and weighted round-robin (WRR); Class of service: Port-based; 802.1p VLAN priority-based; IPv4/v6 IP precedence/ToS/DSCP based; DiffServ; classification and re-marking ACLs; Rate limiting
L2 мреживи стандарти IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
L3 мрежови стандарти Static routing; classless interdomain routing (CIDR); 60 static routes; IPv4; forwarding in silicon – wire-speed forwarding of Layer 3 traffic
IPv6 functionality IPv6 over Ethernet, dual stack, IPv6 over IPv4 network with Intra-Site Automatic Tunnel Addressing Protocol (ISATAP) tunnel, IPv6 neighbor discovery, stateless address configuration, maximum transmission unit (MTU) discovery, WEB, SSL, Telnet, Ping
