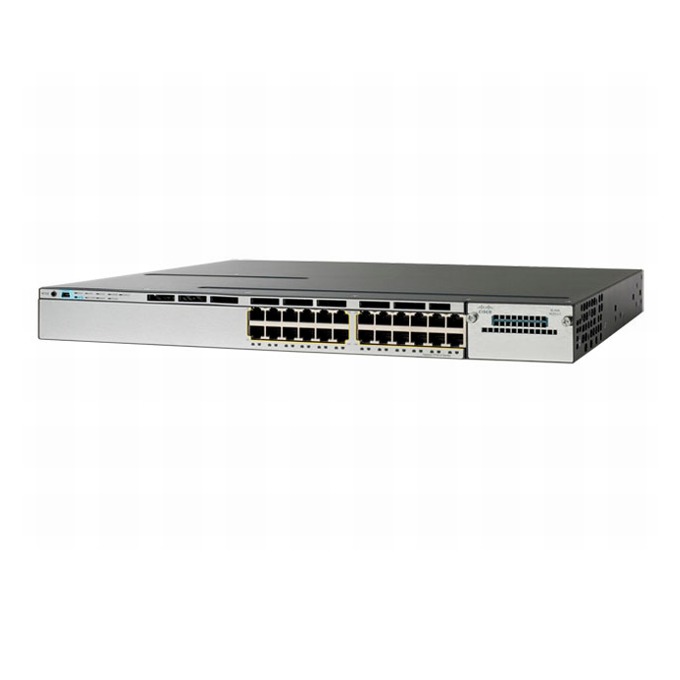

Суич Cisco Catalyst WS-C3750X-24P-S, 24 Port 1000Mbps, PoE

Cisco Catalyst WS-C3750X-24P-S

Сигурност: Port Security; DHCP Snooping; Dynamic ARP Inspection (DAI); IP source guard; IEEE 802.1AE MACsec; Flexible authentication; RADIUS Change of Authorization and downloadable Calls; 802.1X Supplicant with Network Edge Access Transport (NEAT)

Други: System Software: Cisco IOS IP Base

Захранване: Redundant power supply: 1 (installed), 2 (max)

MAC адреси: 4K MAC address table size

Управление: SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI

Памет (Flash, RAM): Flash Memory: 128 MB; RAM: 256 MB DRAM

VLAN (брой, стандарти): Total VLANs: 1005; VLAN IDs: 4K; Total Switched Virtual Interfaces (SVIs): 1K

Размери, mm: 445 x 460 x 45 mm, 1U Height

Stackable: Cisco StackWise Plus technology for ease of use and resiliency with 64 Gbps of throughput; Max units in a stack: 9; Total Routed Ports per 3750-X Stack: 468; Cisco StackWise stacking ports: copper-based Cisco StackWise cabling

Суич, тип: Fixed Port

Общ брой портове: 24

Основни портове, тип: 24x10/100/1000Base-T

Power Over Ethernet (PoE): Industry first PoE+ with 30W power on all ports in 1 rack unit (RU) form factor

Uplink портове: 0

Свободни (10GB) слотове: 1 open module slot: 4x1G SFP, 2x10G SFP+, or 2x10GBase-T uplink ports.

Fans: yes

Routing Layer 3 RIP

Капацитет за маршрутизиране/превключване, Gbps: 160 Gbps

Пропускателна способност, Mpps: 65.5 Mpps

QoS: Cross-stack QoS allows QoS to be configured across the entire stack. 802.1p class of service (CoS) and differentiated services code point (DSCP) field classification are provided; 8 egress queues per port

L2 мреживи стандарти: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3at

L3 мрежови стандарти: RIP-1, RIP-2, HSRP, static IP routing, RIPng

IPv6 functionality: IPv6 routing; IPv6 ACLs can be applied to filter IPv6 traffic
