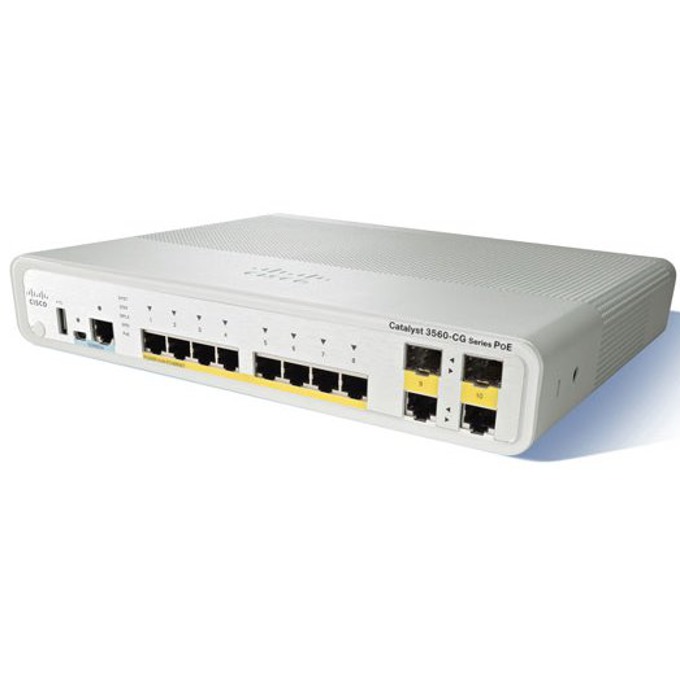

Суич Cisco Catalyst WS-C3560CG-8TC-S, 10 x 10Base-T/100Base-TX/1000Base-T - RJ-45 - PoE, 1 x USB - Type A, 1 x console - mini-USB Type B - management, 1 x RS-232 - RJ-45 - management, 2 x SFP (mini-GBIC)

Dimensions & Weight
Width 26.9 cm
Depth 21.3 cm
Height 4.4 cm
Weight 1.35 kg

Environmental Parameters
Min Operating Temperature -5 °C
Max Operating Temperature 40 °C
Humidity Range Operating 5 - 95% (non-condensing)
Min Storage Temperature -25 °C
Max Storage Temperature 70 °C
Humidity Range Storage 5 - 95% (non-condensing)

Expansion / Connectivity
Interfaces 10 x 10Base-T/100Base-TX/1000Base-T - RJ-45 - PoE ¦ 1 x USB - Type A ¦ 1 x console - mini-USB Type B - management ¦ 1 x RS-232 - RJ-45 - management ¦ 2 x SFP (mini-GBIC)

General
Device Type Switch - 8 ports - Managed
Enclosure Type Desktop - 1U
Subtype Gigabit Ethernet
Ports 8 x 10/100/1000 + 2 x shared SFP
Performance Forwarding performance (64-byte packet size): 13.2 Mpps ¦ Forwarding performance: 10 Gbps
Capacity Virtual interfaces (VLANs): 255
Jumbo Frame Support 9018 bytes
Routing Protocol OSPF, RIP-1, RIP-2, BGP, OSPFv2, OSPF for IPv6
Remote Management Protocol SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, CLI
Authentication Method Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Features DHCP support, auto-negotiation, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Dynamic ARP Inspection (DAI), STP Root Guard, Uni-Directional Link Detection (UDLD), fanless, DHCP relay, Remote Switch Port Analyzer (RSPAN)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3at
RAM 128 MB
Flash Memory 64 MB

MTBF 488,549 hours
Compliant Standards GOST, CISPR 24, EN55022, VCCI Class A ITE, EN55024, CISPR 22, CCC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1, GB 4943

Power
Power Device Internal power supply
Voltage Required AC 120/230 V ( 50/60 Hz )

Software / System Requirements
Software Included Cisco IOS IP Base
