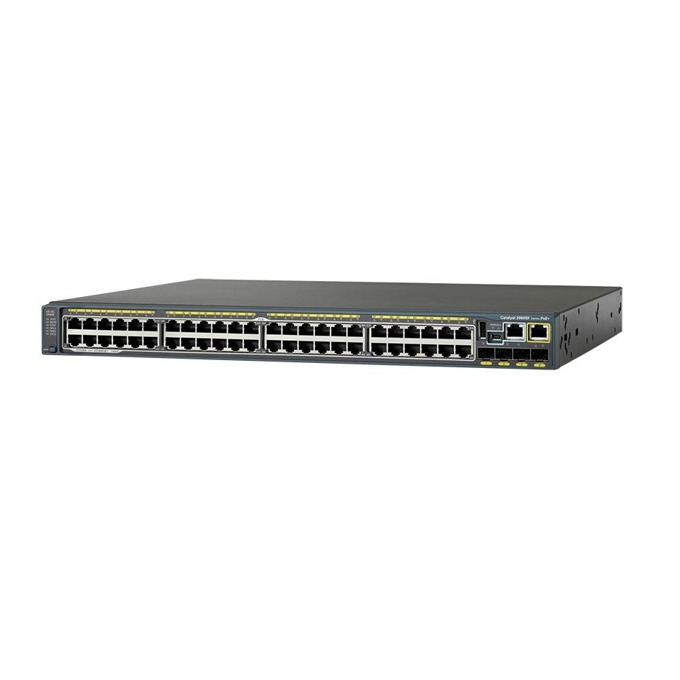

Суич Cisco Catalyst WS-C2960S-F48FPS-L, 48 Port 100Mbps, PoE, 4xSFP

Cisco Catalyst WS-C2960S-F48FPS-L

Сигурност: Private VLAN Edge; Multidomain Authentication; Port-based ACLs; Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3 (SNMPv3); TACACS+ and RADIUS authentication; MAC Address Notification; IGMP filtering

Захранване: The internal power supply is an auto-ranging unit and supports input voltages between 100 and 240 VAC.

MAC адреси: 8000 MAC address table size

Управление: Cisco Network Assistant (PC-based tool for quick configuration based on preset templates); Cisco Prime (enterprise network management suite); CLI; RMON; SNMP;

Памет (Flash, RAM): Flash memory: 64 MB, RAM: 128 MB DRAM

VLAN (брой, стандарти): Max VLANs: 255; VLAN IDs: 4000; IEEE 802.1Q VLAN;

Размери, mm: 445 x 386 x 45 mm

Stackable: Cisco FlexStack for simplified management with 20 Gbps of stack throughput, when deployed with the FlexStack stacking module.

Суич, тип: Fixed Port

Общ брой портове: 52

Основни портове, тип: 48x10/100Base-TX

Power Over Ethernet (PoE): 740W of PoE/PoE+ power (Maximum power supplied per port for PoE+ is 30W; Maximum power supplied per port for PoE is 15.4W)

Uplink портове: 4xSFP

Свободни (10GB) слотове: No

Fans: Fanless design

Routing Layer 2 Only

Капацитет за маршрутизиране/превключване, Gbps: 88 Gbps

Пропускателна способност, Mpps: -

QoS: Cross-stack QoS; 802.1p class of service (CoS); Cisco control-plane and data-plane QoS ACLs; Four egress queues per port; Shaped Round Robin (SRR); Weighted Tail Drop (WTD); Strict priority queuing; Trusted Boundary; Rate limiting

L2 мреживи стандарти: IEEE 802.3; IEEE 802.3u; IEEE 802.3ab; IEEE 802.3z; IEEE 802.1D; IEEE 802.1p CoS Prioritization; IEEE 802.1Q VLAN; IEEE 802.1s; IEEE 802.1w; IEEE 802.1X; IEEE 802.1ab (LLDP); IEEE 802.3ad; IEEE 802.3af; IEEE 802.3at; IEEE 802.3ah; IEEE 802.3x full duplex

L3 мрежови стандарти: -

IPv6 functionality: -
