Суич Cisco Catalyst WS-C2960S-48LPD-L, 48 Port 1000Mbps, PoE, 2xSFP

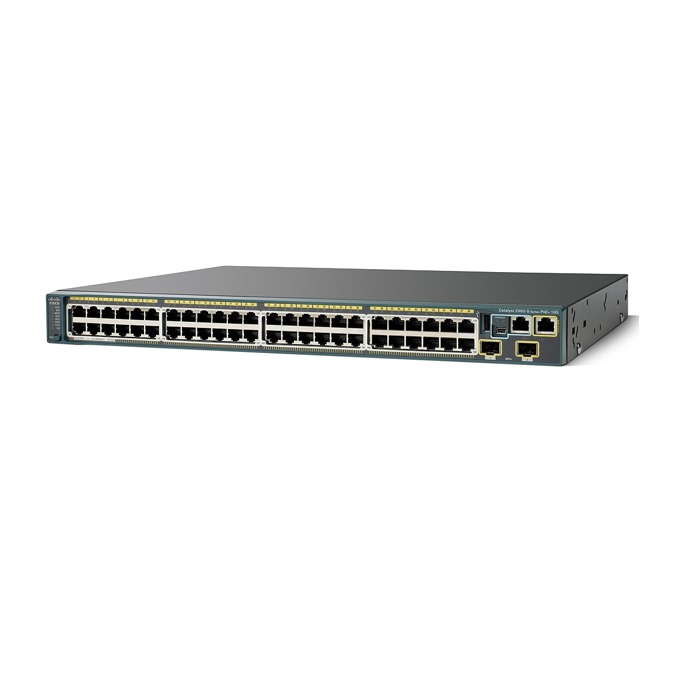

Cisco Catalyst WS-C2960S-48LPD-L

Сигурност: IEEE 802.1x; Port-based ACLs for Layer 2 interfaces; Unicast MAC filtering; SSHv2 and SNMPv3; Bidirectional data support on the Switched Port Analyzer (SPAN); TACACS+ and RADIUS authentication

Захранване: Redundant Power Supply

MAC адреси: 8000 MAC address table size

Управление: Switching Database Manager templates for security and QoS; IGMPv3 snooping provides fast client joins and leaves of multicast streams; Remote SPAN (RSPAN) allows administrators to remotely monitor ports

Памет (Flash, RAM): Flash Memory: 64 MB, RAM: 128 MB DRAM

VLAN (брой, стандарти): VLAN trunks can be created from any port using standards-based IEEE 802.1Q tagging; max VLANs: 255; VLAN IDs: 4000

Размери, mm: 445 x 386 x 45 mm, 1U Height

Stackable: Cisco FlexStack stacking module with 20 Gbps of throughput, allowing ease of operation with single configuration and simplified switch upgrade

Суич, тип: Fixed Port

Общ брой портове: 50

Основни портове, тип: 48x10/100/1000Base-T

Power Over Ethernet (PoE): Maximum Number of PoE+ (IEEE 802.3at) Ports: 12 ports up to 30W;
Maximum Number of PoE (IEEE 802.3af) Ports: 24 ports up to 15.4W, 48 ports up to 7.7W

Uplink портове: 2x10GE SFP

Свободни (10GB) слотове: No

Fans: yes

Routing Layer 2 only

Капацитет за маршрутизиране/превключване, Gbps: 88 Gbps

Пропускателна способност, Mpps: 101.2 Mpps

QoS: Standard 802.1p CoS and DSCP field classification; Four egress queues per port enable differentiated management of up to four traffic types across the stack; Strict priority queuing guarantees; Strict priority queuing guarantees

L2 мреживи стандарти: IEEE 802.1s; IEEE 802.1w; IEEE 802.1x; IEEE 802.3ad; IEEE 802.3ah; IEEE 802.1D Spanning Tree Protocol

L3 мрежови стандарти: -

IPv6 functionality: -
