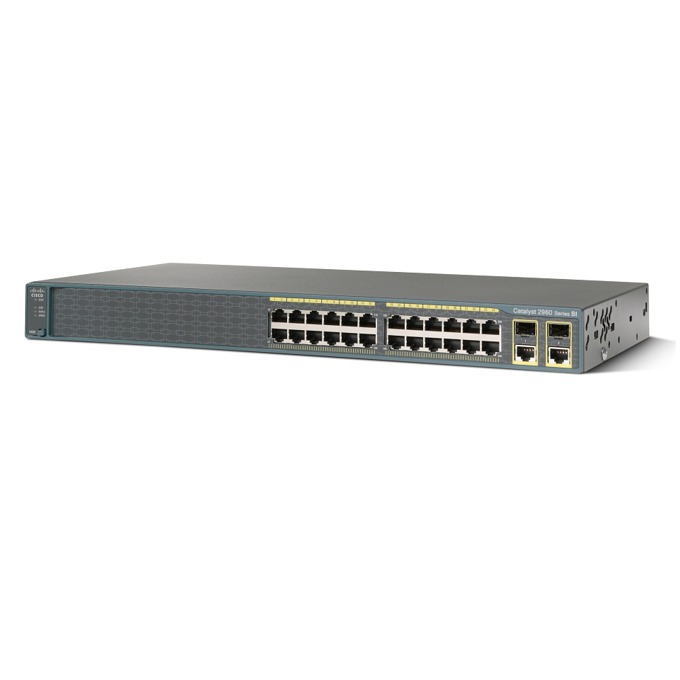

Суич Cisco Catalyst WS-C2960-24PC-S, 24 Port 100Mbps, PoE, 2xT/SFP

Cisco Catalyst WS-C2960-24PC-S

Сигурност: IEEE 802.1x; Port-based ACLs for Layer 2 interfaces; Unicast MAC filtering; SSHv2 and SNMPv3; Bidirectional data support on the Switched Port Analyzer (SPAN); TACACS+ and RADIUS authentication

Други: Supports wireless, IP phones, and physical security cameras with 24 ports of Power over Ethernet (PoE)

Захранване: Internal Power Supply

MAC адреси: 8000 MAC address table size

Управление: Switching Database Manager templates for security and QoS; IGMPv3 snooping provides fast client joins and leaves of multicast streams; Remote SPAN (RSPAN) allows administrators to remotely monitor ports

Памет (Flash, RAM): Flash Memory: 32 MB, RAM: 64 MB DRAM

VLAN (брой, стандарти): VLAN trunks can be created from any port using standards-based IEEE 802.1Q tagging; max VLANs: 64; VLAN IDs: 4000

Размери, mm: 445 x 332 x 44 mm, 1U Height

Stackable: Yes

Суич, тип: Fixed Port

Общ брой портове: 26

Основни портове, тип: 24x10/100Base-TX

Power Over Ethernet (PoE): Maximum power supplied per port for PoE is 15.4W; Total power dedicated to PoE is 370W

Uplink портове: 2 dual personality

Свободни (10GB) слотове: No

Fans: yes

Routing Layer 2 Only

Капацитет за маршрутизиране/превключване, Gbps: 16 Gbps

Пропускателна способност, Mpps: 6.5 Mpps

QoS: Standard 802.1p CoS and DSCP field classification; Four egress queues per port enable differentiated management of up to four traffic types across the stack; Strict priority queuing guarantees; Strict priority queuing guarantees

L2 мреживи стандарти: IEEE 802.1s; IEEE 802.1w; IEEE 802.1x; IEEE 802.3ad; IEEE 802.3ah; IEEE 802.1D Spanning Tree Protocol

L3 мрежови стандарти: -

IPv6 functionality: -
