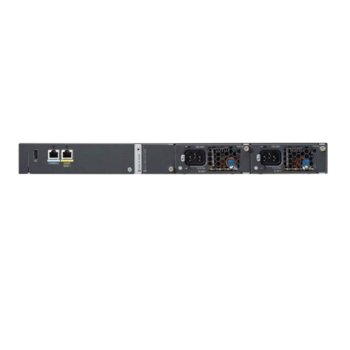

Cisco Catalyst WS-C2360-48TD-S
Сигурност: Static Access Ports, Secure Copy Protocol (SCP) to enable network administrators to copy configurations and Cisco IOS Software images through encrypted channels, Secure Shell (SSH) Protocol v2 and SNMPv3
Други: USB storage interface for file backup, distribution, and simplified operations;
Mini-USB console port on the front of the switch for easy management access;
Захранване: Customers can provide power to a switch only by using the C2360-PWR-135WAC power supply. The connector is located at the back of the switch. The switch has two power-supply slots.
MAC адреси: 8000 MAC address table size
Управление: BRIDGE-MIB, TCP-MIB, SNMPv2-MIB, SNMP-TARGET-MIB, SNMP-NOTIFICATION-MIB, RMON2-MIB, RMON-MIB, RFC1213-MIB, IEEE8021-PAE-MIB, IEEE8023-LAG-MIB, IF-MIB and ect.
Памет (Flash, RAM): Flash Memory: 64 MB, RAM: 128 MB DRAM
VLAN (брой, стандарти): IEEE 802.1Q VLAN; Maximum VLANs:128
Размери, mm: 444 x 343 x 44 mm
Stackable: No
Суич, тип: Fixed Port
Общ брой портове: 52
Основни портове, тип: 48x10/100/1000Base-T
Power Over Ethernet (PoE): No
Uplink портове: 4x10GE SFP
Свободни (10GB) слотове: No
Fans: The Cisco Catalyst 2360 Series is cooled by a hot-swappable fan module that is designed with two fans, providing cooling redundancy. The fan module provides optional front-to-back or back-to-front airflow through the switch.
Routing Layer 2 Only
Капацитет за маршрутизиране/превключване, Gbps: 88 Gbps
Пропускателна способност, Mpps: -
QoS: IEEE 802.1p class of service (CoS), Four egress queues per port to enable differentiated management of different traffic types across the stack
L2 мреживи стандарти: IEEE 802.1s/w Rapid Spanning Tree Protocol (RSTP) and Multiple Spanning Tree Protocol (MSTP) provide rapid spanning-tree convergence independent of spanning-tree timers and also offers the benefit of Layer 2 load balancing and distributed processing;
L3 мрежови стандарти: -
IPv6 functionality: -
Виж още Суич Cisco
Виж всички Суич в категорията
Сигурност: Static Access Ports, Secure Copy Protocol (SCP) to enable network administrators to copy configurations and Cisco IOS Software images through encrypted channels, Secure Shell (SSH) Protocol v2 and SNMPv3
Други: USB storage interface for file backup, distribution, and simplified operations;
Mini-USB console port on the front of the switch for easy management access;
Захранване: Customers can provide power to a switch only by using the C2360-PWR-135WAC power supply. The connector is located at the back of the switch. The switch has two power-supply slots.
MAC адреси: 8000 MAC address table size
Управление: BRIDGE-MIB, TCP-MIB, SNMPv2-MIB, SNMP-TARGET-MIB, SNMP-NOTIFICATION-MIB, RMON2-MIB, RMON-MIB, RFC1213-MIB, IEEE8021-PAE-MIB, IEEE8023-LAG-MIB, IF-MIB and ect.
Памет (Flash, RAM): Flash Memory: 64 MB, RAM: 128 MB DRAM
VLAN (брой, стандарти): IEEE 802.1Q VLAN; Maximum VLANs:128
Размери, mm: 444 x 343 x 44 mm
Stackable: No
Суич, тип: Fixed Port
Общ брой портове: 52
Основни портове, тип: 48x10/100/1000Base-T
Power Over Ethernet (PoE): No
Uplink портове: 4x10GE SFP
Свободни (10GB) слотове: No
Fans: The Cisco Catalyst 2360 Series is cooled by a hot-swappable fan module that is designed with two fans, providing cooling redundancy. The fan module provides optional front-to-back or back-to-front airflow through the switch.
Routing Layer 2 Only
Капацитет за маршрутизиране/превключване, Gbps: 88 Gbps
Пропускателна способност, Mpps: -
QoS: IEEE 802.1p class of service (CoS), Four egress queues per port to enable differentiated management of different traffic types across the stack
L2 мреживи стандарти: IEEE 802.1s/w Rapid Spanning Tree Protocol (RSTP) and Multiple Spanning Tree Protocol (MSTP) provide rapid spanning-tree convergence independent of spanning-tree timers and also offers the benefit of Layer 2 load balancing and distributed processing;
L3 мрежови стандарти: -
IPv6 functionality: -
Виж още Суич Cisco
Виж всички Суич в категорията
Технически характеристики
Брой портове: | 52 |
---|---|
Максимална скорост: | 1 Mbps |
