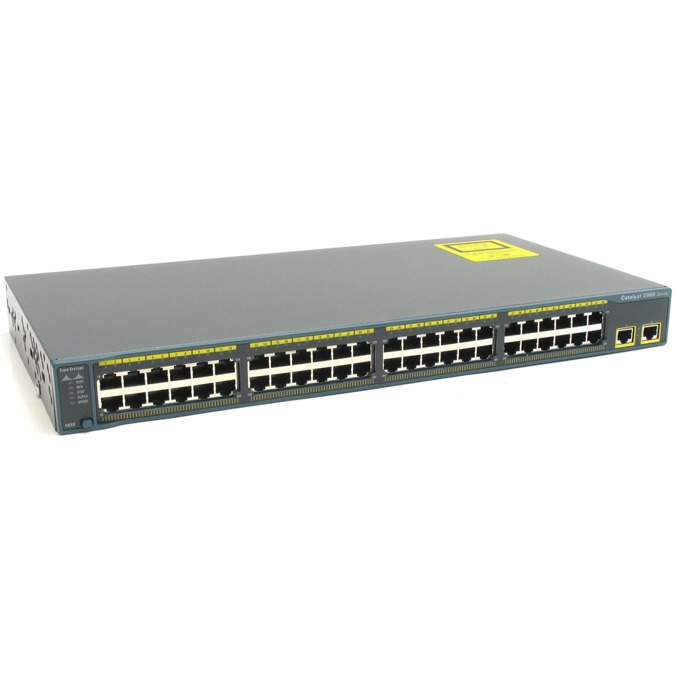

Суич Cisco Catalyst 2960, 48Port 100Mbps, 2 Uplinks, LAN-Base Image

Cisco Catalyst 2960

Managed Port Yes
Ports 48
PoE No
Network type Fast Ethernet
Stacking No
Layer 3 switching No
Uplink Base-T Yes
Vendor Cisco Systems
Part No. WS-C2960-48TT-L
Operating System Cisco IOS
Warranty Limited Life time
Web Page http://www.cisco.com/en/US/products/ps6406/index.html
Dimensions H, cm 4.4
Dimensions W, cm 44.5
Weight, kg 3.6
IsFT Yes
Configuration Fixed
DRAM Memory (MB) 64
DRAM Memory Max (MB) 64
Flash Memory (MB) 32
Flash Memory Max (MB) 32
Rackmountable Yes
Indicators/LED System, RPS, link status, link duplex, link speed
Configuration and Management Remote management, RMON, SSH, Telnet, Browser-based, SSL, Browser-based, CLI
SNMP Management SNMPv3
PoE powered Yes
PoE source No
Power Consumption (maximum), W 45
Dimensions D, cm 23.6
Environmental req. -5ºC to +45ºC
Power supply AC + RPS
Console Port (none)
Rack Height , RU 1
DHCP Client Yes
DHCP Server Yes
Logging capabilities Syslog
Heat dissipation, Btus/hour 154
Uplink 2x Base-T 1000
OSI Layer suppor Layer 2
Primary Uplink port type 1000Base-T, RJ-45
Primary Uplink ports number 2
Switching capacity, Gbps 16
Forwarding rate, Mpps 10.1
MAC address table entries 8000
Stackable No
Acoustic Noise (ISO7779) 40
Reliability (MTBF), hours 339743
IEEE standarts supported IEEE 802.1Q, IEEE 802.1p, IEEE 802.1d, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3, IEEE 802.3x, IEEE 802.3ah, IEEE 802.3ad, IEEE 802.1AB, IEEE 802.1X, IEEE 802.1w, IEEE 802.1s
VLAN's supported 255
VLAN ID's 4096
