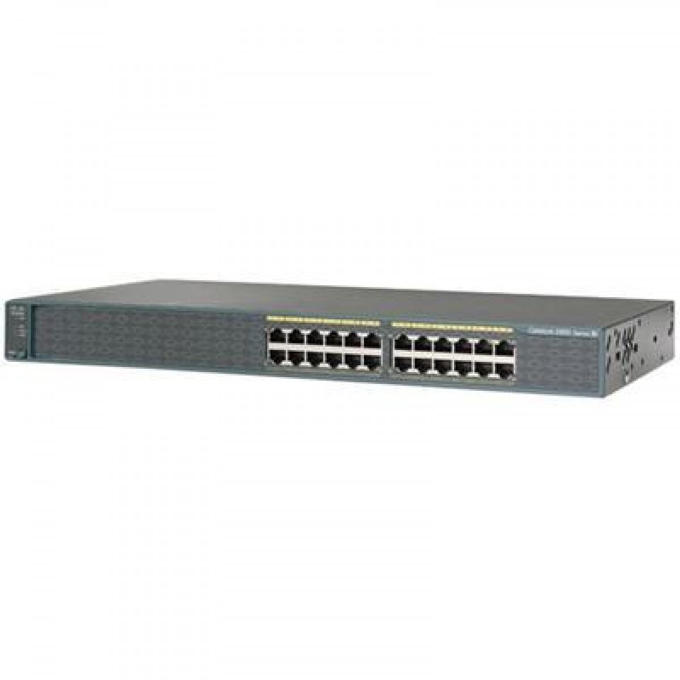

Cisco Catalyst 2960
Primary LAN port type 100Base-T, RJ-45
Primary LAN ports number 16
Secondary LAN port type 100Base-T, RJ-45, PoE
Secondary LAN ports number 8
Type Managed
Managed Port Yes
Ports 24
PoE Yes
PoE Ports 8
Network type Fast Ethernet
Wath per port 15.4W
Stacking No
Layer 3 switching No
Uplink Base-T Yes
Vendor Cisco
Part No. WS-C2960-24LT-L
Operating System Cisco IOS
Warranty Limited Life time
Web Page http://www.cisco.com/en/US/products/ps6406/index.html
Dimensions H, cm 4.4
Dimensions W, cm 44.5
Weight, kg 4.5
IsFT Yes
Configuration Fixed
DRAM Memory (MB) 64
DRAM Memory Max (MB) 64
Flash Memory (MB) 32
Flash Memory Max (MB) 32
Rackmountable Yes
Indicators/LED System, RPS, link status, link duplex, link speed
Configuration and Management RMON, Remote management, Telnet, Browser-based, SSL, Browser-based, CLI
SNMP Management SNMPv3
PoE powered No
PoE source Yes
Power Consumption (maximum), W 175
Dimensions D, cm 33.2
Environmental req. -5ºC to +45ºC
Power supply AC + RPS
Console Port (none)
Rack Height , RU 1
DHCP Client Yes
DHCP Server Yes
Logging capabilities Syslog
Heat dissipation, Btus/hour 174
Uplink 2x Base-T 1000
OSI Layer suppor Layer 2
Primary Uplink port type 1000Base-T, RJ-45
Primary Uplink ports number 2
Switching capacity, Gbps 16
Forwarding rate, Mpps 6.5
MAC address table entries 8000
Stackable No
Acoustic Noise (ISO7779) 48
Reliability (MTBF), hours 311781
IEEE standarts supported IEEE 802.1d, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1AB, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
VLAN's supported 255
VLAN ID's 4096
PoE power supplied, max, W 51
