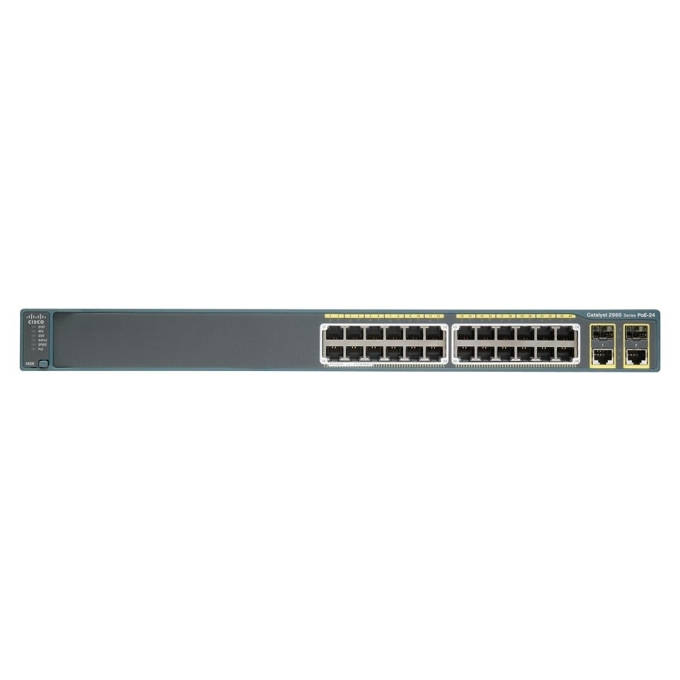

Суич Cisco Catalyst 2960, 24x100Mbps PoE + 2 T/SFP LAN Base Image

Сигурност IEEE 802.1x; Port-based ACLs for Layer 2 interfaces; Unicast MAC filtering; SSHv2 and SNMPv3; Bidirectional data support on the Switched Port Analyzer (SPAN); TACACS+ and RADIUS authentication
Други Supports wireless, IP phones, and physical security cameras with 24 ports of Power over Ethernet (PoE)
Захранване Redundant Power Supply
MAC адреси 8000 MAC address table size
Управление Switching Database Manager templates for security and QoS; IGMPv3 snooping provides fast client joins and leaves of multicast streams; Remote SPAN (RSPAN) allows administrators to remotely monitor ports
Памет (Flash, RAM) Flash Memory: 32 MB, RAM: 64 MB DRAM
VLAN (брой, стандарти) VLAN trunks can be created from any port using standards-based IEEE 802.1Q tagging; max VLANs: 255; VLAN IDs: 4000
Размери, mm 445 x 332 x 44 mm, 1U Height
Stackable Yes
Суич, тип Fixed Port
Общ брой портове 26
Основни портове, тип 24x10/100Base-TX
Power Over Ethernet (PoE) Maximum power supplied per port for PoE is 15.4W; Total power dedicated to PoE is 370W
Uplink портове 2 dual personality
Свободни (10GB) слотове No
Fans yes
Routing Layer 2 Only
Капацитет за маршрутизиране/превключване, Gbps 16 Gbps
Пропускателна способност, Mpps 6.5 Mpps
QoS Standard 802.1p CoS and DSCP field classification; Four egress queues per port enable differentiated management of up to four traffic types across the stack; Strict priority queuing guarantees; Strict priority queuing guarantees
L2 мреживи стандарти IEEE 802.1s; IEEE 802.1w; IEEE 802.1x; IEEE 802.3ad; IEEE 802.3ah; IEEE 802.1D Spanning Tree Protocol
L3 мрежови стандарти -
IPv6 functionality -
