Рутер Asus TUF Gaming AX6000, 6000Mbps, 2.4GHz (1148Mbps)/5GHz (4804Mbps), Wireless AX, 1x 10/100/1000/2500Mbps LAN, 4x 10/100/1000Mbps LAN, 1x 10/100/1000/2500Mbps WAN, 6х външни антени, 1x USB 3.2 Gen 1 Type-A

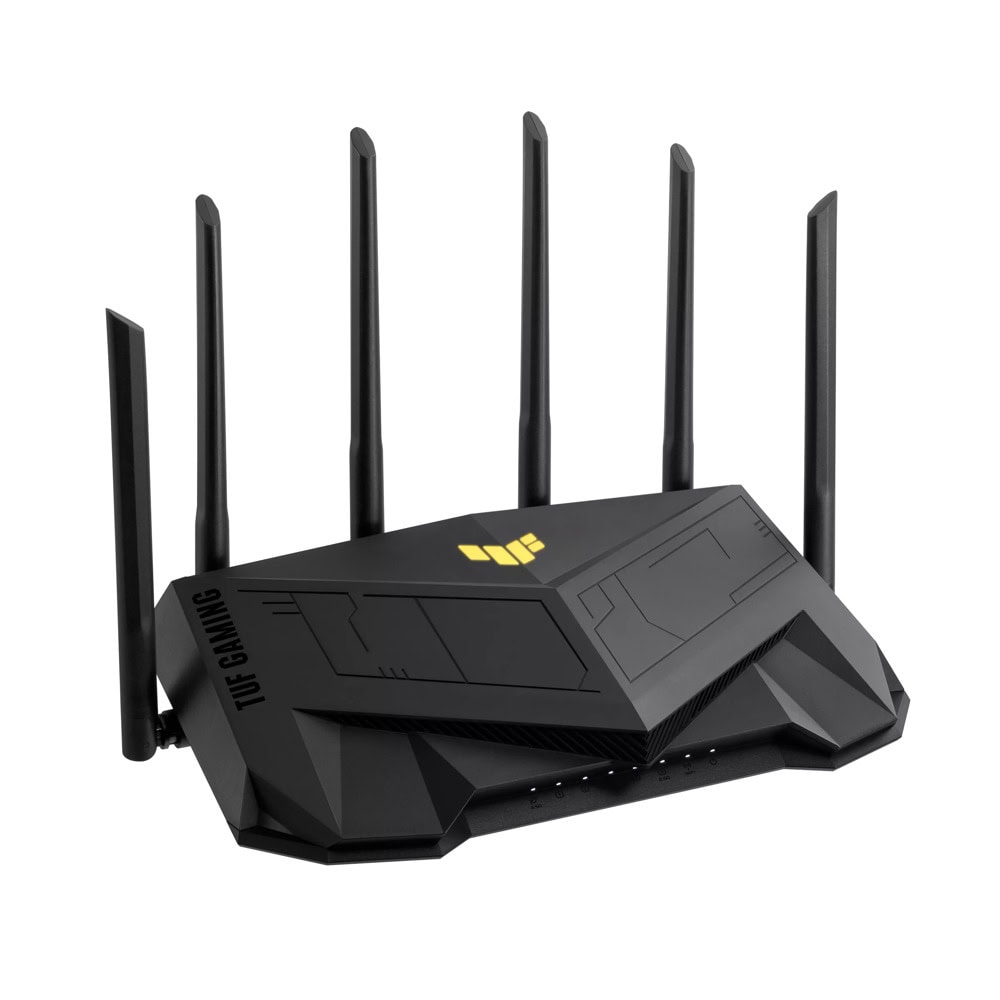

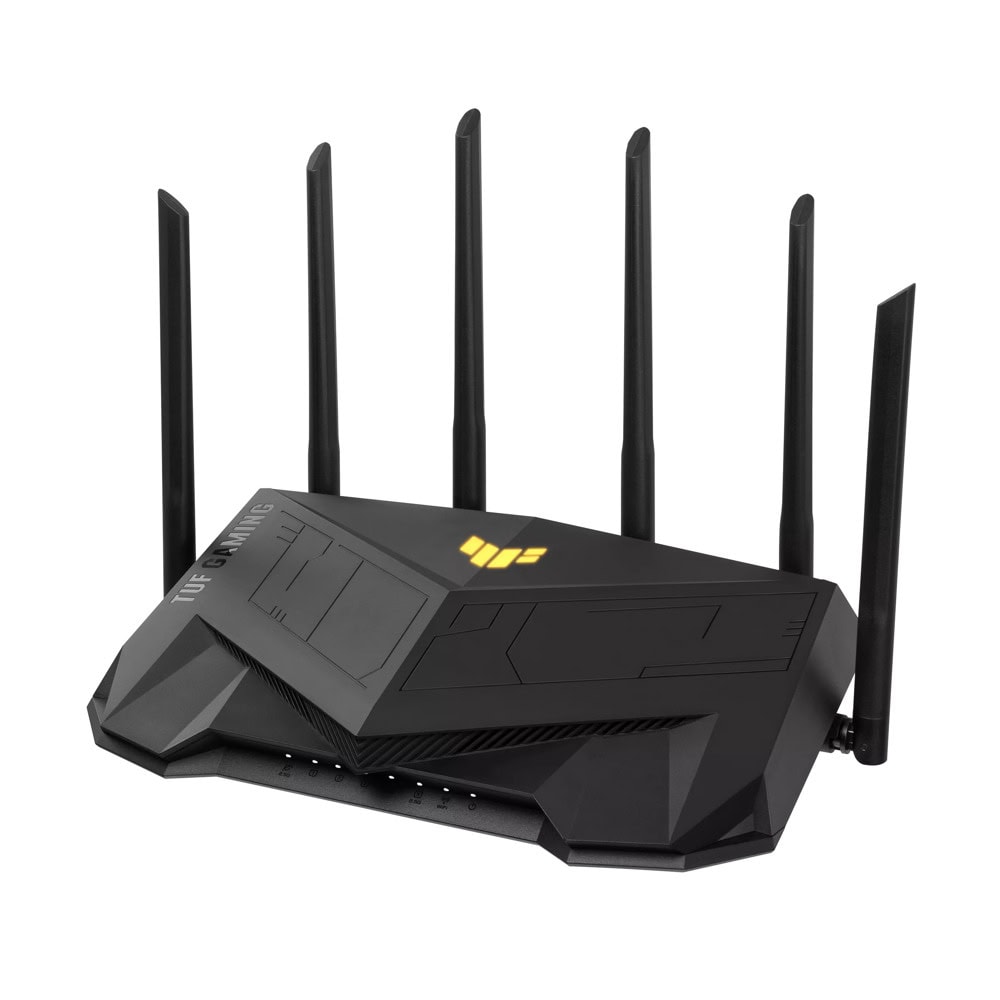

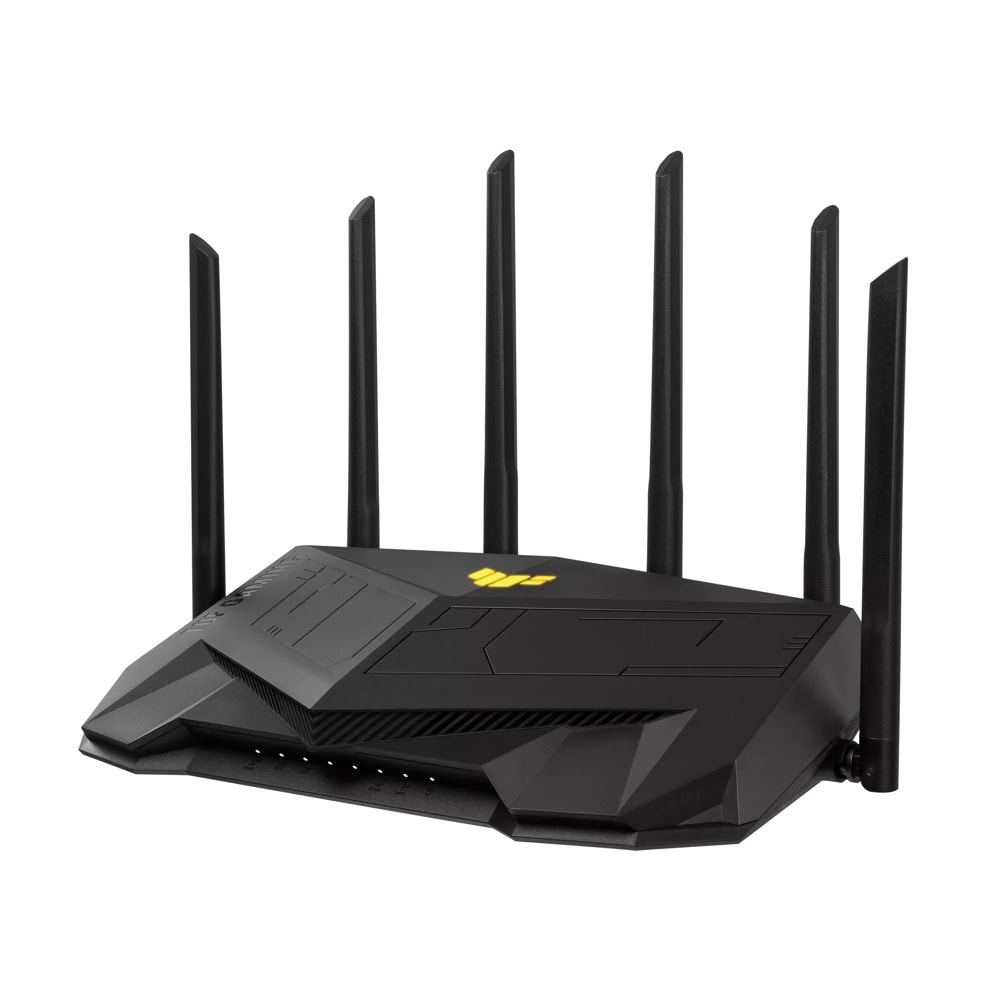

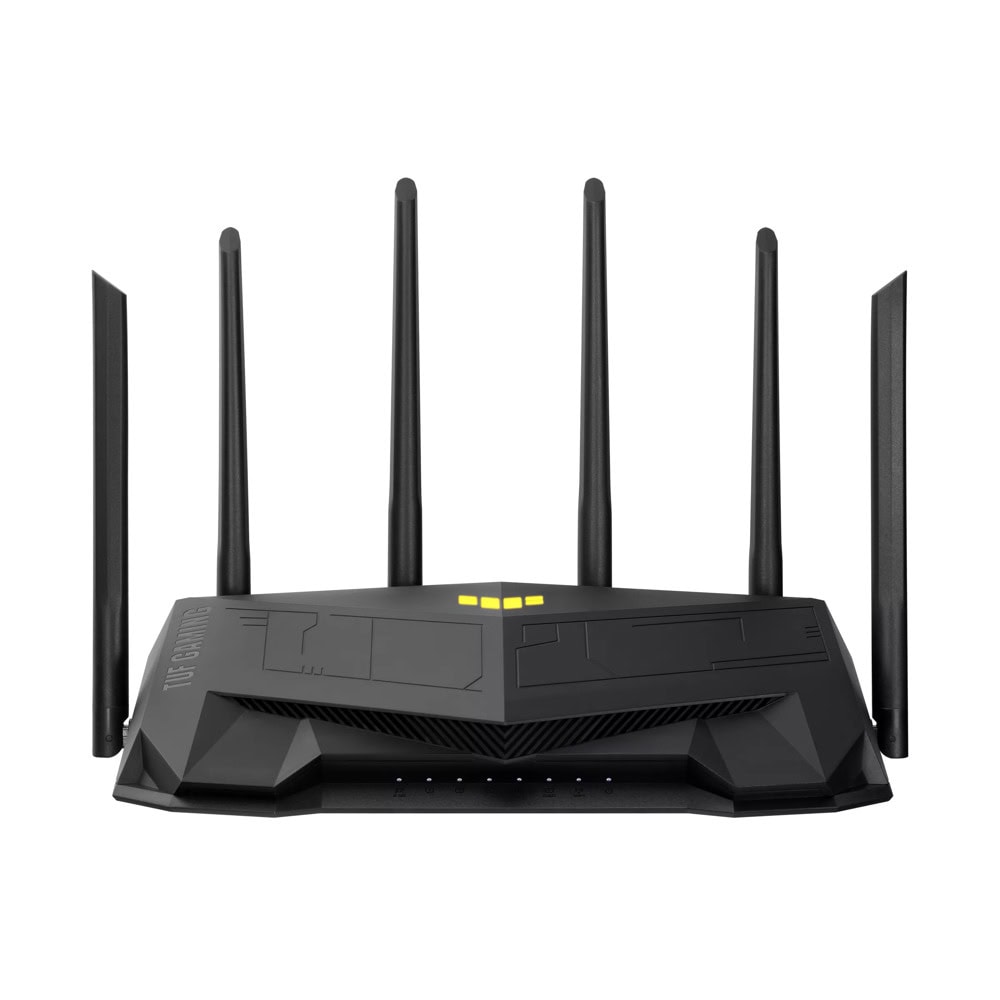

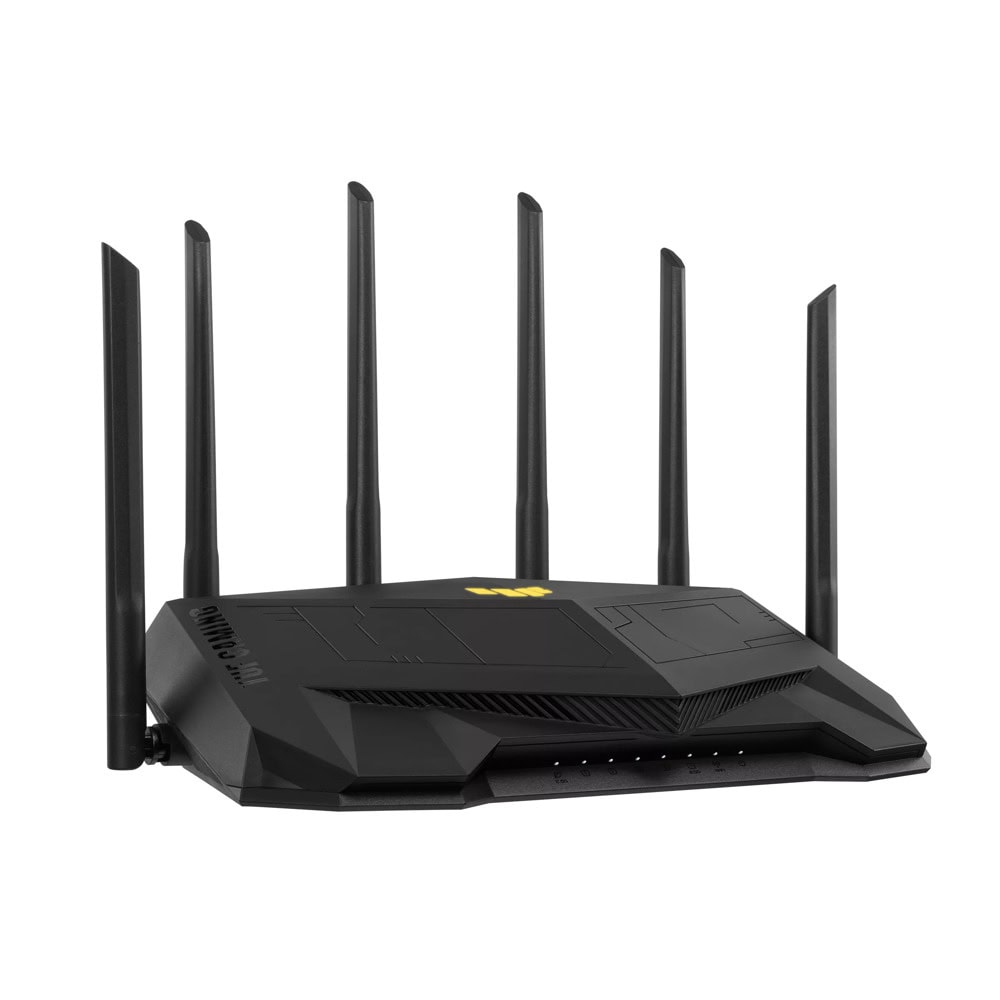

Asus TUF Gaming AX6000

TUF Gaming AX6000 is designed to give you stable and fast wireless and wired connections in device-dense environments. It's a router that benefits all your devices, from laptops, smartphones, and game consoles right down to all the IoT devices in your home.

4X Capacity. 2X Faster.* WiFi 6 provides faster wireless speeds with OFDMA, BSS coloring and MU-MIMO technologies, and it also boosts network efficiency, so all your devices get their fair share of WiFi bandwidth. It's perfect for busy networks with lots of different WiFi devices, such as laptops, smartphones and smart home devices. *The data compares speed of 4X4 WiFi 6 solution on 5GHz band 160MHz channel to speed of 4X4 WiFi 5 solution on 5GHz band 80MHz channel

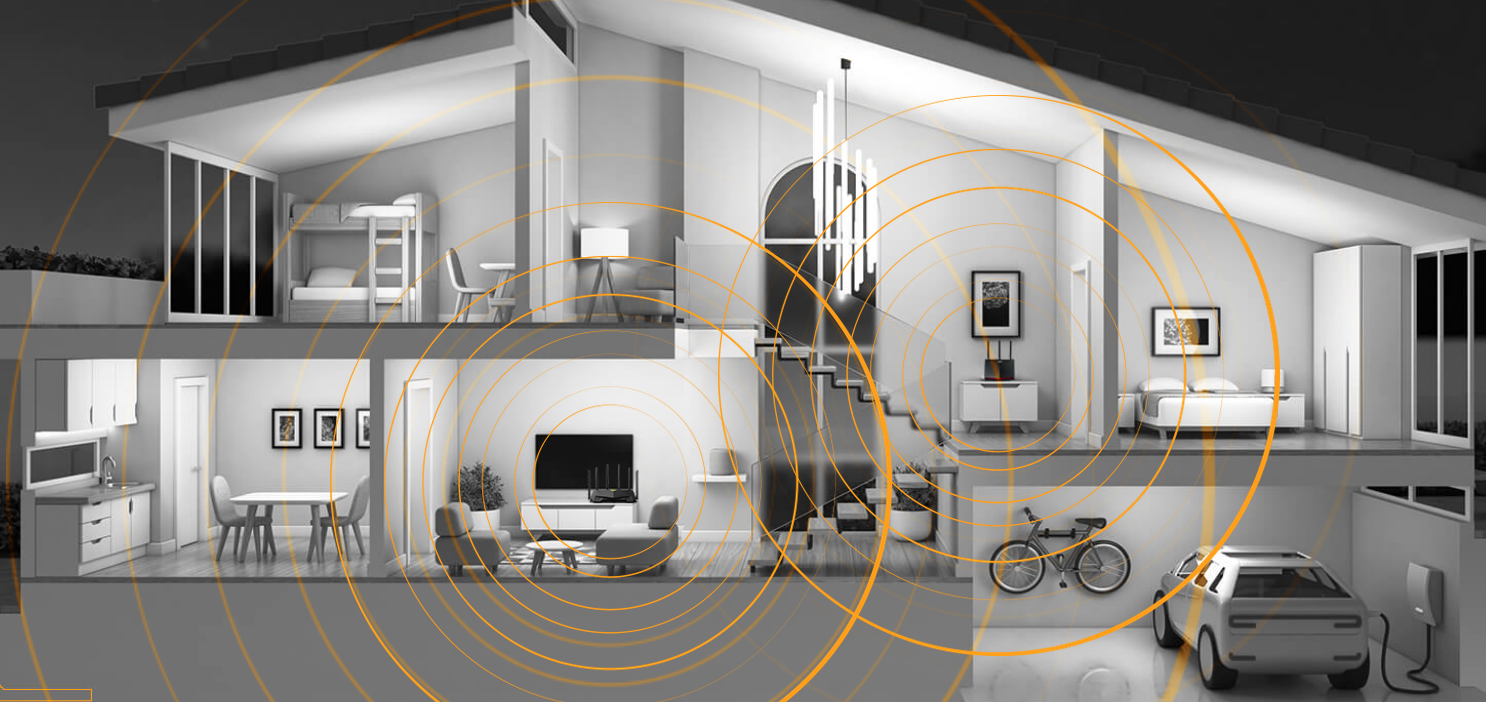

WiFi that Goes Further

We've designed TUF Gaming AX6000 to give you the widest possible WiFi coverage. It uses OFDMA, a new technology in WiFi 6 that allows signals to travel further than they can in WiFi 5. With a 4x4 MIMO configuration and separate 2.4 GHz and 5GHz antennas to reduce interference, along with other enhancements like beamforming, which focuses the signal towards each device, TUF Gaming AX6000 reaches every corner.

Flexible and Scalable Wireless Mesh Networking

If you need more coverage or new functions, you can simply add another compatible router to your AiMesh network at any time!

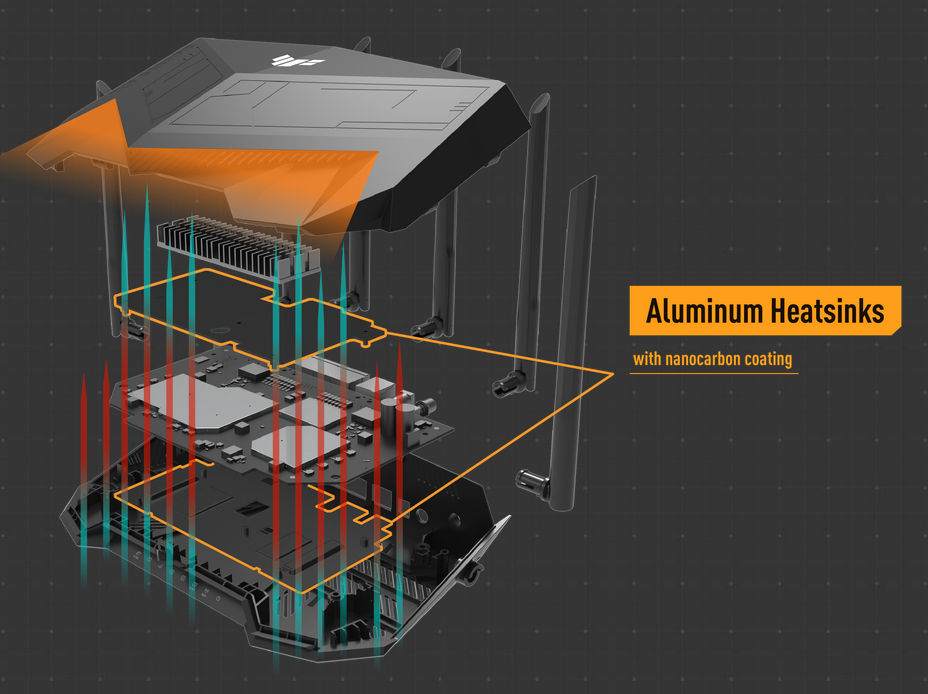

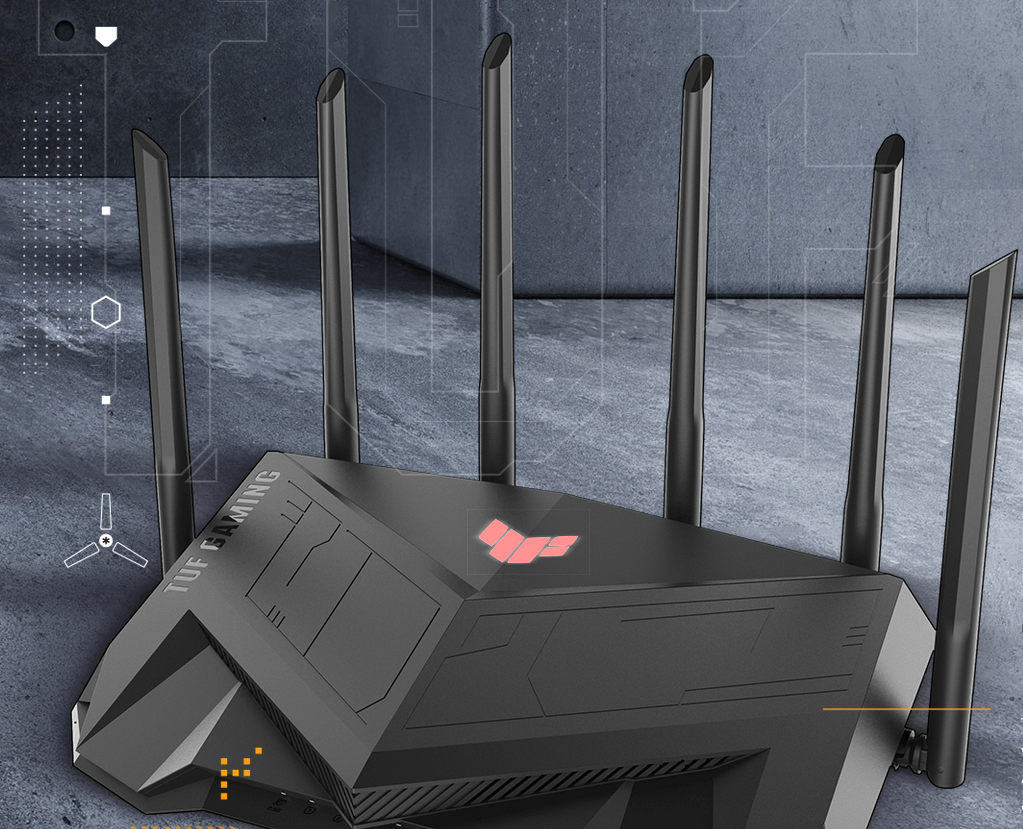

Stable and Durable

TUF Gaming AX6000 is engineered to deliver maximum WiFi performance. The vent location and double heatsink design improve cooling for increased stability, and the fixed antennas and metal port protectors increase physical durability.

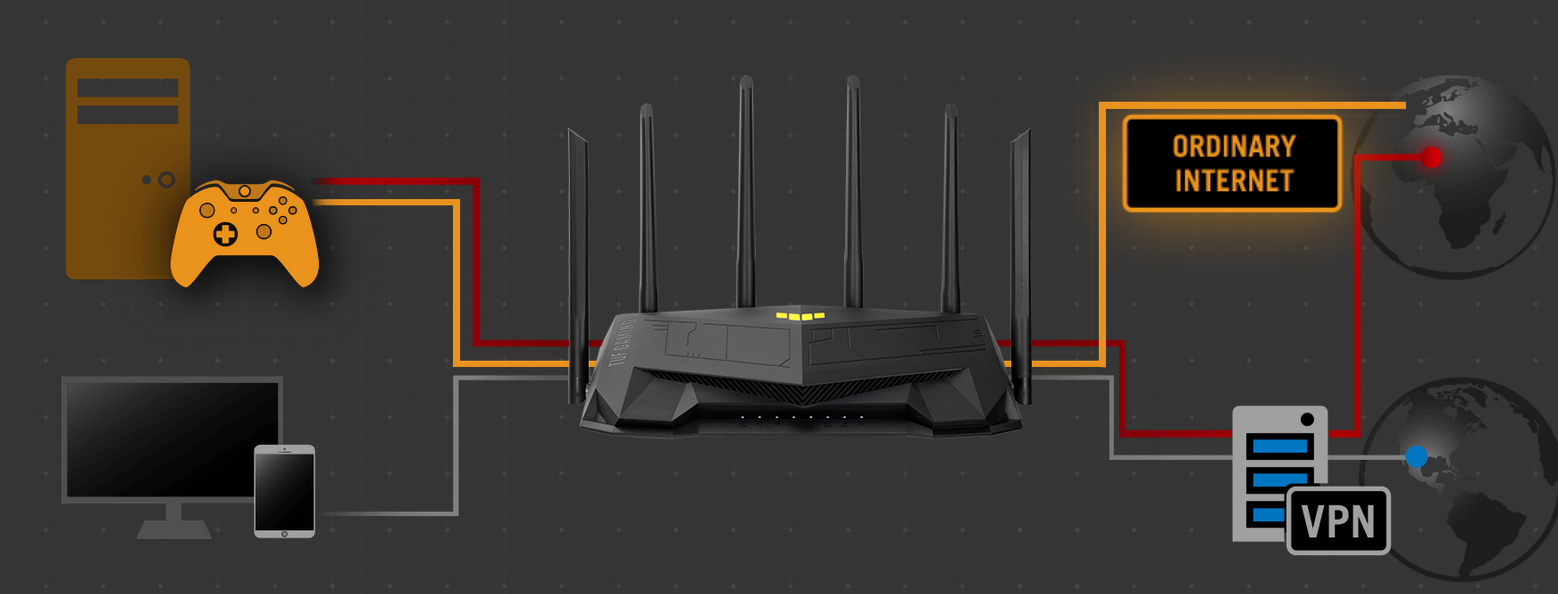

Simultaneous Gaming and VPN

VPN Fusion lets you run both a VPN and an ordinary internet connection - simultaneously! So even if other network users need to use a VPN, you can still enjoy maximum gaming speeds.

Without VPN Fusion

Commercial-Grade
Security for Your Home

Home network security is crucial when you have multiple connected devices, and even more so when there are devices without anti-virus capabilities such as IoT devices. TUF Gaming AX6000 includes lifetime free AiProtection Pro, including the latest WPA3 security protocol and advanced Parental Controls. Every device is protected with TUF Gaming AX6000, and you can keep an eye on everything that's happening on your network via the handy mobile app.

Tech Specs

Network Standard

IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6

Product Segment

AX6000 ultimate AX performance : 1148+4804 Mbps

WiFi Data Rate

802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 1148 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps

Antenna

External antenna x 6

Transmit / Receive

2.4GHz 4x4
5GHz 4x4

Processor

2.0 GHz quad-core processor

Memory

256 MB Flash
512 MB RAM

Boosts Speed

OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth

Operating Frequency

2.4GHz / 5GHz

Operating Mode

Wireless router mode
Access point mode
Media bridge mode

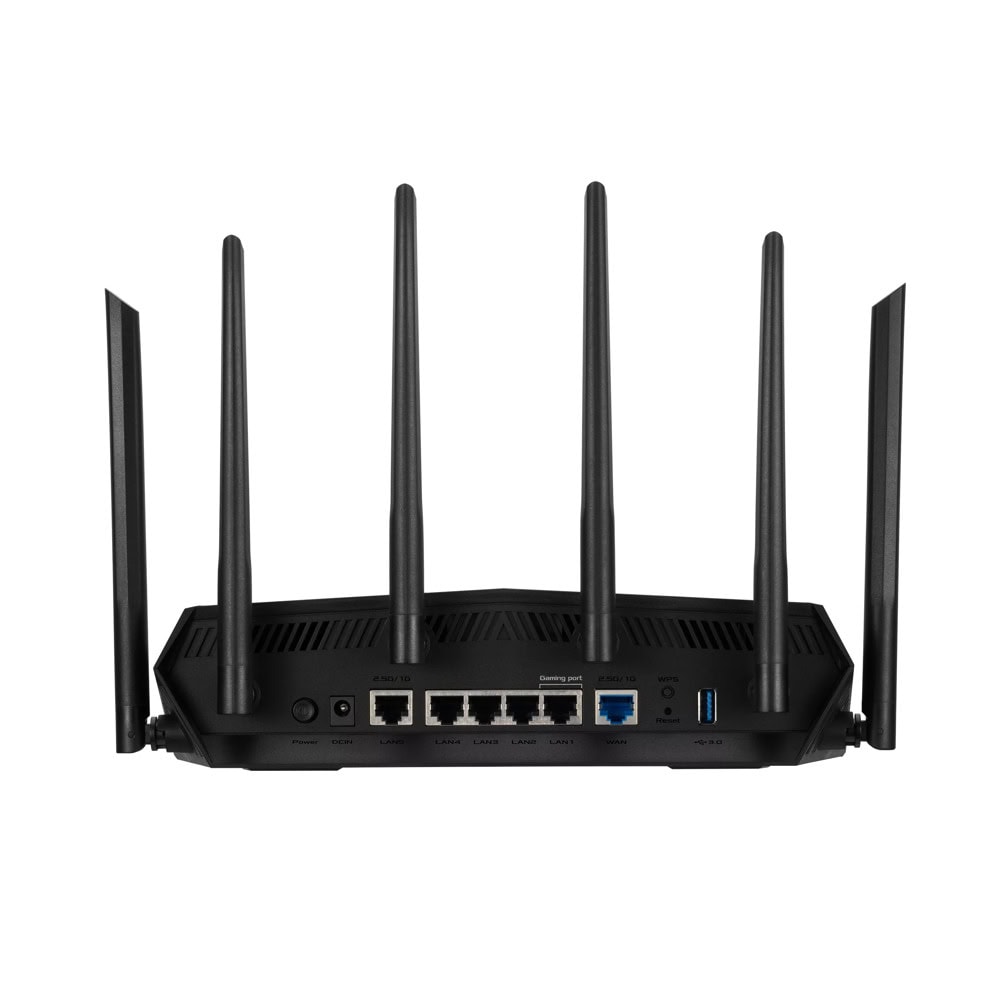

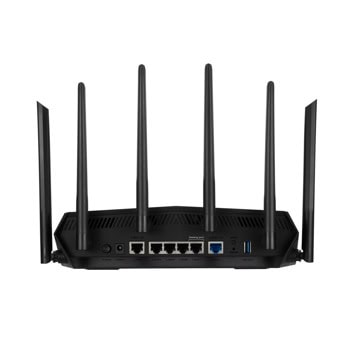

I/O Ports

RJ45 for 2.5 Gigabits BaseT for WAN x 1
RJ45 for 2.5 Gigabits BaseT for LAN x 1
RJ45 for Gigabits BaseT for LAN x 4
USB 3.2 Gen 1 x 1

Buttons

WPS Button, Reset Button, Power Button

LED Indicator

Power x 1
WiFi x 1
1G LAN x 4
2.5G WAN x 1
2.5G LAN x 1

Power Supply

AC Input : 100V~240V (50~60Hz)
DC Output : 12 V with max. 2.5 A current

Product Dimensions

301.02 x 174 x 216 mm

AiMesh

AiMesh
• Primary AiMesh Router
• AiMesh Node

Game

Game Boost / Acceleration
Mobile Game Mode

Parental Control

"Allow you to block access to unwanted websites and apps."
Safe Browsing
Customized Internet Schedule

Guest Network

"The Guest Network provides Internet connection for guests but restricts access to your local network."
• Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3
Guest Network Connection Time Limit

Security

AiProtection
WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
WPS
Let's Encrypt
DNS-over-TLS
SSH
Security Scan
Firewall
• Maximum Firewall Keyword Filter : 64
• Maximum Firewall Network Service Filter : 32
• Maximum Firewall URL Filter : 64

AiProtection

• Router Security Assessment
• Malicious Site Blocking
• Two-Way IPS
• Infected Device Prevention and Blocking

VPN

VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion

Traffic Control

Adaptive QoS
• Bandwidth Monitor
• Bandwidth Limiter
-- Maximum Bandwidth Limiter Rule : 32
Traditional QoS
-- Maximum Traditional QoS Rule : 32
Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
Traffic Analyzer
• Traffic Analysis Period : Daily, Weekly, Monthly
• Website History

WAN

Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
WAN Aggregation
3G / 4G LTE dongle
Port forwarding
• Maximum Port Forwarding Rule : 64
Port triggering
• Maximum Port Triggering Rule : 32
DMZ
DDNS
NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay

LAN

DHCP Server
IGMP Snooping
IPTV
LAN Link Aggregation
Manually Assign IP Address
• Maximum Manually Assign IP Address Rule : 64
Wake on LAN (WOL)

Wireless

UTF-8 SSID
WiFi MAC Address Filter
• Maximum MAC Filters : 64
Wireless Scheduler
Airtime Fairness
RADIUS Client
Universal Beamforming
Explicit Beamforming

USB application

File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
Safely Remove Disk
AiCloud
Download Master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder Privileges

Administration

Configuration Backup and Restore
Diagnosis tools
Feedback System
System Log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
