Безжичен рутер ASUS AX5700, 5700Mbps, 2.4GHz(861Mbps), 5GHz(4804Mbps), WiFi 6 (802.11ax), 4x LAN 10/100/1000, 1x WAN 10/100/1000, 3x външни антени, 1x вътрешнa антенa, LED Indicator, 2x USB 3.2 Gen 1, Reset Button, черен

ASUS AX5700

Your Winning Choice for Mobile Gaming!

Enjoy the fastest, smoothest WiFi gaming connections ever with the ASUS RT-AX86 Series dual-band WiFi 6 router. It delivers ultrafast WiFi speeds up to 5700 Mbps**, and is packed with advanced technology, including Mobile Game Mode for a lag-free, low-latency mobile gaming experience.

Ultrapowerful WiFi 6

RT-AX86 Series brings you all the benefits of WiFi 6 (802.11ax), and works perfectly with all your existing WiFi devices!

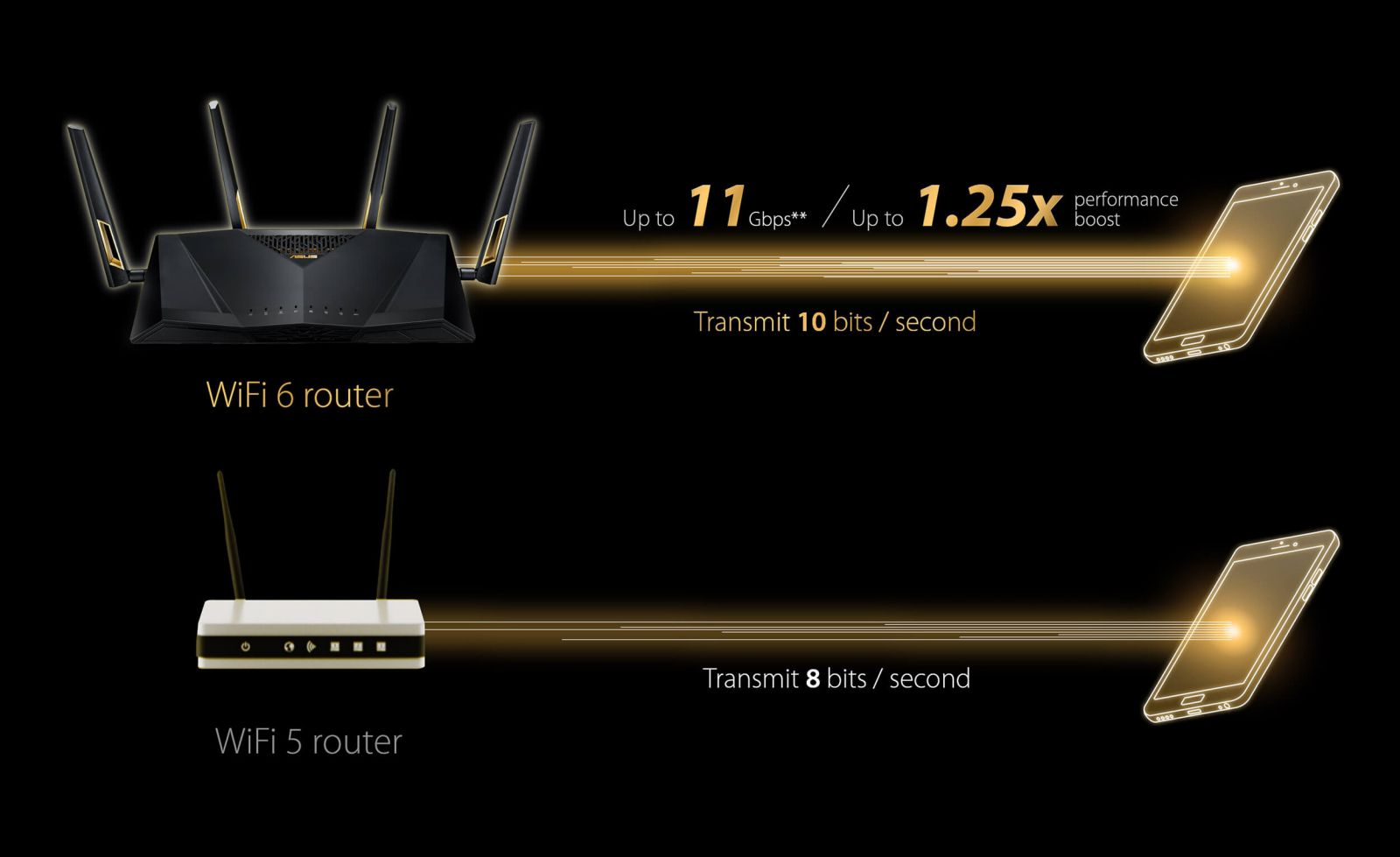

Warp-Speed WiFi WiFi 6 technology breaks existing speeds limits by using the innovative 1024-QAM modulation technique. The older WiFi 5 (802.11ac) uses a 256-QAM technique: compared to this, 1024-QAM packs 25% more information in the signal to deliver up to a 1.25X performance boost. These improved speeds can be up to 11 Gbps: you can now say goodbye to lag and latency, even when you’re streaming 8K video or enjoying VR gaming!

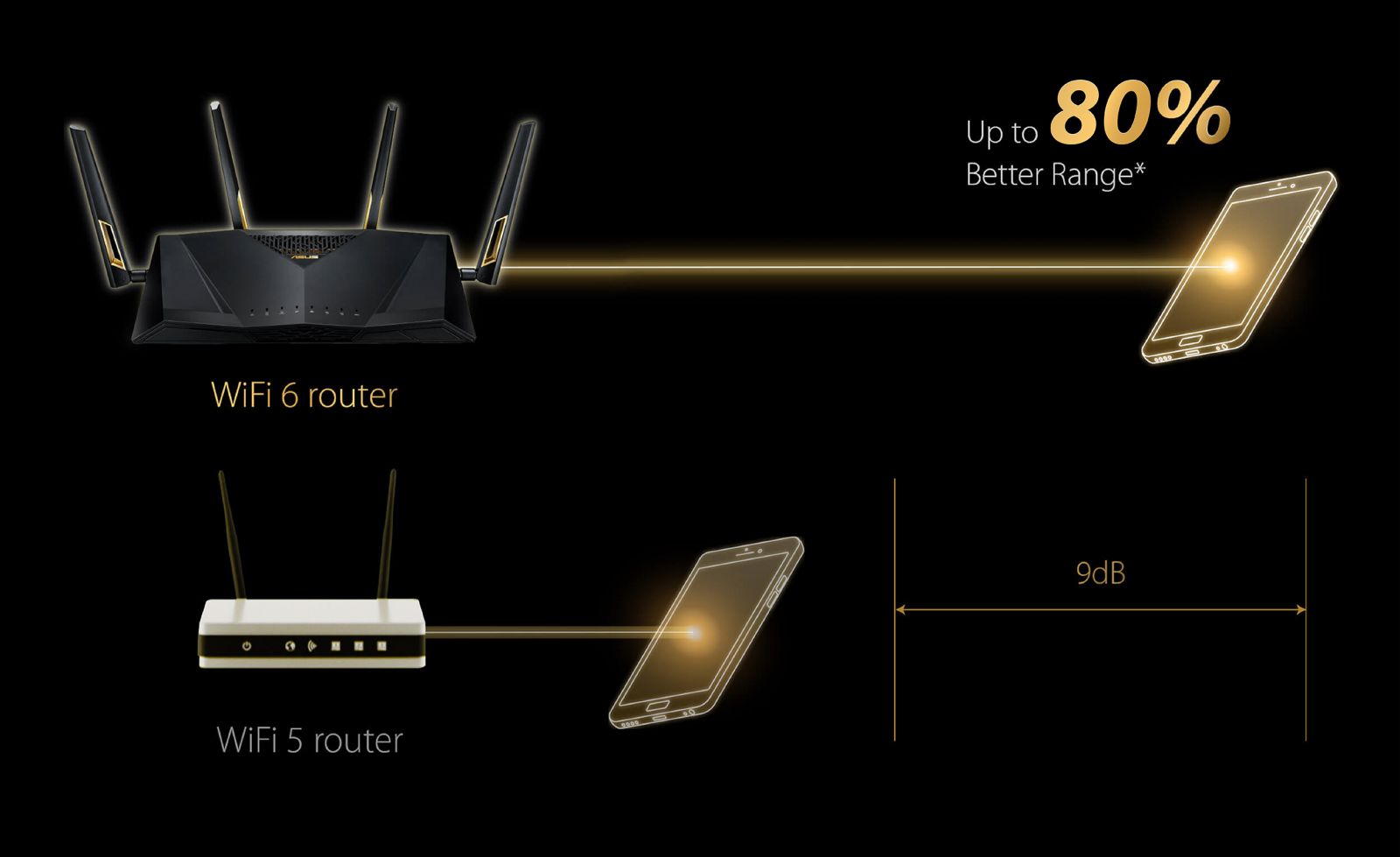

	WiFi That Goes Further WiFi 6 uses OFDMA technology to deliver increased WiFi signal range and better coverage by dividing each wireless channel into smaller sub-channels. These sub-channels have a reduced bandwidth that gives them up to an 80% range improvement. The result is fewer WiFi dead spots and faster, more reliable WiFi connections for your devices, throughout your home. With WiFi 6, your attic, garden or basement don't have to be WiFi no-go zones!
Boost Your Mobile Gaming Minimize lag and latency for mobile gaming with just a tap on the ASUS Router app.

Gaming Without Limits

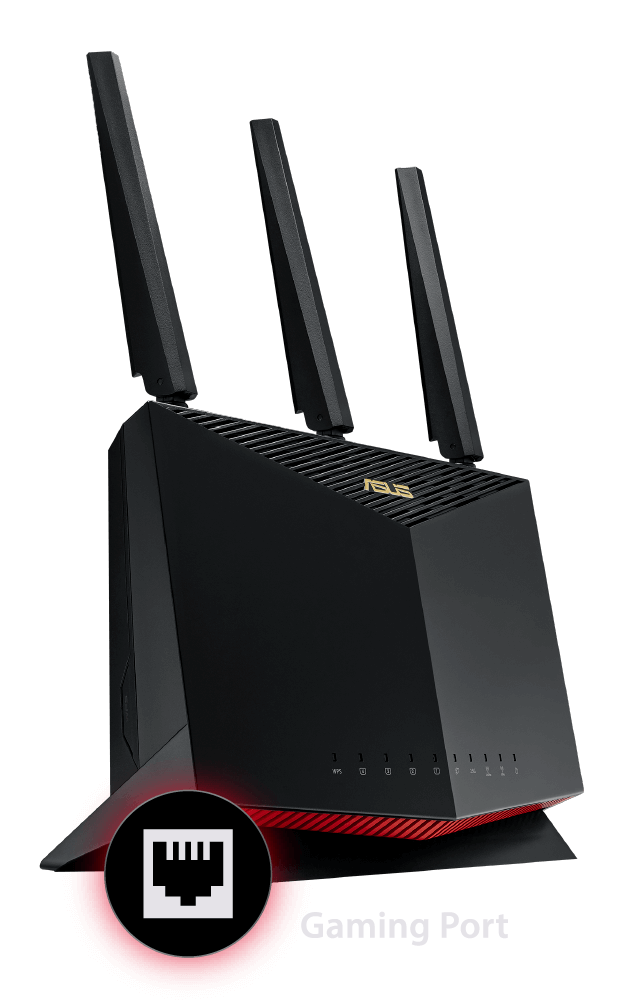

Prioritize via Gaming Port The dedicated gaming port on RT-AX86 Series automatically prioritizes any wired device connected to it. No complex configuration is needed, just connect your gaming PC or console to the special LAN port to give you a fast, stable connection that's always at the head of the queue.
	Prioritize via Gear Accelerator Gear Accelerator lets you prioritize devices wirelessly via RT-AX86 Series online control panel. The simple interface lets you prioritize devices to help boost their speed and prevent them fighting over bandwidth with other devices.

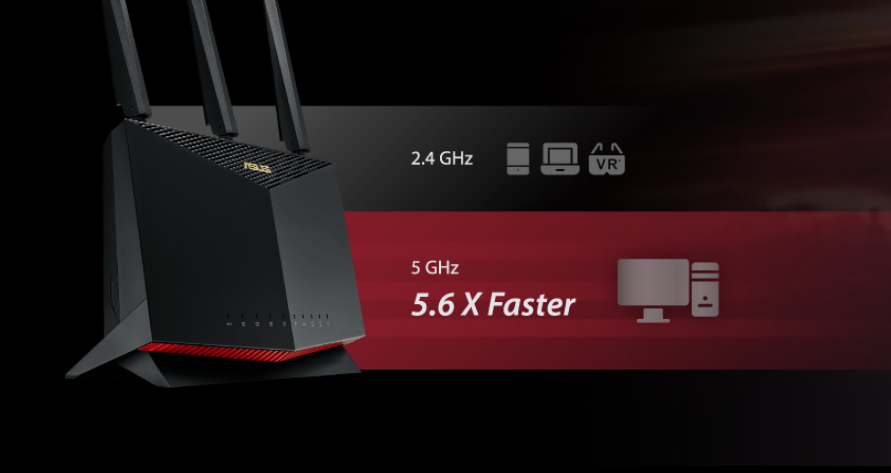

Eliminate WiFi Congestion Connect your devices to the 5 GHz band and avoid the often-congested 2.4 GHz band, while enjoying up to 5.6X faster WiFi speeds. Also, optional Dynamic Frequency Selection (DFS) unlocks up to 15 of the least-congested channels on the 5GHz band to give you even more bandwidth for gaming

GEFORCE NOW RECOMMENDED

	GeForce NOW is NVIDIA's cloud-based gaming service that delivers real-time GeForce-powered gameplay straight from the cloud to all your devices. With GeForce NOW, you can connect to your store accounts and stream your library of games, or play your favorite free-to-play games available on the service. GeForce NOW recommended routers ensure up to 90% of WiFi bandwidth is dedicated to gaming and undergo rigorous testing to deliver the best possible experience and lowest latency for cloud gaming.

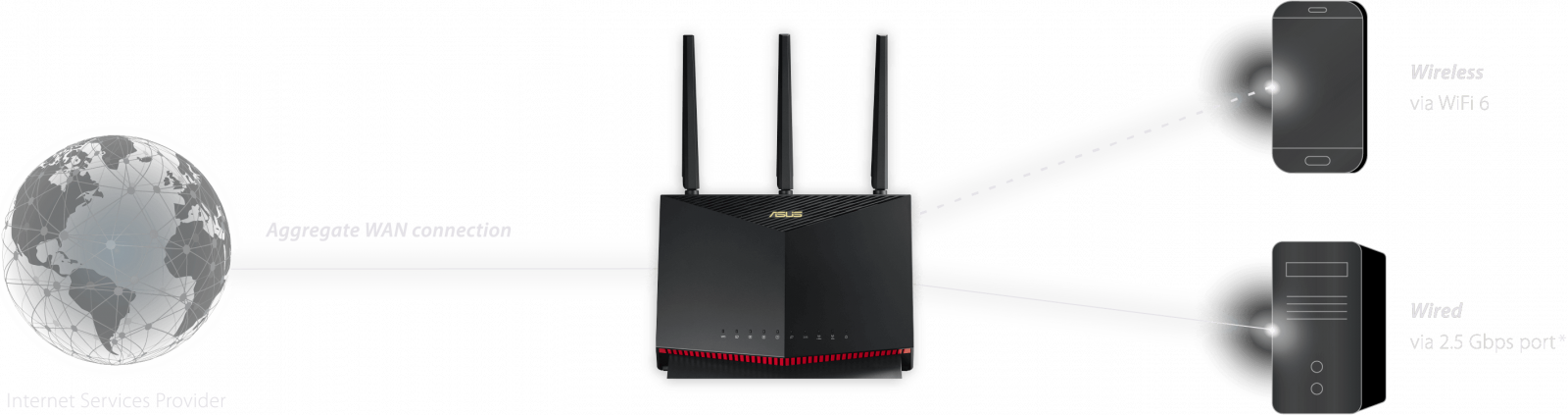

Internet Without Limits   RT-AX86 Series can unlock up to 2 Gbps of internet bandwidth by aggregating two separate 1 Gbps internet services using the WAN port and a 1 Gbps LAN port, doubling the maximum internet connection speed to 2 Gbps! This massive internet bandwidth can then be shared via WiFi 6 or via the 2.5 Gbps wired network port*. For extra versatility, the 2.5 Gbps port* can be used for either WAN or LAN connections.
	Commercial-grade Security for Your Home   Home network security is crucial when you have multiple connected devices, and even more so when there are devices without anti-virus capabilities such as IoT devices. RT-AX86 Series includes lifetime free AiProtection Pro, including the latest WPA3 security protocol and advanced Parental Controls. Every device is protected with RT-AX86 Series, and you can keep an eye on everything that's happening on your network via the handy mobile app.

Tech Specs

Network Standard
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6


Product Segment
AX5700 ultimate AX performance : 861+4804Mbps
AX technology
Yes


Data Rate
802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 450 Mbps
WiFi 4 (802.11n) (1024QAM) : up to 750 Mbps
WiFi 5 (802.11ac) (1024QAM) : up to 4333 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 861 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps


Antenna
External antenna x 3
Internal PCB antenna x 1


Transmit/Receive
2.4GHz 3x3
5GHz 4x4


Processor
RT-AX86U:1.8GHz quad-core processor
RT-AX86S:1.8GHz dual- core processor


Memory
RT-AX86U: 256 MB Flash
1 GB RAM
RT-AX86S: 256MB Flash
512MB RAM


Boosts speed
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth
Operating Frequency
2.4 GHz / 5 GHz


Ports
RT-AX86U:
RJ45 for 10/100/1000 BaseT for WAN x 1
RJ45 for 10/100/1000 BaseT for LAN x 4
Five (5) 10/100/1000 Mbps Gigabit Ethernet ports + one (1)
2.5G/1Gbps multi-Gig port (configurable)
-- LAN: 4xGbE (2x port aggregation LAN)
-- WAN: 1 GbE
-- WAN/LAN: 2.5G/1Gbps multi-Gig port (configurable)
-- Multi-Gig: Ability to aggregate two Gigabit LAN ports and two Gigabit WAN ports (configurable) concurrently.
USB 3.2 Gen 1 x 2

RT-AX86S:
RJ45 for 10/100/1000 BaseT for WAN x 1
RJ45 for 10/100/1000 BaseT for LAN x 4
Five (5) 10/100/1000 Mbps Gigabit Ethernet ports
-- LAN: 4xGbE (2x port aggregation LAN)
-- WAN: 1 GbE
-- Multi-Gig: Ability to aggregate two Gigabit LAN ports and two Gigabit WAN ports (configurable) concurrently.
USB 3.2 Gen1 x1, 2.0 x1


Button
WPS Button, Reset Button, Power Switch, LED on/off Button
LED Indicator
RT-AX86U:
Power x 1
2.4GHz x 1
5GHz x 1
2.5G Port x 1
WAN x 1
LAN x 4
WPS x 1
RT-AX86S:
Power x 1
2.4GHz x 1
5GHz x 1
WAN x 1
LAN x 4
WPS x 1
USB x 1


Power Supply
AC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 2.37 A current / 19.5 V with max. 2.31 A current/ 12 V with max.3 A current


Package content
RT-AX86U:

RT-AX86U WiFi router
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card

RT-AX86S:

RT-AX86S WiFi router
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card
Product Weight (g)
814.5 g
AiMesh
AiMesh : Yes
Primary AiMesh router : Yes
AiMesh node : Yes
Router APP
ASUS Router APP : Yes


Game
Game Boost/acceleration : Yes
WTFast : No
Alexa
Support Alexa skil : Yes
IFTTT
Support IFTTT : No
AiProtection
AiProtection : AiProtection Pro
Router Security Assessment : Yes
Malicious site blocking : Yes
Two-Way IPS : Yes
Infected Device Prevention and Blocking ; Yes
Parental Control
Parental Control : Yes
Parental Control Customized Internet schedule : Yes
Traffic Control
Adaptive QoS : Yes
Bandwidth Monitor : Yes
Bandwidth limiter : Yes
Maximum Bandwidth limiter rule : 32
Traditional QoS : Yes
Maximum Traditional QoS rule : 32
Traffic Monitor : Yes
Real-time traffic monitor : Yes
Wired Traffic Monitor : Yes
Wireless Traffic Monitor : Yes
Traffic Analyzer : Yes
Traffic analysis period : Daily, Weekly, Monthly
Website history : Yes


Wireless
IPv6 : Yes
MU-MIMO : Yes
Wi-Fi Encryption : WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support
UTF-8 SSID : Yes
Guest Network : Yes
Maximum Guest Network rule : 2.4GHz x3, 5GHz x3
WPS : Yes
Wi-Fi MAC address filter : Yes
Maximum MAC filters : 64
Wireless scheduler : Yes
Airtime fairness : Yes
RADIUS Server : Yes
Universal beamforming : Yes
Explicit beamforming : Yes
IGMP snooping : Yes


WAN
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
Dual WAN : Yes
WAN Aggregation : Yes
3G/4G LTE dongle : Yes
Android tethering : Yes
Port forwarding : Yes
Maximum port forwarding rule : 64
Port triggering : Yes
Maximum port triggering rule : 32
DMZ : Yes
DDNS : Yes
NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, PPPoE relay


LAN
DHCP Server : Yes
IPTV : Yes
LAN Link Aggregation : Yes
Manually assign IP address : Yes
Maximum manually assign IP address rule : 64


VPN
VPN Client L2PT : Yes
VPN Client OVPN : Yes
VPN Client PPTP : Yes
VPN Server IPSec : Yes
VPN Server OVPN : Yes
VPN Server PPTP : Yes


USB application
File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
3G/4G LTE dongle : Yes
HDD hibernation : Yes
Safely Remove disk : Yes
AiCloud : Yes
Download master : Yes
AiDisk : Yes
Media Server : Yes
Time Machine : Yes
Samba Server : Yes
FTP Server : Yes
Shared Folder privileges : Yes


Administration
Operating mode : Wireless router mode,Access point mode,Media bridge mode,Repeater mode,AiMesh node mode
Operating system : ASUSWRT
Free OS upgrade : Yes
Firewall : Yes
Maximum Firewall keyword filter : 64
Maximum Firewall network service filter : 32
Maximum Firewall URL filter : 64
Wake on LAN (WOL) : Yes
SSH : Yes
Configuration backup and restore : Yes
Diagnosis tools : Yes
Feedback system : Yes
System log : Yes
