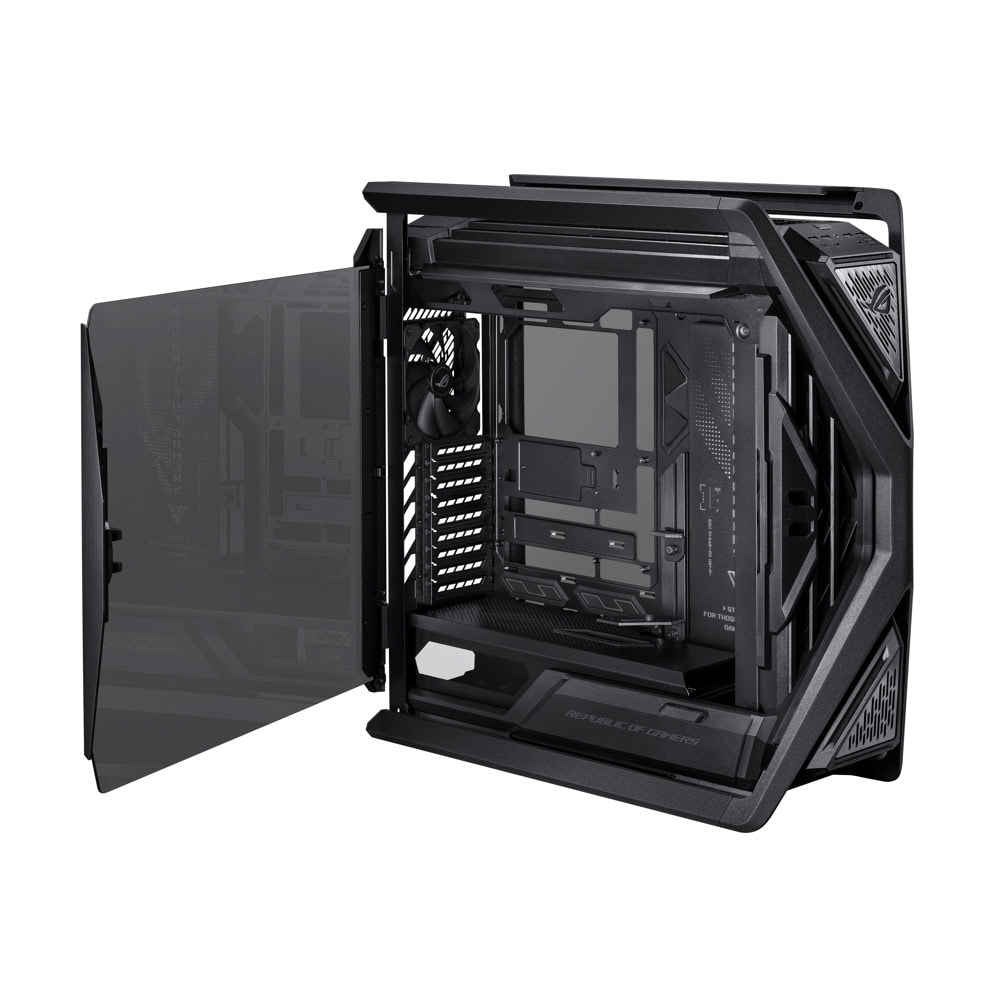

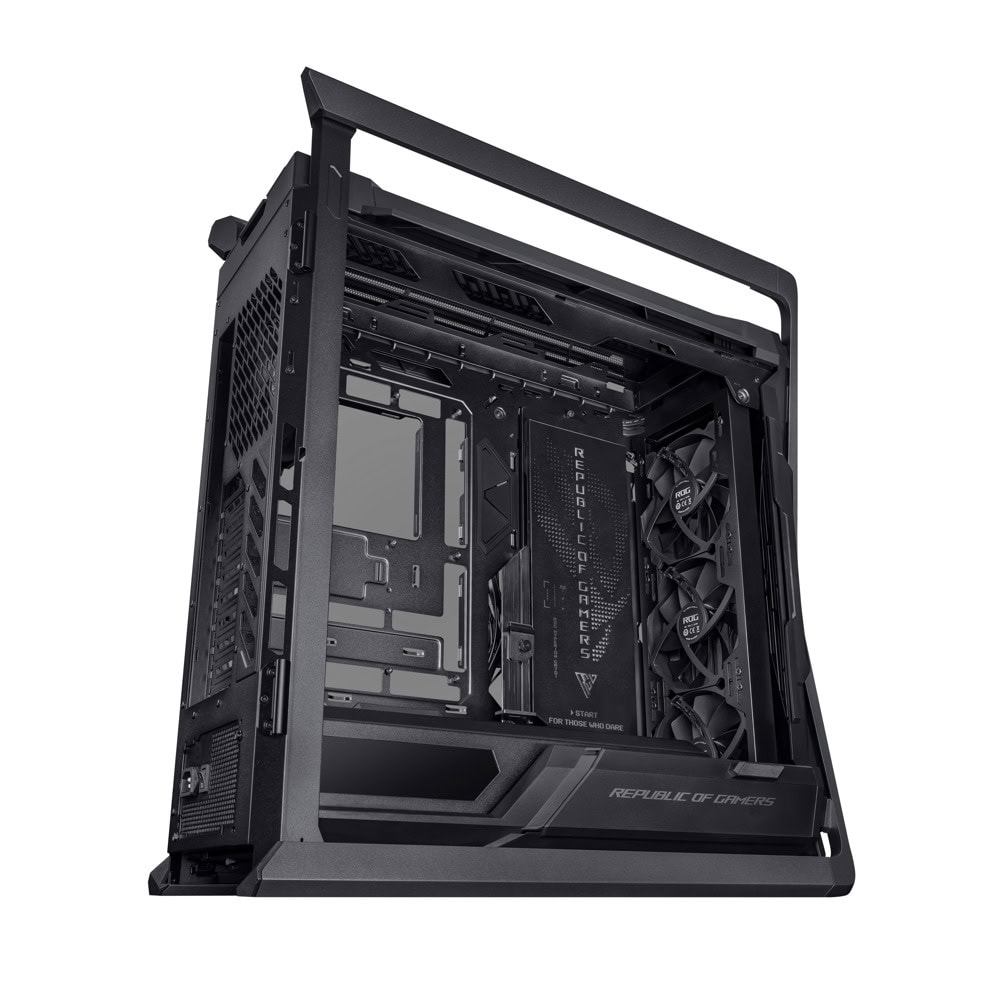

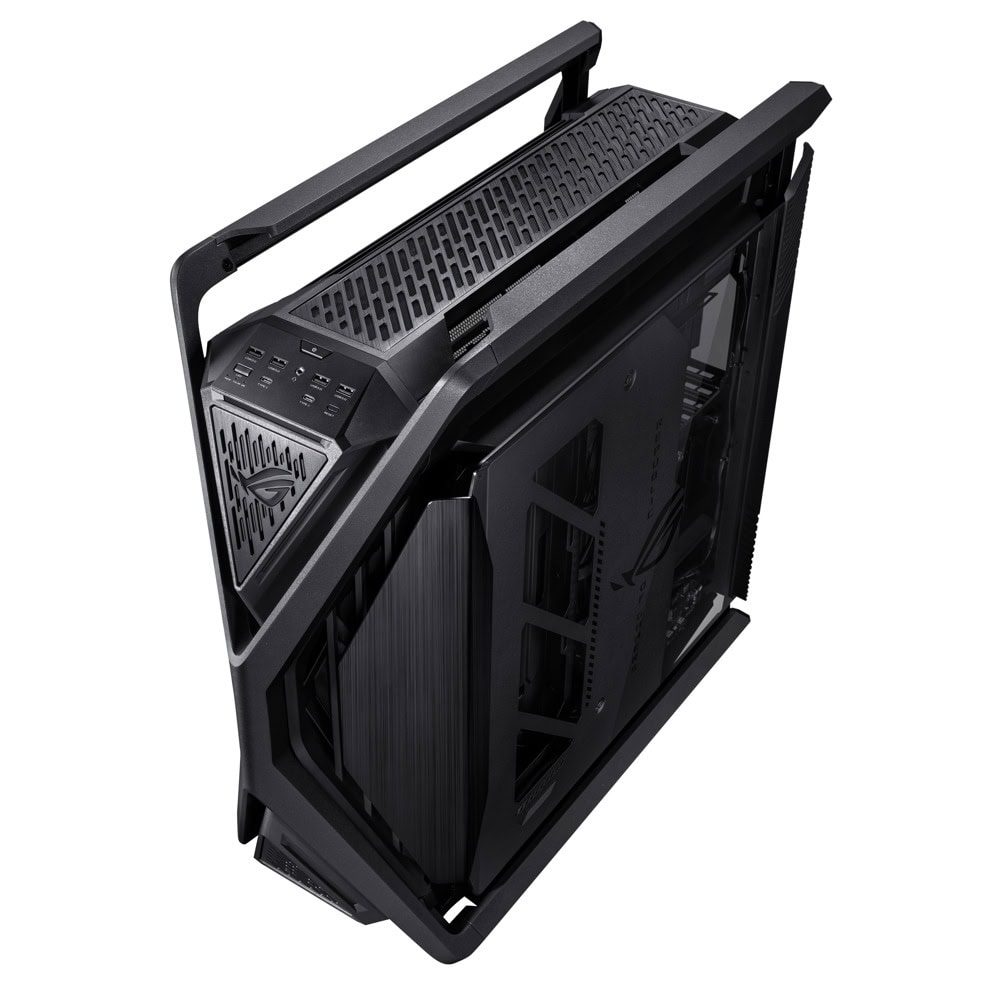

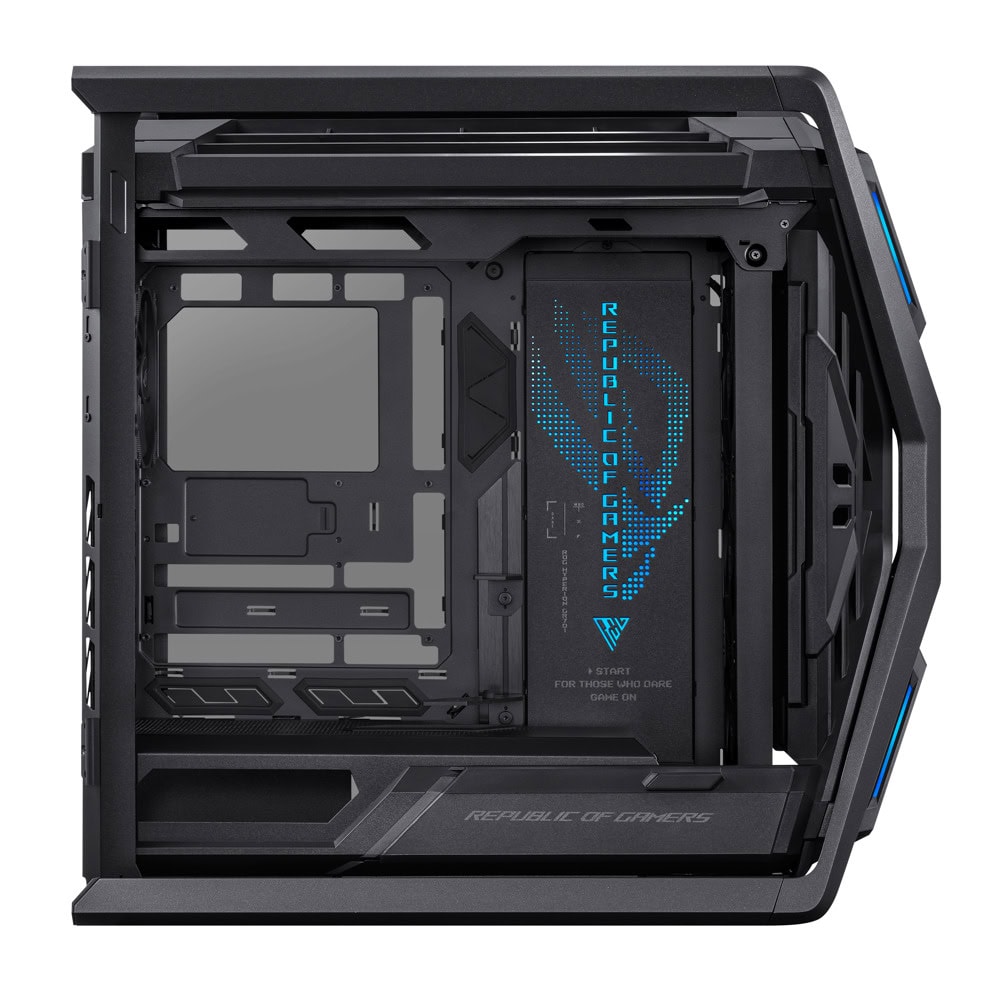

Кутия Asus ROG Hyperion BTF, EATX/ATX/microATX/Mini-ITX, 4x USB 3.2 Gen 1 Type-A, 1x USB 3.2 Gen 2 Type-C, 4x 140mm вентилатора, с прозорец, черна, без захранване

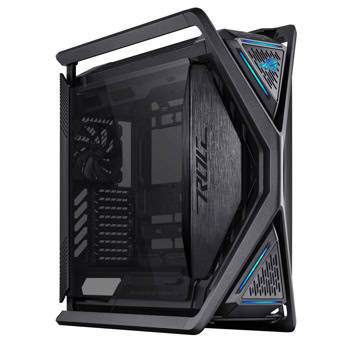

Asus ROG Hyperion BTF

Premium materials and crafting

The GR701 BTF Edition is forged with high-end materials that are given extra treatments and distinctive polishing methods, to deliver the luxurious look and feel that elevates an ROG chassis above its many challenges.

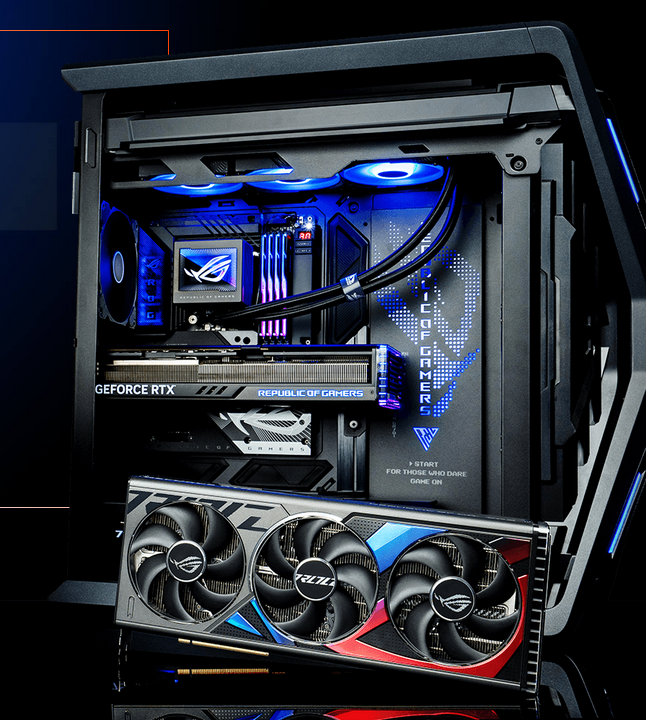

Advanced BTF Design With the combination of a BTF graphics card, motherboard and chassis, you can enjoy a full hidden-connector experience. This Advanced BTF approach is achieved through the new graphics card high-power slot available on BTF motherboards, which can deliver up to 600 watts to BTF graphics cards. With a full set of BTF components, builders can eliminate visible cables for an extra-clean aesthetic.

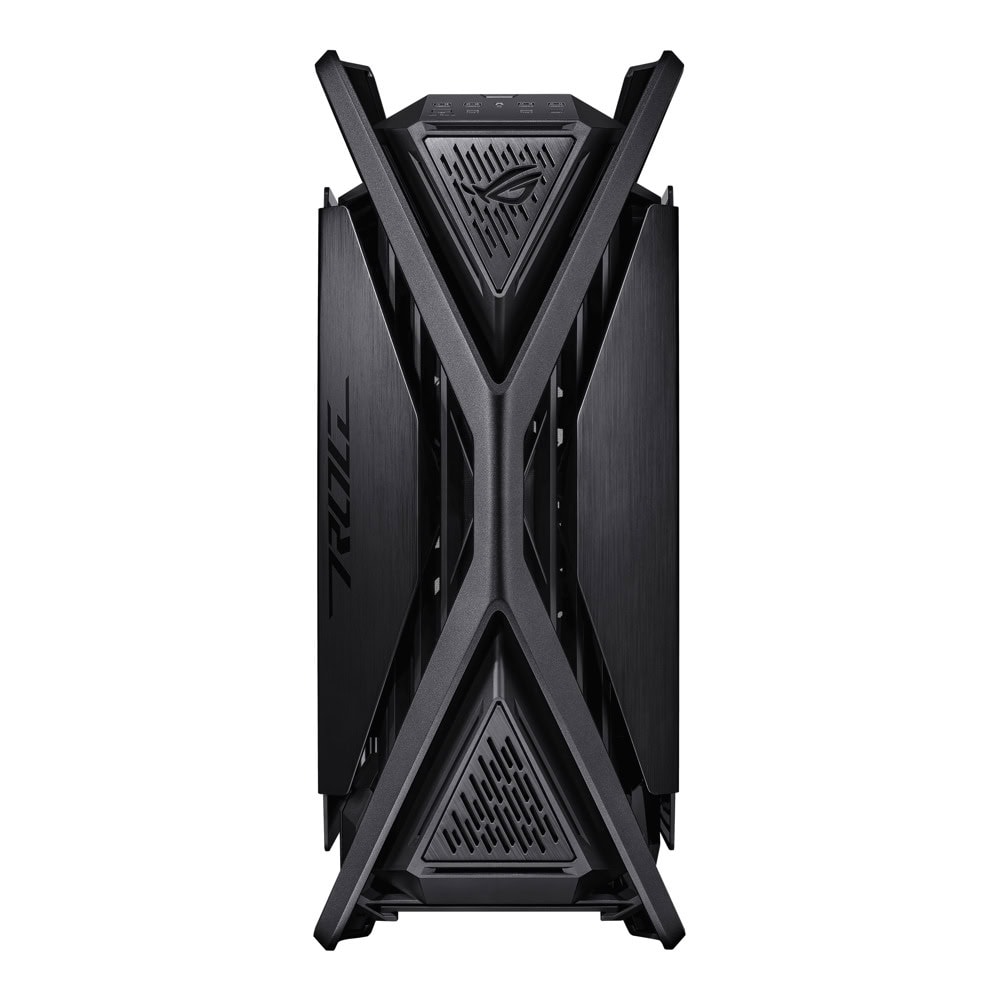

Structure and Style A front side air intake can provide ample ventilation to get just the right balance of temperatures for your system and graphics cards. This integrates tightly into a bold new look with features like the distinctive diamond-shaped badge on the front, stamped with the famous ROG logo and surrounded by diagonal slashes.

Built for High Airflow

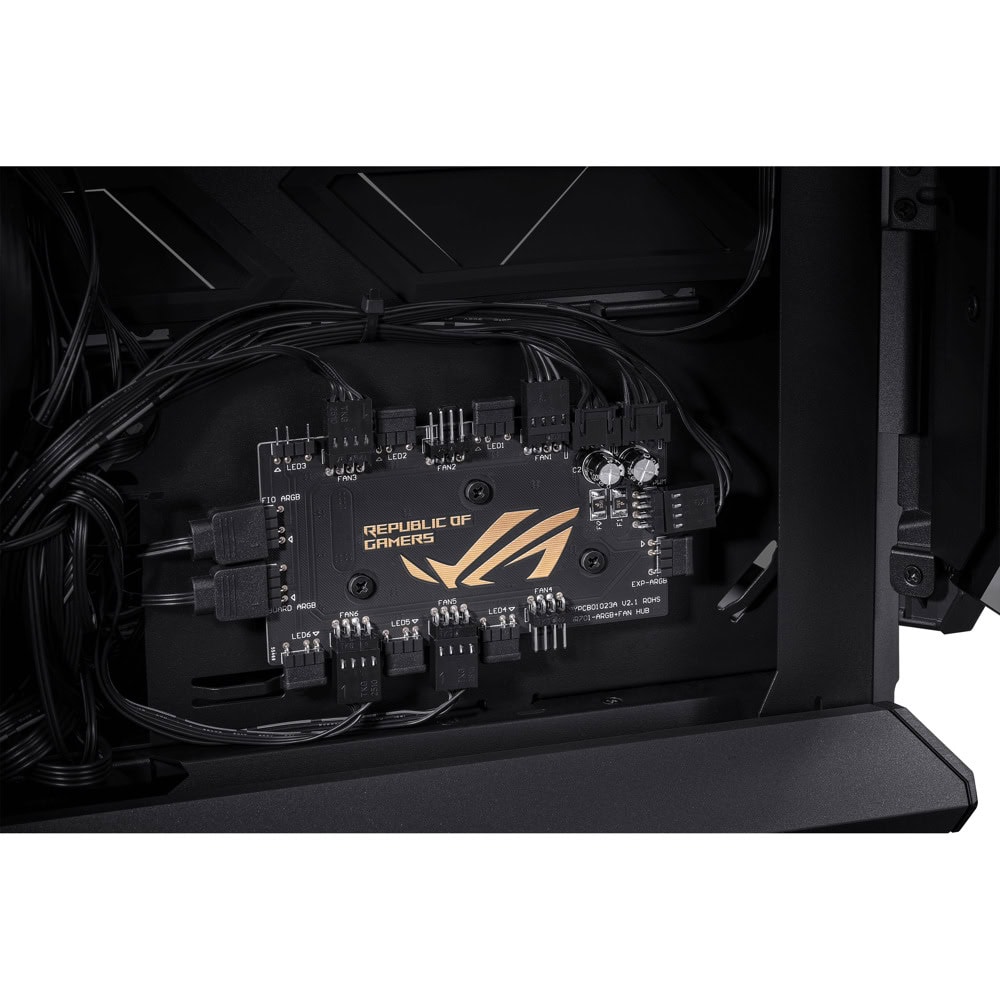

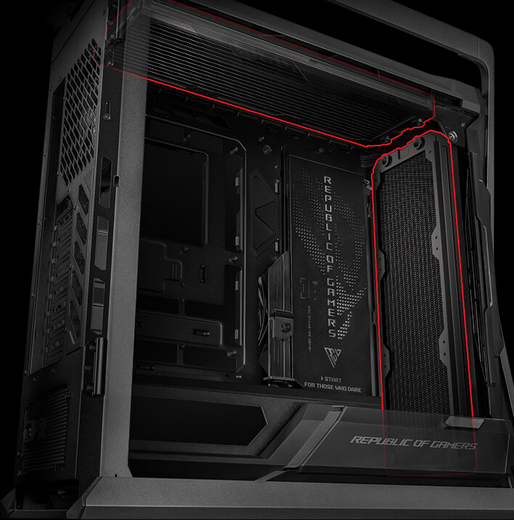

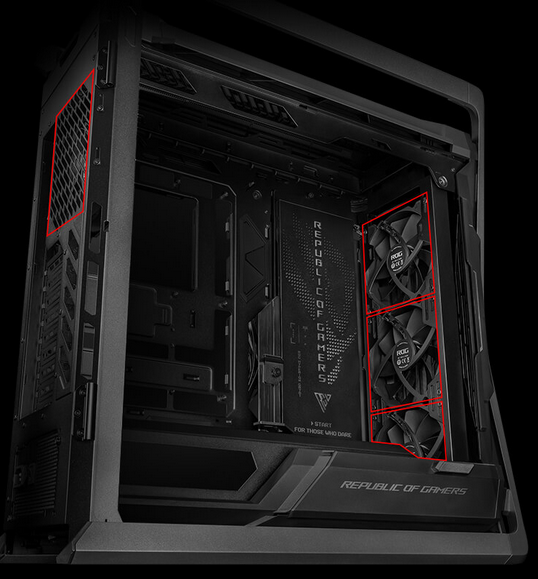

The Republic of Gamers is populated by builders who demand the best, and the Hyperion GR701 BTF Edition delivers top-tier cooling potential with support for 420 mm radiators on the top and in the front of the chassis, while four 140 mm PWM fans come pre-connected to an Aura Sync ARGB fan hub.

Support For 2 x 420 mmRadiators	Pre-installed 4 x 140 mmPWM Fans

Specifications

Motherboard Support

EATX (12"x10.9")

ATX

Micro-ATX

Mini-ITX

Drive Bays

5 x 2.5" Bay

2 x 2.5"/3.5" Combo Bay

Expansion Slots

9

3 (additional vertical)

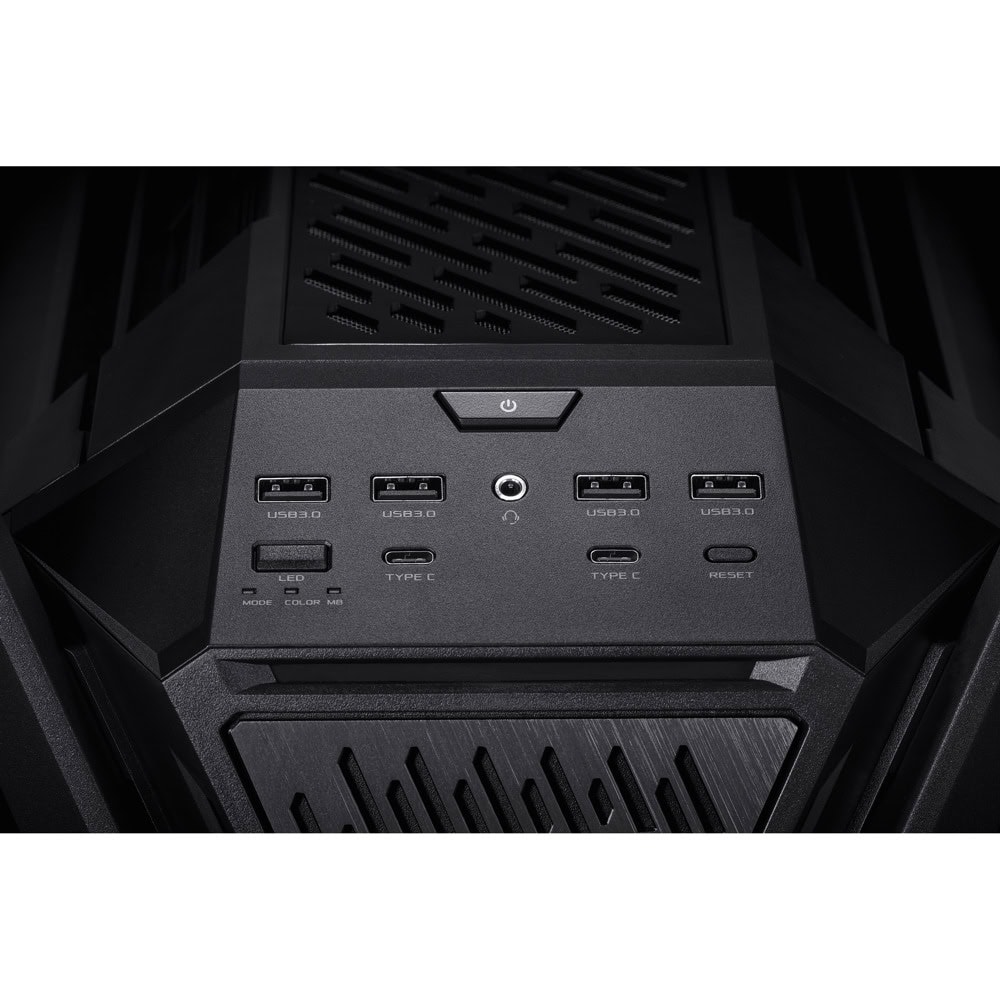

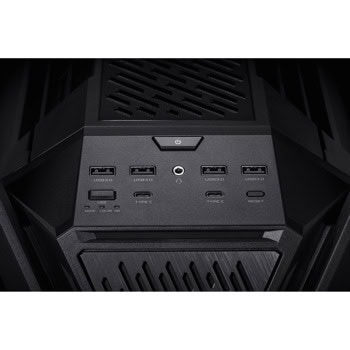

Front I/O Port

1 x headphone / Microphone

4 x USB 3.2Gen1

1 x USB 3.2 Gen2 Type C

LED Control Button

Reset Button

1 x USB 4.0 Type C or 1 x USB 3.2 Gen 2x2 Type C

this spec might vary by region

Tempered Glass

Left Side

Right Side

Radiator Support (Front)

120 mm

140 mm

240 mm

280 mm

360 mm

420 mm

Radiator Support (Top)

120 mm

140 mm

240 mm

280 mm

360 mm

420 mm

Radiator Support (Rear)

120 mm

140 mm

Cooling Support (Front)

3 x 120 mm

3 x 140 mm

Cooling Support (Top)

3 x 120 mm

3 x 140 mm

Cooling Support (Rear)

1 x 120 mm

1 x 140 mm

Pre-installed Fans (Front)

3 x 140 mm

PWM

Pre-installed Fans (Rear)

1 x 140 mm

Maximum CPU Cooler Height

190 mm

Maximum GPU Length

460 mm

Maximum PSU Length

240 mm

Removable Dust Filters

Front

Top

Bottom

Maximum Cable Management Space

34 mm

Dimensions

268 * 639 * 659 mm

Weight

20.8 Kg
21.3 Kg (GR701 BTF Edition)

AURA Sync

ARGB

BTF motherboard compatible

ROG Hyperion GR701 BTF Edition ONLY

JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
