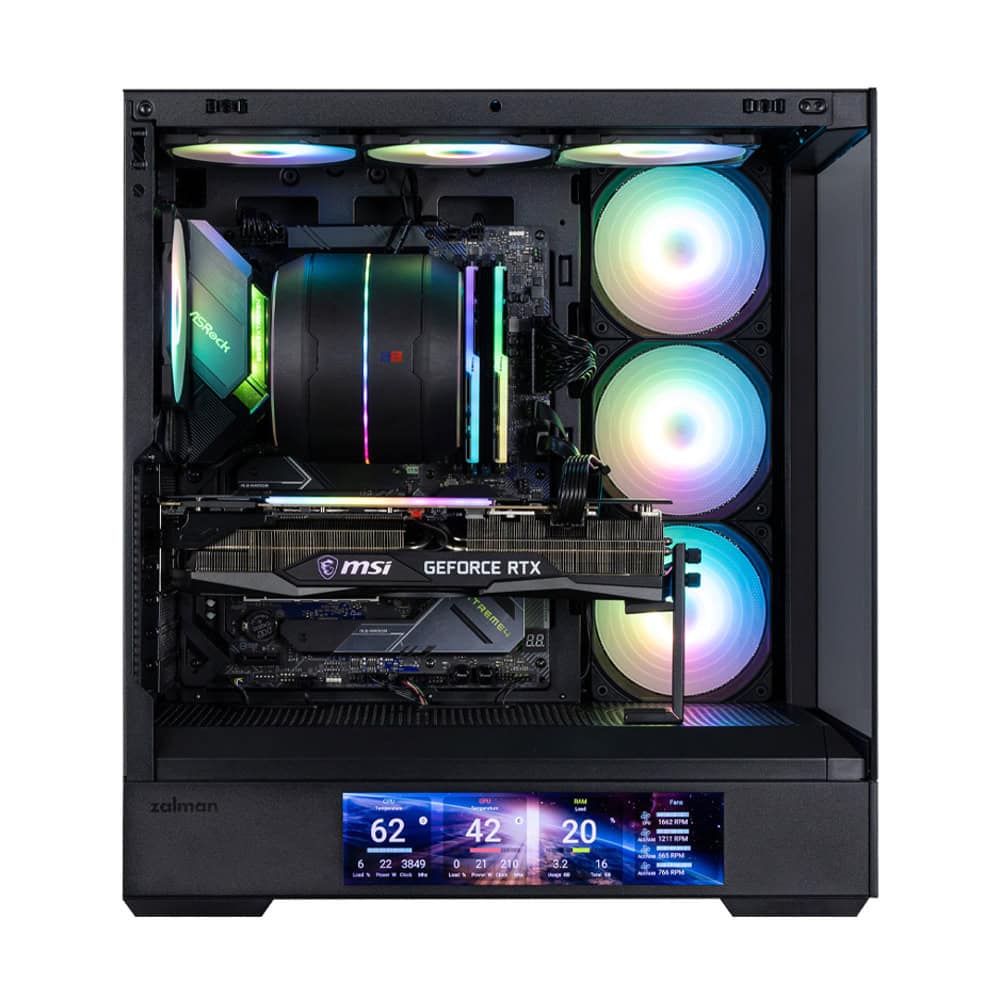

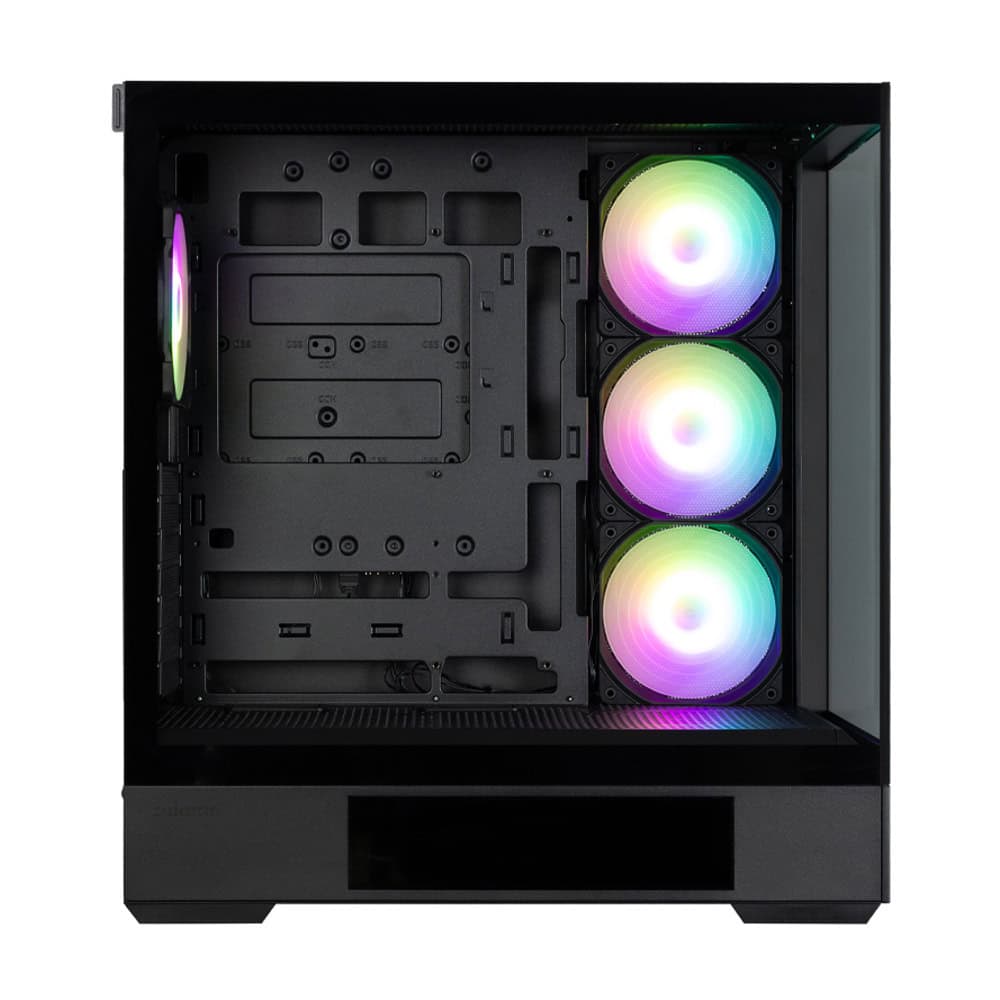

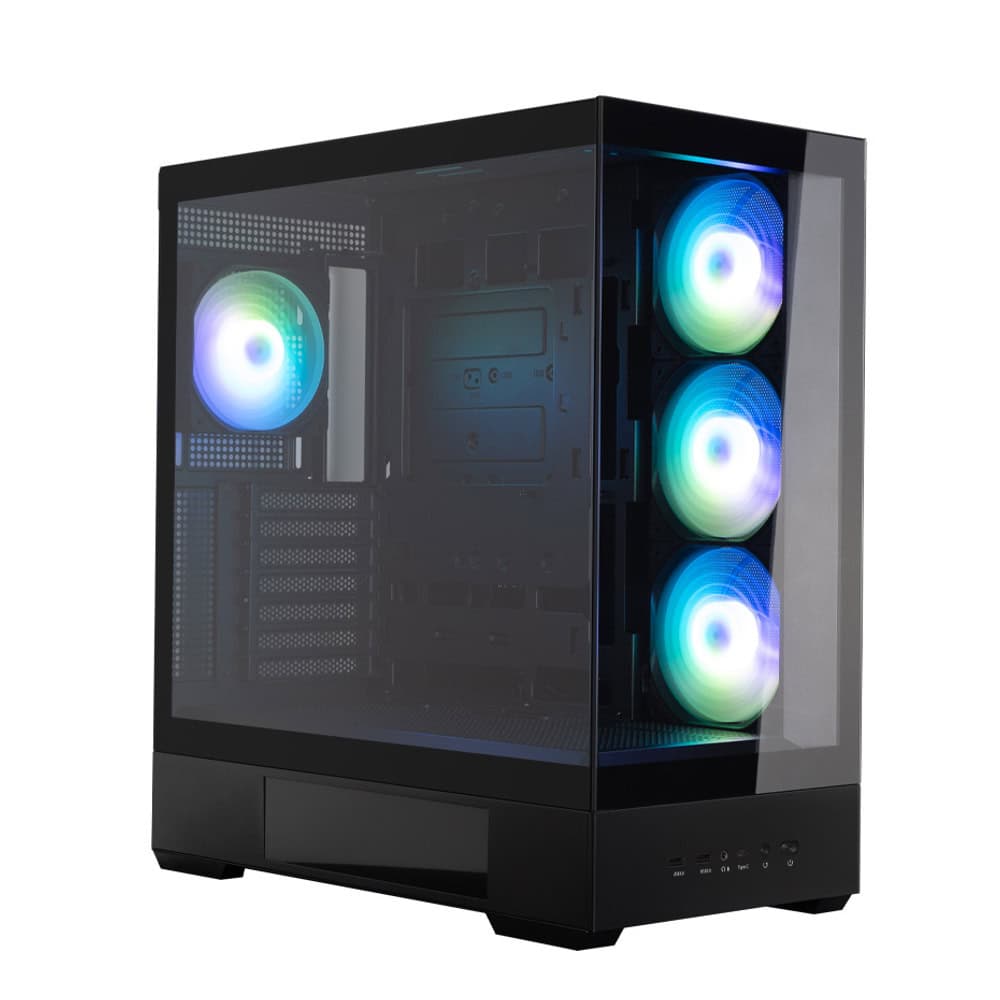

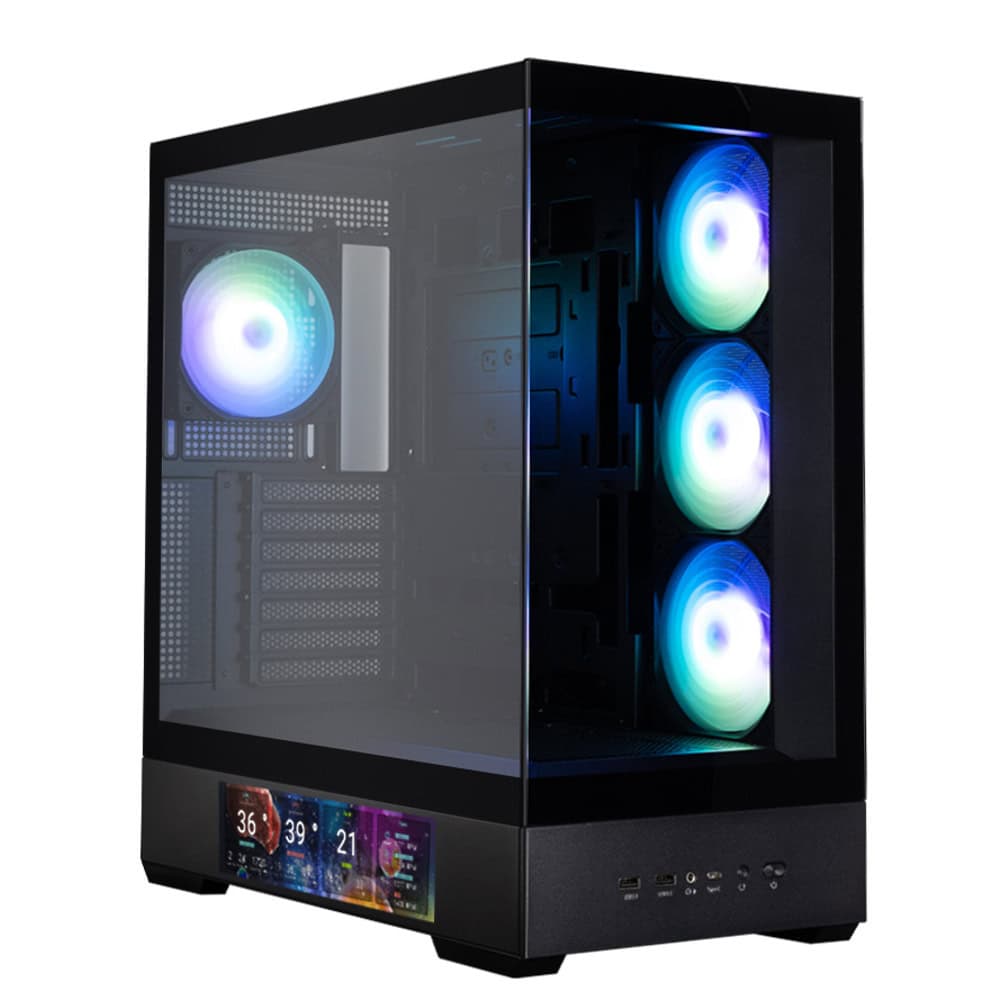

Кутия Zalman P40 DS, ATX/microATX/Mini-ITX, 2x USB 3.0, 5x 120mm вентилатора, с прозорец, черна, без захранване

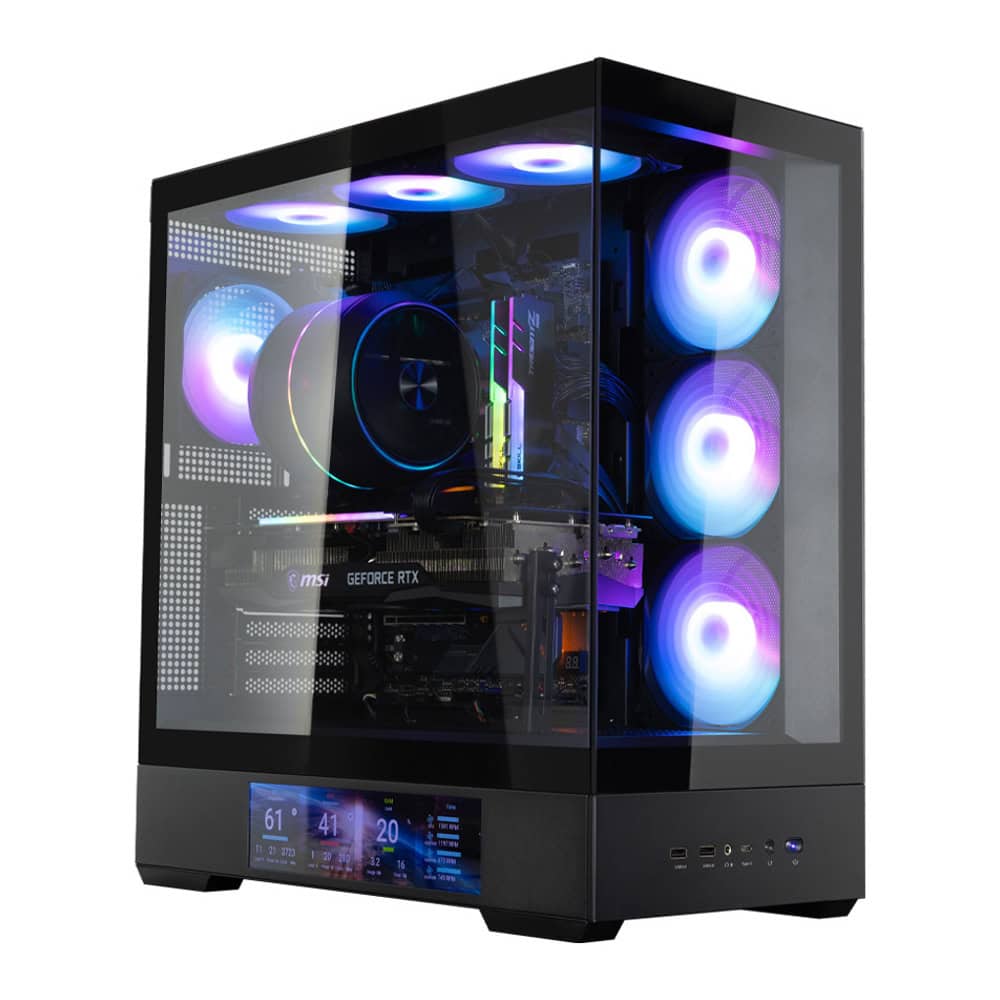

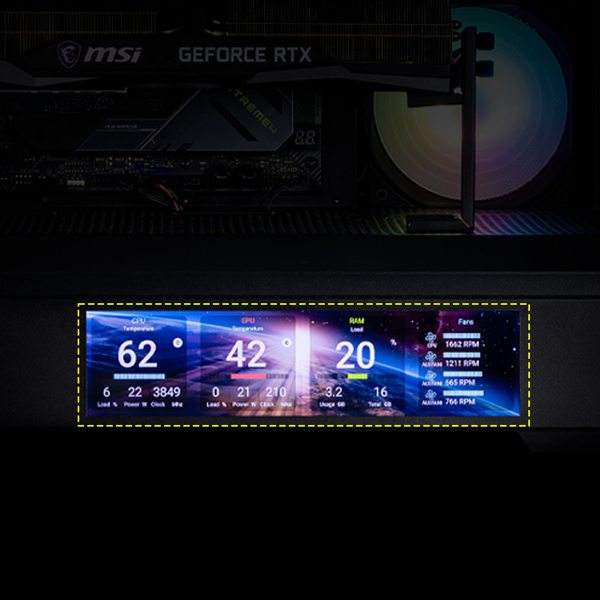

P40 DS 9inch Display SPEC

•Dimensions : 249(W) x 66(H) x 4.5(T)mm

•Input Voltage : 3.3V

•LCD Size : 226(W) x 54(H)

•Ratio : 4:1

•Resolutions : 1920 x 462

•Viewing Angle : 170˚

•Brightness : 400cd/㎡

•Response time : 30ms

•Contrast Ratio : 1000:1

•Frame rate : 60Hz

•Operating Temperature : -20˚ ~ 60˚

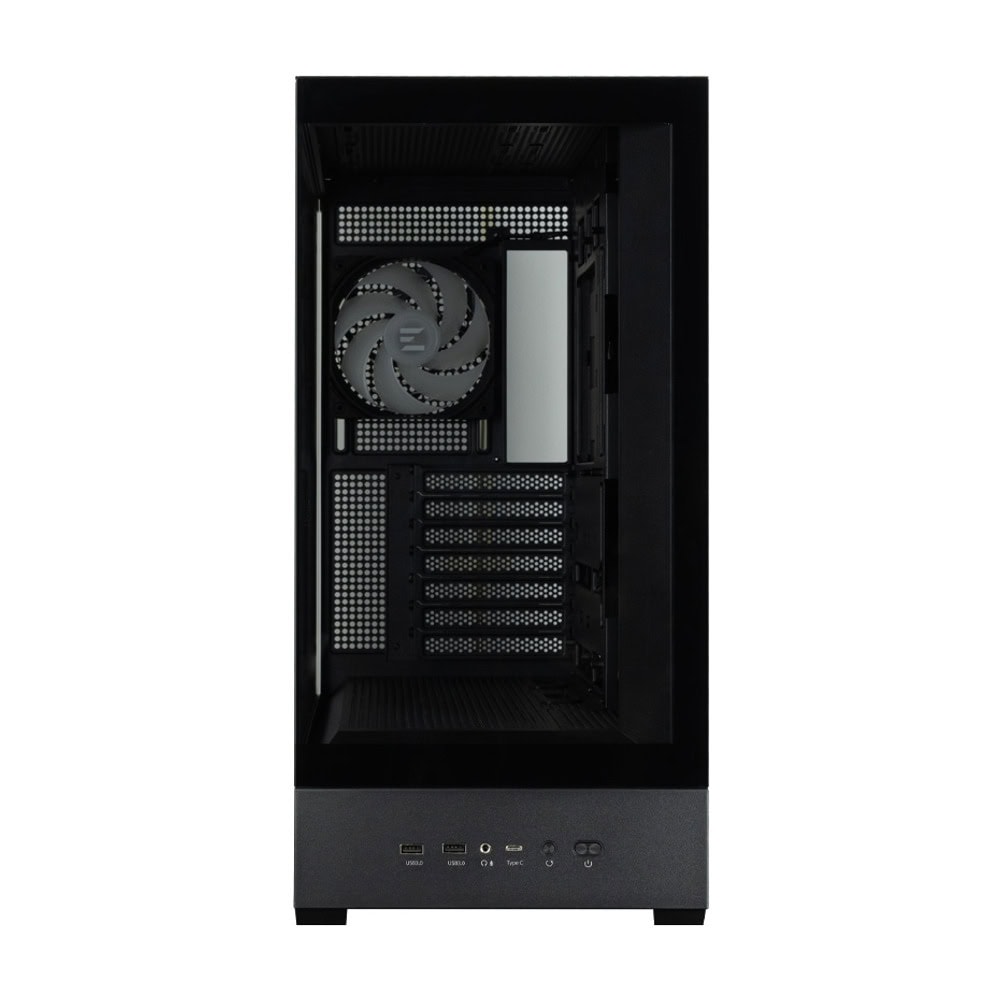

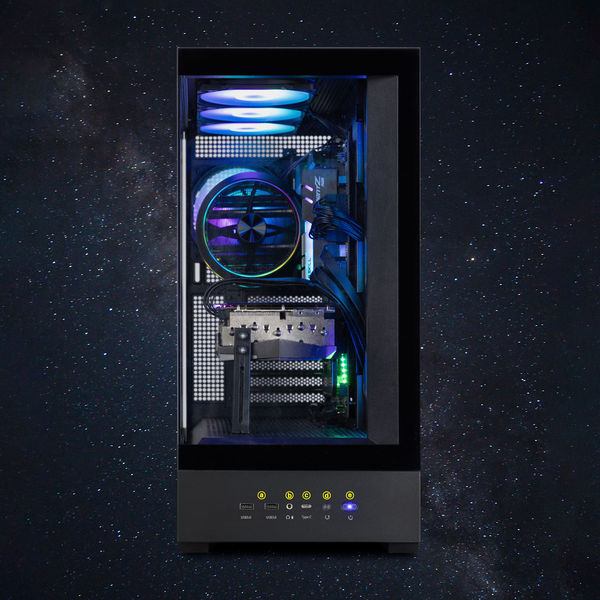

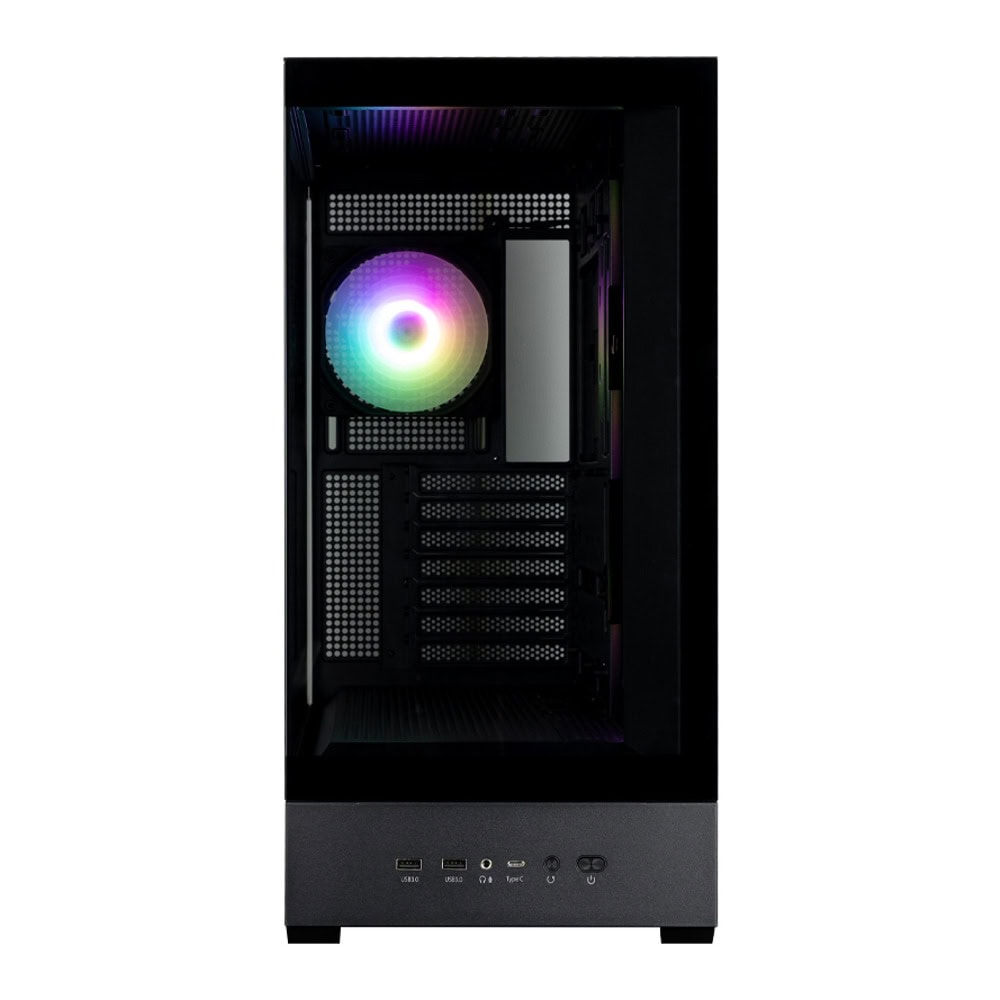

Easy Accessible I/O ports

ⓐ USB 3.0

ⓑ Microphone / Headphone Jack

ⓒ USB Type-C

ⓓ Reset Button (LED Control Button)

ⓔ Power Button

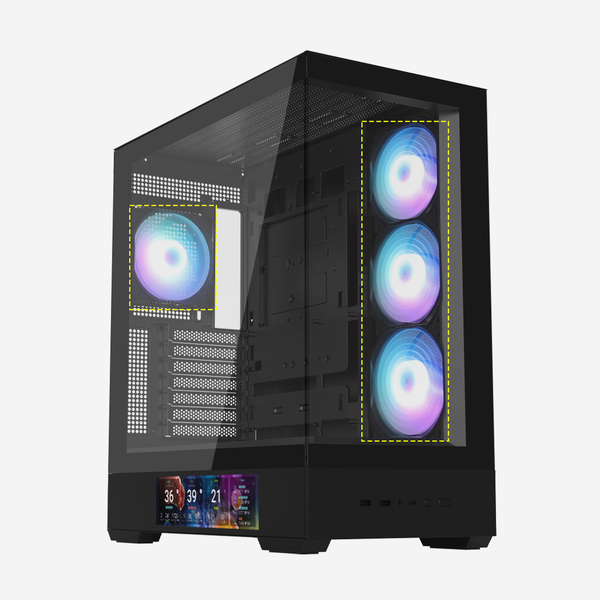

Vibrant AF120 Lighting Effect

1. The blade vibration is minimized by preventing the trembling of the blades during fan operation and the durability is enhanced

2. Wind noise is minimized by suppressing the vortex phenomenon that occurs on the blades

3. Airflow is maximized by minimizing the amount of air flow lost to the outer circumference of the rotor

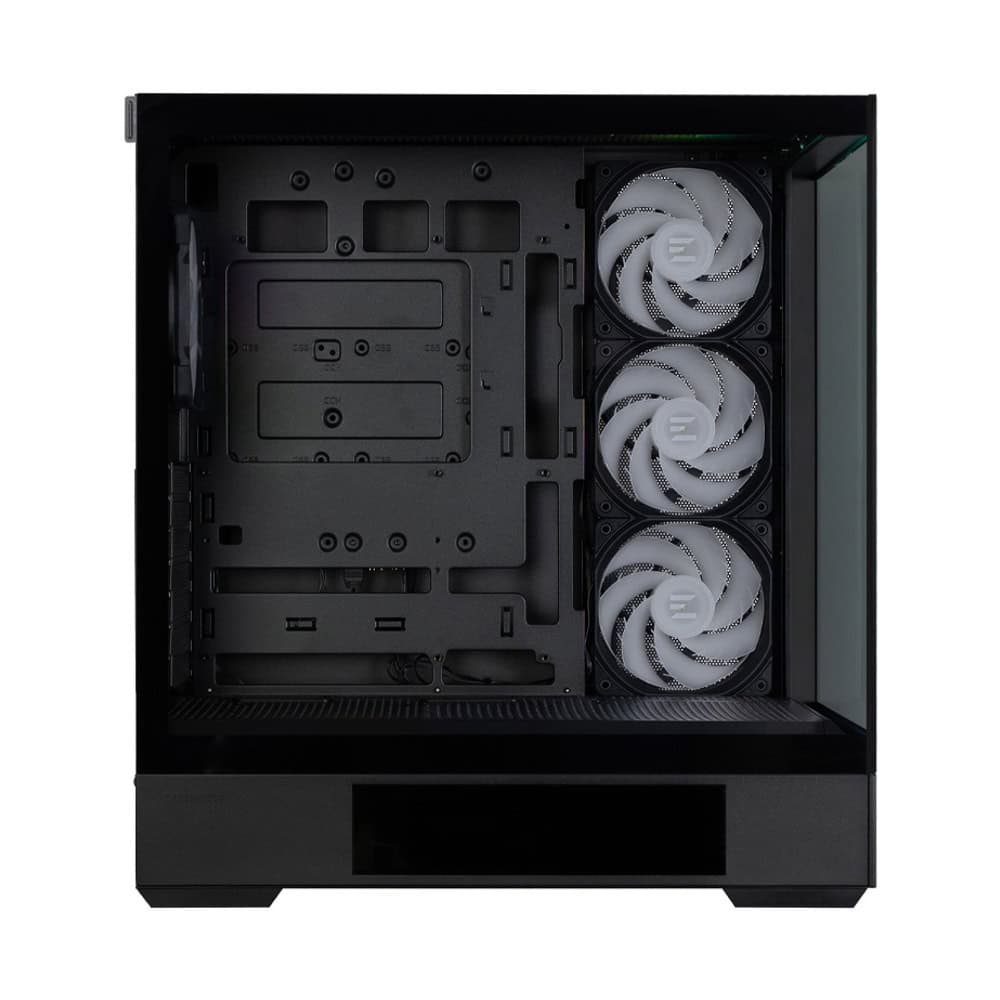

Side (ZM-AF120R)

- Dimensions : 120 x 120 x 26(T)mm

- Rated Voltage :  12V DC (LED: 5V)

- Fan Speed : 800~1,500 ± 10%

- Air Flow : Max. 46.6CFM ± 10%

- Bearing Type : Hydro Bearing

- Connector : 4-Pin(12V) / LED 3-Pin(5V)

Rear (ZM-AF120)

- Dimensions : 120 x 120 x 26(T)mm

- Rated Voltage :  12V DC (LED: 5V)

- Fan Speed : 600~1,500 ± 10%

- Air Flow : Max. 53.72CFM ± 10%

- Bearing Type : Hydro Bearing

- Connector : 4-Pin(12V) / LED 3-Pin(5V)

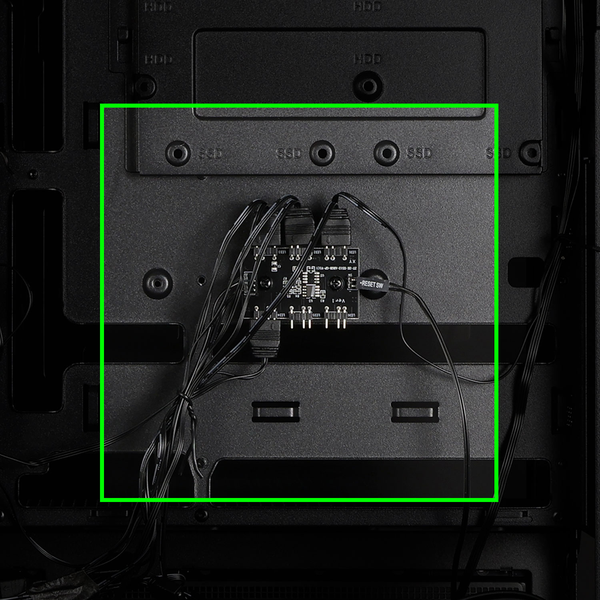

ARGB CONTROLLER

RGB control hub and LED Control Button(Reset Button)

at front enable variety RGB effects.

Connect to motherboard 5v RGB pin

header to create various RGB modes.

※ How to use ARGB controller

-  Press the I/O LED(Reset) button to change the LED

(Reset) pattern and color.(26 patterns)

-Press and hold the LED(Reset) button for 3 seconds

to sync the motherboard after the white light

flashes once

-Press and hold the LED(Reset) button for 3 seconds

to turn off the LED(Reset) after the white light

flashes twice

-Press the LED(Reset) button again to disconnect the

motherboard sync and change the controller mode
