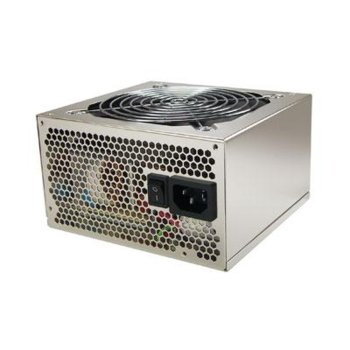

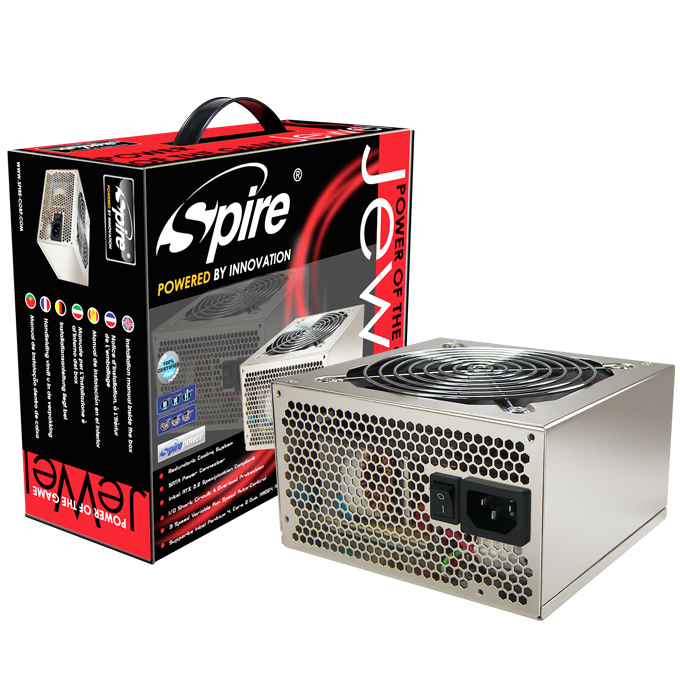

Jewel 750 - SP-ATX-750WTN-PFC
The Spire Jewel power supplies series are powerful, silent and reliable! Whether it is work or play, business presentations or serious gaming, applications can take center stage because they no longer have to compete with typical PC cooling noise. Support for the newest SLI and CrossFire Dual Graphics Technology combined with support for the latest SATA hard drives makes the energy efficient Jewel power supplies series from Spire a great solution for any ATX based PC. Trust the brand with the industry leading specifications and 2 year warranty, Spire - Powered by Innovation.
SP-ATX-750W-PFC
750W REAL Silent power supply
Main Features:
* ATX Ver:2.2 Specification Compliant
* Supports Intel Pentium 4, AMD Athlon 64, XP, AM2 and X2
* 3 Speed Variable Fan Speed Auto-Control
* I/O Short Circuit & Overload Protection
* 4 SATA Power Connectors
* 2 Year Warranty
Product Includes :
1. Multilanguage Owners Manual
2. Mounting screws 4pcs
3. Velcor Cable Straps
4. Power Cord (safety approved)
Product Specification
Application Intel Pentium 4, Intel Celeron D, Intel Core 2, Intel Core 2 Duo, Intel Core 2 Extreme / AMD Athlon 64 X2, AMD Athlon 64 FX, AMD Athlon 64, etc
Cables 20+4pin: 1PCS, 3IDE/1Floppy:2PCS, 12V(4+4)8pin:1PCS, PCI-6pin:2PCS, SATA:2PCS.
Case Nickel-Plating
Connectors 20+4pin:1PCS, IDE 4pin:6PCS, Floppy 4pin:2PCS, 12V(4+4)8pin:1PCS, PCI6pin:2PCS, SATA:4PCS.
Cooling 1x 120mm fan
Dimensions 140mm(L)X150mm(W)X85mm(H)
Frequency 50Hz ~ 60Hz
Hold-up Time 16 ms(min)
MTBF 100,000 hours
Noise Level 21dB(max)
Nom. Power 750W
P.G. Signal 100ms<500ms
Rated Current 8A for 220VAC
Safety Approvals CE,ROHS,TUV
Voltage 110~240 Vac (with Active PFC)
Voltage Protection OVP,OCP,OLP,SCP
Warranty 2 year
Weight 2020g
