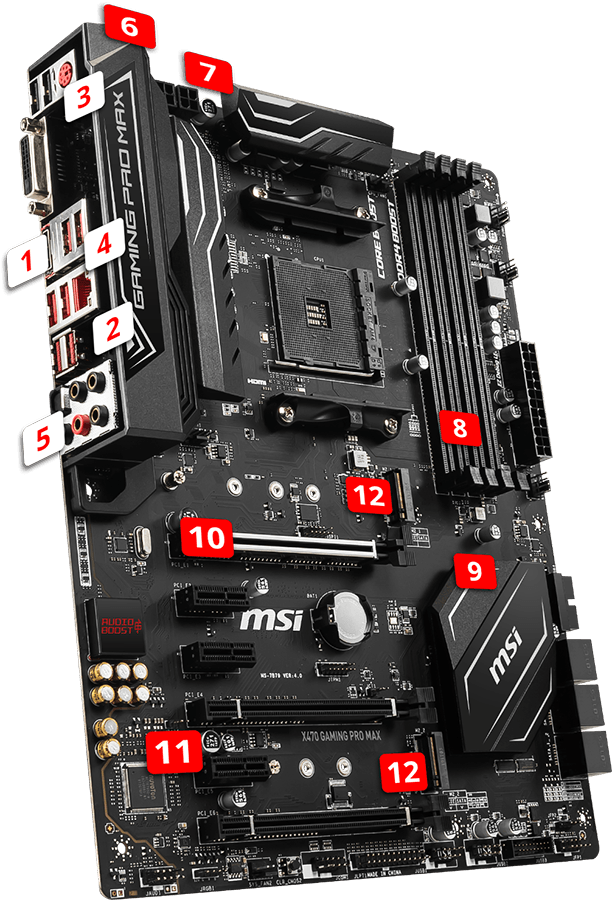

Дънна платка X470 GAMING PRO MAX, X470, AM4, DDR4, PCIe 3.0 (HDMI, DVI), 6x SATA 6Gb/s, 2x M.2 slot, 6x USB 3.2 Gen 2, ATX

Satisfying gamers with what they really need, X470 GAMING PRO MAX is equipped with Core boost, Turbo M.2, Audio Boost, 8+4 Pin Power Supply

• Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4

• Supports DDR4 Memory, up to 4133(OC) MHz

• Lightning Fast Game experience: TURBO M.2, AMD StoreMI Technology, AMD Turbo USB 3.2 Gen2

• Core Boost: With premium layout and optimized power design to support more cores and provide better performance.

• Mystic Light and Mystic Light Sync: 7 colors / 7 effects in one click. Synchronize other RGB solutions for customization.

• Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

• MULTI-GPU: With STEEL ARMOR PCI-E slots. Supports 3-Way AMD Crossfire​

PROCESSOR
Supports 1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4

CHIPSET
AMD® X470 Chipset

MEMORY
4 x DDR4 memory slots, support up to 128GB *ComboPI 1.0.0.3-based and above BIOS are required.
Supports DDR4 1866/ 2133/ 2400/ 2667 Mhz by JEDEC
For AMD Ryzen Gen3 (R5/R7/R9)
Supports2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 Mhz by A-XMP OC MODE1
For AMD Other CPU
Supports2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 Mhz by A-XMP OC MODE
Supports Dual-Channel mode
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory
Athlon™ with Radeon™ Vega Graphics processors support up to 2400 MHz. And the supporting frequency of memory varies with installed processor. Please refer www.msi.com for more information on compatible memory.

SLOTS
2 x PCIe 3.0 x16 slots (PCIE_1, PCIE_4)
1st, 2nd and 3rd Gen AMD Ryzen™ Processors support x16/x0, x8/x8 mode
Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Processors support x8/ x0 mode
Athlon™ with Radeon™ Vega Graphics Processors support x4/x0 mode
1 x PCIe 2.0 x16 slot (PCIE_6, supports x4 mode)1
3 x PCIe 2.0 x1 slots
PCI_E6 slot will be unavailable when installing M.2 PCIe SSD in M2_2 slot.

ONBOARD GRAPHICS
1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1
1 x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@30Hz1
Only support when using Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics ProcessorsMaximum shared memory of 2048 MB

MULTI-GPU
1st, 2nd and 3rd Gen AMD Ryzen™ Processors
Supports 3-Way AMD® CrossFire™ Technology
Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
Supports 2-Way AMD® CrossFire™ Technology

STORAGE
Intel® Z390 Chipset
6 x SATA 6Gb/s ports
2 x M.2 slot (Key M)1
M2_1 slot (from AMD® processor) supports PCIe 3.0x4 (1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Processors) or PCIe 3.0x2 (Athlon™ with Radeon™ Vega Graphics Processors) 2242/ 2260 /2280/ 22110 storage devices
M2_2 slot (from AMD® X470 Chipset) supports PCIe 2.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices
SATA1 port will be unavailable when installing SATA M.2 SSD in M2_2 slot.PCI_E6 slot will be unavailable when installing PCIe M.2 SSD in M2_2 slot.

RAID
AMD® X470 Chipset
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

USB
ASMedia® ASM1143 Chipset
2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel
AMD® X470 Chipset
4 x USB 3.2 Gen1 (SuperSpeed USB) ports through the internal USB connectors
6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
AMD® PU
4 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel

AUDIO
Realtek® ALC892 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output

LAN
1 x Realtek® 8111H Gigabit LAN controller

INTERNAL CONNECTORS
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
6 x SATA 6Gb/s connectors
2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
2 x USB 3.2 Gen1 connectors (support additional 4 USB 3.2Gen1 ports)
1 x 4-pin CPU fan connector
1 x 4-pin PUMP fan connector (supports up to 2A)
4 x 4-pin system fan connectors
1 x Serial port connector
1 x Parallel port connector
2 x 5050 RGB LED strip 12V connectors
1 x TPM module connector
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
1 x Clear CMOS jumper
1 x Clear CMOS button

BACK PANEL PORTS
PS/2 Combo Port
USB 3.2 Gen1
LAN Port
HD Audio Connectors
USB 2.0 Ports
DVI-D Port
HDMI Port
USB 3.2 Gen1
USB 3.2 Gen2
Optical S/PDIF OUT
MSI X470 GAMING PRO MAX back panel ports

DIMENSIONS
12 in. x 9.6 in. (30.5 cm x 24.4 cm)

ATX Form Factor
MOUNTING
9 mounting holes

OPERATING SYSTEM
Support for Windows® 10 64-bit
Support for Windows® 7 64-bit
* To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
