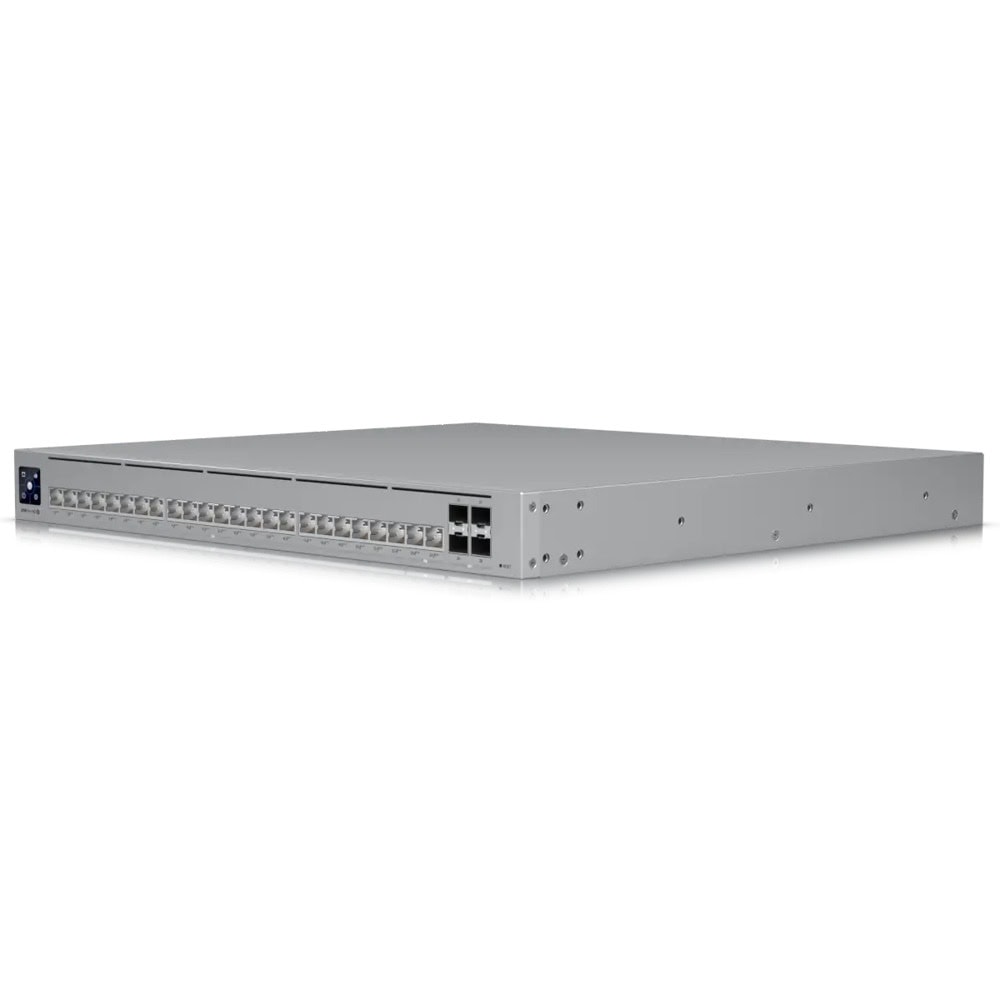

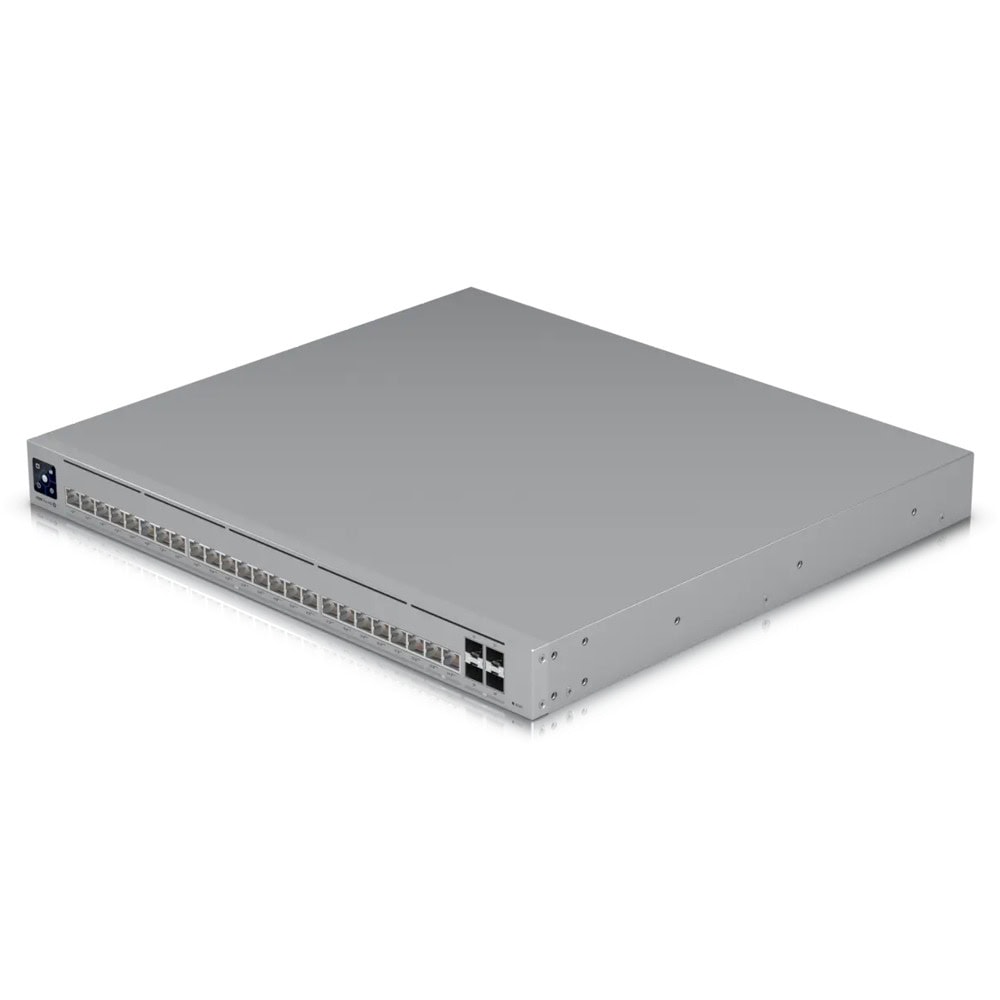

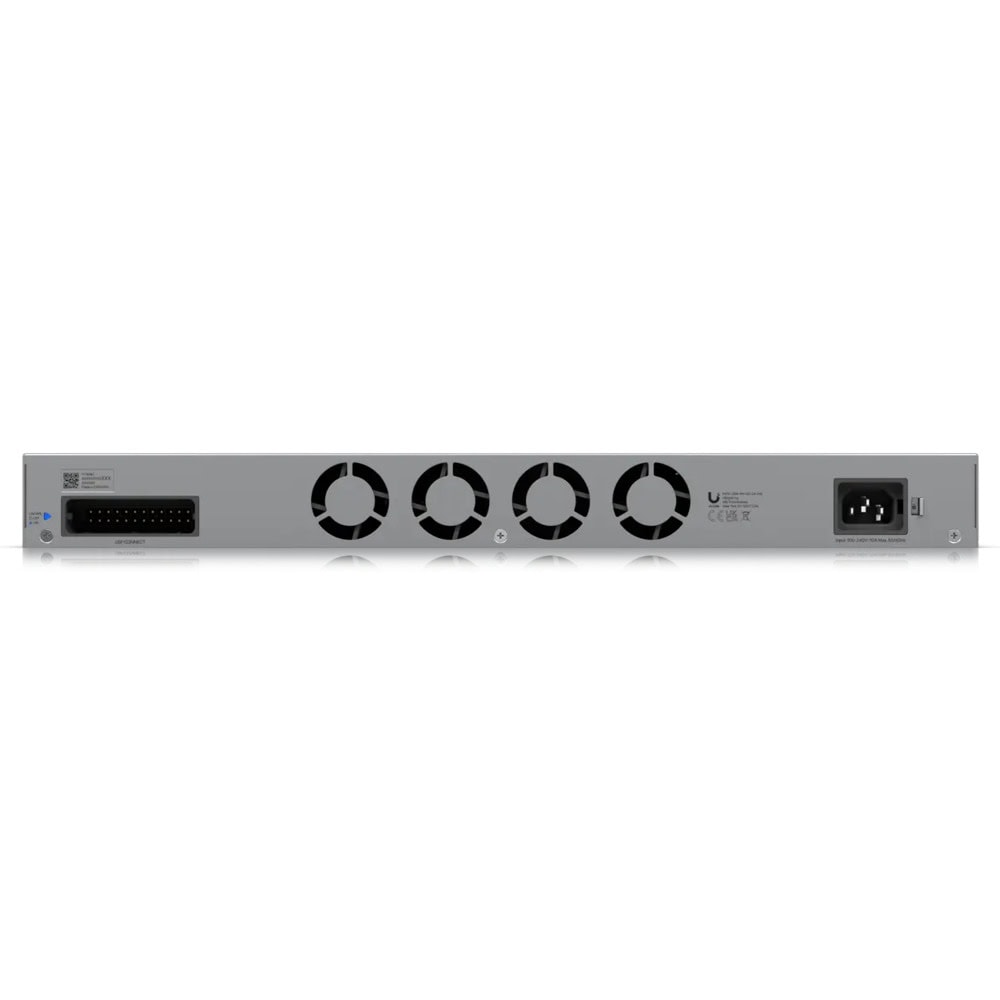

Ubiquiti UniFi Switch Pro HD 24 PoE

| Category | Specification |
|---|---|
| Dimensions | 442 x 400 x 44 mm (17.4 x 15.7 x 1.7") |
| Weight | Without brackets: 6.2 kg (13.7 lb); With brackets: 6.3 kg (13.9 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |

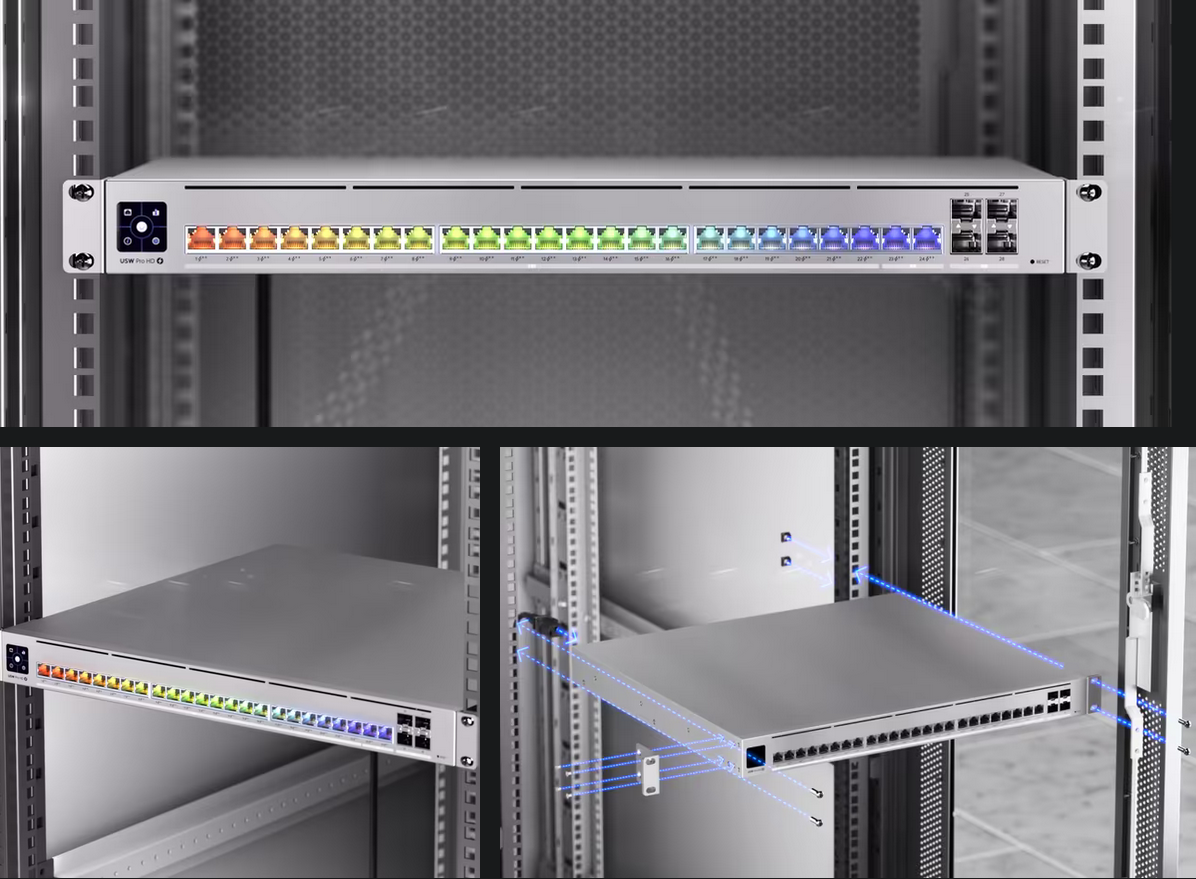

| Form Factor | Rack mount (1U) |
| Supported Rack Depth | 600–1,200 mm (23.6–47.2") |

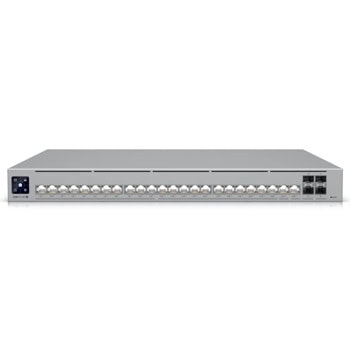

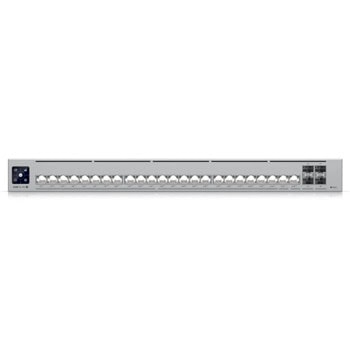

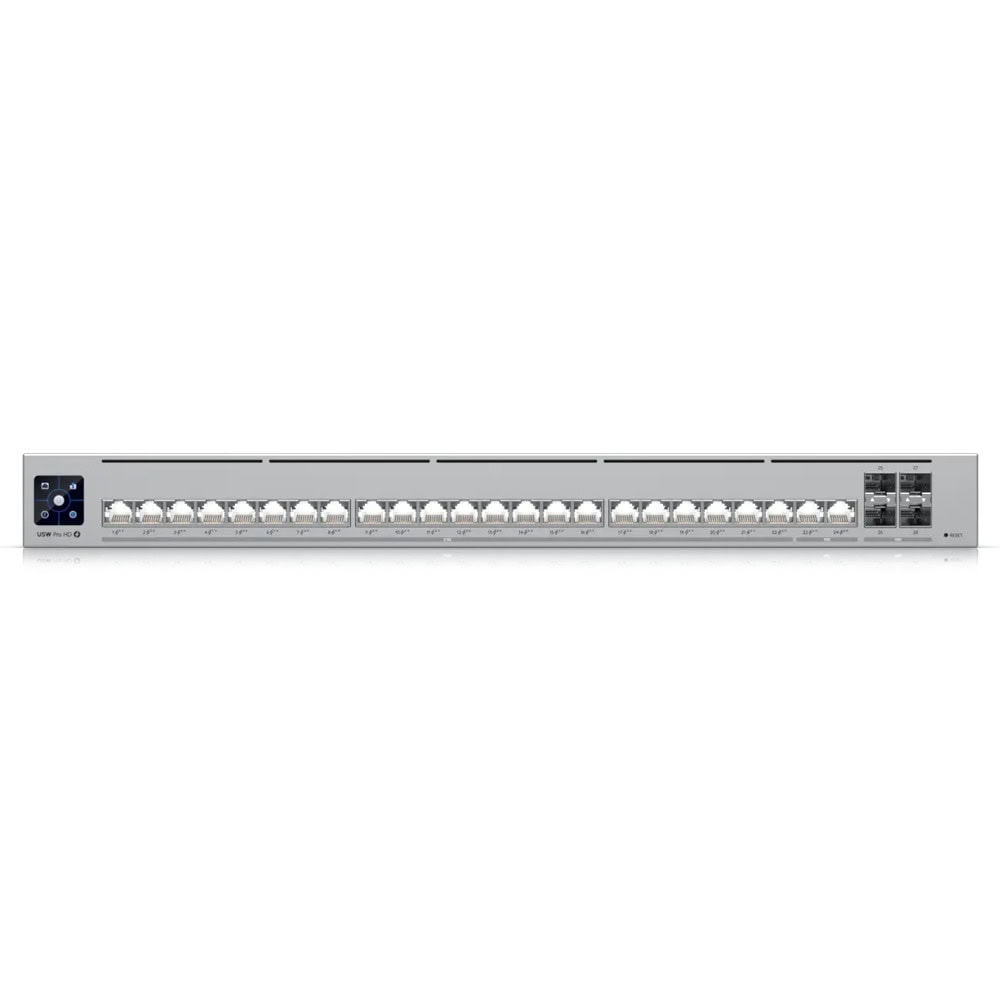

| Port Layout | |
| - 2.5 GbE RJ45 | 22 (All PoE++) - (2.5G/1G/100M/10M) |
| - 10 GbE RJ45 | 2 (All PoE++) - (10G/5G/2.5G/1G/100M) |
| - 10G SFP+ | 4 (10G/1G) |
| PoE Specifications | |
| - Total PoE Ports | 24 (All PoE++) |
| - Max PoE Wattage per Port | PoE: 15.4W, PoE+: 30W, PoE++: 64W |
| - Total PoE Budget | 600W |
| - Max Power Consumption | 60W (Excl. PoE), 660W (Incl. PoE) |
| Power & Redundancy | |
| - Power Method | Universal input (100–240V AC, 50/60 Hz); USP RPS DC input |
| - Power Input | AC input |
| - Power Supply | Internal AC/DC, 660W |
| - Supported Voltage Range | 100–240V AC |
| - Redundancy | DC Power Backup |
| Performance | |
| - Switching Capacity | 230 Gbps |
| - Non-Blocking Throughput | 115 Gbps |
| - Forwarding Rate | 171 Mpps |
| - MAC Address Table Size | 32,000 |
| - L3 Table Size (ARP Entries) | 12,000 |
| - IPv4 Routes | 12,000 |
| - Packet Buffer Size | 2 MB |
| Software & Features | |
| - Layer 3 | ✓ |
| - Supported VLANs | 1,000 |
| - Access Lists | IPv4: 128, MAC: 128 |
| - DHCP Server / Relay | ✓ / ✓ |
| - Inter-VLAN Routing | ✓ |
| - Static Routing | ✓ |
| - LACP Port Aggregation | ✓ |
| - STP / RSTP | ✓ |
| - QoS (DSCP) | ✓ |
| - Advanced IGMP Features | Querier, Fast Leave, Router Port |
| - IGMP Snooping | ✓ |
| - 802.1X Control | ✓ |
| - MAC-Based ACLs / Isolation | ✓ |
| - DHCP Snooping / Guarding | ✓ |
| - Egress Rate Limit | ✓ |
| - Flow Control | ✓ |
| - Storm Control | ✓ |
| - Multicast / Broadcast Limit | ✓ |
| - MAC Address Blocking | ✓ |
| - IP-Based ACLs / Isolation | ✓ |
| - MAC-Based Port Restriction | ✓ |
| - Port Isolation / Mirroring | ✓ / ✓ |
| - Jumbo Frames | ✓ |
| - LLDP-MED | ✓ |
| - Voice VLAN | ✓ |
| - Loop Protection | ✓ |
| Other Features | |
| - Etherlighting™ | Ethernet: ✓, SFP+: ✓ |
| - LCM Display | 1.3" touchscreen |
| - Pro AV Profiles | Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron |
| - NDAA Compliant | ✓ |
| - Certifications | CE, FCC, IC |
| - Ambient Operating Temp. | -5 to 40°C (23 to 104°F) |
| - Operating Humidity | 10 to 90% noncondensing |
| - Application Requirement | UniFi Network Version 9.0.114 and later |
