Name: Точка за достъп Ubiquiti airMAX GigaBeam Plus, 57-60 GHz, 1x LAN1000, Bluetooth, 1x външна антена, 1.5+ km
Brand: Ubiquiti
SKU: NTWBUBIQUITIGBEPLUS
Availability: OutOfStock

Описание Характеристики Ревюта / Въпроси

High-gain 60 GHz radio with a Cassegrain reflector that delivers 1.5+ Gbps throughput with low latency.
1.5+ km link range
1.5 Gbps max. throughput
(1) GbE port

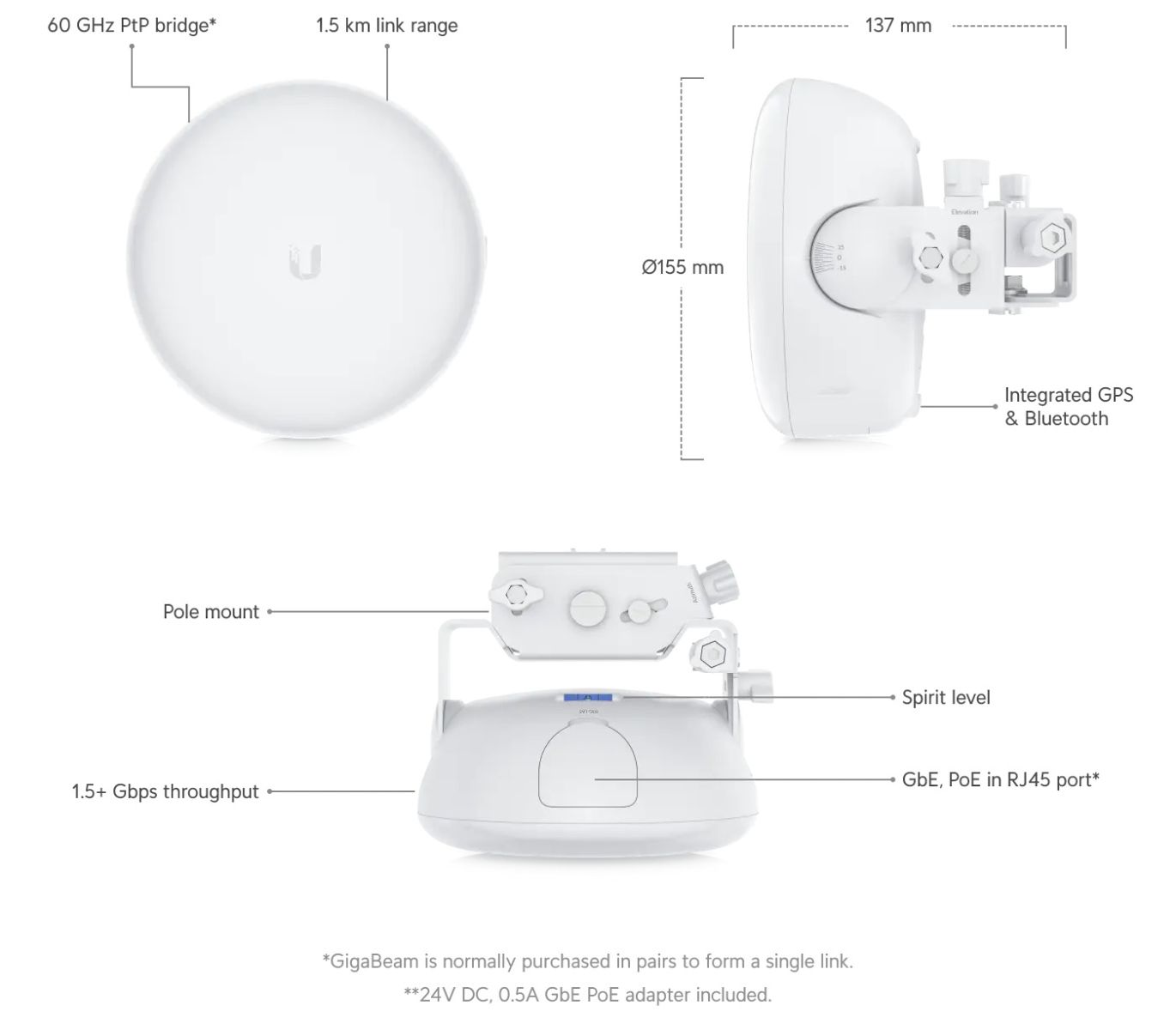

Точка за достъп Ubiquiti airMAX GigaBeam Plus, 57-60 GHz, 1x LAN1000, Bluetooth, 1x външна антена, 1.5+ km - характеристика 1

Technical Specifications:

Mechanical
Hardware
Software
RF
LEDs
Dimensions	Ø155 x 137 mm (Ø6.1 x 5.4")
Weight	1 kg (2.2 lb)
Enclosure materials	UV-resistant polycarbonate, stainless steel
Mount material	Metal
Wind loading	50 N at 200 km/h (11.24 lbf at 125 mph)
Processor	Quad-Core ARM® Cortex® A7
Memory	256 MB DDR3
Networking interface	10/100/1,000 Mbps RJ45 port
Management interfaces	Ethernet Bluetooth
RF connections	Internal
Max. power consumption	11W
Power method	Passive PoE (Pairs 4, 5+; 7, 8-)
Power supply	24V DC, 0.5A Gigabit PoE adapter
Supported voltage range	22—26V DC
ESD/EMP protection	Air/contact: ± 24kV
Operating temperature	-40 to 60° C (-40 to 140° F)
Operating humidity	5 to 95% noncondensing
Certifications	FCC, IC, CE
Operating modes	PtP master or station
Ubiquiti specific features	Integrated 60 GHz radio, discovery protocol
Security	WPA2 AES only
Services	UISP, ping watchdog, web server, SSH server, NTP client, system log, device discovery
Tools	Antenna alignment, discovery utility, traceroute, speed test
Management interface	UISP application (web/mobile)
Minimum software requirements	Any modern web browser/iOS™ or Android™ based smartphone
Operating frequency*	57,000 - 66,000 MHz * Dependent on regional regulations.
Channel bandwidth	2160 MHz
Operating channels	58320, 60480, 62640, 64800 MHz
Beamwidth*	Azimuth: 2° (-3 dB) / 3° (-6 dB) Elevation: 2° (-3 dB) / 3° (-6 dB) *The antenna is only vertically polarized.
Bluetooth	2400 - 2483.5 MHz
Electrical downtilt	0°
Power	Flashing white: booting up White: not connected to UISP Blue: connected to UISP
Ethernet	Flashing blue: Ethernet traffic detected
60GHz	Blue: connected

Виж още Аксеспойнт/Репитер Безжични Ubiquiti
Виж всички Аксеспойнт/Репитер Безжични в категорията

Технически характеристики

Тип:	Аксес пойнт
Монтаж:	За външен монтаж
Безжична скорост:	Не е указано Mbps
Wi-Fi Стандарт:	Не е указано
Честота:	60 GHz
Антени:	1 Външна
dBi на антена/и:	Не е указано
PoE:	In
Интерфейс:	1x 1000
Други:	До 1.5+км
