Точка за достъп Mikrotik hAP ax S (E62iUGS-2axD5axT), 2.4GHz (574Mbps)/ 5GHz (2400Mbps), 5x 10/100/1000Mbps LAN (1x PoE), 1x 2.5G SFP

hAP ax S

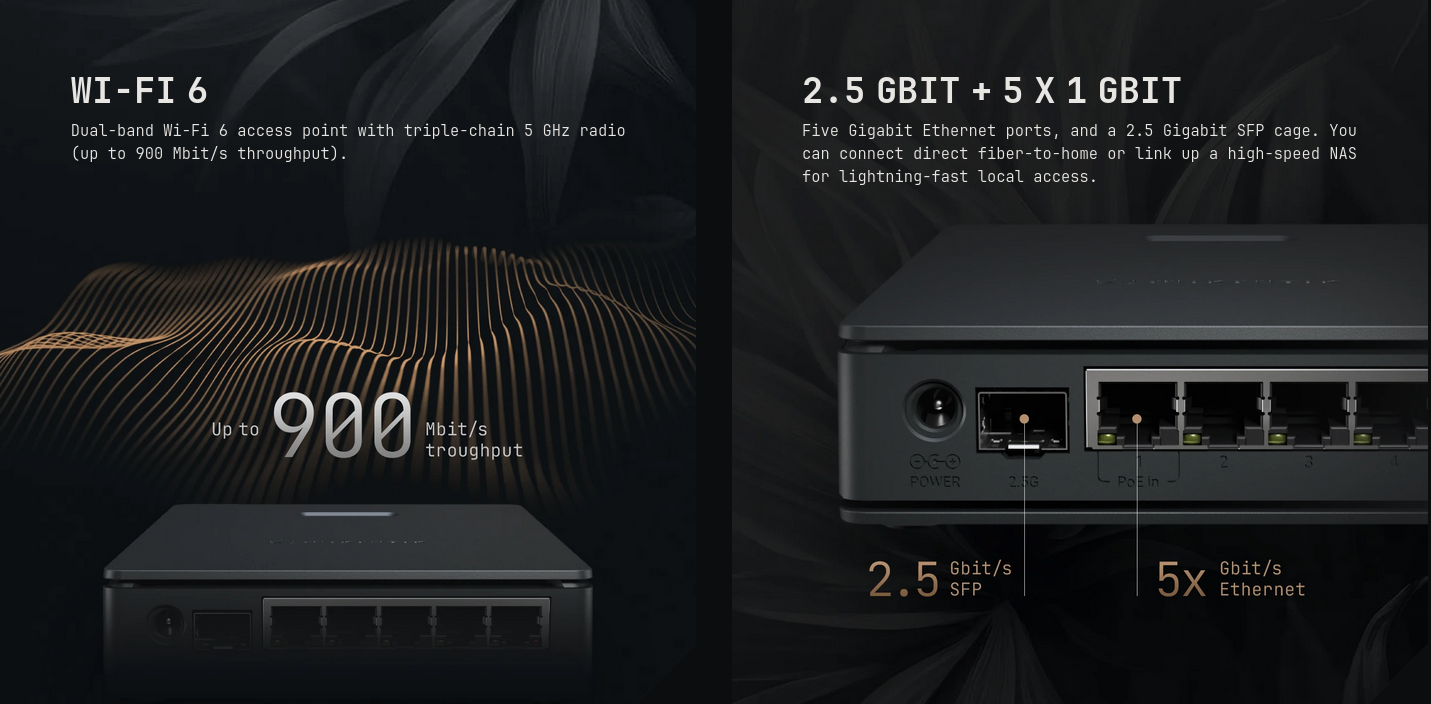

Our most cost-effective Wi-Fi 6 access point yet. Triple-chain 5 GHz radio (up to 900 Mbit/s throughput), dual-band Wi-Fi 6, 5x Gigabit Ethernet ports, and a 2.5G SFP. Powered by a dual-core ARM CPU, with PoE-in/PoE-out flexibility, a standard DC jack, USB, and a sturdy high-end enclosure that can be mounted on the wall.

Meet the new hAP ax S

Our most cost-effective Wi-Fi 6 access point yet

It costs far less than most mid-range, mass-produced routers… while delivering far more flexibility and longevity right out of the box!

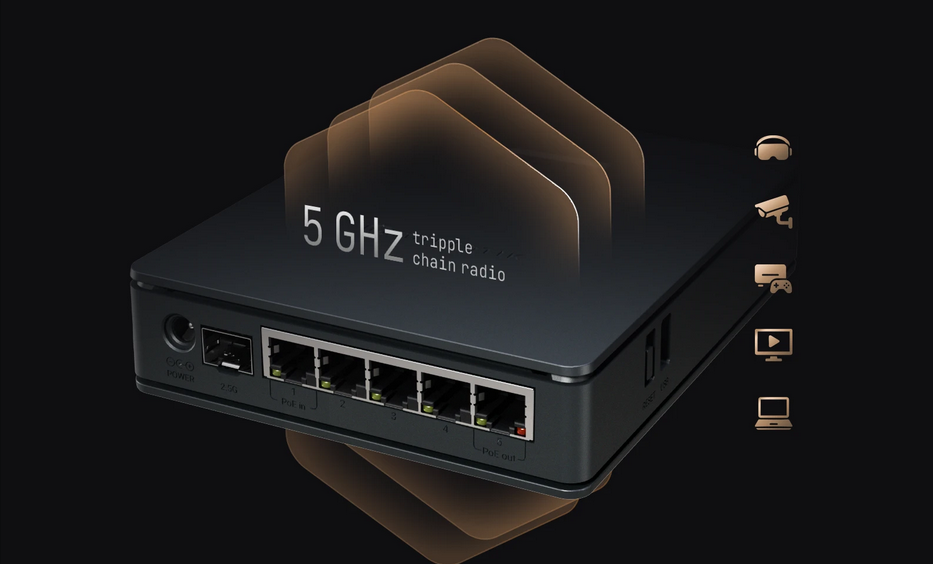

Triple-chain 5 GHz:

the key to stable, gigabit-class Wi-Fi

The new hAP ax S features a triple-chain 5 GHz radio that achieves real-world throughput of around 800–900 Mbit/s. That means smooth streaming, faster downloads, and stable performance across multiple devices – even in crowded environments.

It’s also perfect as a dedicated Wi-Fi 6 VR streaming access point for PC VR headsets, offering higher resolution and lower latency without the cables. Unlike single-purpose “gaming” access points, the hAP ax S gives you the full performance, flexibility, and future-proofing of RouterOS v7!

Specification:

• Product code E62iUGS-2axD5axT
• Architecture ARM 32bit
• CPU EN7562CT
• CPU core count 2
• CPU nominal frequency 950 MHz
• CPU Threads count 2
• Switch chip model EN7523
• RouterOS license 4
• Operating System RouterOS v7
• Size of RAM 512 MB
• Storage size 128 MB
• Storage type NAND
• MTBF Approximately 100'000 hours at 25C
• Tested ambient temperature -40°C to 70°C

Wireless capabilities

• Wireless 2.4 GHz Max data rate 574 Mbit/s
• Wireless 2.4 GHz Number of chains 2
• Wireless 2.4 GHz standards 802.11b/g/n/ax
• Antenna gain dBi for 2.4 GHz 5.5
• Wireless 2.4 GHz chip model MT7916
• Wireless 2.4 GHz generation Wi-Fi 6
• Wireless 5 GHz Max data rate 2400 Mbit/s
• Wireless 5 GHz Number of chains 3
• Wireless 5 GHz standards 802.11a/n/ac/ax
• Antenna gain dBi for 5 GHz 6.5
• Wireless 5 GHz chip model MT7976
• Wireless 5 GHz generation Wi-Fi 6
• WiFi speed AX3000

Ethernet

• 10/100/1000 Ethernet ports 5
• Number of 1G Ethernet ports with PoE-out 1

Fiber

• SFP ports 1 (2.5G supported)

Peripherals

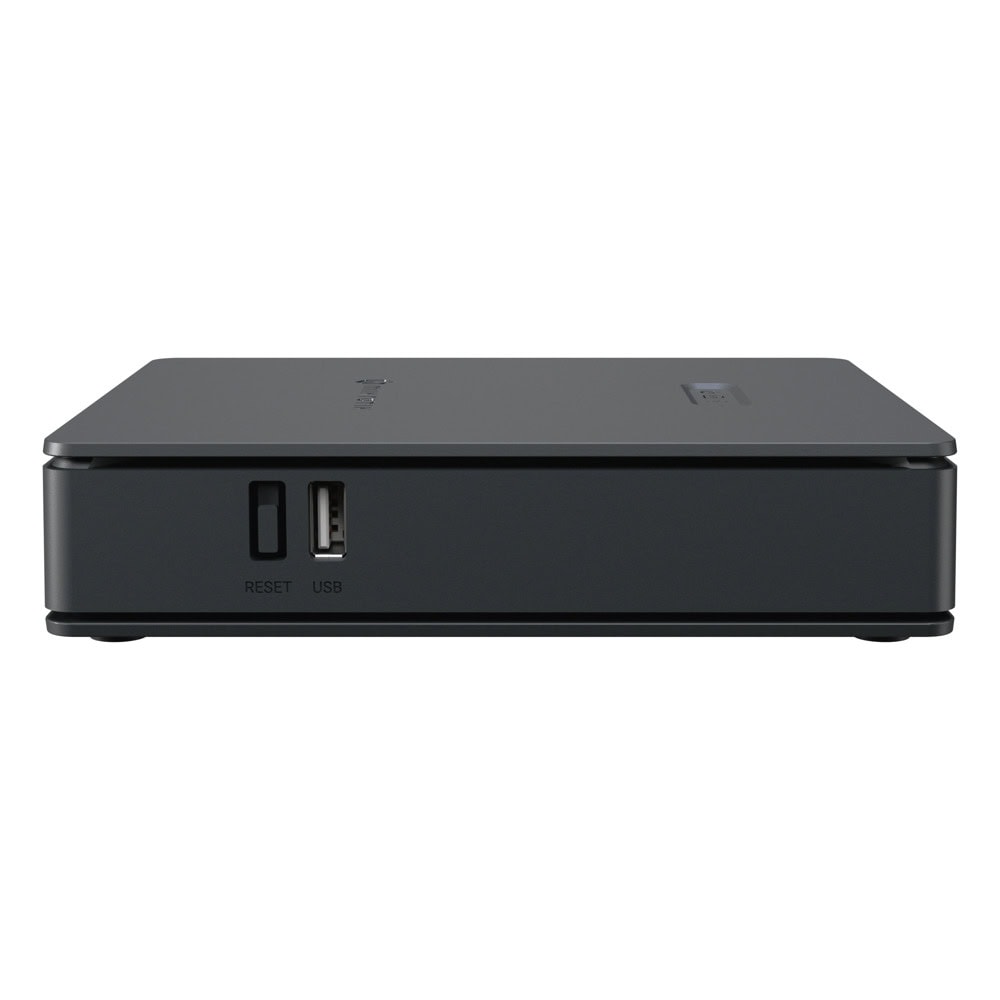

• Number of USB ports 1
• USB Power Reset Yes
• USB slot type USB type A
• Max USB current (A) 1

Powering

• Number of DC inputs 2 (DC jack, PoE-IN)
• DC jack input Voltage 12-28 V
• Max power consumption 34 W
• Max power consumption without attachments 11 W
• PoE in Passive PoE
• Cooling type Passive
• PoE in input Voltage 18-28 V

PoE-out

• PoE-out ports Ether5
• PoE out Passive PoE
• Low voltage PoE-Out current limit 0.6 A
• Max total out (A) 0.6 A
• Total output current 0.6
• Total output power 16.8
