Name: Точка за достъп Ubiquiti U7-IW, 2.4GHz (688Mbps)/ 5GHz (4300Mbps), 1x 10/100/2500Mbps LAN PoE+, 2x вътрешни антени
Brand: Ubiquiti
SKU: NTWBUBIQUITIU7IW
Price: 174.74 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Вземи на изплащане

Ubiquiti U7-IW

Category	Specification
Overview
Dimensions	137 x 98.7 x 30.2 mm (5.4 x 3.9 x 1.2")
WiFi Standard	WiFi 7
Spatial Streams	4
Coverage Area	115 m² (1,250 ft²)
Max. Client Count	200+
Uplink	2.5 GbE

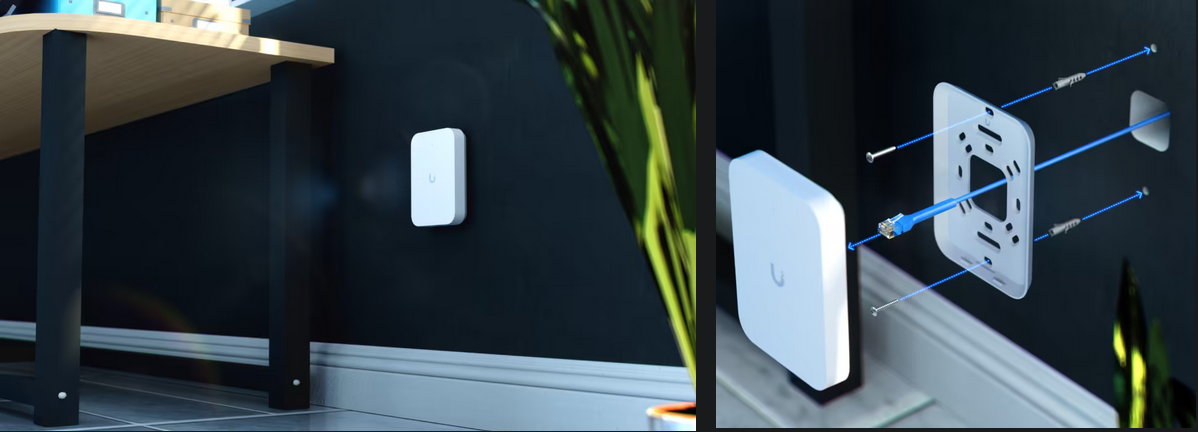

Mounting	Wall (Metal Wall Mount Included)
Power Method	PoE, PoE+ (Required for PoE output)
Performance
MIMO (5 GHz)	2 x 2 (DL/UL MU-MIMO)
MIMO (2.4 GHz)	2 x 2 (DL/UL MU-MIMO)
Max. Data Rate (5 GHz)	4.3 Gbps (BW240)
Max. Data Rate (2.4 GHz)	688 Mbps (BW40)
Antenna Gain (5 GHz)	8 dBi
Antenna Gain (2.4 GHz)	4 dBi
Max. TX Power (5 GHz)	24 dBm
Max. TX Power (2.4 GHz)	23 dBm
Max. BSSIDs	8 per Radio
Supported Data Rates	WiFi 7 (802.11be): 7.3 Mbps – 4.3 Gbps (MCS0–MCS13 NSS1/2, EHT 20/40/80/160/240) WiFi 6 (802.11ax): 7.3 Mbps – 2.4 Gbps (MCS0–MCS11 NSS1/2, HE 20/40/80/160) WiFi 5 (802.11ac): 6.5 Mbps – 1.7 Gbps (MCS0–MCS9 NSS1/2, VHT 20/40/80/160) WiFi 4 (802.11n): 6.5 Mbps – 300 Mbps (MCS0–MCS15, HT 20/40)
Features
Wireless Meshing	Yes
Band Steering	Yes
802.11v BSS Transition	Yes
802.11r Fast Roaming	Yes
802.11k RRM	Yes
Advanced Radio Mgmt	Yes
Passpoint (Hotspot 2.0)	Yes
Captive Portal	Custom Branding Landing Page
Voucher Auth	Yes
Payment Auth	Yes
External Portal	Yes
Password Auth	Yes
Guest Network Iso.	Yes
PPSK	Yes
WiFi Speed Limit	Yes
Client Isolation	Yes
WiFi Schedules	Yes
RADIUS over TLS	Yes
Dynamic VLAN	Yes
Hardware
Max. Power Consumption	13W (Excluding PoE output)
Voltage Range	42.5—57V DC
Networking Ports	(3) 2.5 GbE RJ45 ports
Weight	400 g (14.1 oz)
Enclosure Material	Polycarbonate, aluminum alloy
Mount Material	Aluminum alloy
LEDs	System: White/Blue
Built-in Switch	(1) PoE+ input and (1) PoE output
Channel Bandwidth	HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)
Certifications	CE, FCC, IC
NDAA Compliant	Yes
Environmental
Operating Temperature	-30 to 40° C (-22 to 104° F)
Operating Humidity	5 to 95% noncondensing

Виж още Аксеспойнт/Репитер Безжични Ubiquiti
Виж всички Аксеспойнт/Репитер Безжични в категорията

Технически характеристики

Тип:	Аксес пойнт
Монтаж:	За вътрешен монтаж
Безжична скорост:	5000 Mbps
Wi-Fi Стандарт:	Wi-Fi 7 (802.11be)
Честота:	2.4 & 5 GHz
Антени:	2 Вътрешни
dBi на антена/и:	8
PoE:	In
Интерфейс:	1x 2500
Други:	Няма
