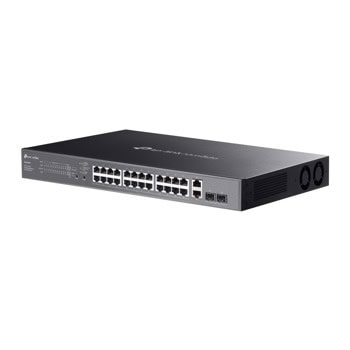

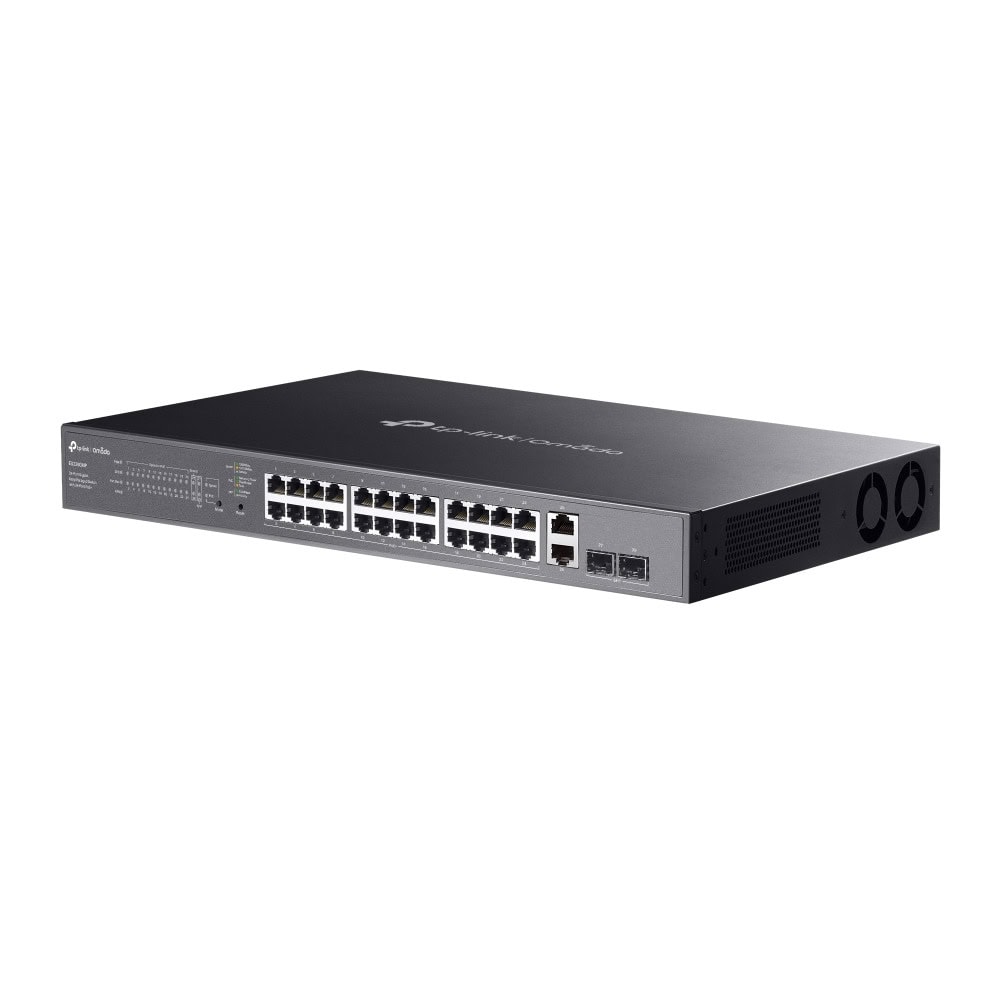

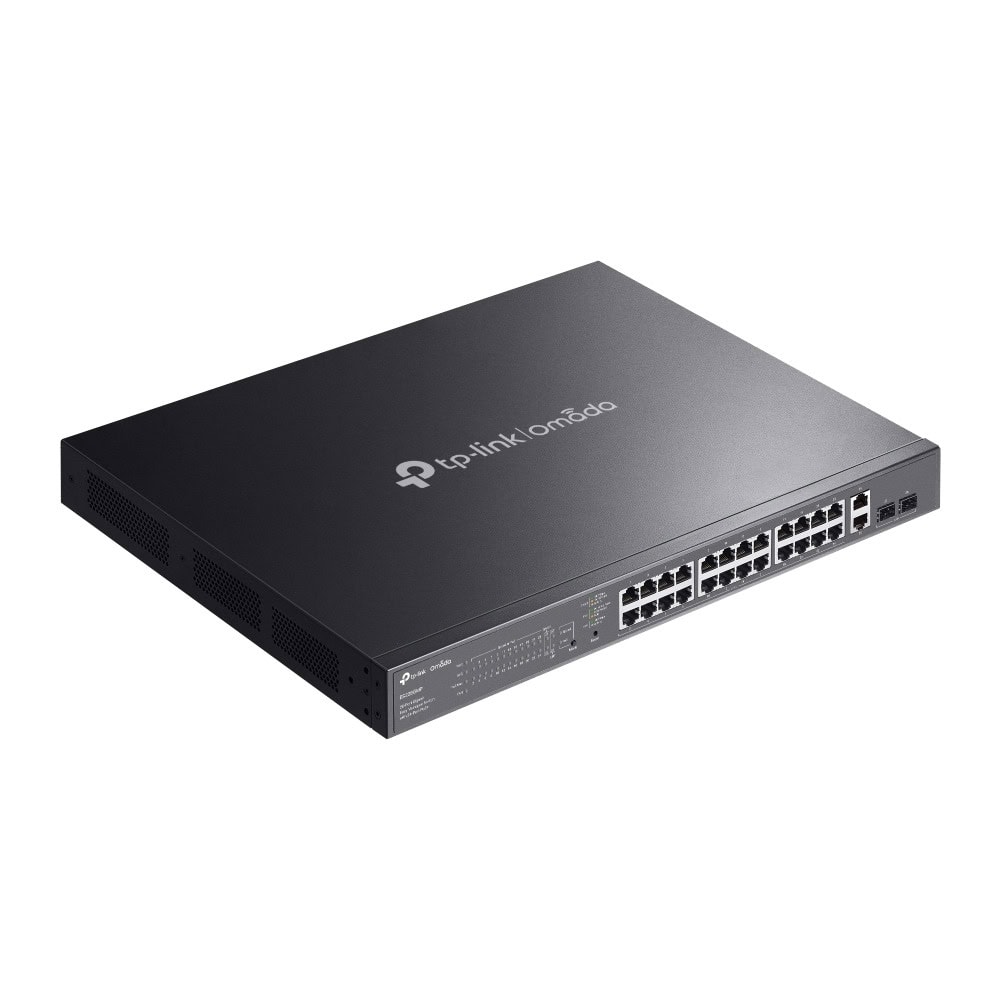

ES228GMP
Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+
- 26× 10/100/1000Mbps RJ45 ports (24× 802.3af/at-compliant PoE+)
- 2× Gigabit SFP port
- 384W Power Budget, with up to 30W for each PoE port*
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app†

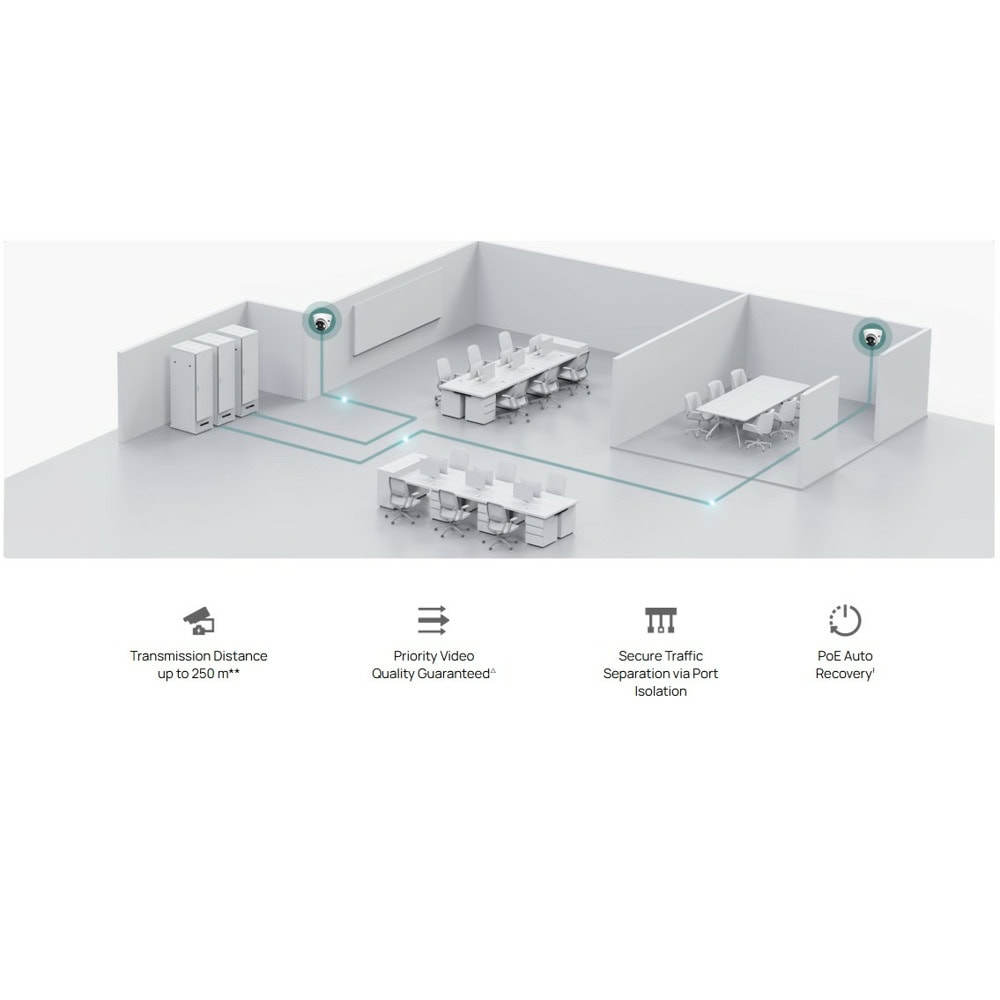

- Up to 250m PoE**, QoS△, PoE Auto Recovery‡, and Port Isolation for reliable surveillance networking
- Automatic Loop Prevention, VLAN, and IGMP Snooping

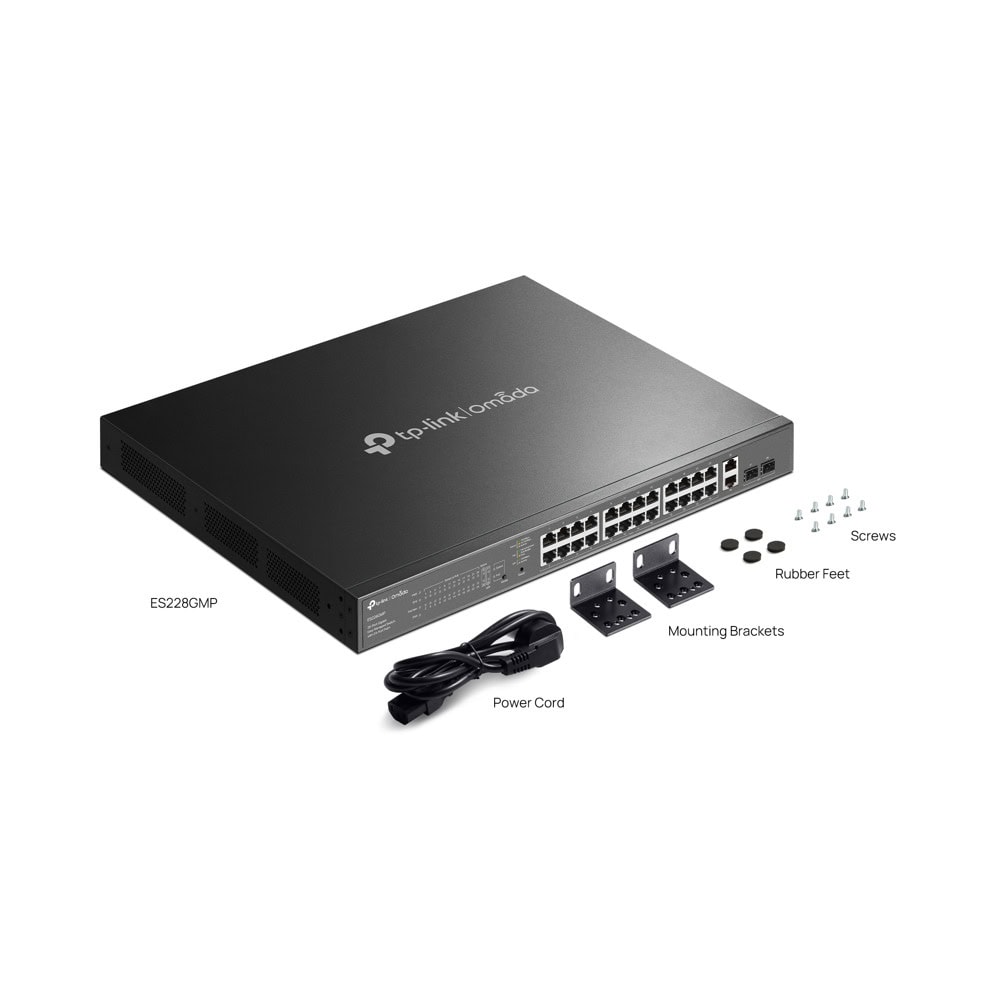

- Durable metal casing and rack-mountable design
| Category | Specification |
|---|---|
| HARDWARE FEATURES | |
| Interface | - 24× 10/100/1000 Mbps PoE+ RJ45 Ports (802.3af/802.3at) - 2× 10/100/1000 Mbps RJ45 Ports - 2× Gigabit SFP Slots - Auto-Negotiation/Auto MDI/MDIX |
| Fan Quantity | 2 |
| Installation | Rackmountable |
| Physical Security Lock | Yes |

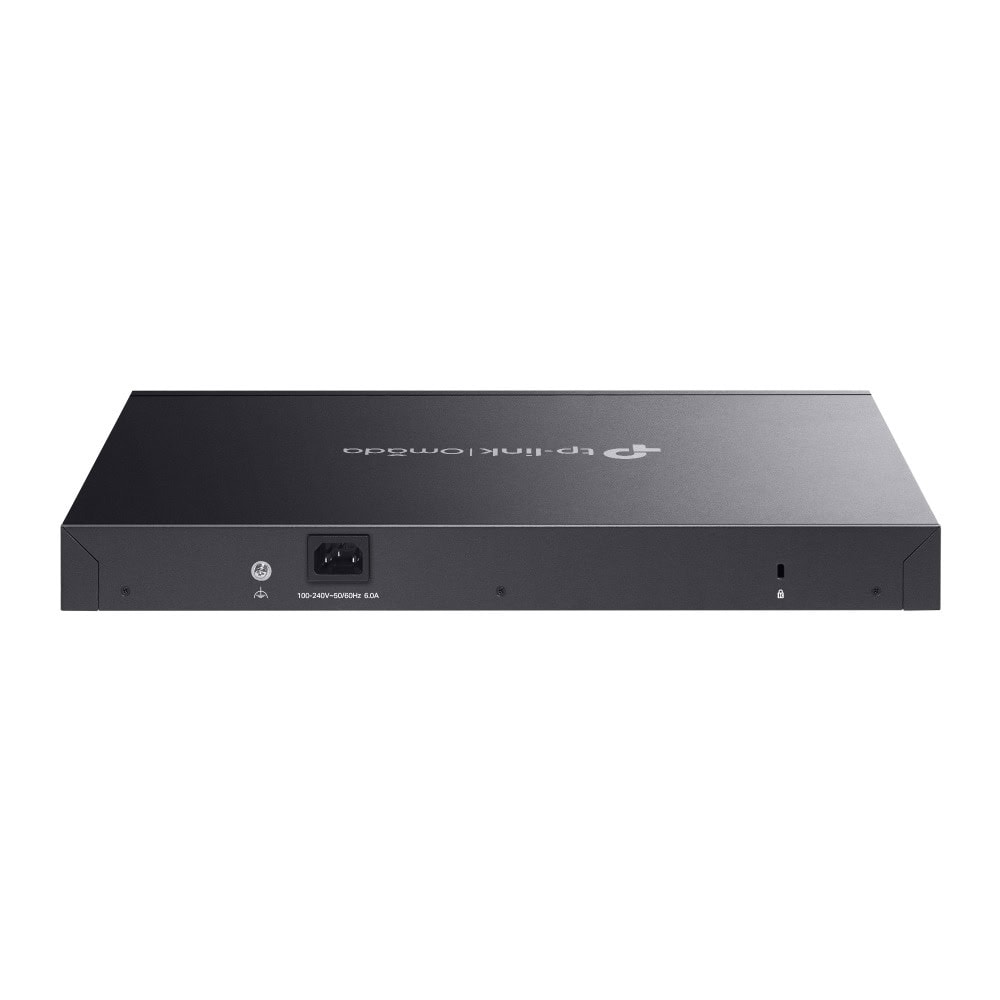

| Power Supply | 100–240V AC, 50/60Hz |
| PoE Ports (RJ45) | - Standard: 802.3af/802.3at compliant - 24 Ports - 384W Total PoE Budget, 30W Max/Port - Fast & Perpetual PoE - Auto Recovery - 250m Transmission |
| Dimensions (W×D×H) | 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm) |
| Surge Protection | ±6kV |
| PERFORMANCE | |
| Switching Capacity | 56 Gbps |
| Packet Forwarding Rate | 41.67 Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4 Mbit |
| Jumbo Frame | 15 KB |
| SOFTWARE FEATURES | |
| Quality of Service (QoS) | - Port-based/802.1p/DSCP - 8 Priority Queues - WRR Scheduling - Configurable Queue Weights - Port-Based Bandwidth Limit - Storm Control (kbps/pps) |
| L2 Features | - Static Link Aggregation - Loop Prevention/Loopback Detection - 802.3x Flow Control - Port Mirroring (One-to-One, Many-to-One) - Port Statistics - 802.1ab LLDP |
| L2 Multicast | - IGMP v1/v2/v3 Snooping - Fast Leave |
| VLAN | - MTU, Port-Based, 802.1Q VLAN - Max 32 VLAN Groups - 4K VID |
| Transmission Method | Store-and-Forward |
| MANAGEMENT FEATURES | |
| Omada App | Yes (requires Omada Controller) |
| Centralized Management | - Omada Cloud-Based Controller - Omada Hardware Controller - Omada Software Controller |
| Cloud Access | Yes (requires Omada Controller) |
| Zero-Touch Provisioning | Yes (requires Omada Cloud-Based Controller) |
| Management Features | - Web GUI - DHCP Client - Cable Diagnostics - Automatic Device Discovery - Batch Config/Firmware Upgrade - Unified Configuration |
Виж още Суич TP-Link
Виж всички продукти Суич в категорията
| Брой портове: | 28 |
|---|---|
| Максимална скорост: | 1 Gbit/s |
| Стандарт: | IEEE 802.3 at |
| Управляем: | Да |
