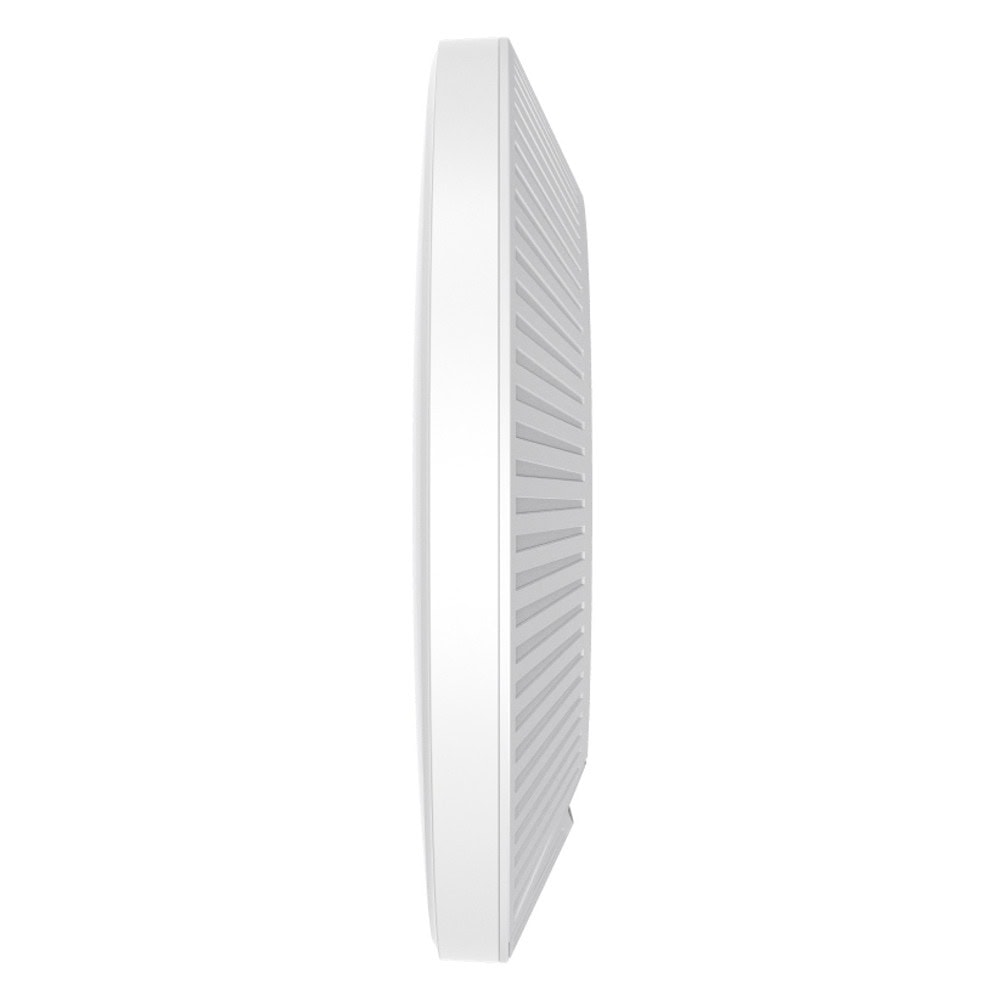

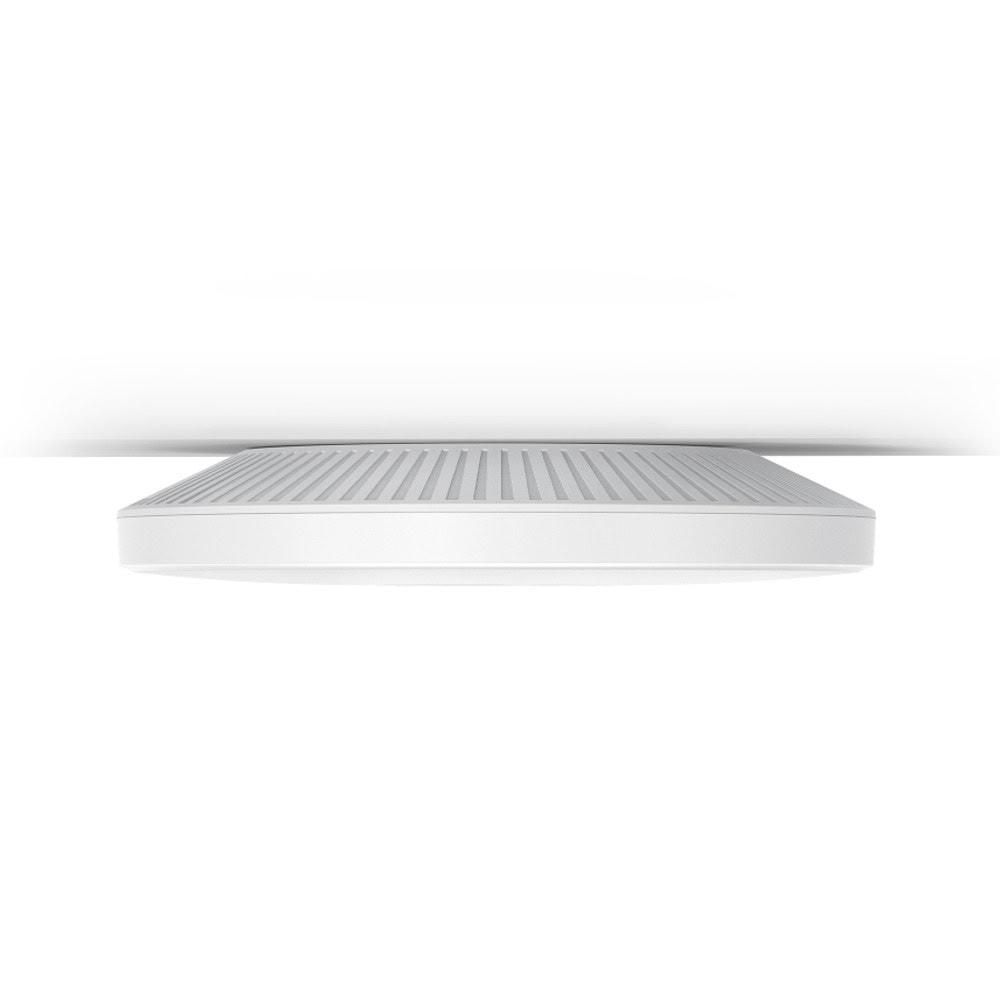

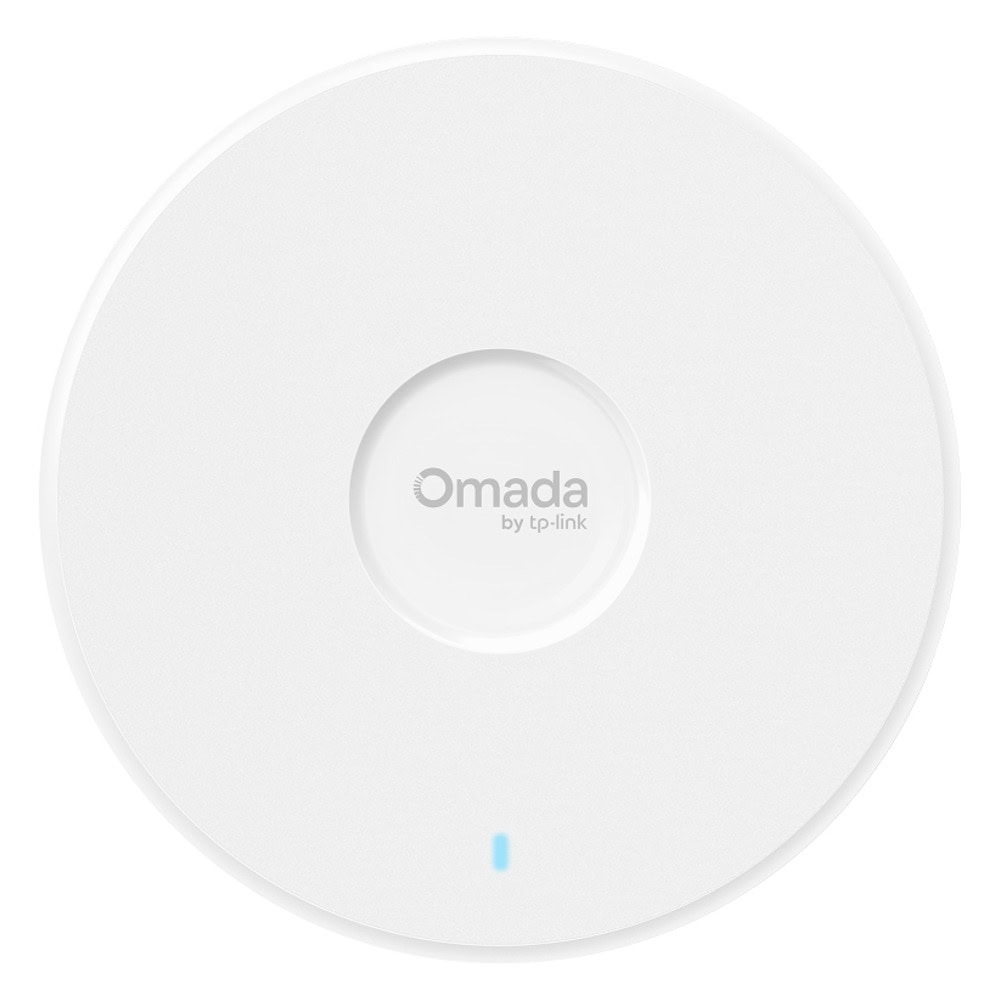

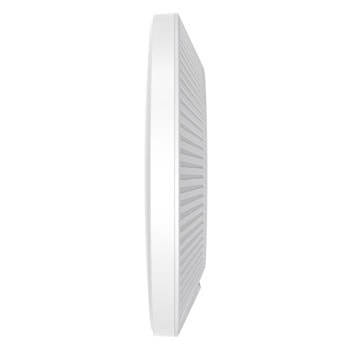

TP-Link Omada EAP787
BE15000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
Dedicated RF Scanning: Offers real-time spectrum monitoring and dynamic interference avoidance for robust wireless performance.
Maximized 6 GHz Coverage with AFC: Unlock stronger signals and extended 6 GHz range performance
Tri-Band 8-Stream Wi-Fi 7: 5765 Mbps on 6 GHz, 8648 Mbps on 5 GHz, and 688 Mbps on 2.4 GHz.
- 1× 10G Port: Ensures fast connectivity throughout the network
- Low Latency and Interference: 320MHz Bandwidth, Multi-Link Operation, Multi-RUs, and 4K-QAM ensure high performance for your network.
- Flexible Deployment and Easy Setup: Supports both 802.3bt PoE and DC power supply for flexible installation with Omada SDN for one-click setup.
- Advanced Features: Supports centralized management, Mesh, and Seamless Roaming.
- More Capacity and Wider Coverage: Supports 510+ concurrent clients** and covers up to 2050 ft² (190 m²)* for reliable and extensive wireless connectivity.
Here’s your merged, clean, and professional single-table version of all the specs you provided — formatted in a standard product specification layout (ideal for documentation, datasheets, or product listings):
Product Specifications
| Specification | Details |
|---|---|
| Interface | 1× 10G/2.5G Ethernet Port |
| Button | Reset |
| Power Supply | 802.3bt/at PoE or 12V/2.5A DC |
| Max. Power Consumption | • 29 W (For PoE) • 24.5 W (For DC) |
| Dimensions (W × D × H) | 8.7 × 8.7 × 1.5 in (220 × 220 × 38.8 mm) |
| Antenna | • 2.4 GHz: 2 × 4.0 dBi • 5 GHz: 4 × 5.0 dBi • 6 GHz: 2 × 5.0 dBi |
| Bluetooth | 1 × 5 dBi (peak gain), Internal antenna module Firmware update may be required |

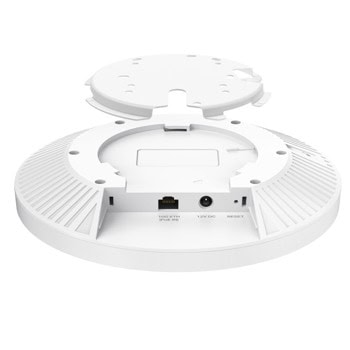

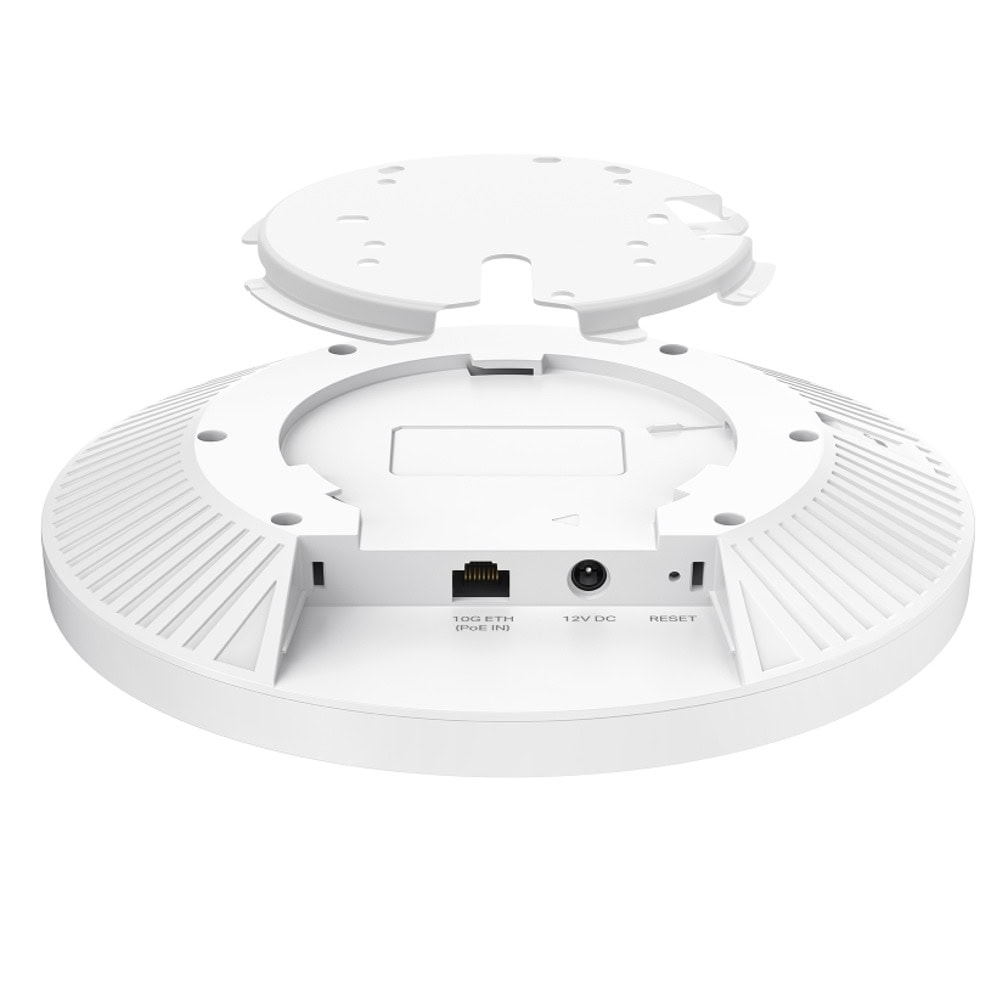

| Mounting | Ceiling / Wall / Junction Box Mounting (Kits Included) |
| Coverage | 2050 ft² (190 m²)* |
| Concurrent Clients | 510+** |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 6 GHz, 5 GHz, and 2.4 GHz |
| Signal Rate | 688 Mbps (2.4 GHz) + 8648 Mbps (5 GHz) + 5765 Mbps (6 GHz)† |
| Wireless Functions | • 320 MHz Bandwidth‡ • MLO‡ • 4K-QAM‡ • Multi-RUs‡ • Seamless Roaming (802.11k/v/r) • MU-MIMO‡ • Mesh△ • BSS Coloring‡ • OFDMA‡ • Load Balance • Band Steering • Beamforming • Airtime Fairness • Multiple SSIDs: 24 (8 on each band) • Wireless Schedule • Reboot Schedule • QoS (WMM) • Rate Limit • Static IP/Dynamic IP • RADIUS Accounting • MAC Authentication |
| Wireless Security | • Captive Portal Authentication△ • Access Control • MAC Filter • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • WPA-Personal/Enterprise • WPA2-Personal/Enterprise • WPA3-Personal/Enterprise |
| Transmission Power | • 4–25 dBm (2.4 GHz) • 7–29 dBm (5 GHz, U-NII-1 & U-NII-3) • 7–26 dBm (5 GHz, U-NII-2A) • 7–24 dBm (5 GHz, U-NII-2C) • 4–23 dBm (6 GHz) |
| Omada App | Yes |
| Centralized Management | • Omada Central (Cloud-Based) • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes (requires Omada controller) |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging (Local/Remote Syslog) | Yes |
| Web-based Management | Yes |
Виж още Аксеспойнт/Репитер Безжични TP-Link
Виж всички Аксеспойнт/Репитер Безжични в категорията
Технически характеристики
| Тип: | Аксес пойнт |
|---|---|
| Монтаж: | За вътрешен монтаж |
| Безжична скорост: | 15000 Mbps |
| Wi-Fi Стандарт: | Wi-Fi 7 (802.11be) |
| Честота: | 2.4 & 5 & 6 GHz |
| Антени: | 8 Вътрешни |
| dBi на антена/и: | 5 |
| PoE: | In |
| Интерфейс: | 1x 10000 |
| Други: | Няма |
