Name: Точка за достъп TP-Link Omada ER703WP-4G-Outdoor, 3000Mbps, 2.4GHz (574Mbps)/ 5GHz (2402Mbps), 3x 10/100/1000Mbps RJ45(PoE), 1x Nano SIM, 2x външни антени
Brand: TP-Link
SKU: NTWBTPLINKER703WP4GOUTDOOR
Price: 267.21 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Документация Вземи на изплащане

TP-Link Omada ER703WP-4G-Outdoor

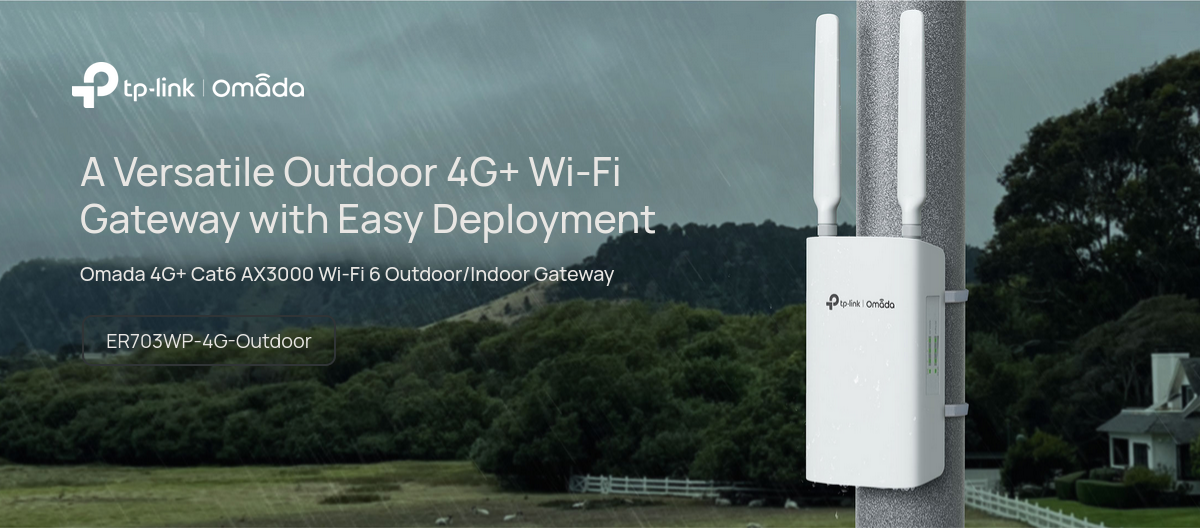

Omada 4G+ Cat6 AX3000 Wi-Fi 6 Outdoor/Indoor Gateway

4G+ Cat6 up to 300 Mbps*
AX3000 Wi-Fi 6 with 2402 Mbps on 5GHz and 574 Mbps on 2.4GHz†#
3 × Gigabit WAN/LAN Ports (2 × PoE Out, 1 × PoE In)
1 × Nano SIM Card Slot
802.3at/bt PoE or 12V/2A DC Power Supply
4G and Ethernet WAN Auto Backup with Load Balancing
IPSec/L2TP/PPTP/OpenVPN/GRE/WireGuard/SSL VPN§
Centralized Management
IP55 Weatherproofing

Specially Designed Weatherproof Enclosure for Outdoors

Rated as IP55 during Ingress Protection testing, a resilient weatherproof enclosure protects the gateway against harsh outdoor conditions.

Category	Specification
4G Network Type	LTE Band of EU: FDD: B1/B3/B5/B7/B8/B20/B28/B32TDD: B38/B40/B41
3G Network Type	DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8
Carrier Aggregation	Multiple combos including B1+B1, B3+B3, B7+B7, B8+B32, etc.
SIM Type	1× Nano SIM Card
4G Speeds	Downlink: 300 MbpsUplink: 50 Mbps
Security (СИГУРНОСТ)	DPI app control, IP filtering, ARP inspection, DoS attack defense
Interfaces	3× Gigabit WAN/LAN Ports
Media Support	10/100/1000BASE-T, UTP cat 3–6, 100m max
Button	Reset Button
Power	802.3at/bt PoE; 12VDC / 2A Adapter
Wi-Fi Signal Rate	2.4 GHz: 574 Mbps 5 GHz: 2402 Mbps (HE160)
Memory	Flash: 256 MB NANDDRAM: 512 MB DDR4
LED Indicators	4G Signal, WLAN, WAN/LAN, SYS
Dimensions	174.8 × 100.4 × 38.7 mm (Antenna not included)
Antennas	Wi-Fi: 2× dual-band internal LTE: 2× 4.0 dBi omnidirectional detachable
Mounting	Pole/Wall-Mount
Power Consumption	PoE: 62.9W maxDC: 16.6W max
DPI Throughput	TCP: 1131 MbpsUDP: 974 Mbps
GRE	Unencrypted: 450.3 MbpsEncrypted: 277.6 Mbps
WireGuard VPN	462.8 Mbps
Concurrent Sessions	120,000
New Sessions/sec	3,800
NAT Performance	Static IP: 945.9 / 950.2 MbpsDHCP: 947.3 / 949.4 MbpsPPPoE: 916.9 / 946.3 MbpsL2TP: 878.9 / 778.9 MbpsPPTP: 852.2 / 775.9 Mbps
IPsec VPN Throughput	SHA1: 568.3 MbpsSHA256: 559.8 MbpsSHA384: 565.6 MbpsSHA512: 550.0 Mbps
VPN Throughputs	OpenVPN: 85.1 MbpsL2TP: 858.7 / 467.0 MbpsPPTP: 876.2 / 182.6 MbpsSSL VPN: 86.6 Mbps
Packet Forwarding	66 Byte: 1,453,489 pps1518 Byte: 81,275 pps
Wireless Features	Seamless Roaming, Mesh, OFDMA, Beamforming, MU-MIMO, WPA/WPA2/WPA3, Airtime Fairness, SSID limit: 16
Guest Network	Supported
Basic Functions	Static/Dynamic IP, PPPoE, PPTP, L2TP, MAC Clone, DHCP, SMS, IPv6, VLAN, IPTV
Advanced Features	Access control, Static/Policy Routing, RIP, OSPF, Bandwidth Control, Load Balancing, NAT, Session Limit
VPN Support	GRE, SSL VPN (50), IPsec VPN (100), PPTP (50), L2TP (50), OpenVPN (55), WireGuard (20)
Authentication	Password, Hotspot, Radius, Portal, LDAP
Management	Omada App, Cloud Controller, SNMP, CLI, Syslog, Scheduled Reboot, Captive Portal, Device Discovery
Cloud Access	Yes
DDNS Services	Dyndns, No-IP, Peanuthull, Comexe, Custom
Certificates	CE, FCC, RoHS
Package Contents	ER703WP-4G-Outdoor, Mounting Kits, Quick Guide
System Requirements	Windows 98SE–11, Mac OS, NetWare, UNIX, Linux
Environment	Operating: -3060°C, 5–95% RHStorage: -4070°C, 5–90% RH

Виж още Аксеспойнт/Репитер Безжични TP-Link
Виж всички Аксеспойнт/Репитер Безжични в категорията

Документация

Ценова листа – Активно мрежово оборудване Omada by TP

Технически характеристики

Тип:	Аксес пойнт
Монтаж:	За външен/вътрешен монтаж
Безжична скорост:	3000 Mbps
Wi-Fi Стандарт:	Wi-Fi 6 (802.11ax)
Честота:	2.4 & 5 GHz
Антени:	2 Външни
dBi на антена/и:	4
PoE:	In & Out
Интерфейс:	3x 1000
Други:	Sim слот
