Name: Точка за достъп TP-Link EAP775-Wall, 9300Mbps, 2.4GHz (688Mbps)/ 5GHz (2882Mbps)/ 6GHz (5765Mbps), 1x 10/100/1000/2500Mbps RJ-45 Uplink, 1x 10/100/1000/2500Mbps RJ-45 Downlink, 3x 10/100/1000Mbps RJ-45 Downlink (2x PoE Out), 6x вътрешни антени
Brand: TP-Link
SKU: NTWBTPLINKEAP775WALL
Price: 277.10 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси

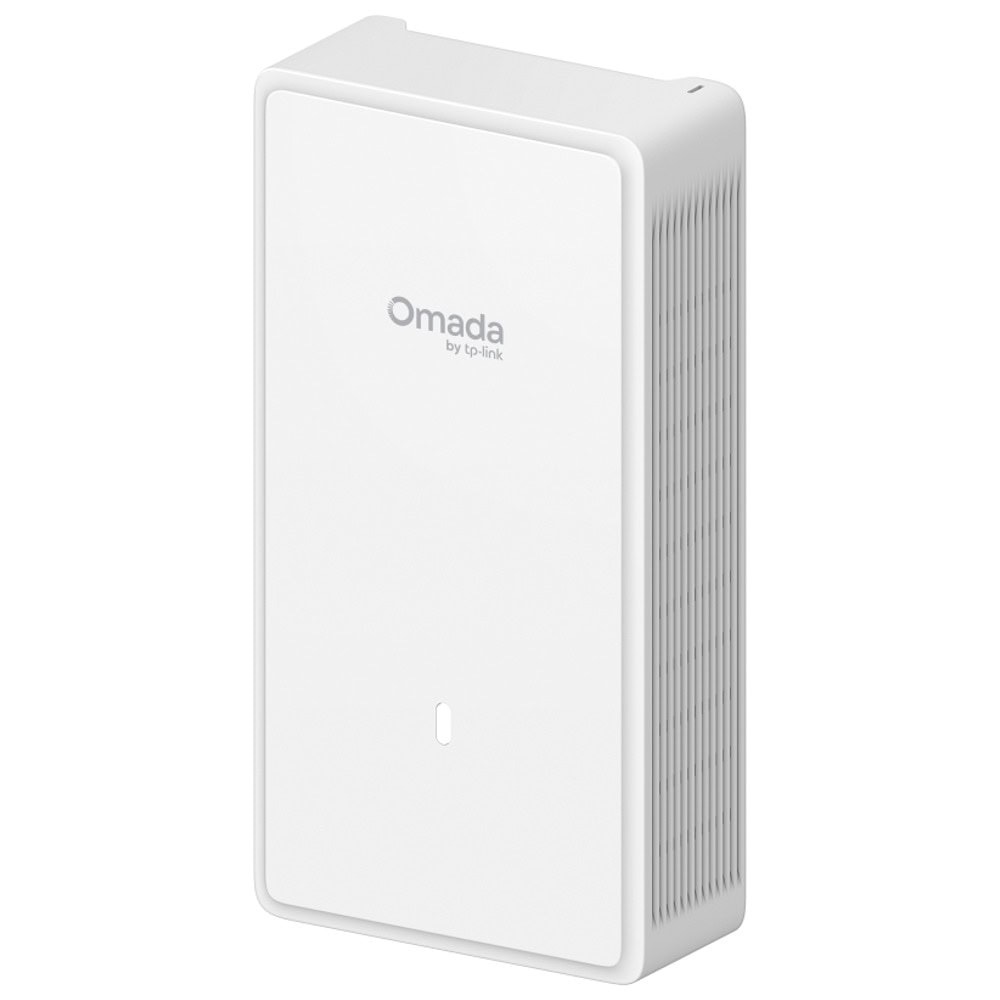

EAP775-Wall

BE9300 Wall Plate Wi-Fi 7 Access Point

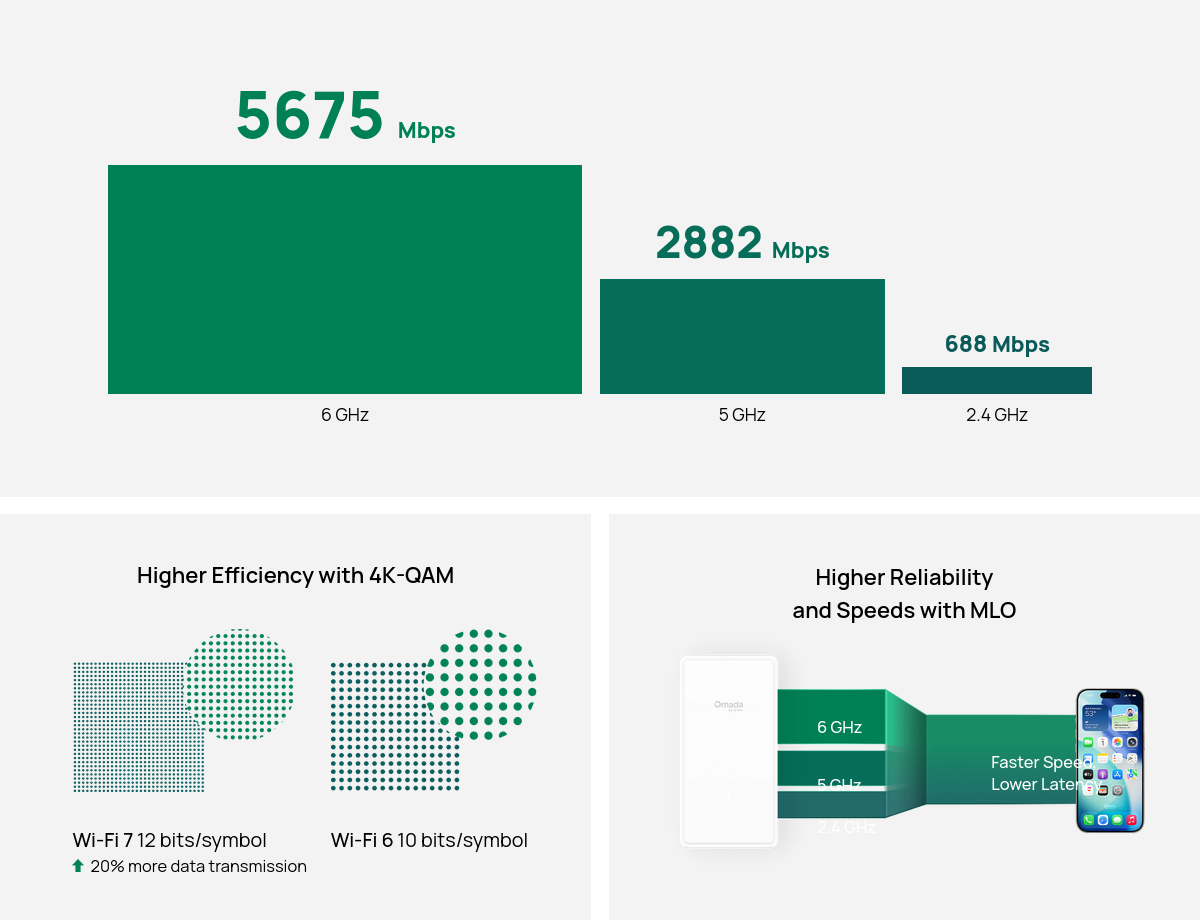

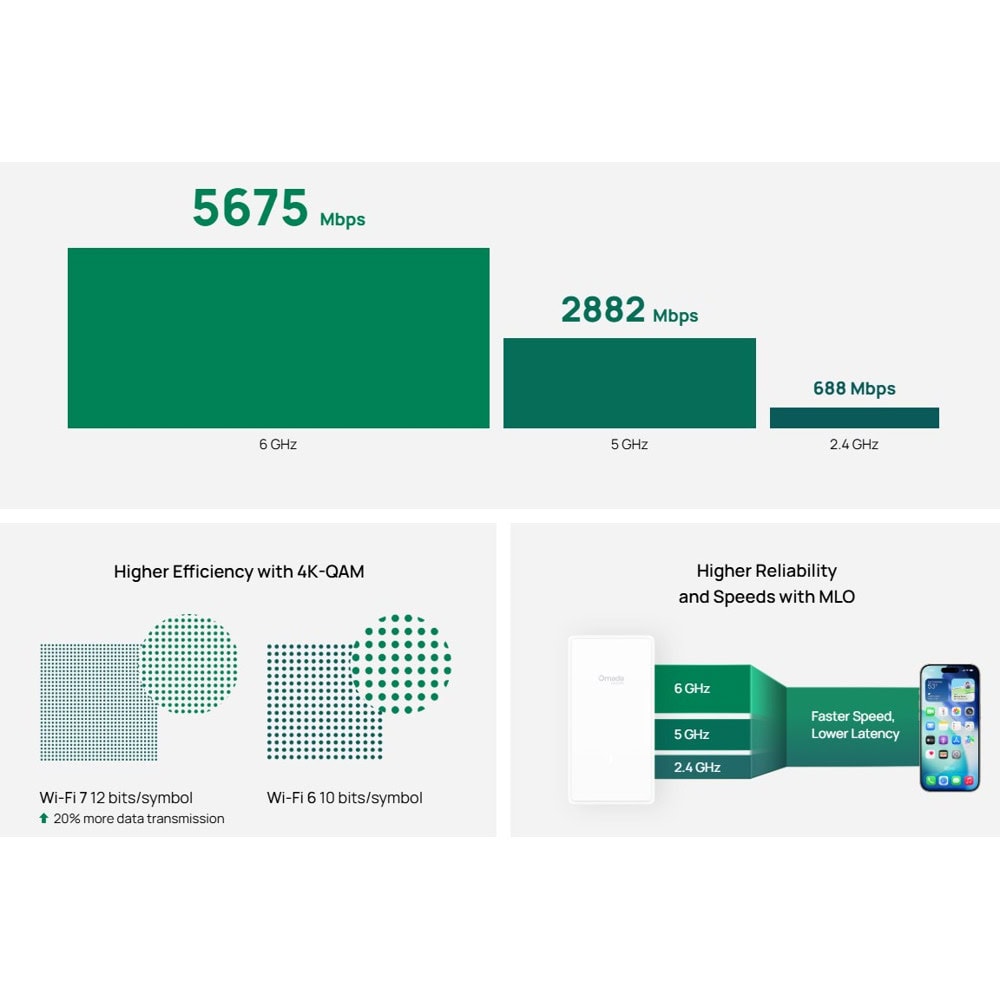

6-Stream Tri-Band Wi-Fi 7: 5765 Mbps on 6 GHz, 2882 Mbps on 5 GHz, and 688 Mbps on 2.4 GHz.

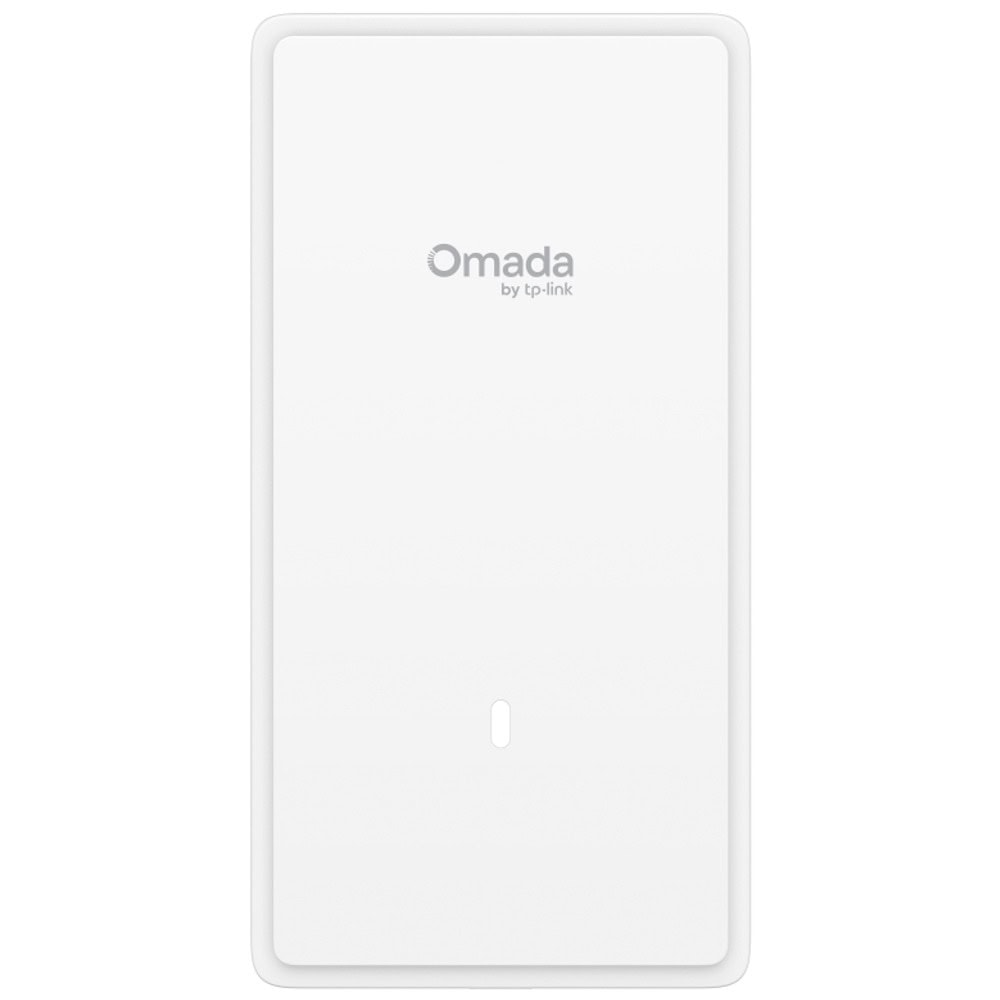

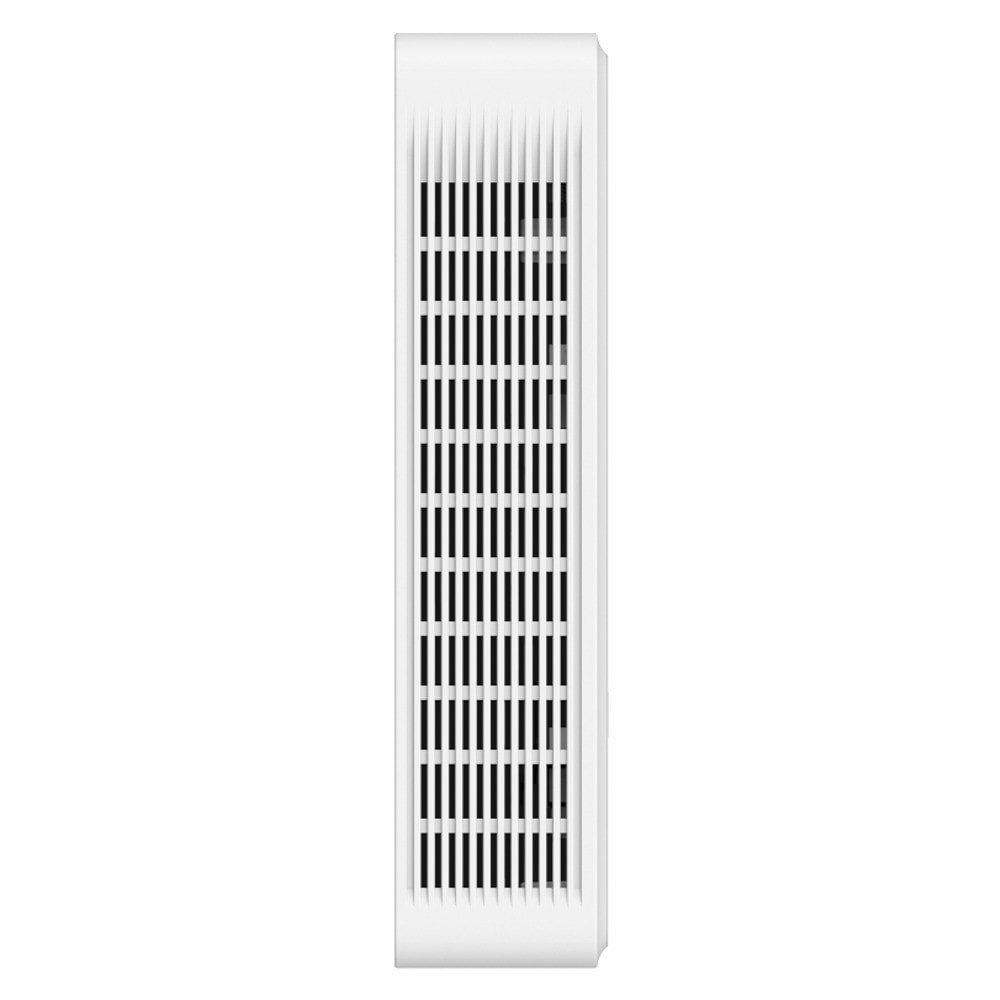

Versatile & Aesthetic Wall-Mounted Design: Slim, versatile wall-mounted design sits flush against the wall for a seamless look and reliable Wi-Fi 7 performance.
Made to Be Discreet with Additional Paintable Cover: Includes an additional paintable cover that blends seamlessly into any wall or interior style.
Anti-Theft Design for Robust Physical Security: Features a concealed anti-theft lock that secures the device flush against the wall, safeguarding your investment.

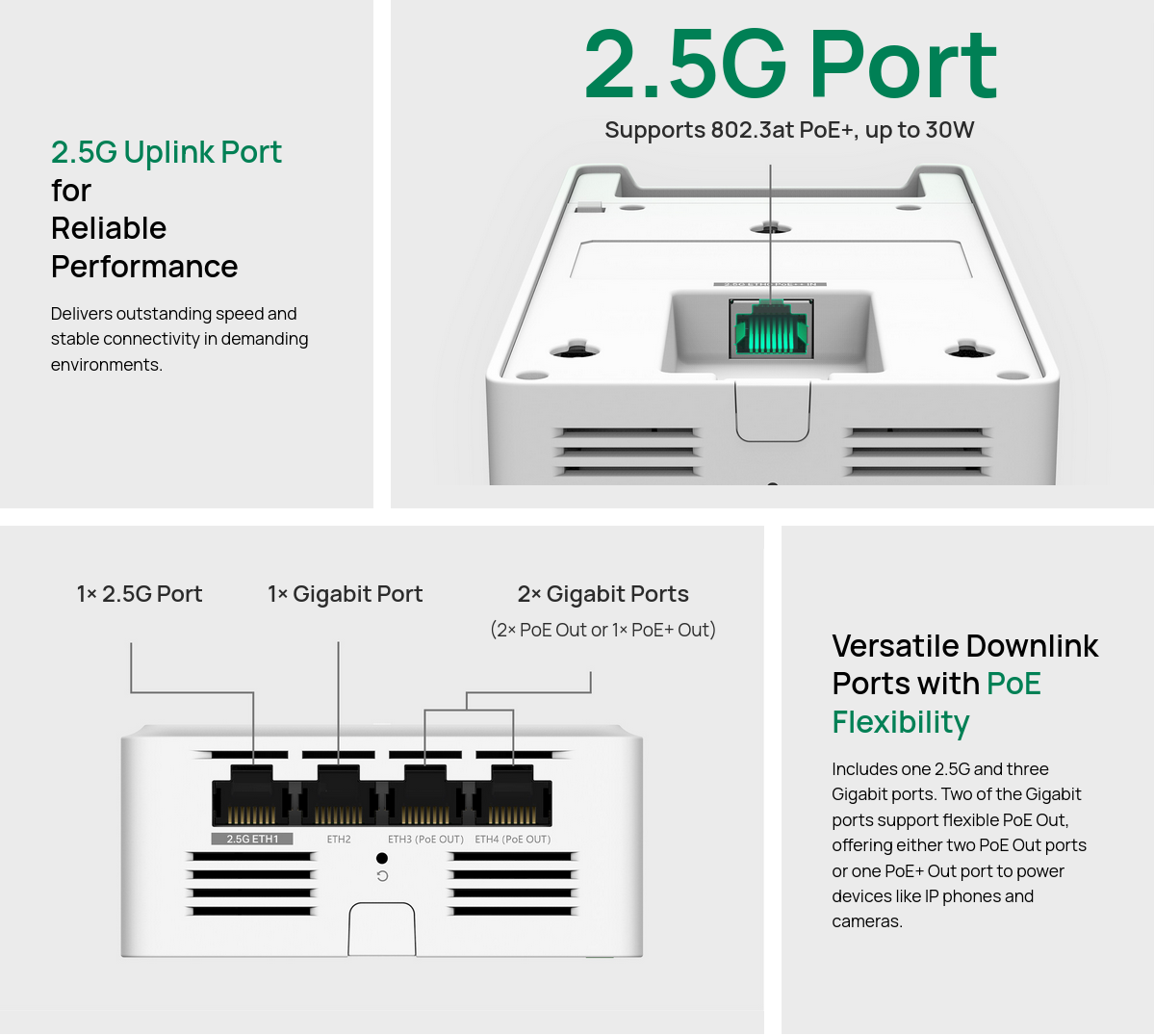

Multiple Ports with PoE Flexibility: 2× 2.5G Ports (1× PoE+/PoE++ In) + 3× Gigabit Ports (2× PoE Out or 1× PoE+ Out). The PoE out feature requires 802.3bt input.
Low Latency and Interference: Multi-Link Operation, Multi-RUs, and 4K-QAM ensure high performance for your network.
Easy Setup, Easy to Use: Works with Omada SDN for one-click setup.
Advanced Features: Supports centralized cloud management, mesh, and seamless roaming.
Complete In-Room Wi-Fi with More Connections: Supports 380+ concurrent connections** and covers up to 1050 ft² (100 m²) * for reliable and extensive wireless connectivity.

Optimized Wired Performance
with 2.5G PoE Ports

Параметър	Спецификация

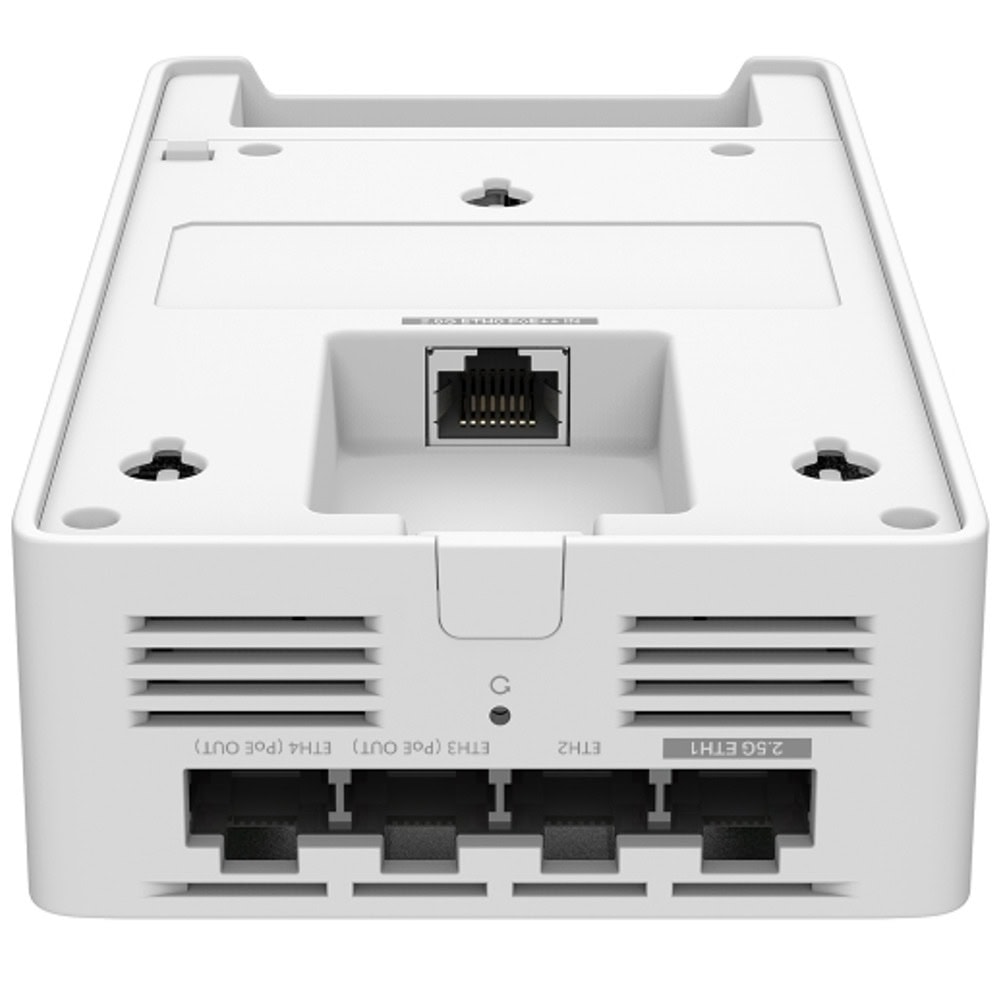

Интерфейс	• Uplink: 1× 2.5G Ethernet Port • Downlink: 1× 2.5G Ethernet Port + 3× Gigabit Ethernet Ports (Two Gigabit ports offer flexible PoE Out, providing either dual PoE or single PoE+ output. The PoE Out feature requires 802.3bt input.)
Защита с физическо заключване	Yes
Бутон	Reset
Захранване	802.3at/bt PoE
PoE Out	Two Gigabit ports offer flexible PoE Out, providing either dual PoE or single PoE+ output. The PoE Out feature requires 802.3bt input.
Консумирана енергия	43.35W (with 25W PoE Out)
Размери (Ш x Д x В)	6.8 × 3.6 × 1.6 in (172.9 × 91.2 × 41.3 mm)
Антена	6× Internal Antennas • 2.4 GHz: 2× 5 dBi • 5 GHz: 2× 5.5 dBi • 6 GHz: 2× 5.5 dBi
Bluetooth	V5.2

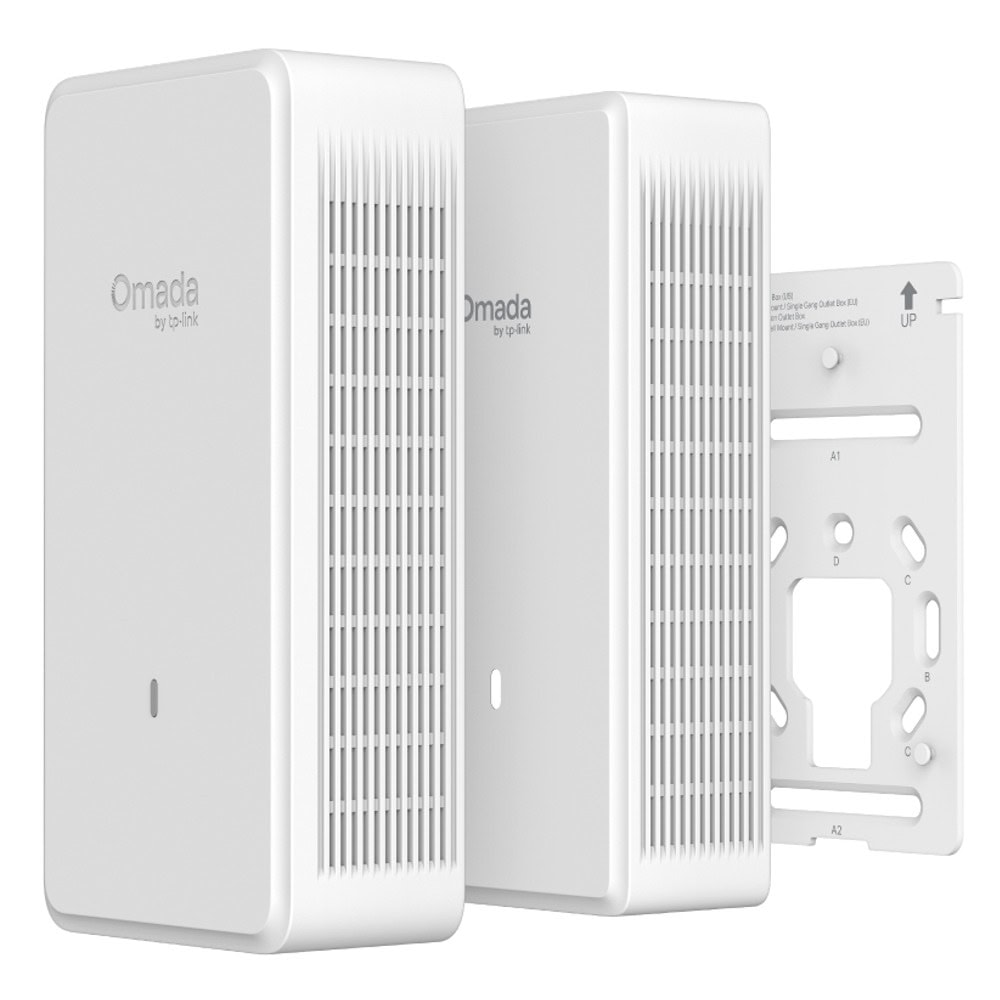

Монтаж	Wall Mounting (Kits included)
Coverage	1050 ft² (100 m²)*
Concurrent Clients	380+**
Безжични стандарти	IEEE 802.11 a/b/g/n/ac/ax/be
Честота	2.4 GHz, 5 GHz, and 6 GHz
Скорост на сигнала	• 6 GHz: Up to 5765 Mbps • 5 GHz: Up to 2882 Mbps • 2.4 GHz: Up to 688 Mbps
Безжични функции	• MLO‡ • 4K-QAM‡ • Multi-RUs‡ • 320 MHz Bandwidth‡ • 24 SSIDs (Up to 8 SSIDs on each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS (WMM) • Seamless Roaming△ • Beamforming • Rate Limit (Based on SSID/Client) • Load Balance • Airtime Fairness • Band Steering • Reboot Schedule • Wireless Schedule • RADIUS Accounting • MAC Authentication • Wireless Statistics • Static IP/Dynamic IP
Безжична сигурност	• Captive Portal Authentication△ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Предавателна мощност	6–20 dBm (2.4 GHz, ERIP) • 6–23 dBm (5 GHz, U-NII-1, U-NII-2A, ERIP) • 6–27.5 dBm (5 GHz, U-NII-2C, ERIP) • 6–23 dBm (6 GHz, ERIP)
Omada App	Yes
Centralized Management	• Omada Hardware Controller • Omada Software Controller • Omada Cloud-Based Controller
Cloud Access	Yes. Requiring the use of an Omada Controller.
Сигнали по електронна поща	Yes
Управление Вкл/Изкл на LED	Yes
Управление на контрола на достъпа по МАС адрес	Yes
SNMP	v1, v2c, v3
Влизане в системата Локално/Отдалечение	System Log
SSH	Yes
Уеб-базирано управление	Yes
L3 управление	Yes
Управление на множество сайтове	Yes
Управление на VLAN	Yes
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller.
Сертификати	CE, RoHS
Системни изисквания	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux

Виж още Аксеспойнт/Репитер Безжични TP-Link
Виж всички Аксеспойнт/Репитер Безжични в категорията

Технически характеристики

Тип:	Аксес пойнт
Монтаж:	За вътрешен монтаж
Безжична скорост:	9300 Mbps
Wi-Fi Стандарт:	Wi-Fi 7 (802.11be)
Честота:	2.4 & 5 & 6 GHz
Антени:	6 Вътрешни
dBi на антена/и:	5.5
PoE:	In & Out
Интерфейс:	4x 2500
Други:	Няма
