TP-Link Omada DS106GPP

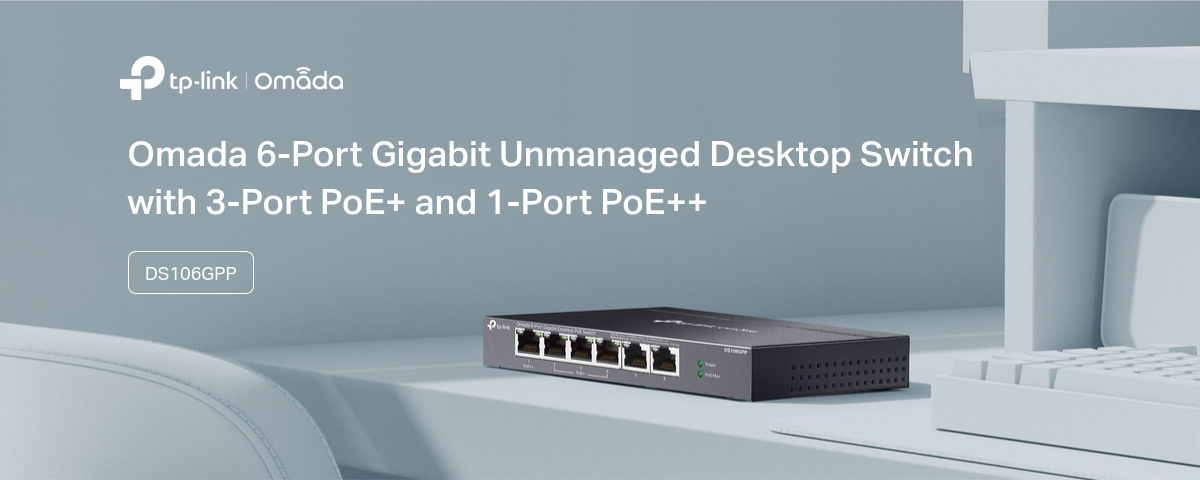

Omada 6-Port Gigabit Unmanaged Desktop Switch with 3-Port PoE+ and 1-Port PoE++
- 6× 10/100/1000 Mbps RJ45 ports

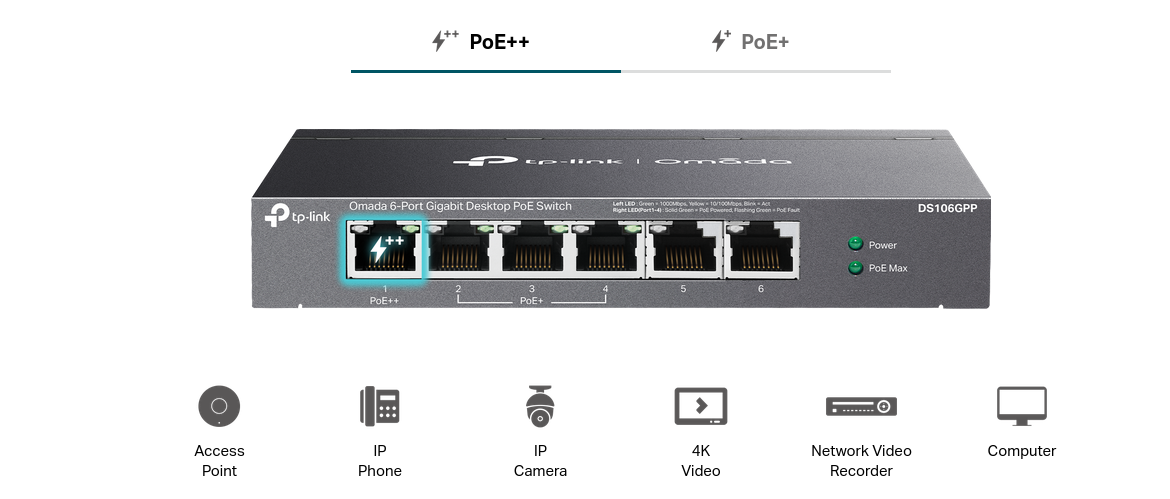

- With one PoE++ port and three PoE+ ports, transfers data and power on one single cable
- Works with IEEE 802.3af/at/bt compliant PDs
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE Power up to 30 W for each PoE+ port and 60W for PoE++ port
- Supports PoE Power up to 64 W for all PoE ports
- Up to 250m (820ft) data and power transmitting range under Extend Mode
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Plug and Play. No configuration or central management required.


Power over Ethernet, Flexible Network Deployment
Compliant with the IEEE 802.3af/at/bt PoE standards, the switch supports a total PoE power budget of 64 W with 30 W
max per PoE+ port and 60 W max per PoE++ port. When total power consumption exceeds 64 W, the intelligent power
management will cut the lower priority ports power to protect devices from damage.

| HARDWARE FEATURES | |
|---|---|
| Interface | • 6× 10/100/1000Mbps RJ45 Ports • AUTO Negotiation • AUTO MDI/MDIX |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter (Output: 53.5 VDC / 1.31 A) |
| Packet Forwarding Rate | 8.928 Mpps |
| PoE Ports (RJ45) | • Port 1 compliances with 802.3af/at/bt; Ports 2-4 compliance with 802.3af/at • Power Supply: 64 W |
| Mac Address Table | 4K |
| Switching Capacity | 12 Gbps |
| Dimensions ( W x D x H ) | 6.2x4.0x1.0 in (158x101x25 mm) |
| Max Power Consumption | • 4.75 W (220/50 Hz. no PD connected) • 71.46 W (220/50 Hz. with 64 W PD connected) |
| Max Heat Dissipation | • 16.20 BTU/h (220/50 Hz. no PD connected) • 243.68 BTU/h (220/50 Hz. with 64 W PD connected) |
| SOFTWARE FEATURES | |
|---|---|
| Advanced Features | • Compatible With IEEE 802.3af/at/bt Compliant PDs • Mac Address Auto-Learning And Auto-Aging • IEEE 802.3x Flow Control • 802.1p/DSCP QoS • IGMP Snooping • Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission) • PoE Auto Recovery (Ports 1-4) |
| Transfer Method | Store-And-Forward |
Виж още Суич TP-Link
Виж всички Суич в категорията
| Брой портове: | 6 |
|---|---|
| Максимална скорост: | 1 Gbit/s |
| Стандарт: | IEEE 802.3z |
| Управляем: | Не |
